At a Glance
- >Straight-style weld-on hinge
- >Grease fitting for lubrication and reduced creaking
- >Raw steel finish

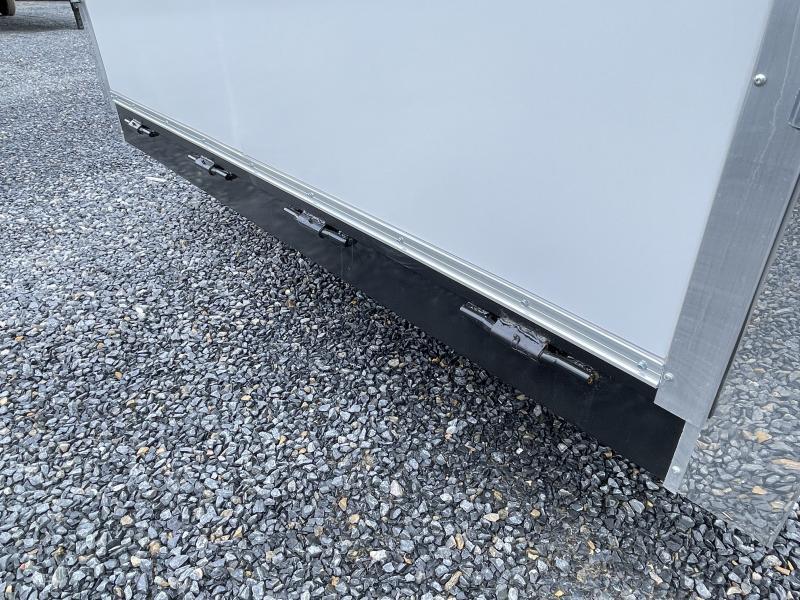

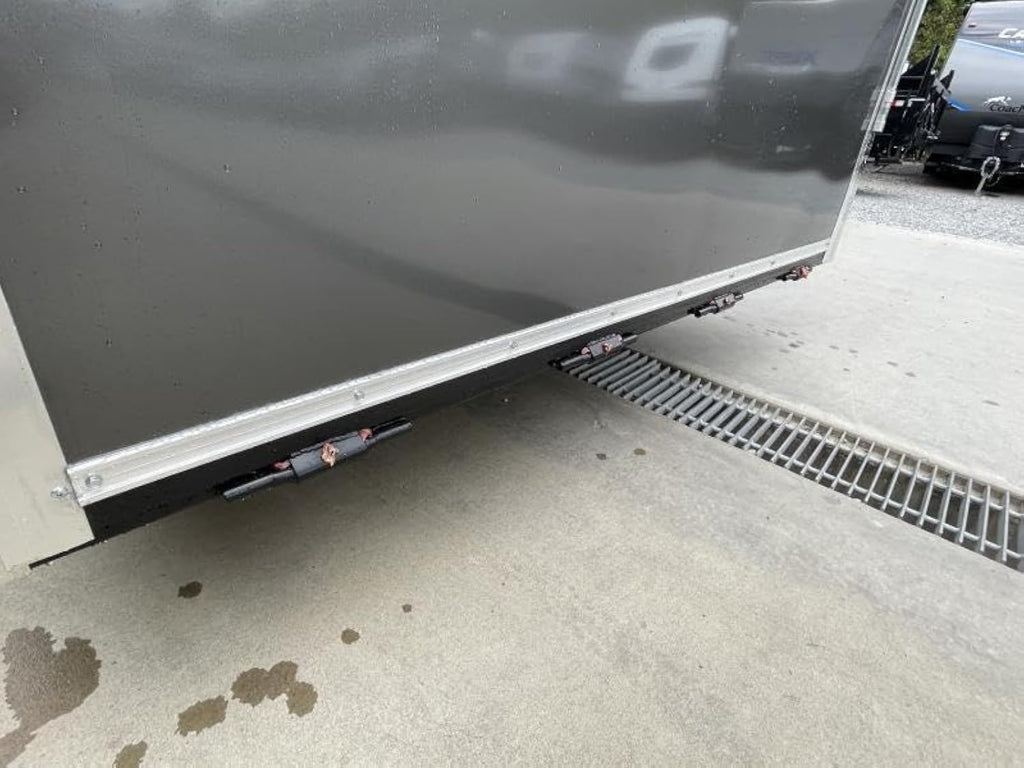

- >Suitable for ramp doors and fabricated door assemblies
- Brand: Jammy
- SKU: TDRH03
Before You Order
Match the part number, measurements and connection points that apply to your trailer.
Fitment Check
| Dimensions | Measure the original hardware and mounting centers. |
|---|---|
| Orientation | Confirm direction where applicable. |
| Hardware | Confirm keeper, hinge and latch compatibility. |
Product Details

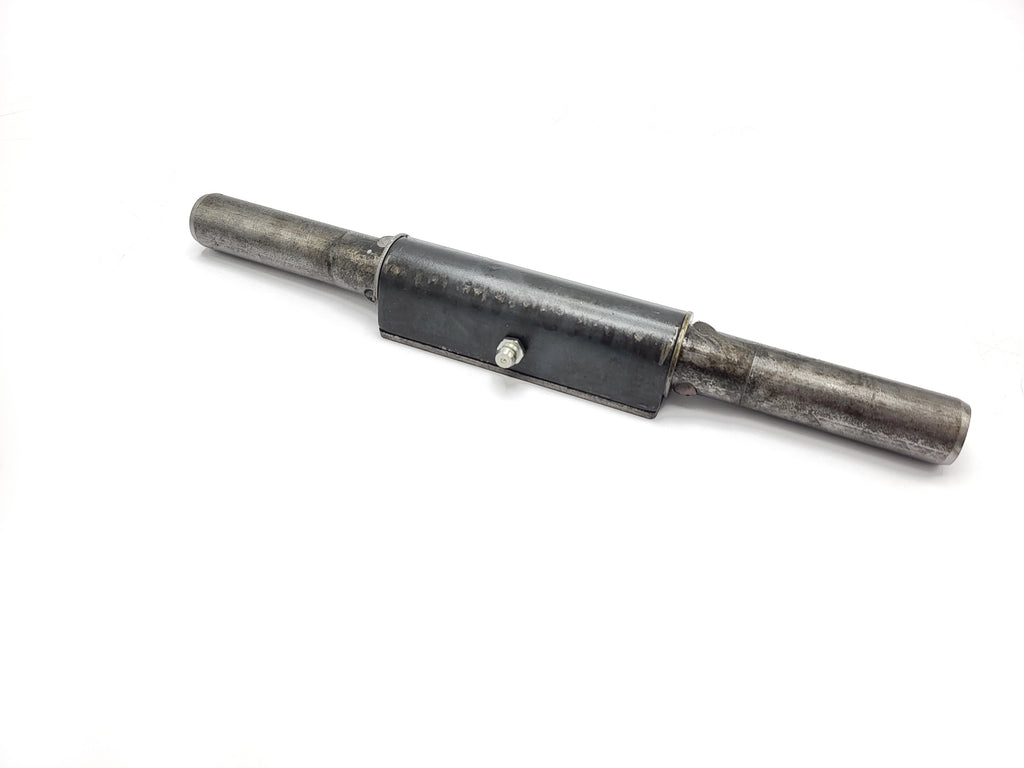

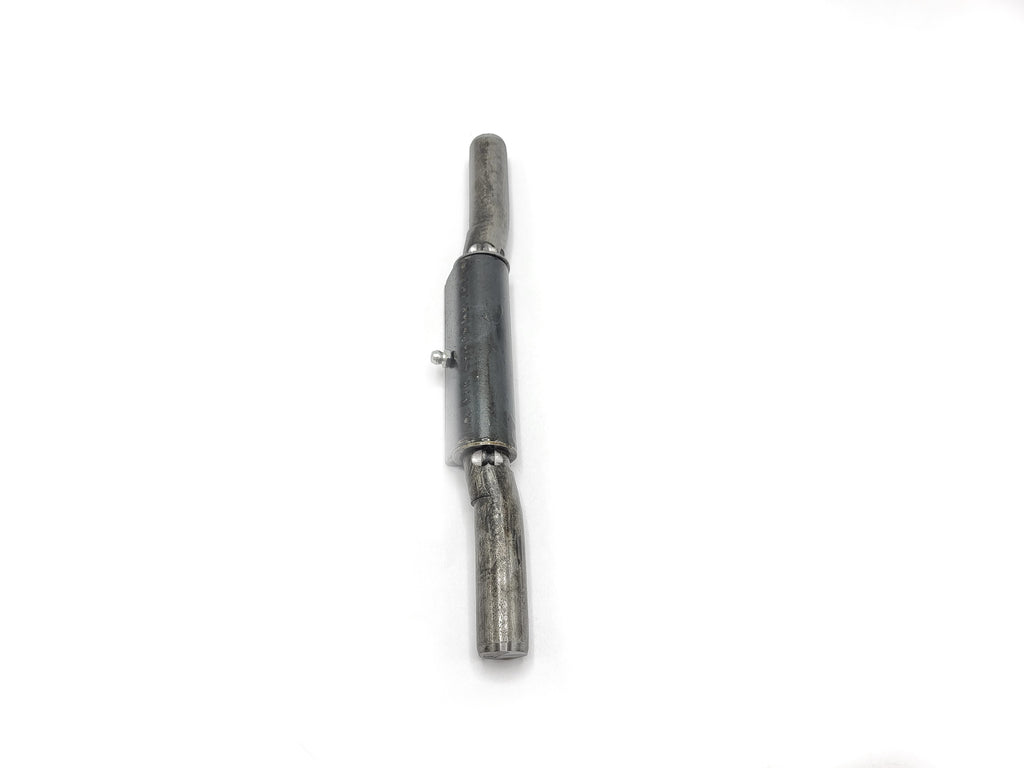

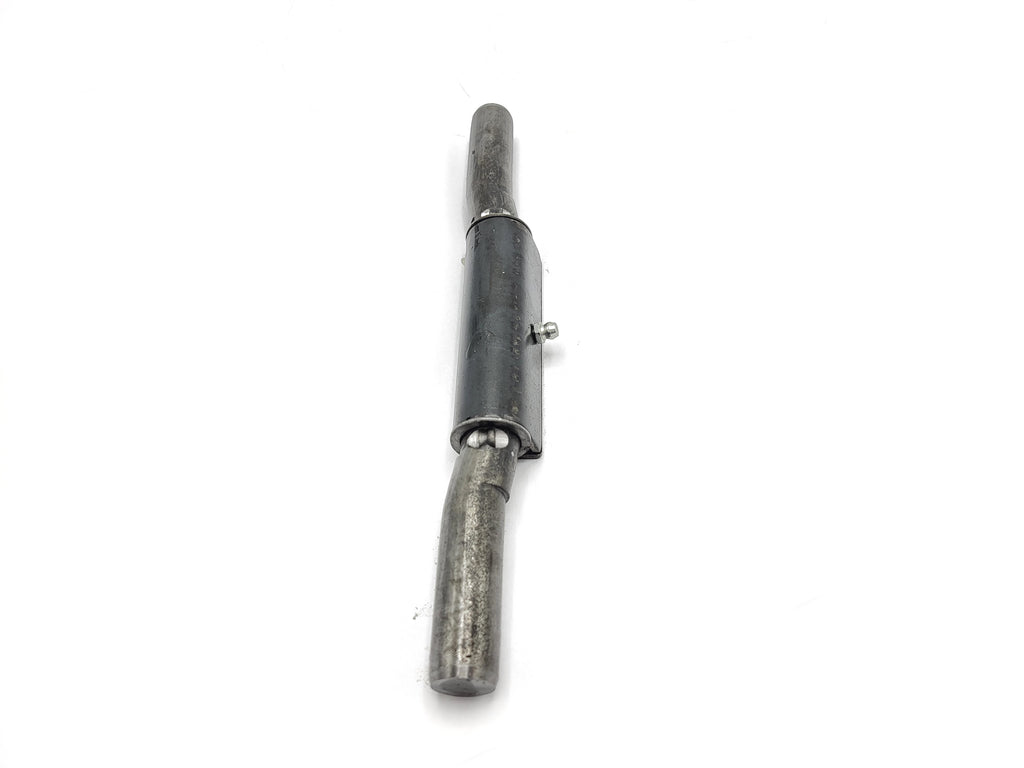

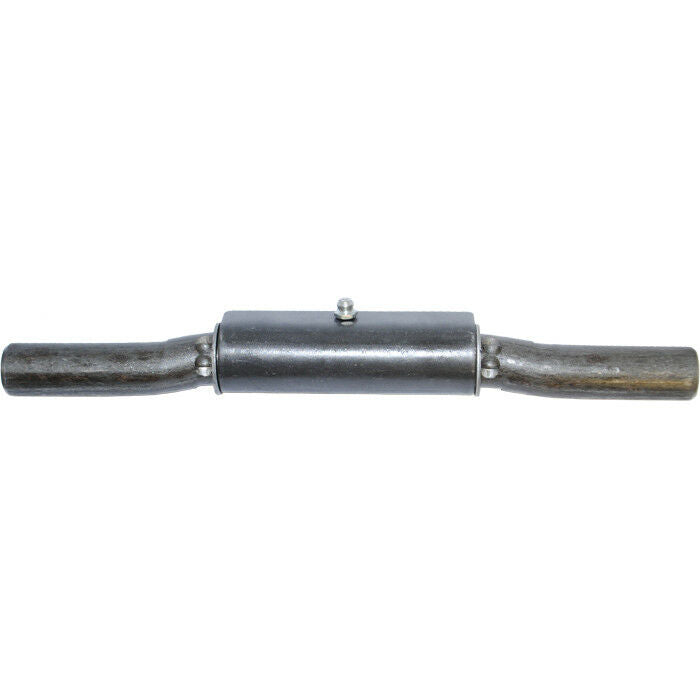

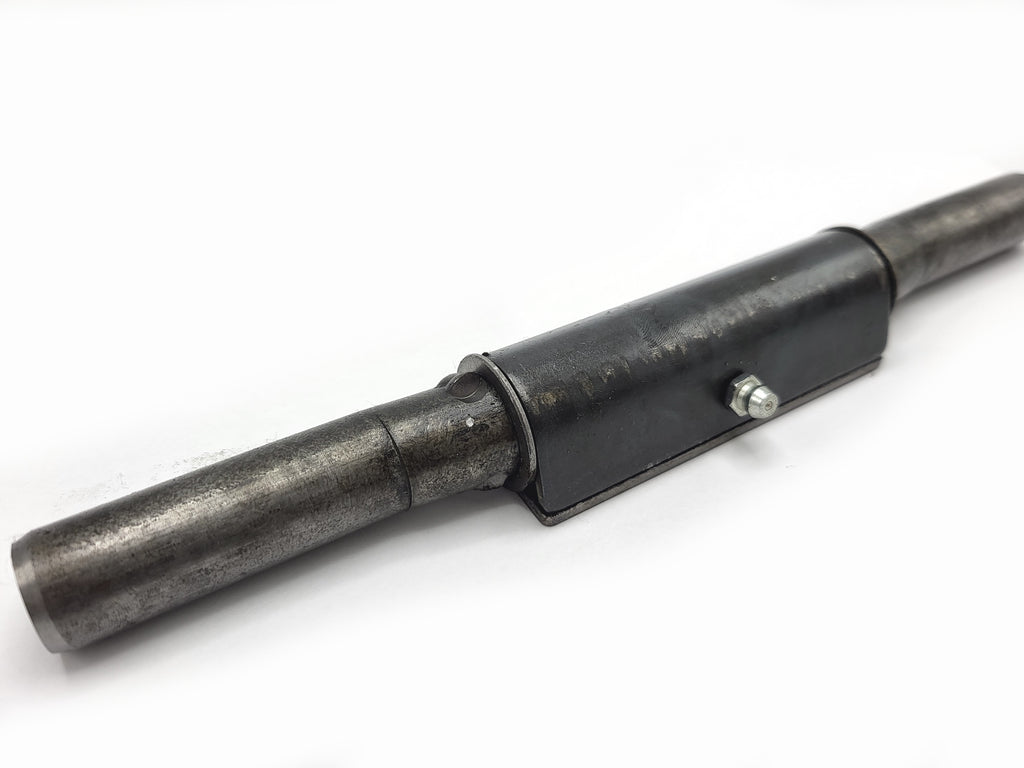

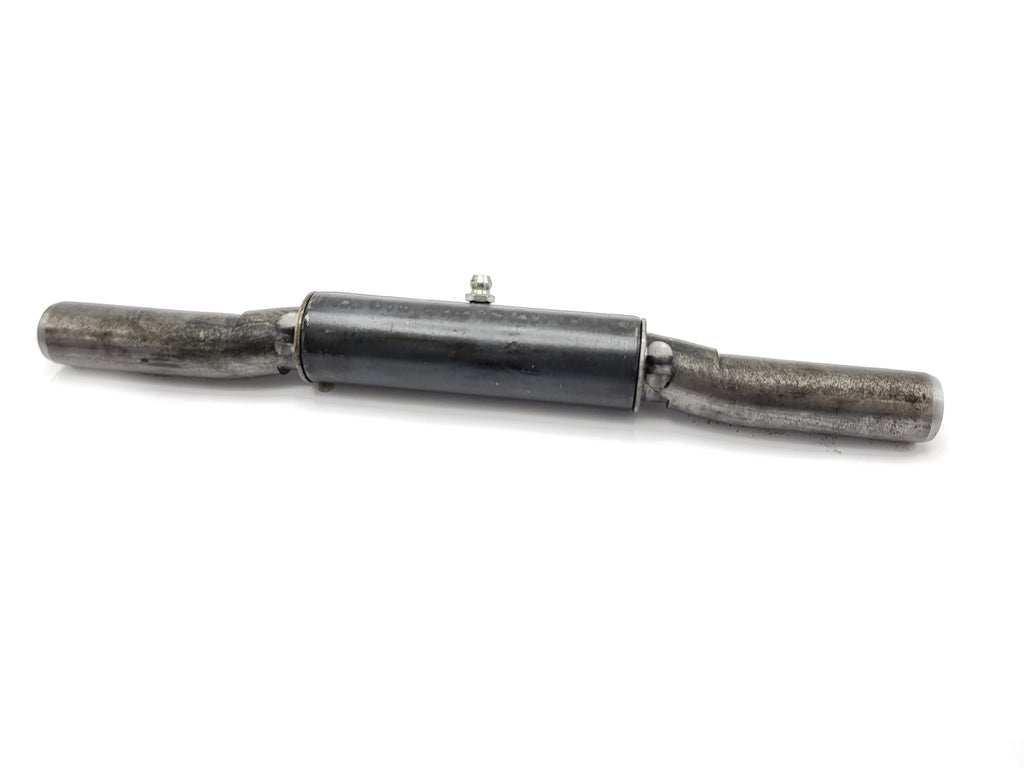

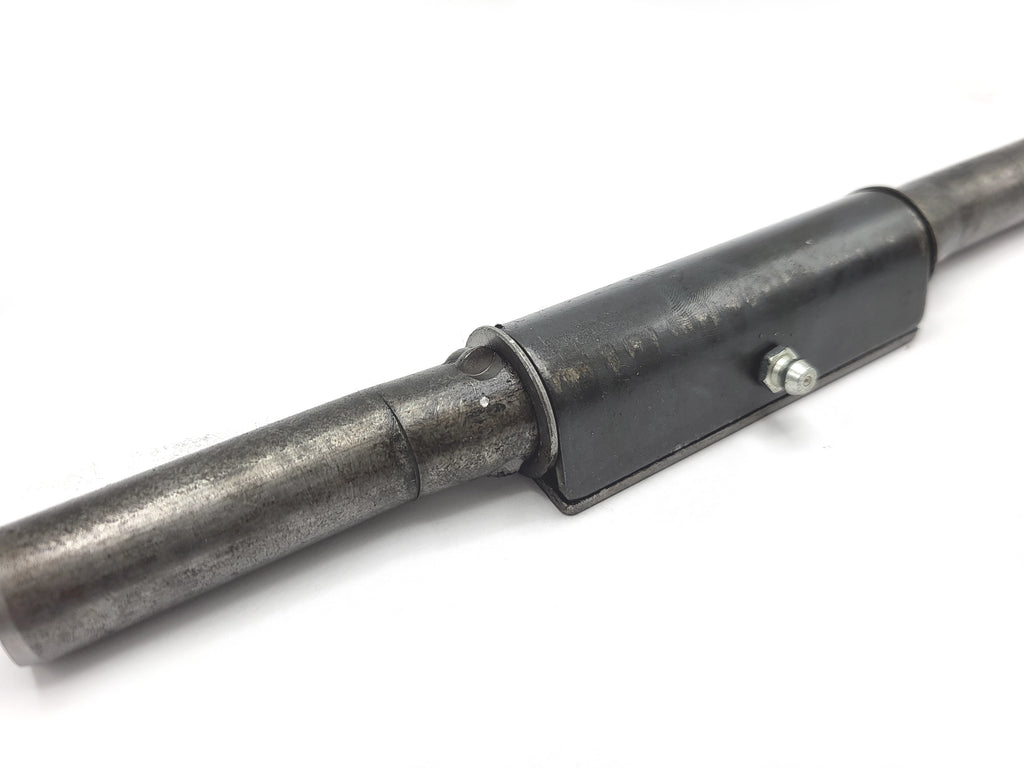

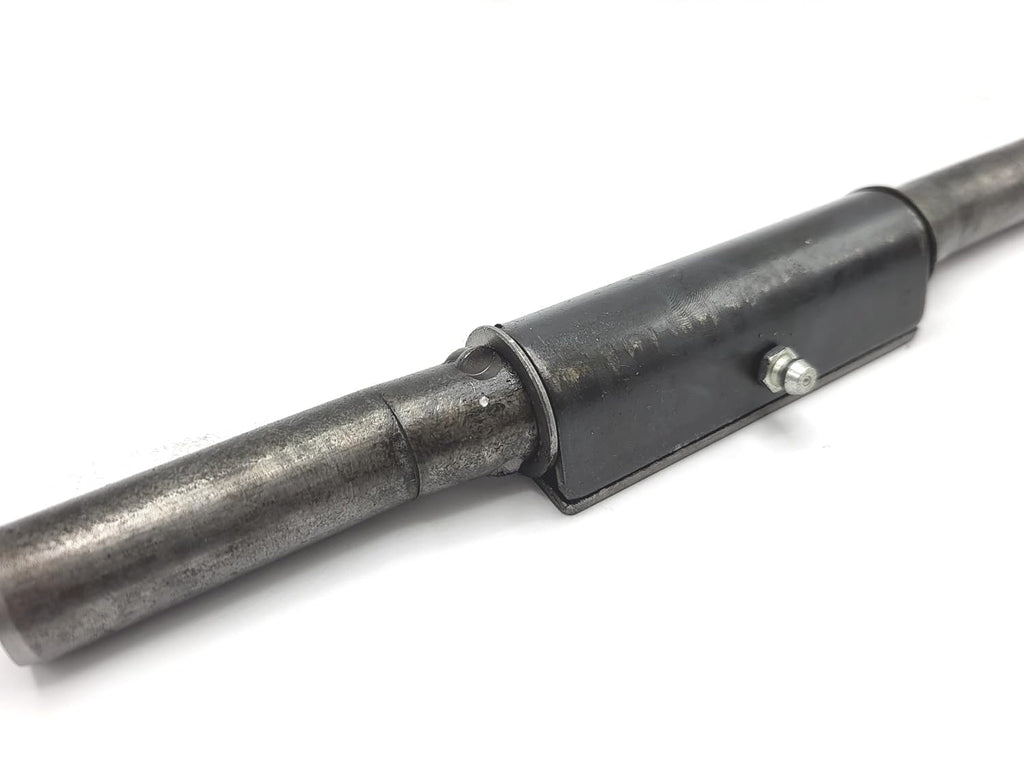

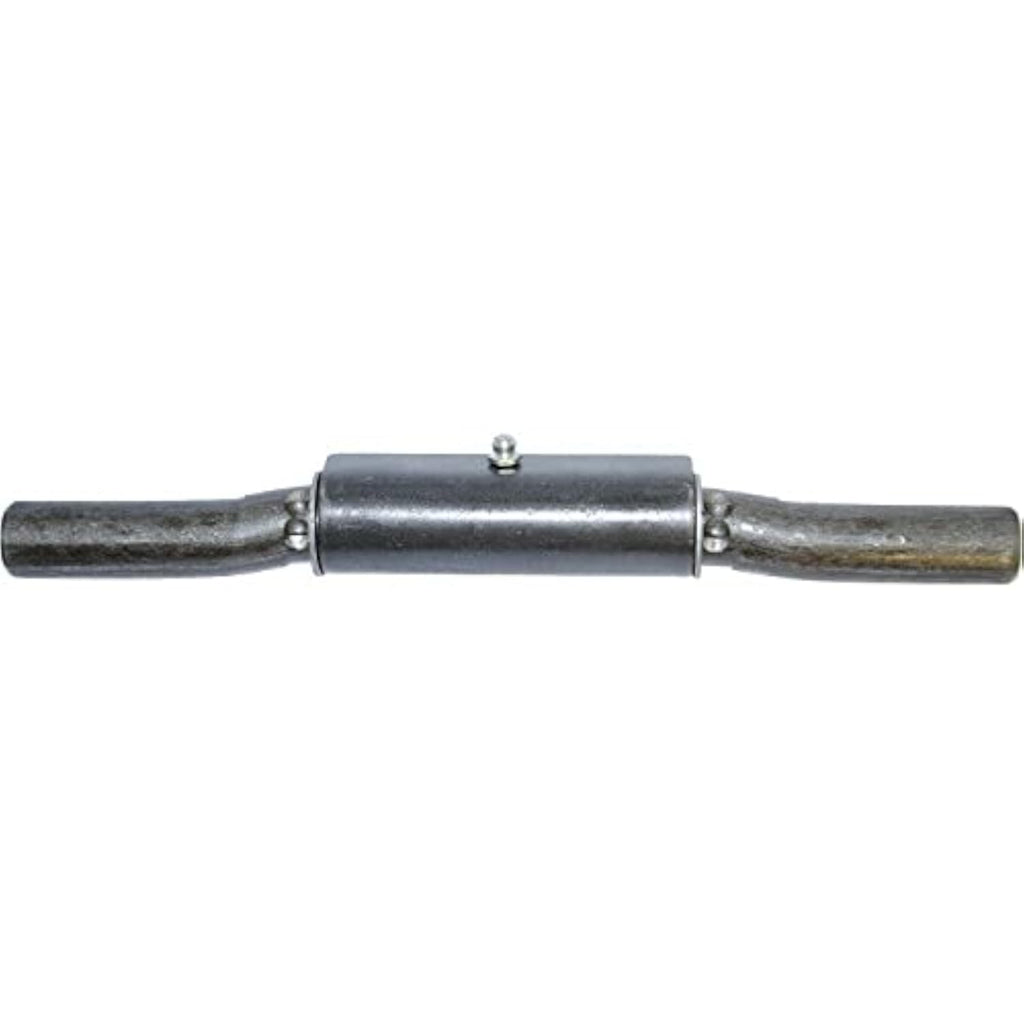

Straight Style Weld-On Door Hinge
Part Number: Not Specified
Straight-style weld-on hinge intended for trailer ramp doors and similar applications. Designed with an integrated grease fitting to reduce noise and support long-term operation.
Features
- Straight-style weld-on hinge

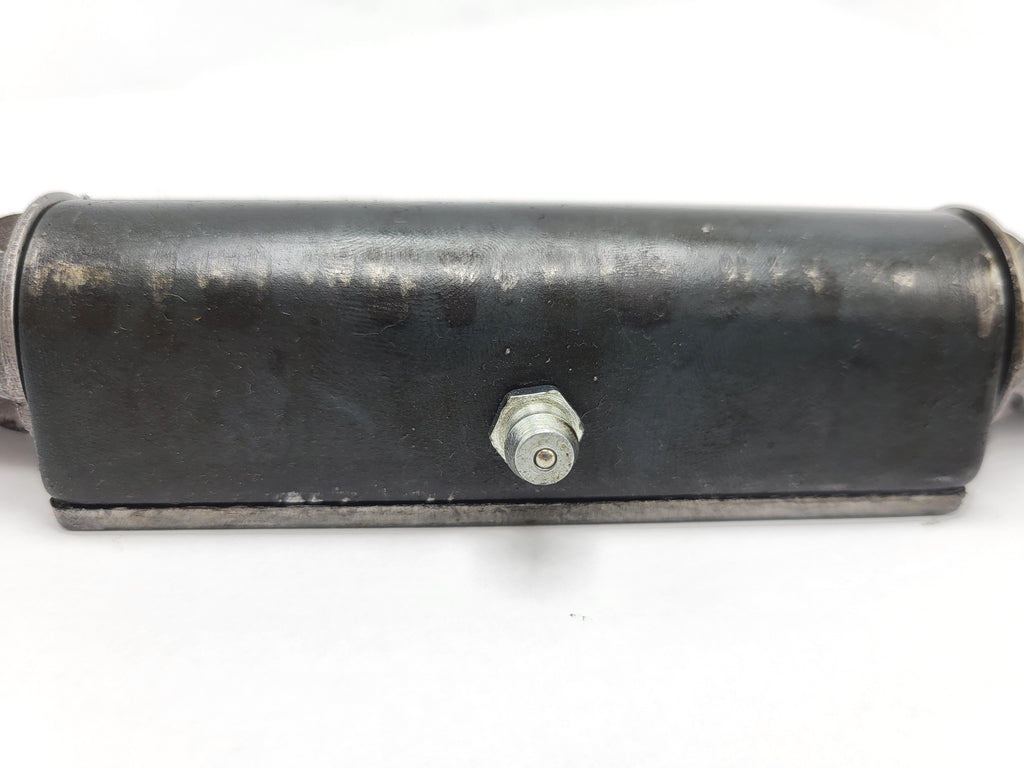

- Grease fitting for lubrication and reduced creaking
- Raw steel finish
- Suitable for ramp doors and fabricated door assemblies

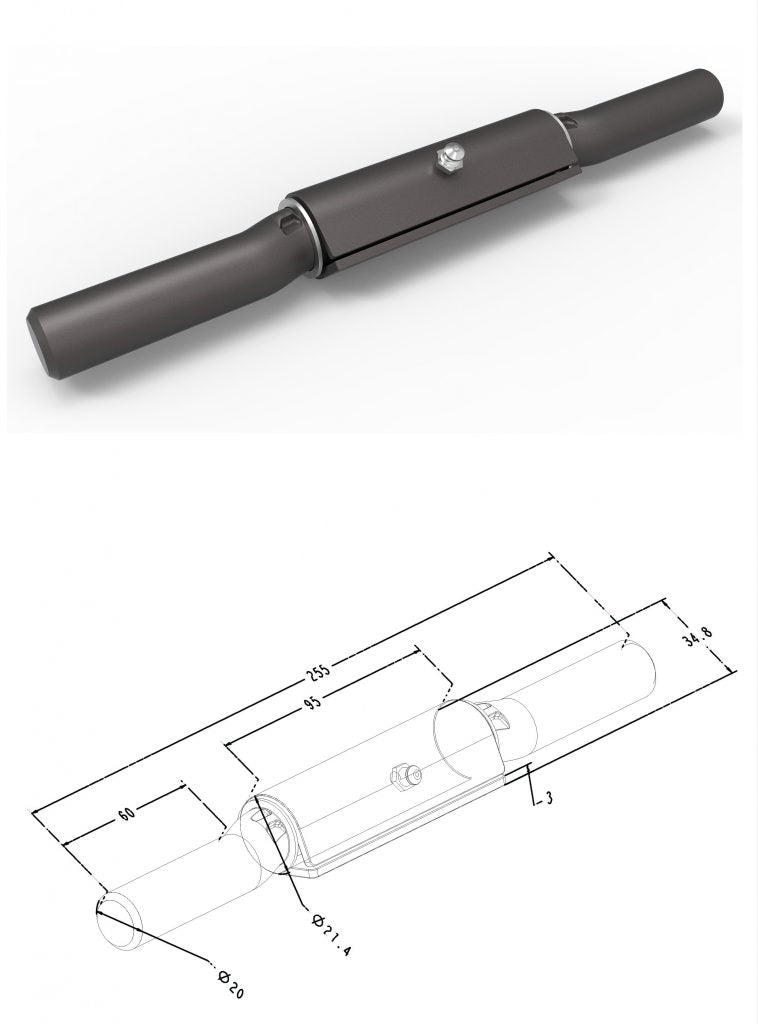

Specifications
| Overall Length | 10" |
|---|---|
| Hinge Width | 1" |
| Hinge Pin Diameter | 0.78" |
| End Piece Length | 3" each |
| Center Section Length | 1.74" (with grease fitting) |
| Finish | Raw steel |
Verify specifications before installation.
