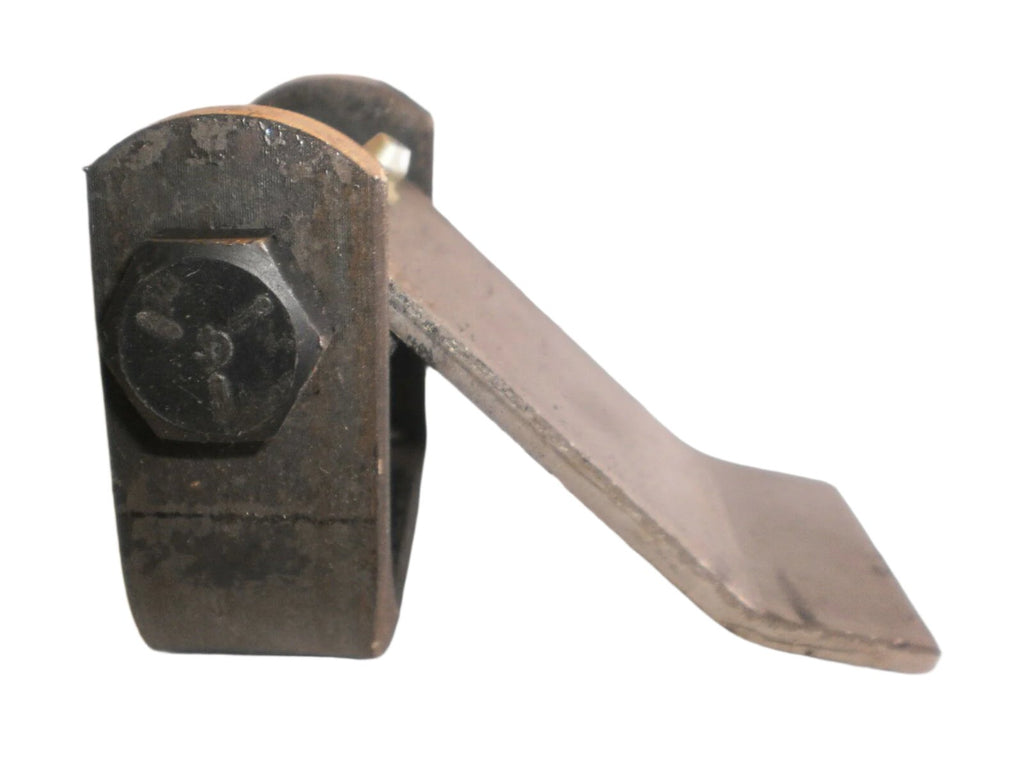

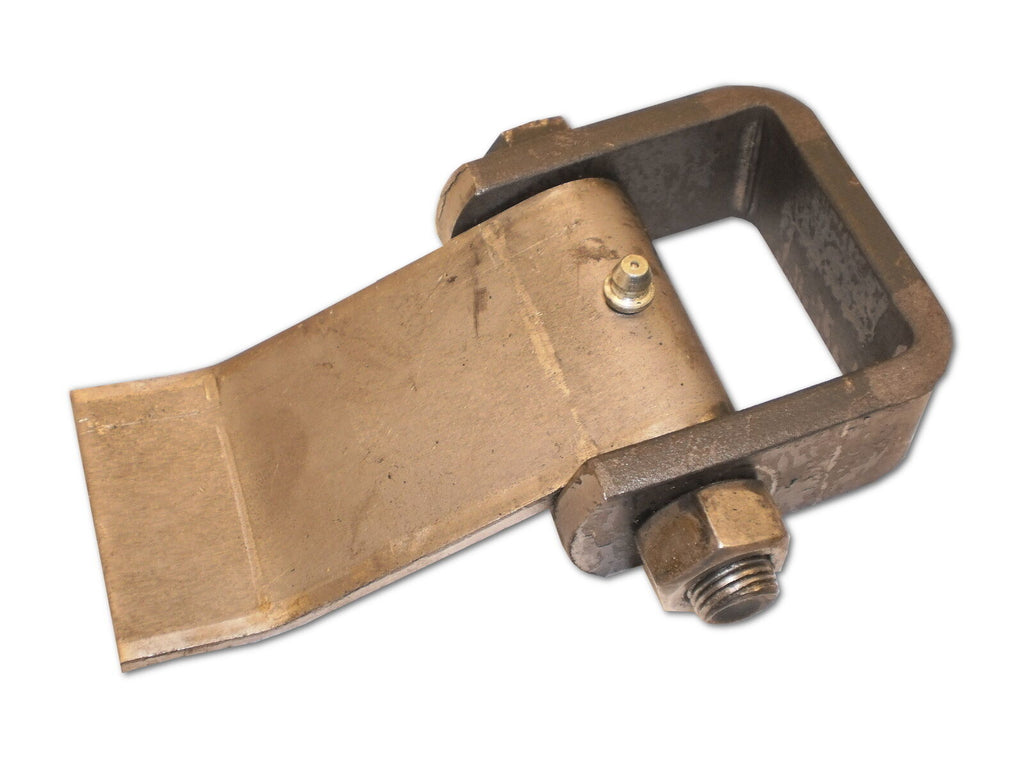

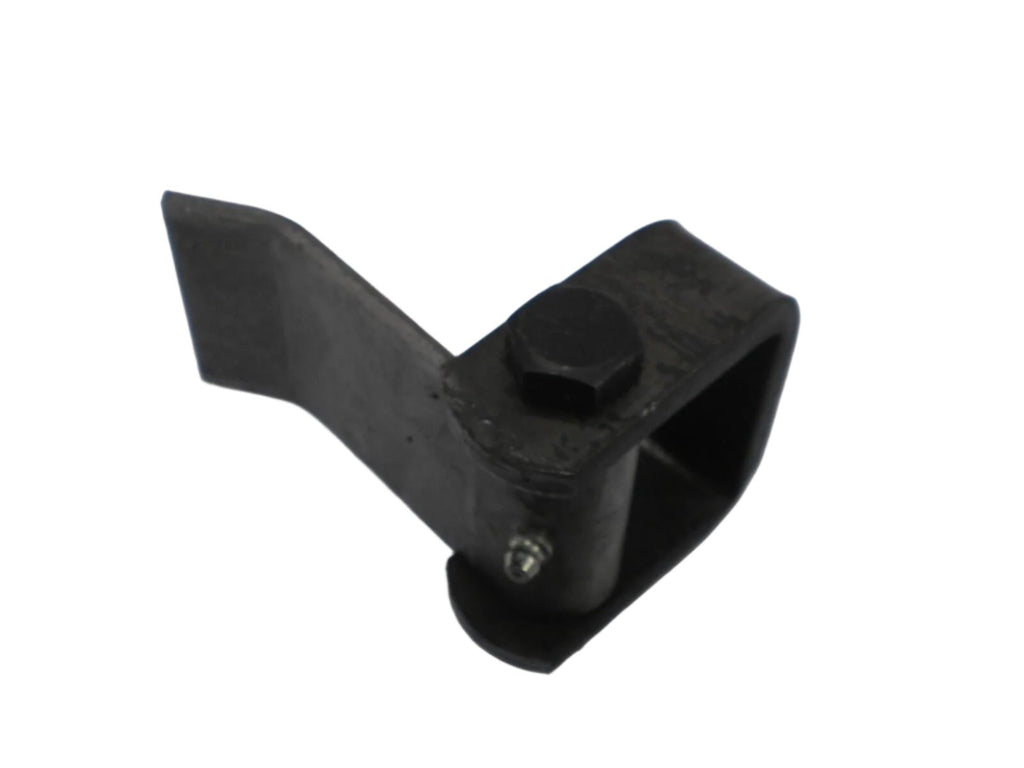

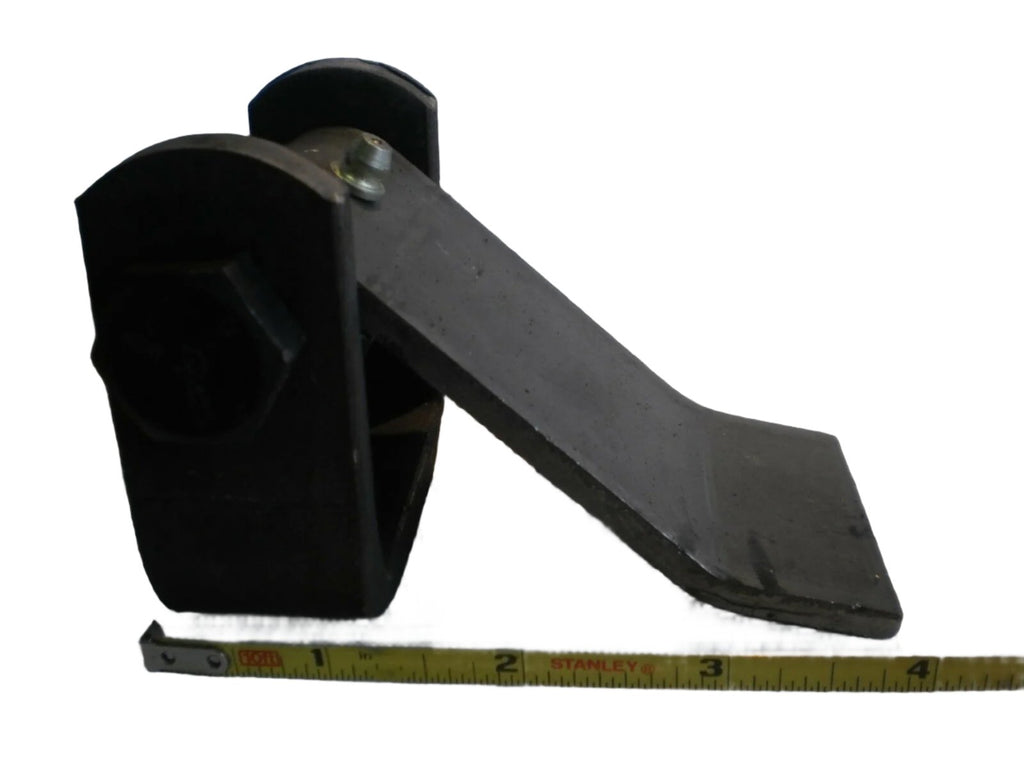

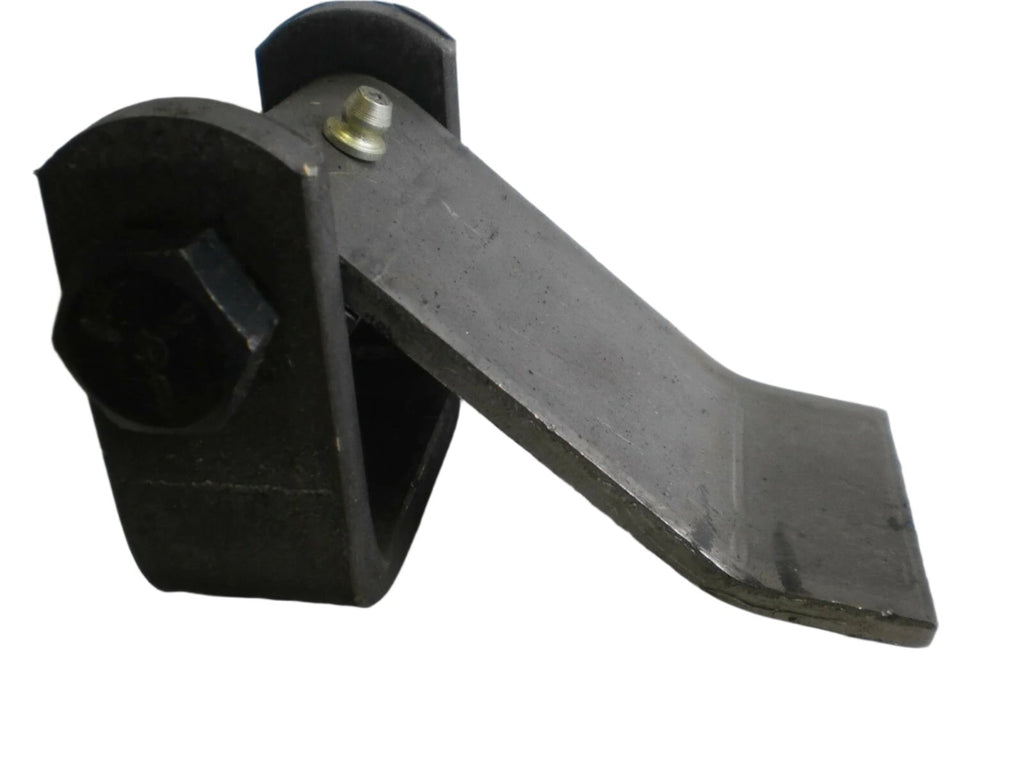

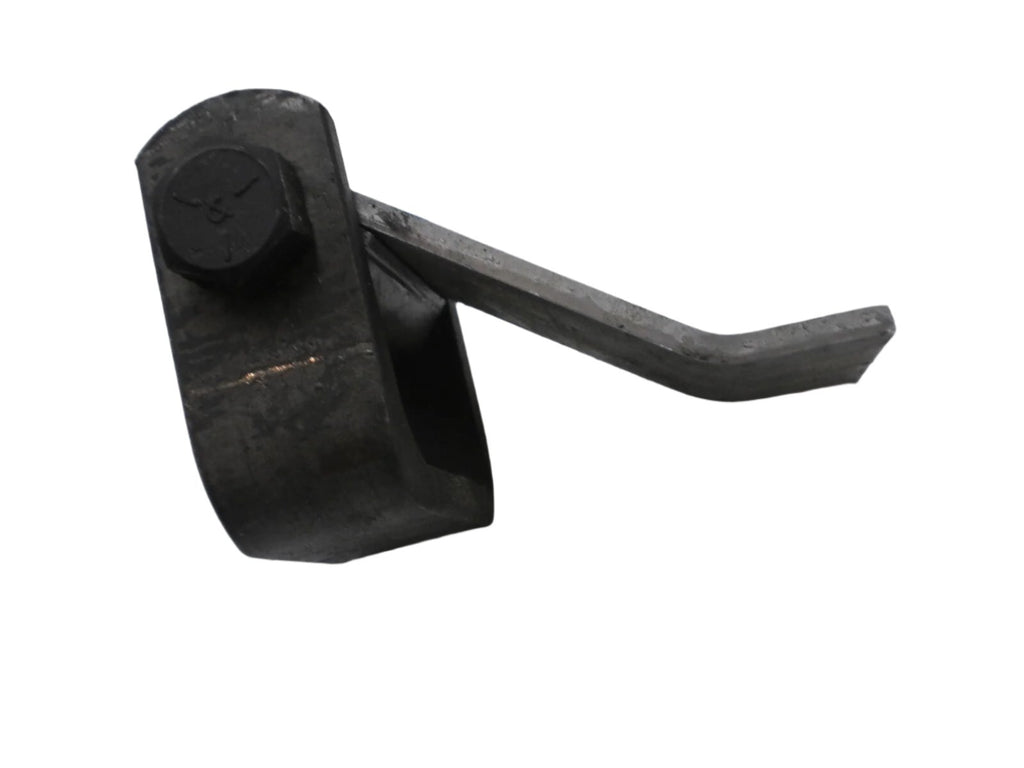

Industrial-grade raw steel weld-on hinge designed for the high-stress environment of dump trailers and freight doors, featuring a built-in grease fitting to prevent seizing.
The DH-2 is the industry standard for "loose-tolerance" hinges, engineered to maintain smooth operation even if a trailer frame flexes or twists under heavy loads. This R&P Carriages weld-on hinge is a high-quality industrial solution designed for applications where standard precision hinges might bind. Its raw steel construction allows for immediate, deep-penetrating welds, making it the top choice for manufacturers and repair shops dealing with heavy-duty tailgate assemblies.
Ensure a long service life for your tailgate assembly with these professional installation tips:
Compatibility: Universal weld-on design for steel frames and tailgates; cross-ref 7356 / TLU32-0004.
Vehicle / System Fit: Dump trailers, Horse trailers, Freight trucks, and Service bodies.

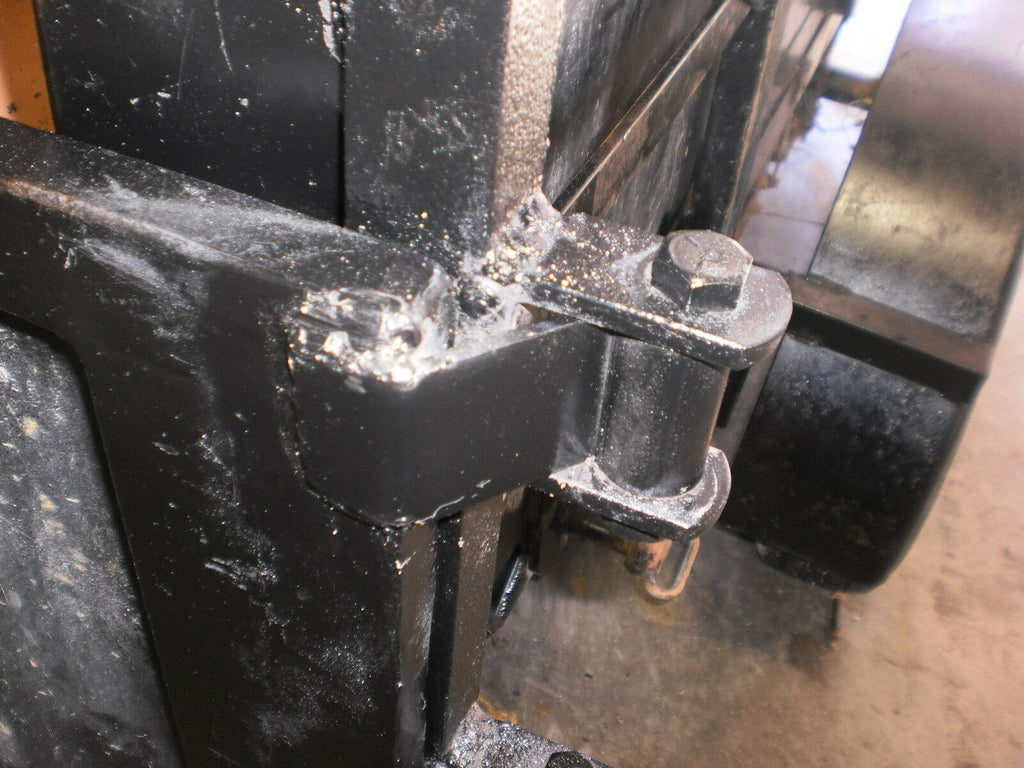

Installation Notes: Multiple hinges must be aligned along the same vertical or horizontal axis to ensure smooth rotation.
Performance Insight: Heavy 5/16" to 3/8" steel plate thickness ensures the hinge will not deform under the weight of heavy tailgates or ramps.
Selling Brand: R&P Carriages / DH-2 Series
Application Reference: Any OEM or platform names in this listing describe compatibility, fitment target, or application style only where supported by verified dimensions and configuration details.
What This Means: This listing is for a heavy-duty aftermarket industrial component designed for OEM-style dump and utility applications.
Before Ordering: Verify dimensions and clearance requirements. This product arrives as raw steel and requires paint or coating after installation to prevent surface rust.
Before ordering, check your existing hinge dimensions to ensure a proper replacement fit.
Allows for easy lubrication to prevent corrosion and seizing in high-moisture or high-grit environments.
Prevents gate binding caused by frame flex or minor installation misalignment during high-stress use.
Constructed from 5/16" to 3/8" thick raw steel for industrial-strength durability and deep weld penetration.
Allows tailgates and doors to swing completely out of the way for unobstructed loading and unloading.

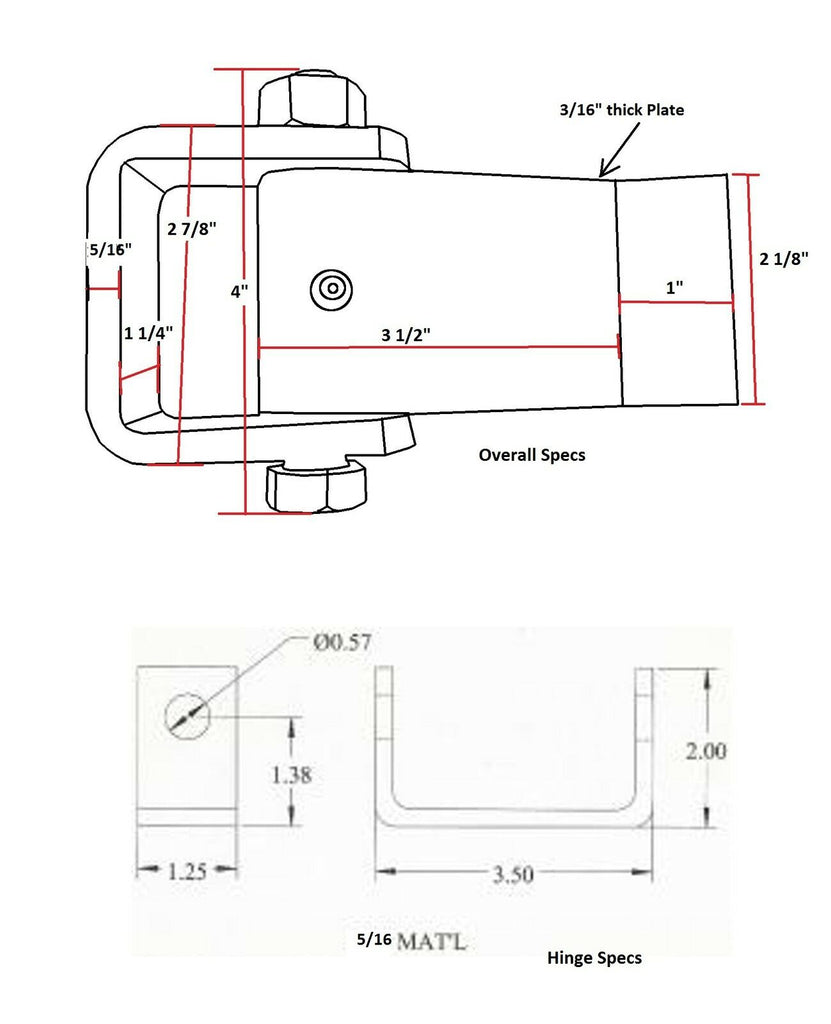

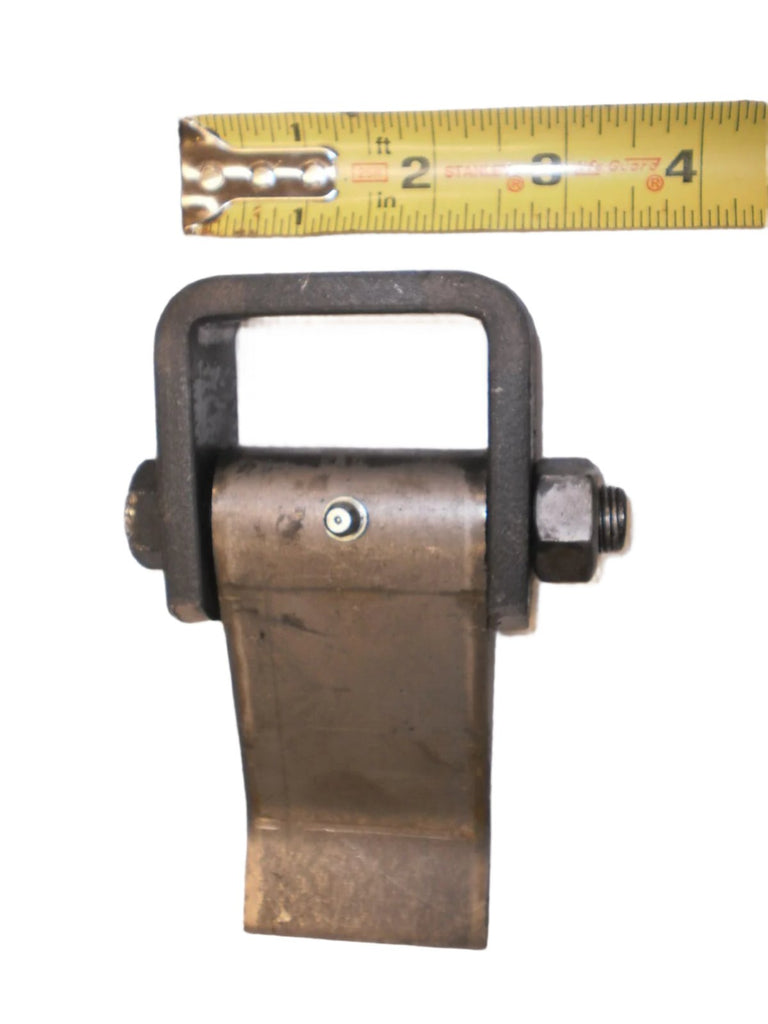

| Specification | Detail |
|---|---|
| Part Number | DH-2 |
| Brand | R&P Carriages |
| Product Type | Weld-On Hinge |

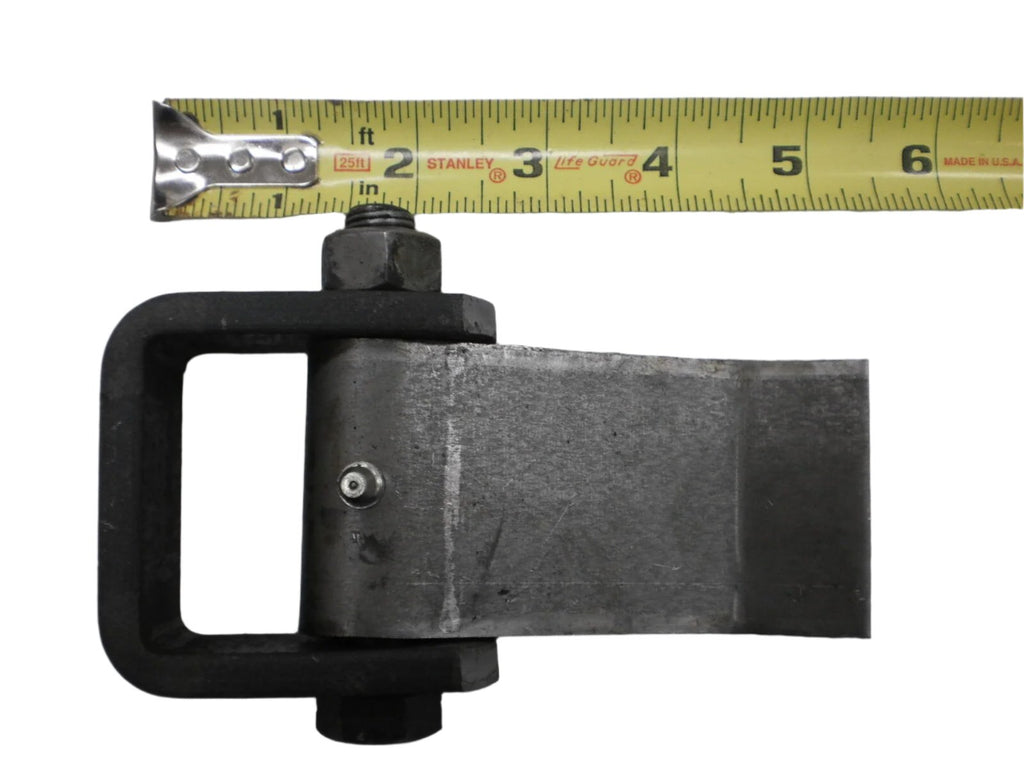

| Overall Length | 5-1/2" |
| Material / Finish | Raw Heavy-Duty Steel |
| Pin Diameter | Standard 1/2" or 5/8" Bolt |
| Strap Dim. | 4" L x 2-3/8" W |
| Hinge Height | 1-1/2" |
| Category | Details |
|---|---|
| Vehicle / System | Dump Trailers & Freight Trucks |
| Primary Fit | Dump Trailer Tailgates |
| Secondary Fit | Utility Trailer Ramps / Service Doors |
| Notes | Ideal for high-grit environments where frequent lubrication is mandatory. Paint after welding. |
| Quantity | Item |
|---|---|
| 1 | DH-2 Weld-On Barrel (Female Side) |
| 1 | DH-2 Weld-On Strap (Male Side) |
| 1 | Integrated Grease Zerk (Pre-installed) |
| NOT INCLUDED | Hinge Bolt/Pin and Nut (Sold Separately) |
