Match the part number, measurements and connection points that apply to your trailer.
| Dimensions | Measure the original hardware and mounting centers. |
|---|---|
| Orientation | Confirm direction where applicable. |
| Hardware | Confirm keeper, hinge and latch compatibility. |

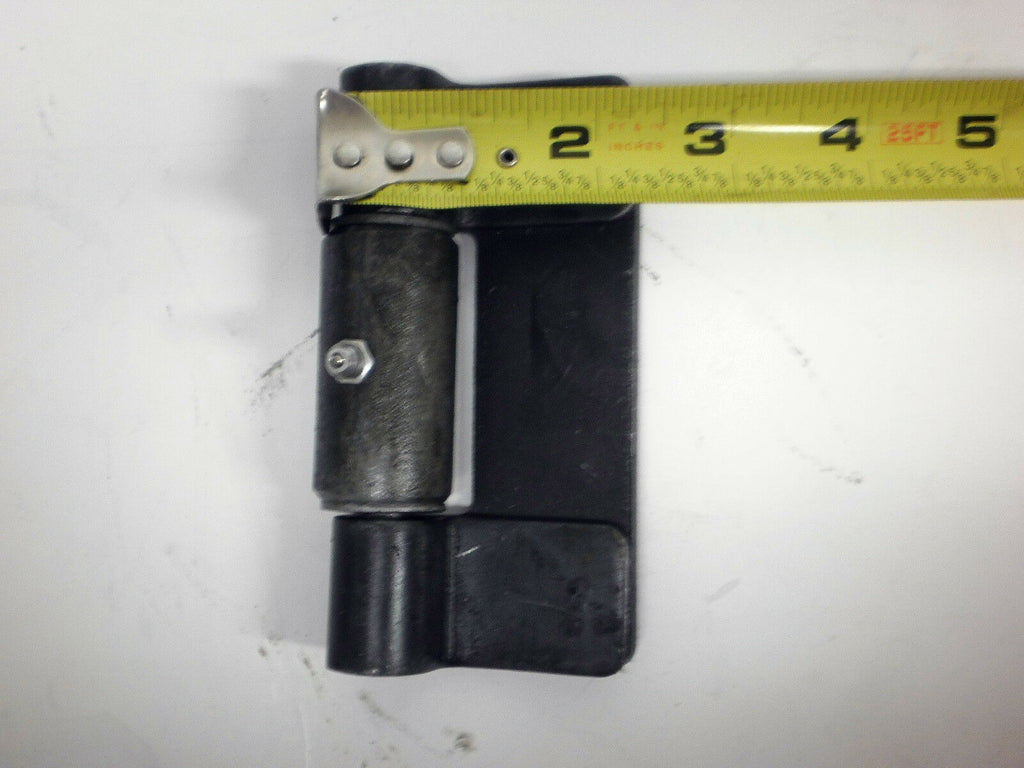

Weld-on butterfly style hinge for trailer ramp doors, service doors, utility doors, and fabricated steel door applications where the measurements match.
| Specification | Detail |
|---|---|
| Part Number / SKU | TBH02 |
| Product Type | Butterfly style weld-on door hinge |

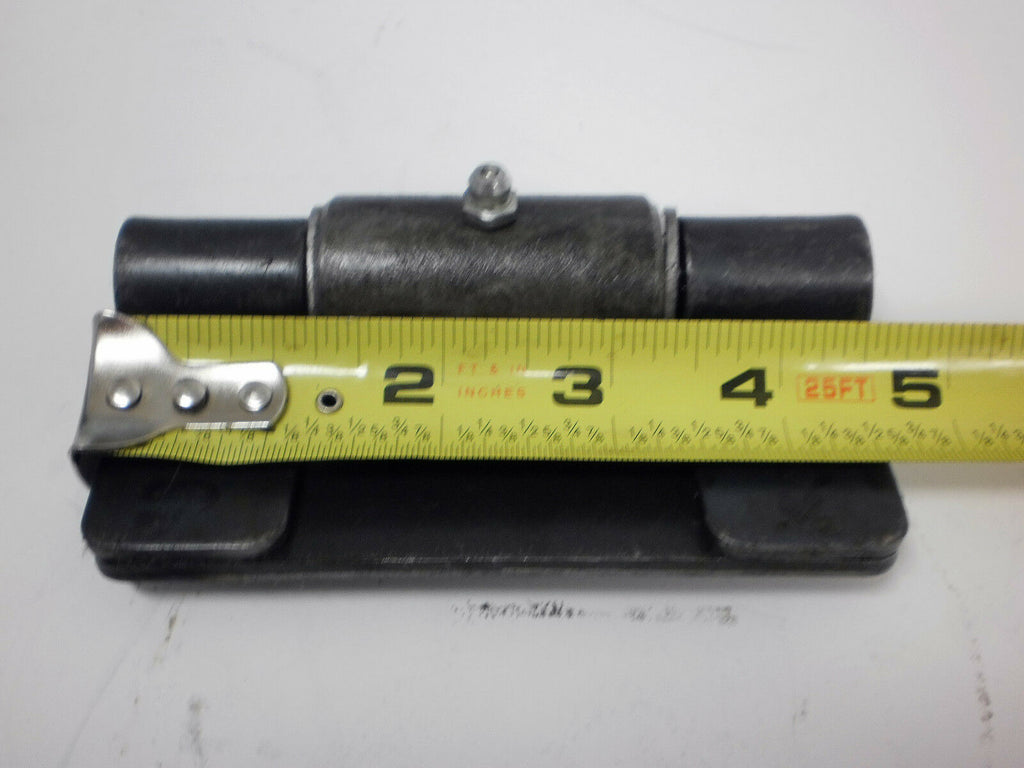

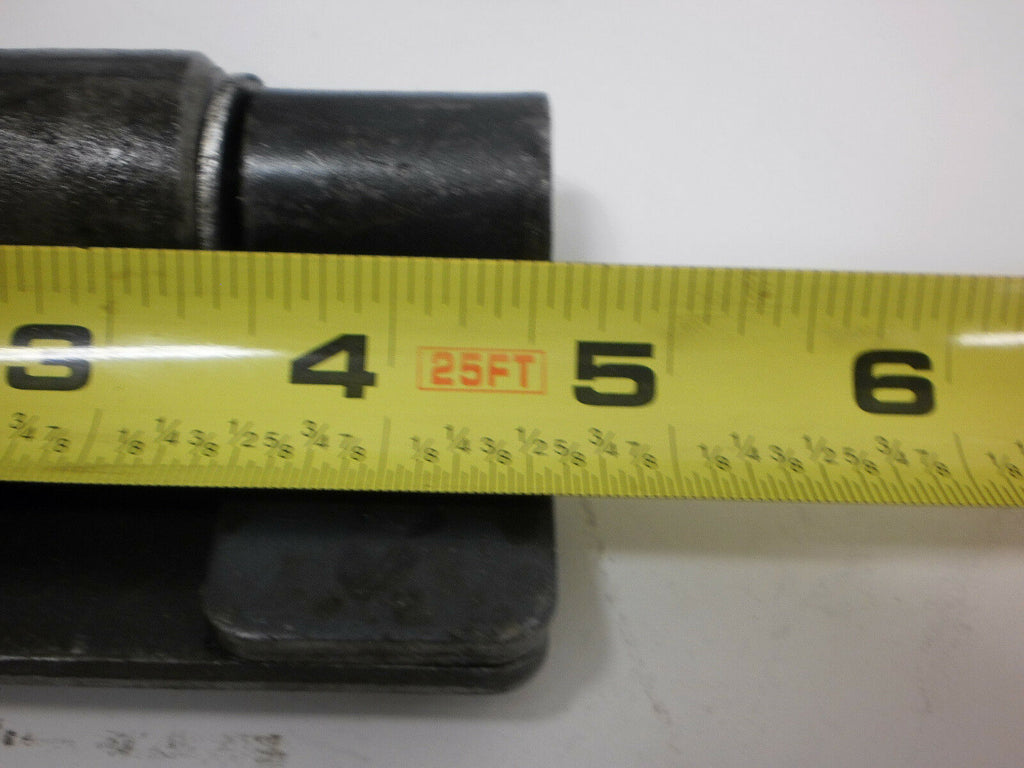

| Overall Length | 4-1/2" |

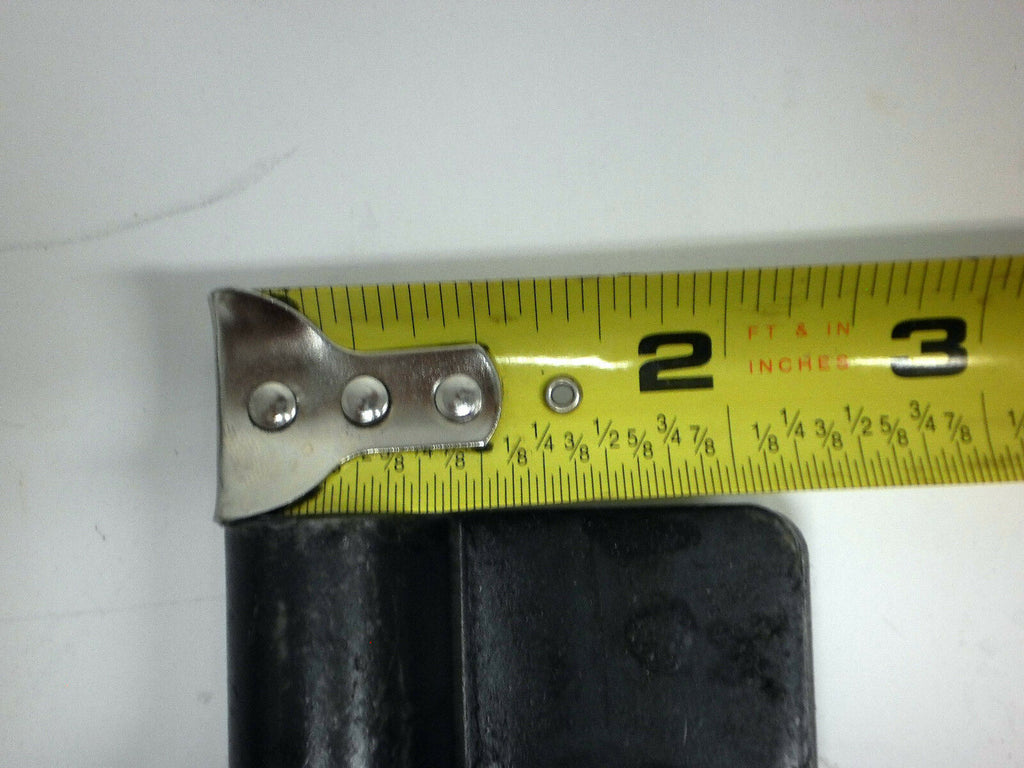

| Side Leaf Measurement | 1-1/4" each side |
| Center Section | 2" |
| Finish | Raw steel |
| Quantity Included | 1 hinge |
| Category | Details |
|---|---|
| Application | Trailer doors, ramp doors, utility doors, service doors, and fabricated steel door assemblies |
| Mounting Style | Weld-on |
| Fitment Method | Verify hinge length, leaf dimensions, center section, weld surface, and door clearance before ordering |
| Important Note | Fitment is measurement-based. Confirm this hinge matches your existing door or fabrication layout. |
| Feature | Buyer Benefit |
|---|---|
| Grease Fitting | Allows lubrication to help reduce creaking and extend hinge service life |
| Weld-On Design | Suitable for trailer door fabrication, repair, and replacement work |
| Raw Steel Finish | Ready for welding, prep, paint, or coating after installation |
| Compact Butterfly Layout | Useful where a low-profile door hinge layout is needed |
This butterfly style weld-on door hinge is designed for trailer door and ramp door applications where a compact weld-on hinge is needed. The hinge includes a grease fitting for lubrication and has a raw steel finish suitable for welding and finishing after installation.
Weld-on hinges should be test-fit before welding so door swing, hinge spacing, and clearance are correct.
Compatibility: Verify before ordering. This hinge is measurement-based and should be matched to the door, frame, and weld area.
Vehicle / System Fit: Commonly used for trailer ramp doors, utility doors, service doors, and fabricated steel door assemblies.
Installation Notes: Confirm door alignment, hinge spacing, weld access, and swing clearance before final welding.
Performance Insight: A greaseable hinge helps reduce dry hinge noise and improves serviceability over a non-greaseable hinge.
Selling Brand: R&P Carriages
Application Reference: Trailer door and ramp door applications are listed as general fitment references only.
What This Means: This listing is for one butterfly style weld-on door hinge, not a guaranteed OEM-branded item.
Before Ordering: Verify all measurements, weld location, door clearance, and included components before installation.
When replacing a trailer door hinge, the most important check is matching the hinge layout to the existing door and frame. Do not rely on appearance alone.
Built with a grease fitting so the hinge can be serviced after installation.
Designed for welding directly to compatible trailer doors, frames, or fabricated steel assemblies.
Raw steel surface is suitable for welding and can be finished after installation.
Useful for ramp doors, utility trailer doors, service doors, and similar trailer repair work.
| Quantity | Item |
|---|---|
| 1 | Butterfly style weld-on door hinge with grease fitting |
| Not Included | Mounting hardware, paint, primer, welding supplies, or additional hinges |
