Match the part number, measurements and connection points that apply to your trailer.
| Connection | Confirm ball or lunette size. |
|---|---|
| Mount | Verify tongue, channel and mounting pattern. |
| Capacity | Meet or exceed the required rating. |
Heavy-duty fixed-drop ball mount for compatible 2" receiver hitches. Provides a 12" drop, a 1" ball hole and a maximum gross trailer weight rating of 7,500 lb.
| Specification | Detail |
|---|---|
| Part Number / SKU | BM12 |
| Brand | Brophy |
| Product Type | Fixed-drop trailer hitch ball mount |
| Receiver Shank | 2" × 2" |
| Drop | 12" |
| Rise | Not designed for use in the rise position |
| Ball Hole | 1" diameter |
| Length A | 11-1/8" |
| Maximum GTW | 7,500 lb |
| Maximum Tongue Weight | 750 lb |
| Product Weight | 15.4 lb |
| Finish | Black powder coat |
| Quantity Included | One ball mount |
| Category | Details |
|---|---|
| Receiver Fit | Compatible 2" × 2" trailer hitch receivers |
| Ball Fit | Accepts a compatible hitch ball with a 1" diameter shank |
| Primary Application | Towing applications requiring a fixed 12" drop |
| Hitch Pin | Accepts a compatible 5/8" hitch pin |
| Fitment Method | Confirm receiver size, required drop, hitch-ball shank diameter and towing ratings before ordering |
| Orientation | Use only in the 12" drop position |
| Important Note | Do not exceed the lowest-rated component in the complete towing system |
| Feature | Buyer Benefit |
|---|---|
| 12" Fixed Drop | Helps level trailers that sit substantially lower than the tow vehicle receiver |
| 2" Receiver Shank | Fits compatible standard 2" trailer hitch receivers |
| 7,500 lb Rating | Supports towing applications within the verified GTW and tongue-weight limits |
| 1" Ball Hole | Accepts a compatible trailer ball with a 1" diameter shank |
| Powder-Coated Finish | Provides a durable exterior finish for regular towing use |
| USA Made | Manufactured in the United States by Brophy |

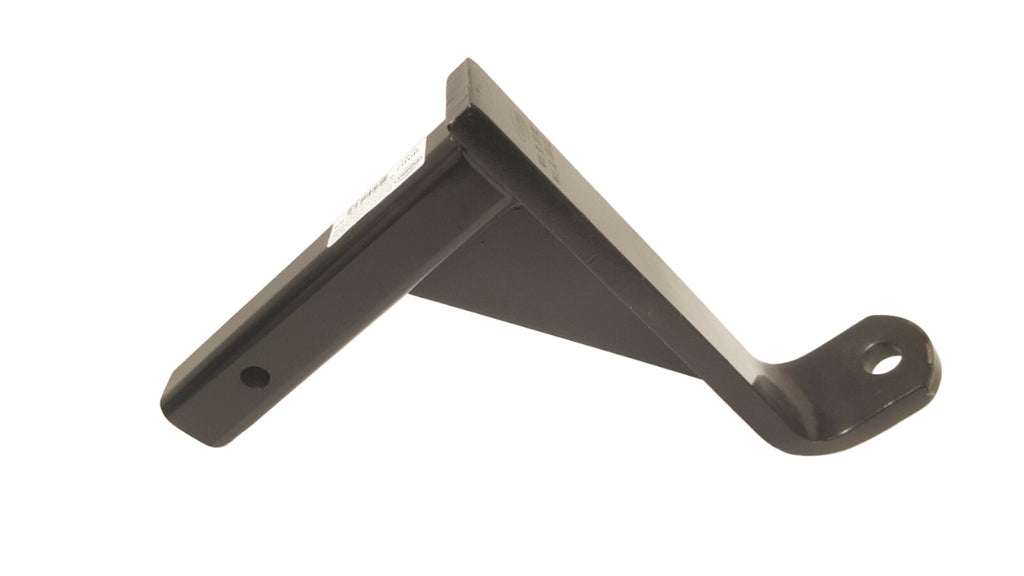

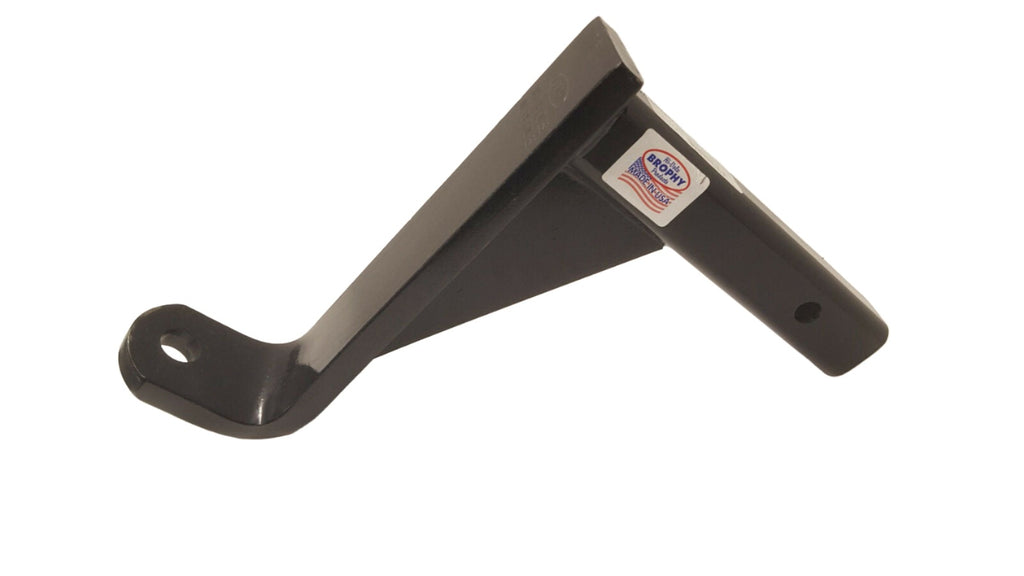

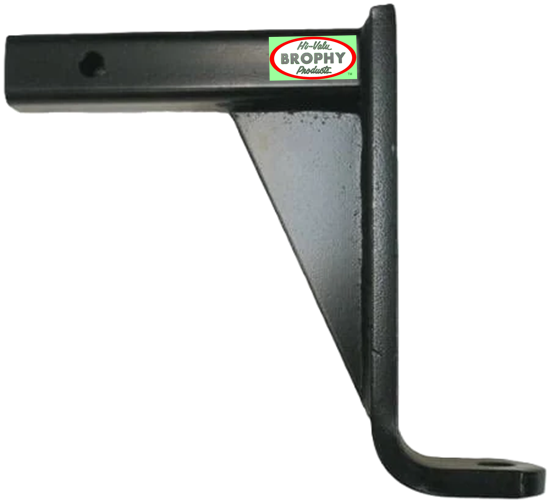

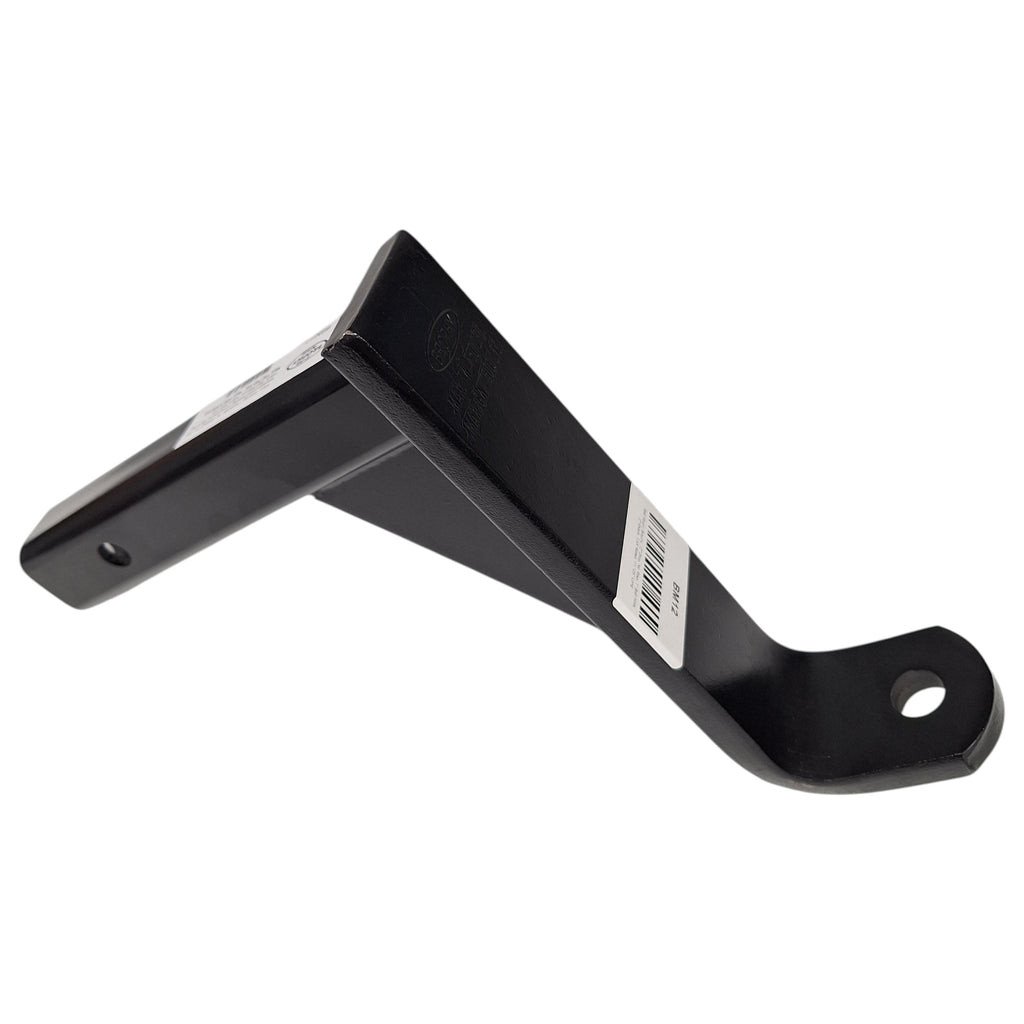

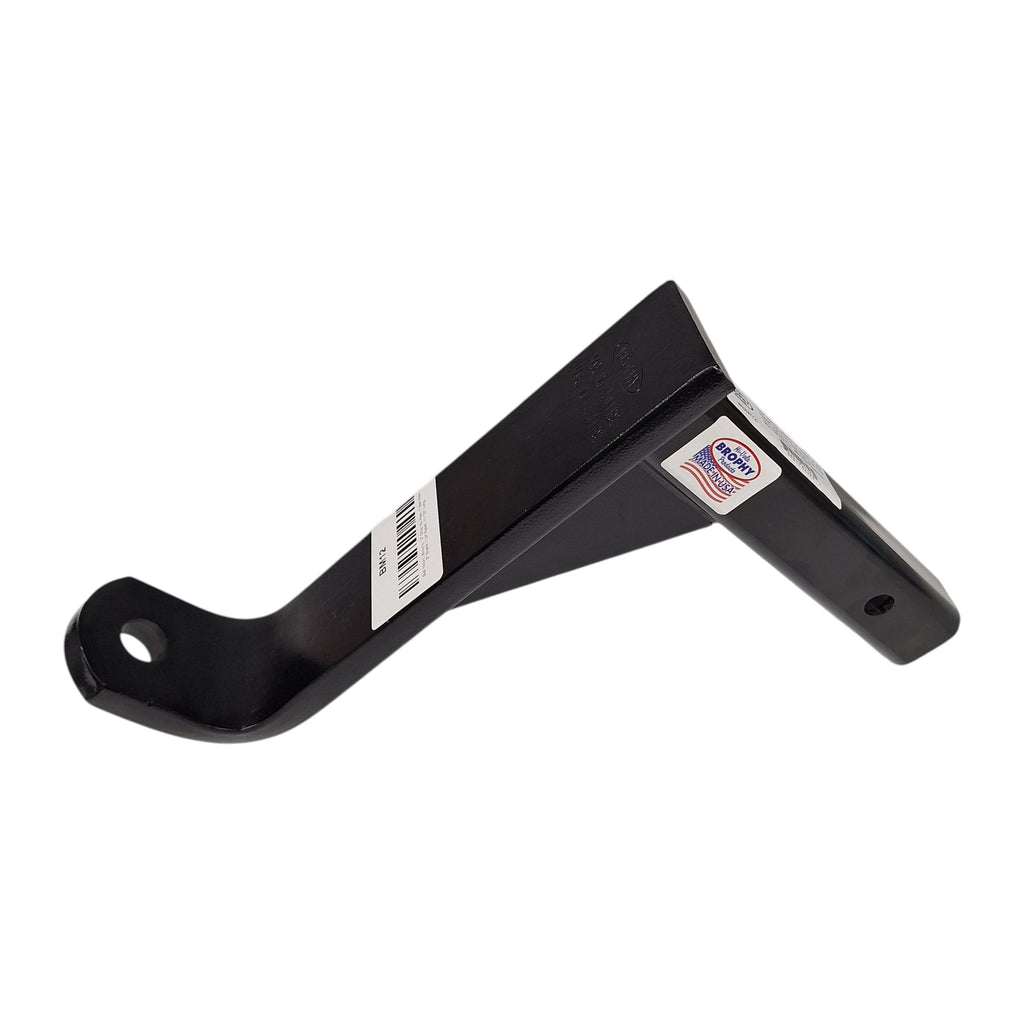

The Brophy BM12 is a heavy-duty fixed-drop ball mount designed for compatible 2" receiver hitches. Its 12" drop helps create a more level towing connection when the tow vehicle receiver sits significantly higher than the trailer coupler. The mount features a 1" hitch-ball hole, black powder-coated finish and ratings of up to 7,500 lb gross trailer weight and 750 lb tongue weight.
Compatibility: Designed for compatible 2" × 2" receiver hitches and hitch balls using a 1" diameter shank.
Trailer-Leveling Fit: A 12" drop is intended for towing combinations where the trailer coupler sits substantially below the tow vehicle receiver. Measure the actual height difference before selecting the mount.

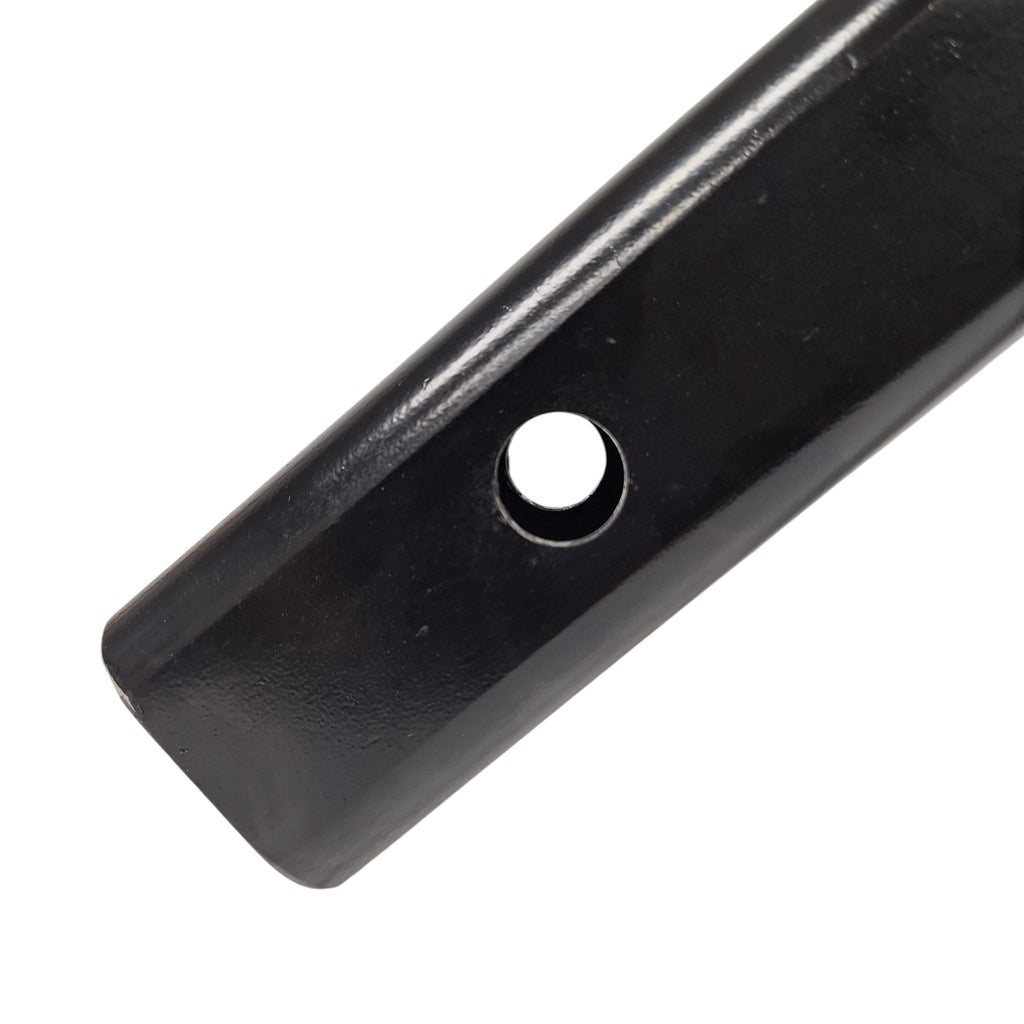

Installation Notes: Install a properly sized and rated hitch ball using the ball manufacturer’s specified hardware and torque procedure. Secure the mount with a compatible 5/8" hitch pin and retaining clip or hitch lock.
Performance Insight: Correct ball-mount height helps the trailer tow closer to level, supporting more balanced trailer loading and predictable towing behavior.
Designed for towing setups where a substantial height correction is required between the receiver and trailer coupler.

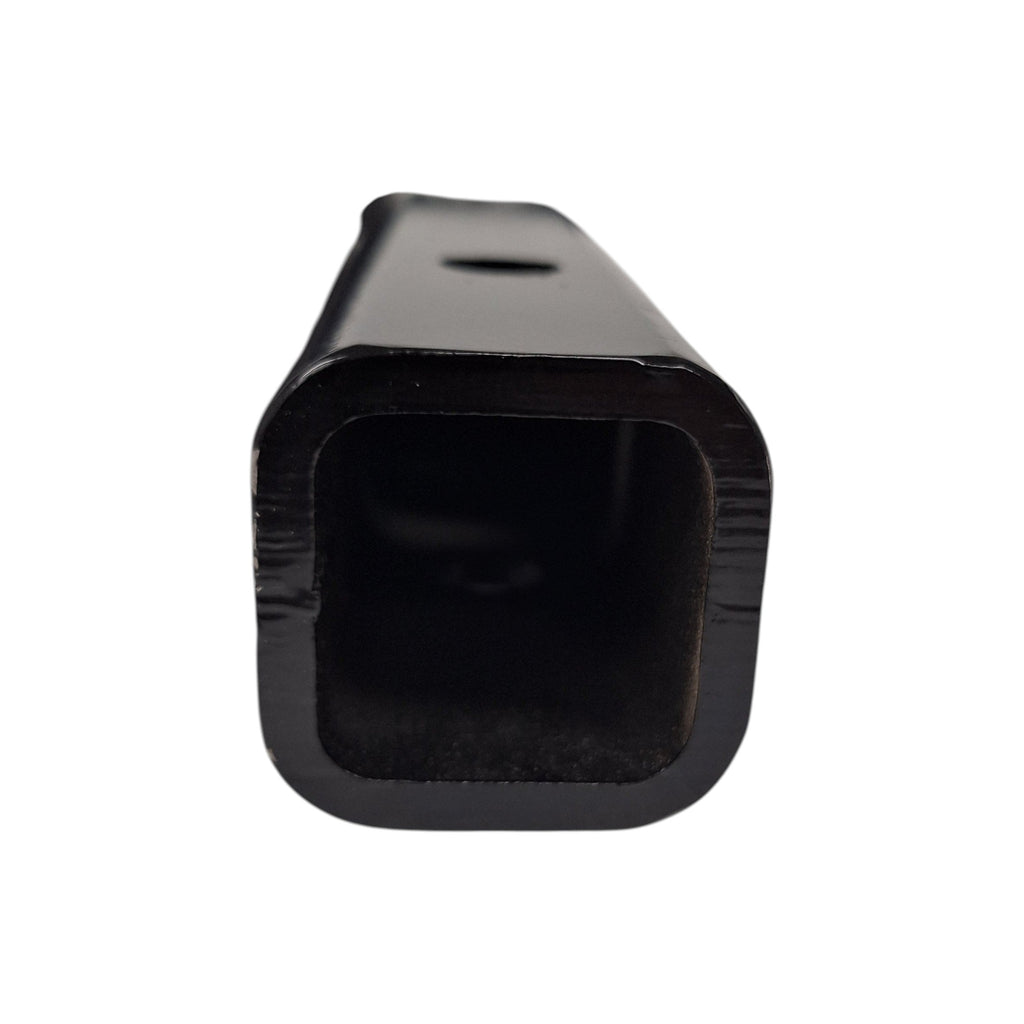

The 2" × 2" shank fits compatible standard 2" receiver hitch openings.

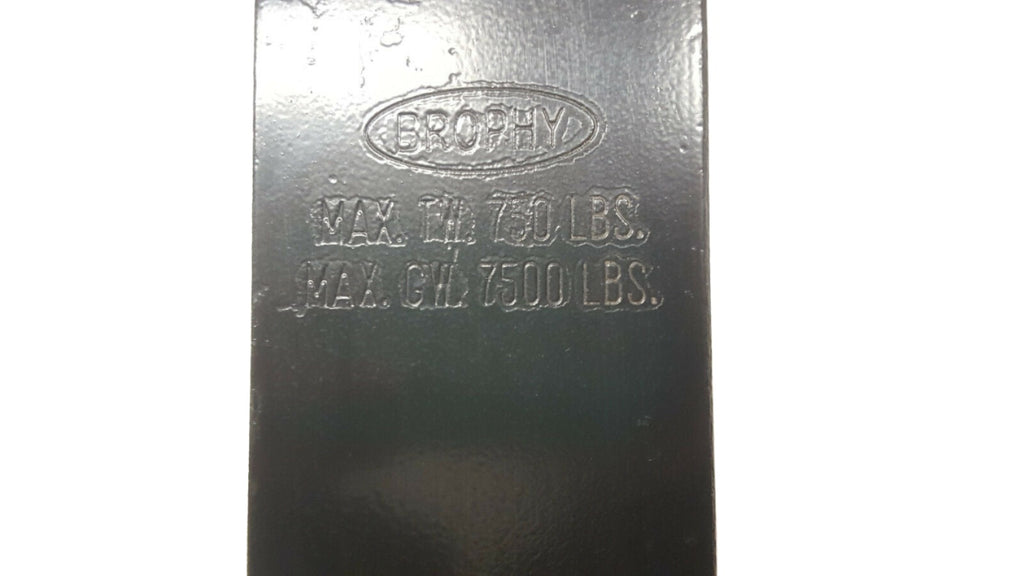

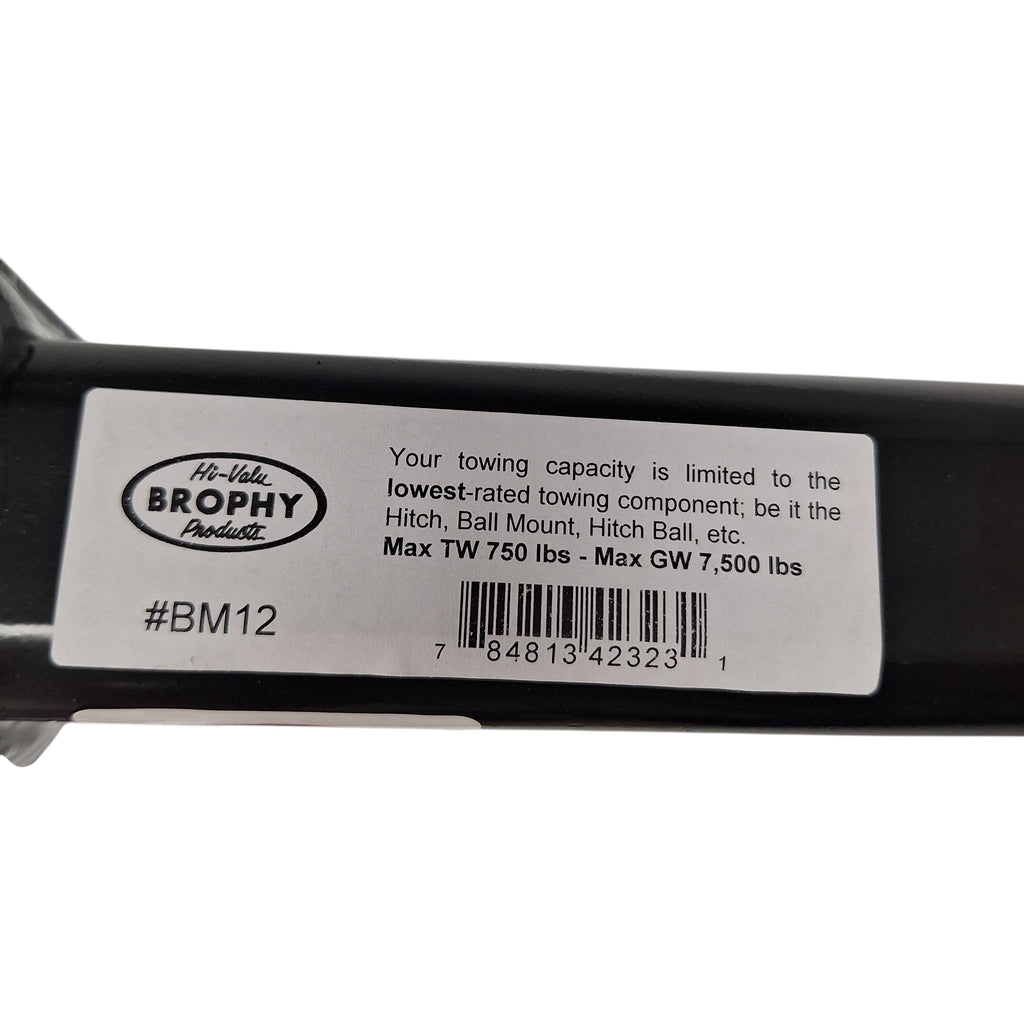

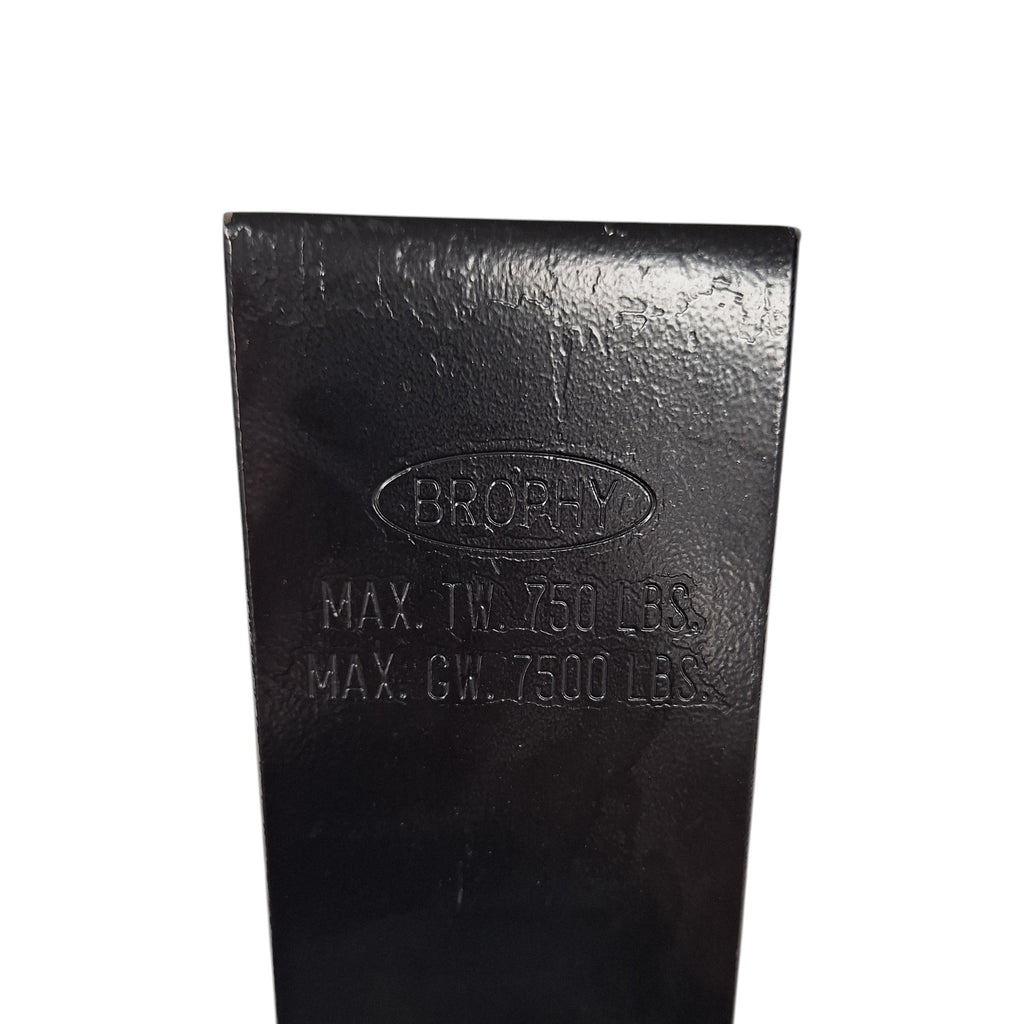

Rated for a maximum gross trailer weight of 7,500 lb and maximum tongue weight of 750 lb.

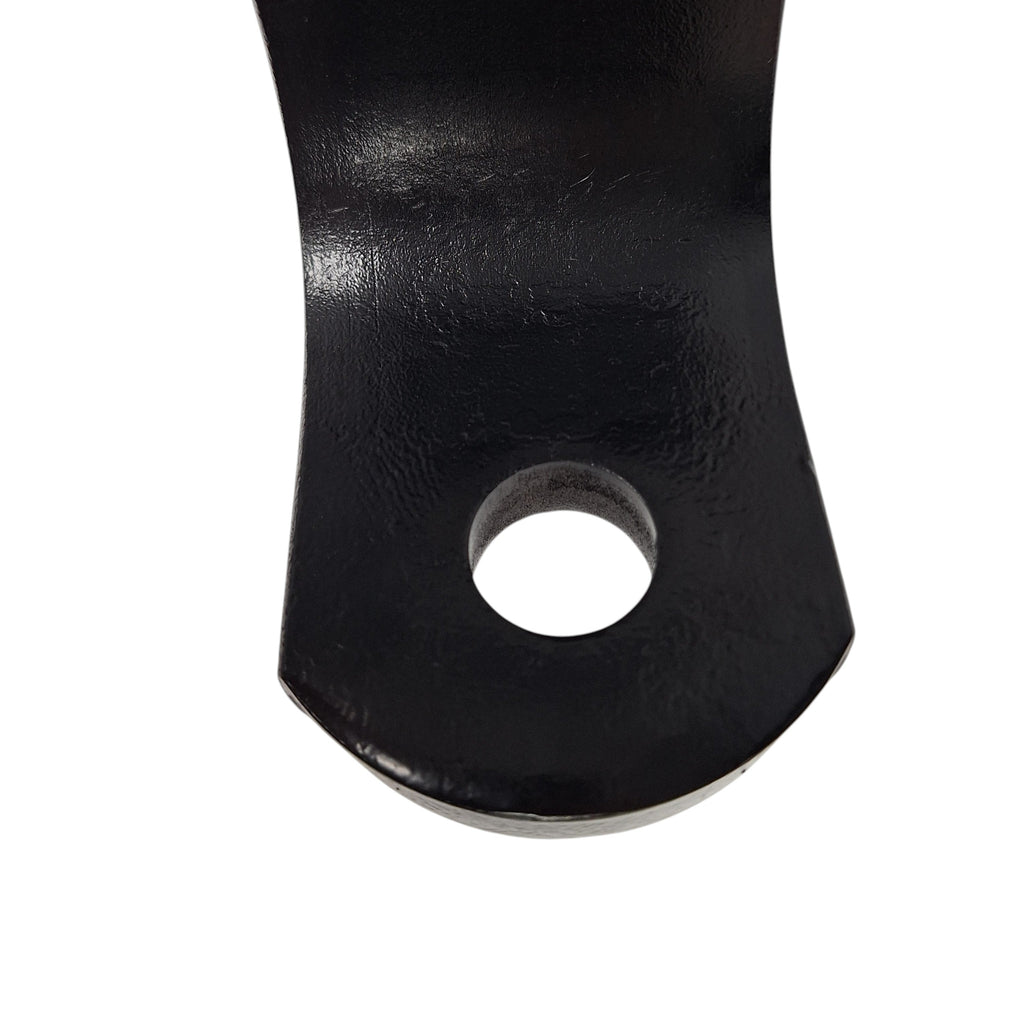

Accepts a compatible hitch ball with a 1" diameter mounting shank.
The powder-coated black finish provides a clean appearance and durable exterior protection.

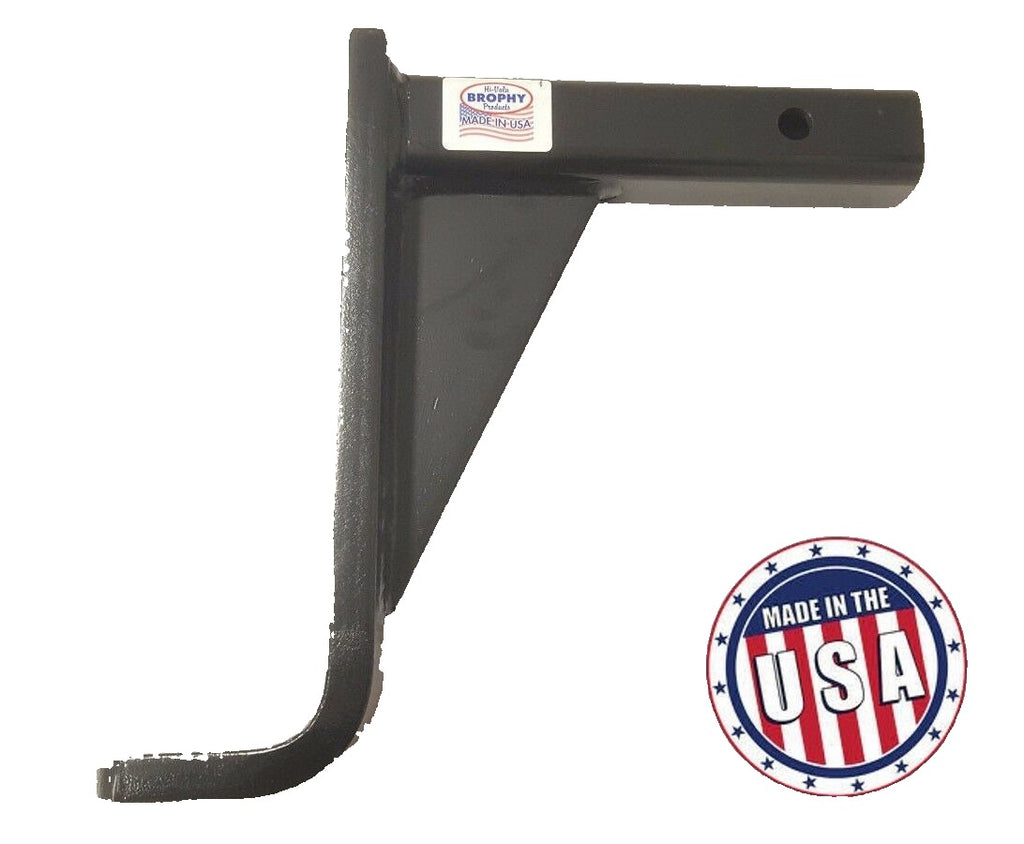

Manufactured in the United States by C.R. Brophy Machine Works.
| Quantity | Item |
|---|---|
| 1 | Brophy BM12 12" drop ball mount |
| Not included | Hitch ball |
| Not included | Hitch pin, retaining clip or receiver lock |

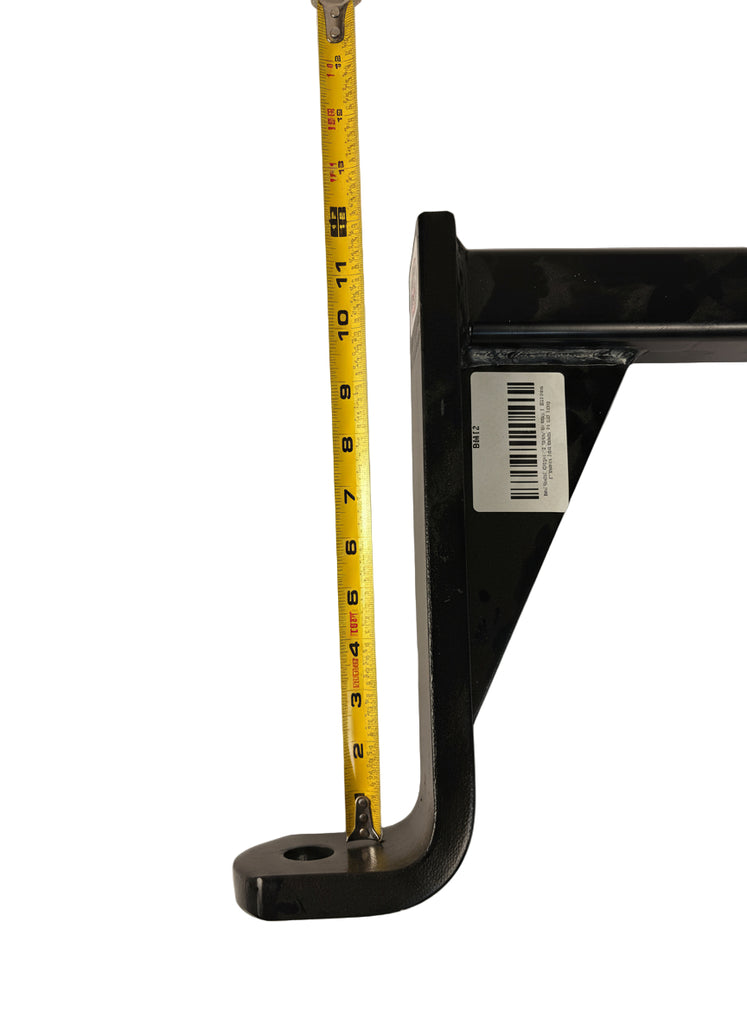

Measurement reference: A = overall length, B = drop and C = rise where applicable. The BM12 is specified for a 12" drop and does not have a manufacturer-rated rise position.
