Trailer Towing / Receiver Hitch Ball Mount / 2 Inch Receiver

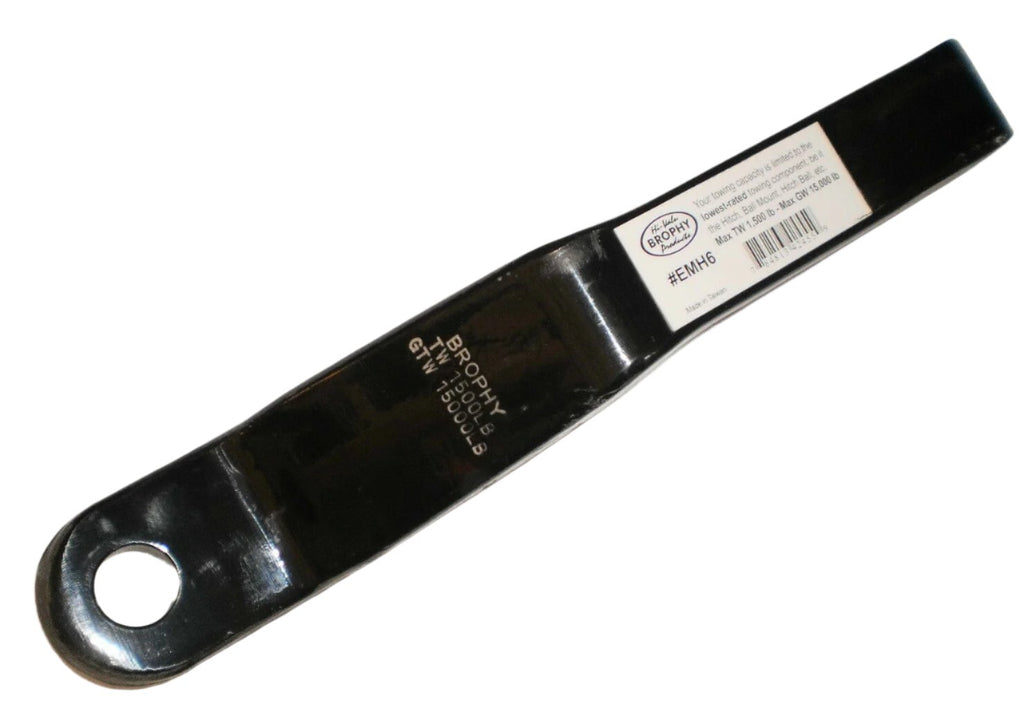

Brophy Solid Forged Ball Mount 15K Rated - 6" Drop, 4.75" Rise, 2" Shank, 1.25" Ball Hole, 11.5" Long

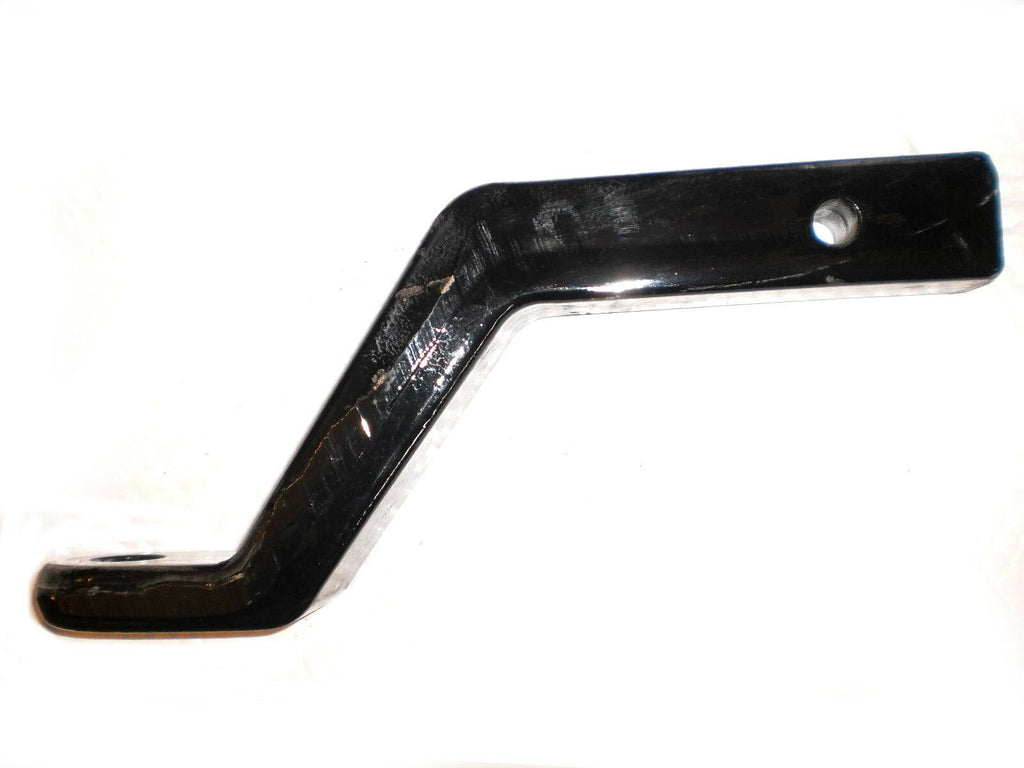

Heavy-duty receiver hitch ball mount for standard 2" x 2" receivers. This EMH6 ball mount is listed with a 15,000 lb class rating, 6" drop, 4-3/4" rise, 5/8" hitch pin hole, and 1-1/4" ball hole.
Part Number: EMH6 15,000 lb Class 2" Receiver Fit
Key Measurements & Specs
| Specification |
Detail |
| Part Number / SKU |
EMH6 |
| Brand |
R&P Carriages |
| Product Type |
Receiver hitch ball mount |
| Listed Class / Rating |
15,000 lb class |
| Drop / Rise |
6" drop / 4-3/4" rise |

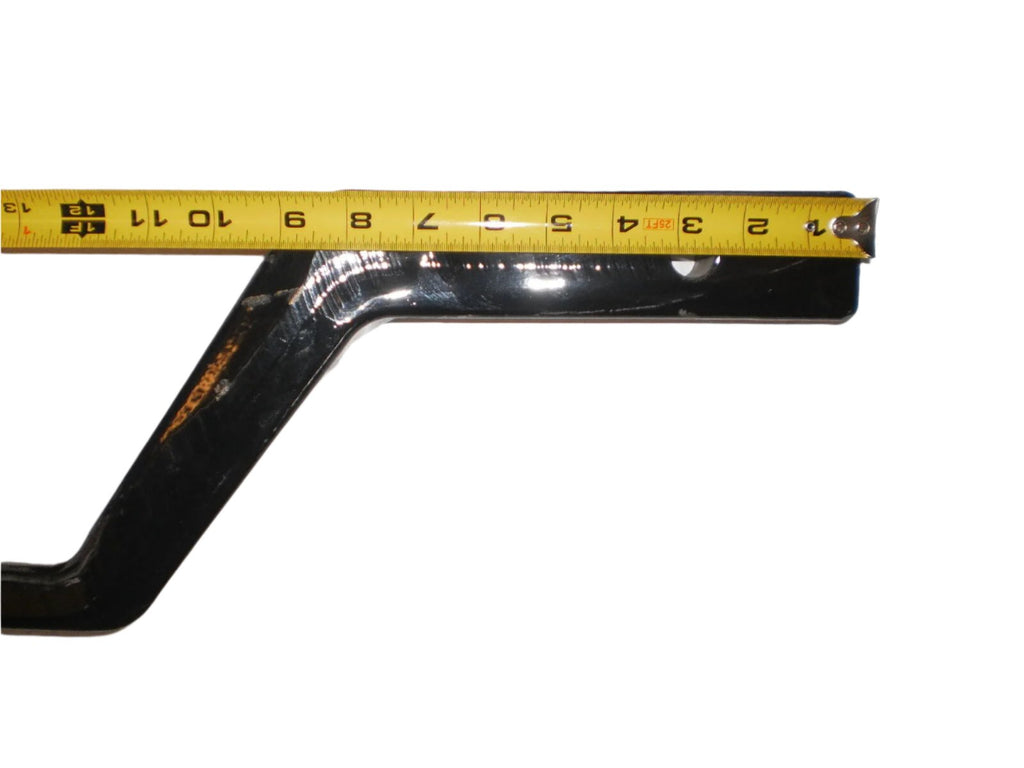

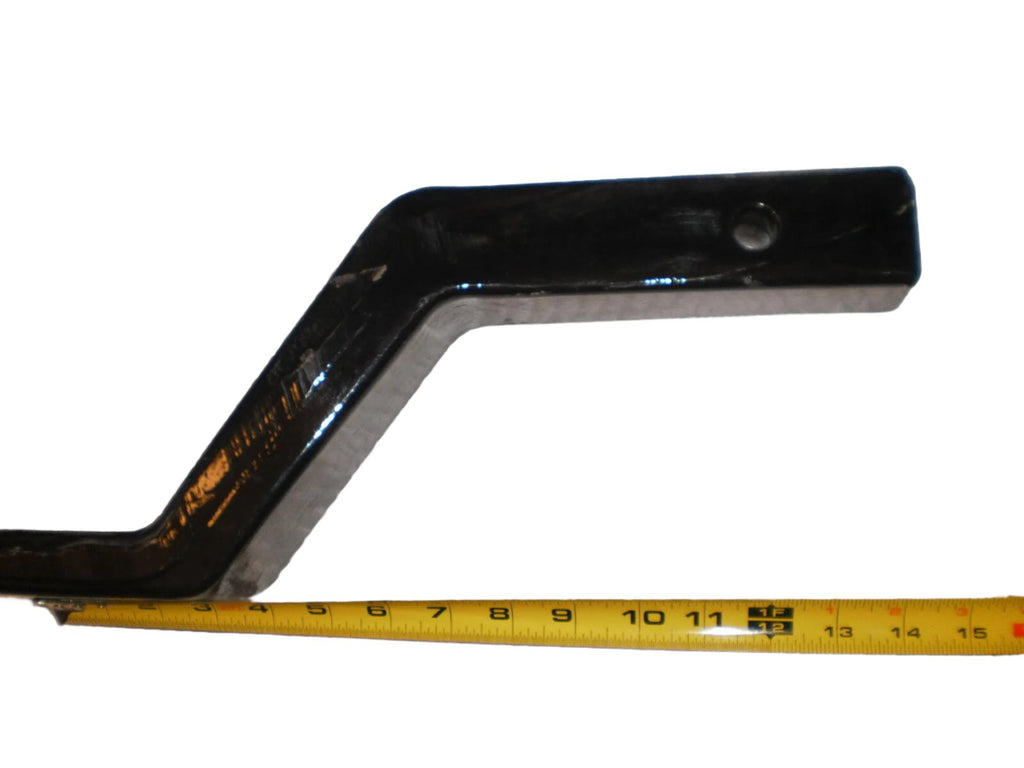

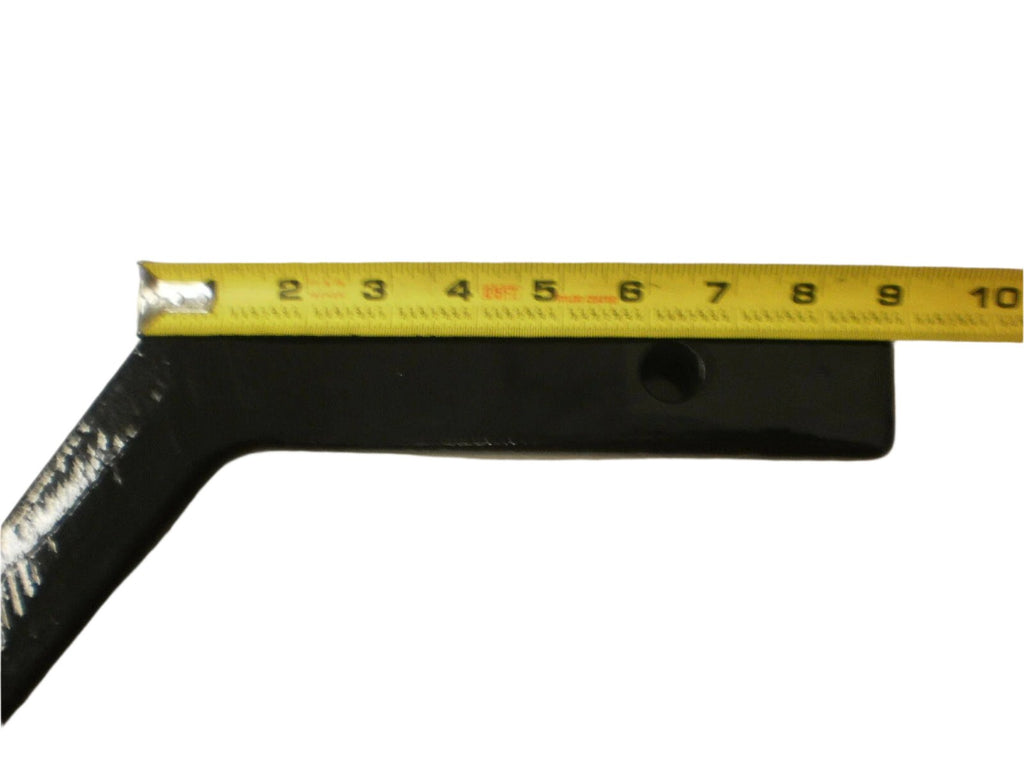

| Overall Length |
13" |

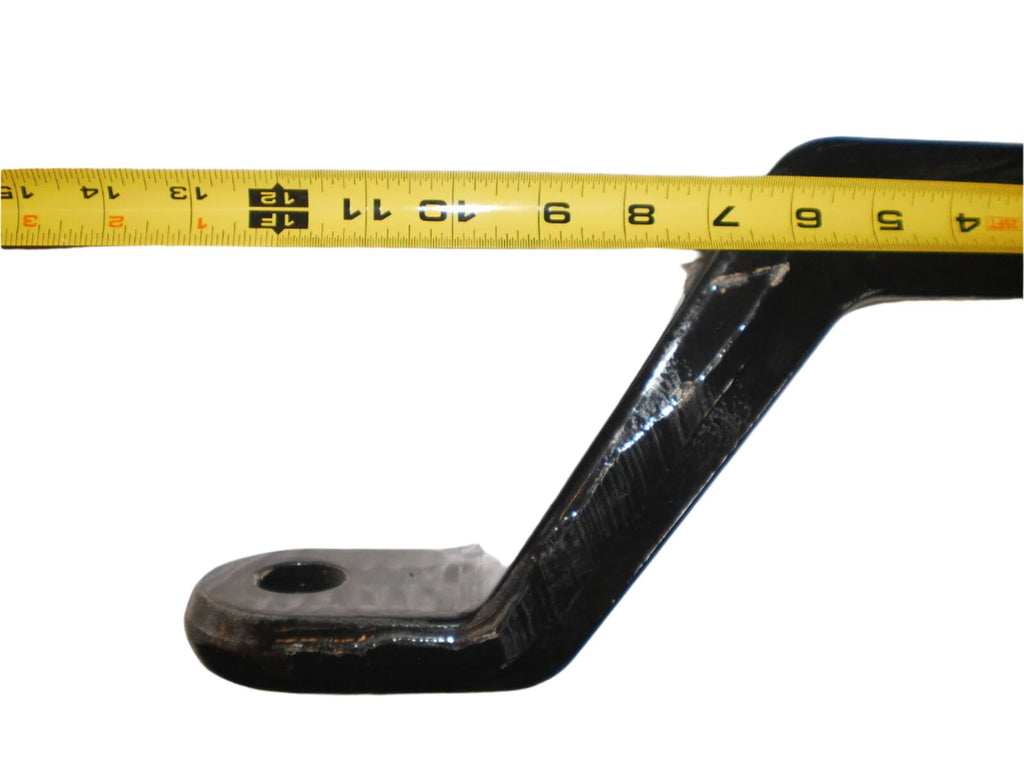

| Pin-to-Ball Center Measurement |
11-1/2" from center of 5/8" hitch pin hole to center of ball hole |

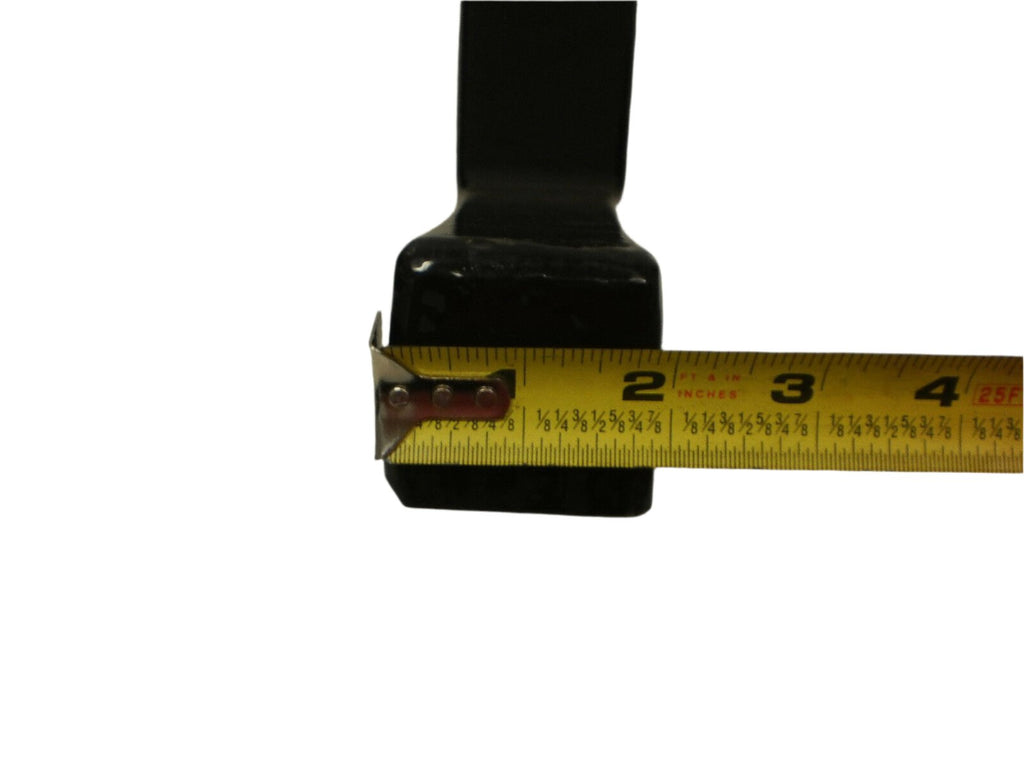

| Receiver Size |

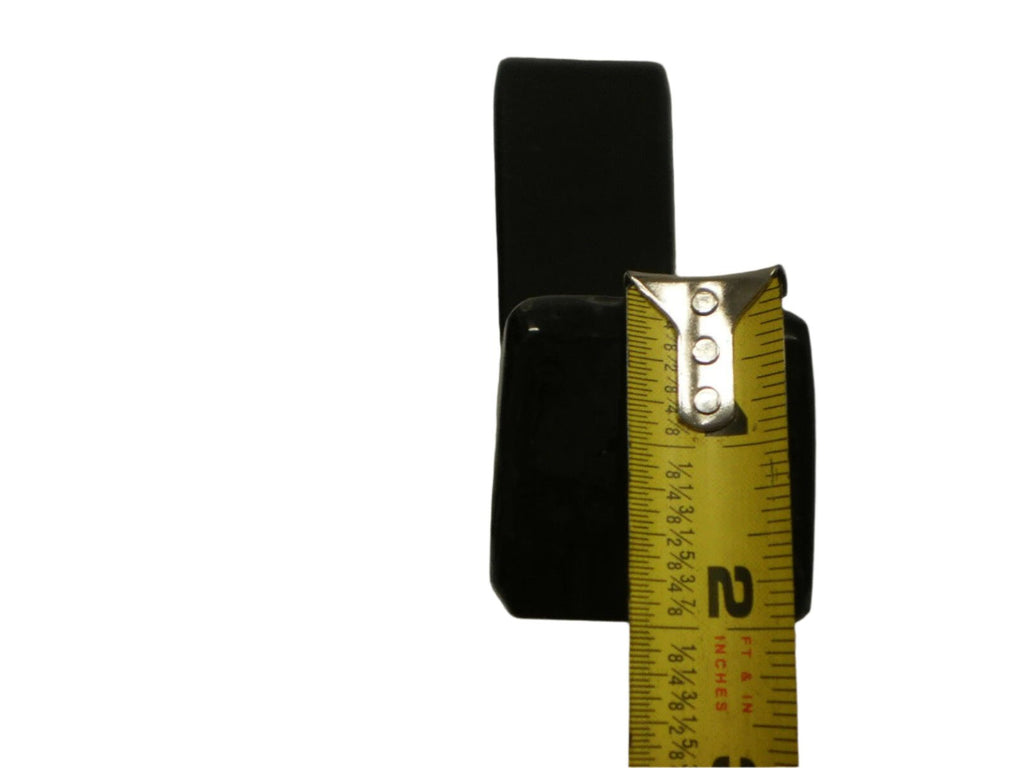

Fits standard 2" x 2" receiver openings |
| Hitch Pin Hole |
5/8" |

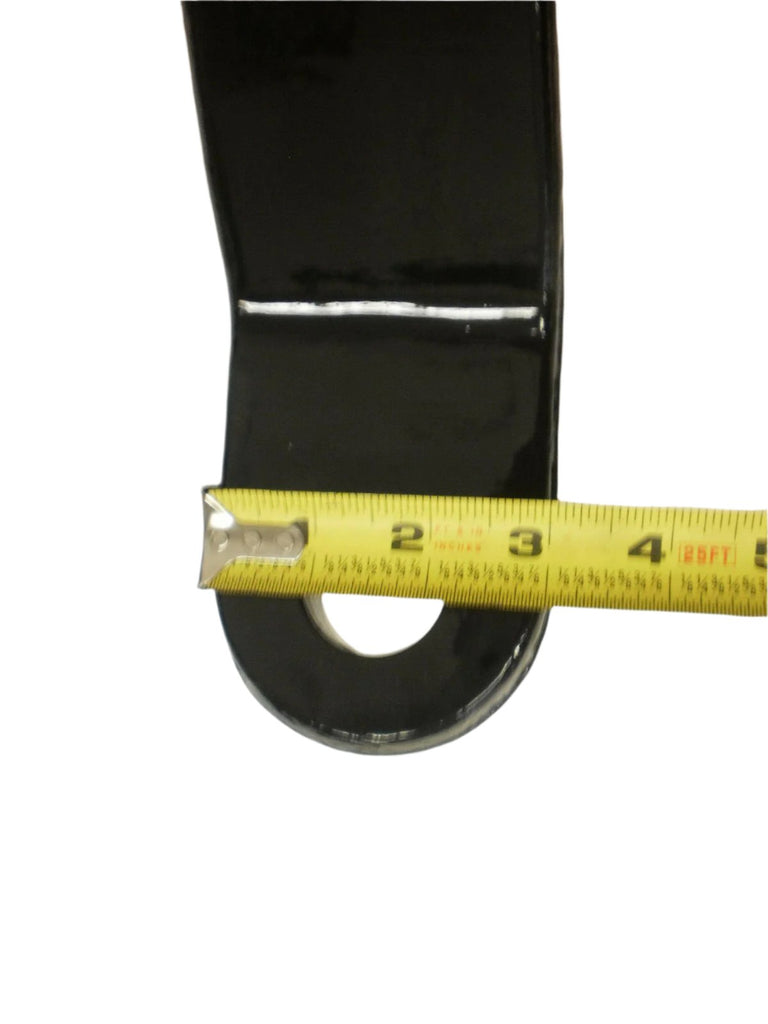

| Ball Hole |
1-1/4" |
| Material / Finish |
Steel |
| Quantity Included |
One ball mount |
Fitment / Application
| Category |
Details |
| Vehicle / Trailer / System |
Receiver hitch towing setups using a standard 2" x 2" receiver |
| Primary Fit |
2" receiver hitch applications where the drop, rise, ball shank size, and towing rating match the setup |
| Fitment Method |
Verify receiver size, required drop or rise, hitch pin diameter, ball shank diameter, and trailer/tow vehicle rating before ordering |
| Important Note |

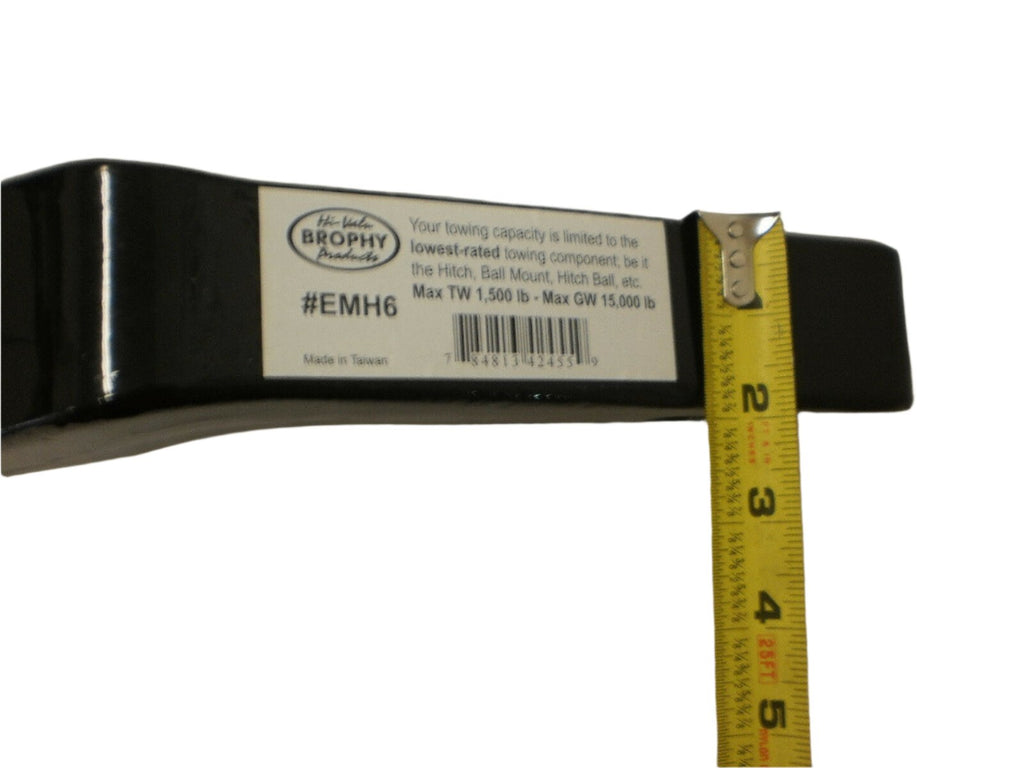

Capacity depends on the complete towing system. Always use the lowest-rated component in the towing setup as the working limit. |
Top Features
| Feature |
Buyer Benefit |
| 15,000 lb Class |
Built for heavier-duty towing applications when matched with properly rated hitch, ball, pin, and trailer components. |
| 6" Drop |
Helps lower the trailer ball height for a more level trailer connection when the tow vehicle sits higher. |
| 4-3/4" Rise |
Can be used in rise position when the tow setup requires additional ball height. |
| 2" Receiver Fit |
Designed for common 2" x 2" receiver hitch openings. |
Overview
The EMH6 is a 15,000 lb class receiver hitch ball mount for standard 2" x 2" receiver hitches. It is configured with a 6" drop, 4-3/4" rise, 13" overall length, 5/8" hitch pin hole, and 1-1/4" ball hole. This ball mount is intended for towing setups where the receiver size, ball height, ball shank size, and rated towing components match the vehicle and trailer requirements.
R&P Service Insight
Ball mount fitment is measurement-driven. The right ball mount should keep the trailer level while matching the receiver opening, hitch pin diameter, trailer ball shank size, and towing rating of the complete setup.
-
Receiver Check: Confirm the tow vehicle has a standard 2" x 2" receiver opening.
-
Height Check: Use the 6" drop or 4-3/4" rise only if it gives the trailer a level towing position.
-
Component Check: Match the trailer ball, hitch pin, receiver, and trailer rating to the intended towing load.
R&P Knowledge Hub
Compatibility: Fits standard 2" x 2" receiver hitch openings when the towing setup requires a 6" drop or 4-3/4" rise.
Vehicle / System Fit: Intended for receiver hitch towing systems using a 5/8" hitch pin and a trailer ball with a 1-1/4" shank.
Installation Notes: Install with a properly rated 5/8" hitch pin and clip or compatible locking pin. Trailer ball is not included unless separately stated.
Performance Insight: Correct drop or rise helps keep the trailer level, which supports better towing geometry and reduces unnecessary stress caused by nose-high or nose-low trailer positioning.
Brand & Fitment Note
Selling Brand: R&P Carriages
Application Reference: This listing is for a receiver hitch ball mount used with compatible 2" receiver towing setups.
What This Means: This listing is for one R&P Carriages EMH6 ball mount, not a complete hitch kit with ball, pin, or clip unless specifically stated.
Before Ordering: Verify receiver size, required drop or rise, ball hole diameter, hitch pin diameter, trailer ball shank size, and the rated capacity of every towing component before installation.
R&P Repair Insight
When replacing or selecting a ball mount, do not match by capacity alone. A correct setup depends on receiver size, vertical height difference, ball shank size, and the rating of the tow vehicle, receiver, ball mount, hitch pin, trailer ball, and trailer coupler.
-
Check the Receiver: This ball mount is for 2" x 2" receivers. Do not use it in a different receiver size without the proper rated equipment.
-
Check the Ball: The ball hole is 1-1/4". Use a trailer ball with a matching 1-1/4" shank and proper towing rating.
-
Check the Level: Measure loaded trailer coupler height and receiver height to confirm whether a 6" drop or 4-3/4" rise is appropriate.
Features
15,000 lb Class Ball Mount
Listed as a 15,000 lb class towing ball mount for heavier-duty receiver hitch applications when used with properly rated matching components.
6" Drop / 4-3/4" Rise
Reversible drop or rise configuration helps match trailer coupler height to tow vehicle receiver height for a more level towing setup.
Fits 2" Receivers
Designed for standard 2" x 2" receiver hitch openings commonly used on trucks, SUVs, and towing vehicles with compatible rated hitches.
1-1/4" Ball Hole
Accepts a trailer ball with a 1-1/4" shank, allowing the buyer to pair the mount with the correct ball size and rating for the trailer coupler.
Included Components
| Quantity |
Item |
| 1 |
EMH6 15,000 lb class ball mount with 6" drop / 4-3/4" rise |
| Not Included |
Trailer ball |
| Not Included |
Hitch pin and clip or locking hitch pin, unless separately stated |
Important Fitment Note: Verify all towing measurements and ratings before installation. Confirm 2" receiver size, 5/8" hitch pin hole, 1-1/4" ball shank requirement, 6" drop or 4-3/4" rise requirement, trailer coupler height, trailer ball rating, receiver rating, tow vehicle rating, and trailer weight. The safe towing limit is determined by the lowest-rated component in the towing system.
