SET OF 10 RECESSED D-RING TIE DOWNS / TRAILER CARGO ANCHORS
Set of 10 RRQ6 Recessed Full 360° Swivel 6000 lb Rated D-Ring Tie Downs with Backing Plates
Part Number: RRQ6-BP-10
Ten-pack of recessed 4-bolt D-ring tie down assemblies with full 360° swivel action, square mounting openings, zinc plated finish, and matching backing plates for trailer floor cargo securement applications. RRQ6 replaces the earlier RR06 round-hole style while retaining the same fit where the mounting layout matches.
Set of 10 Assemblies
6000 lb Rated Each
360° Swivel
Square Mounting Openings
10 Backing Plates Included
|

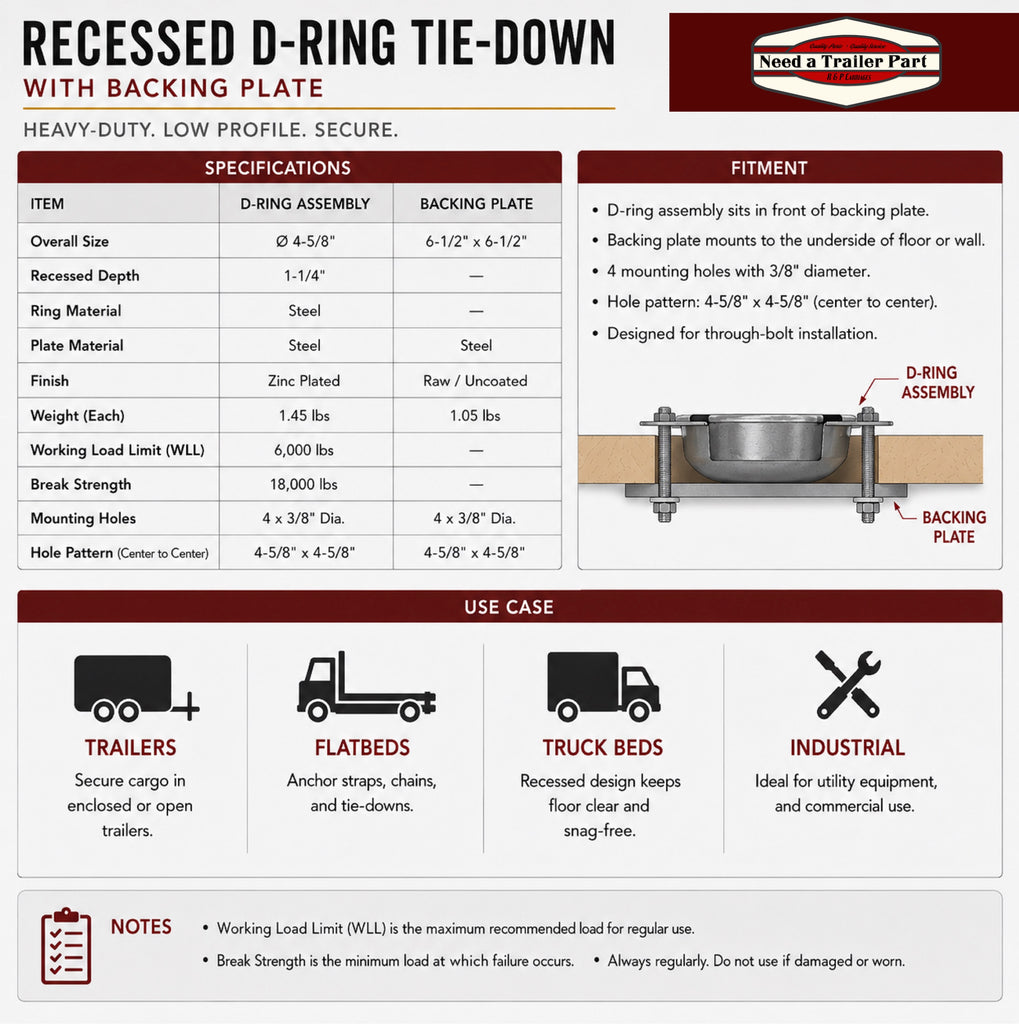

Specifications
|
Fitment / Application
|
|
Overview

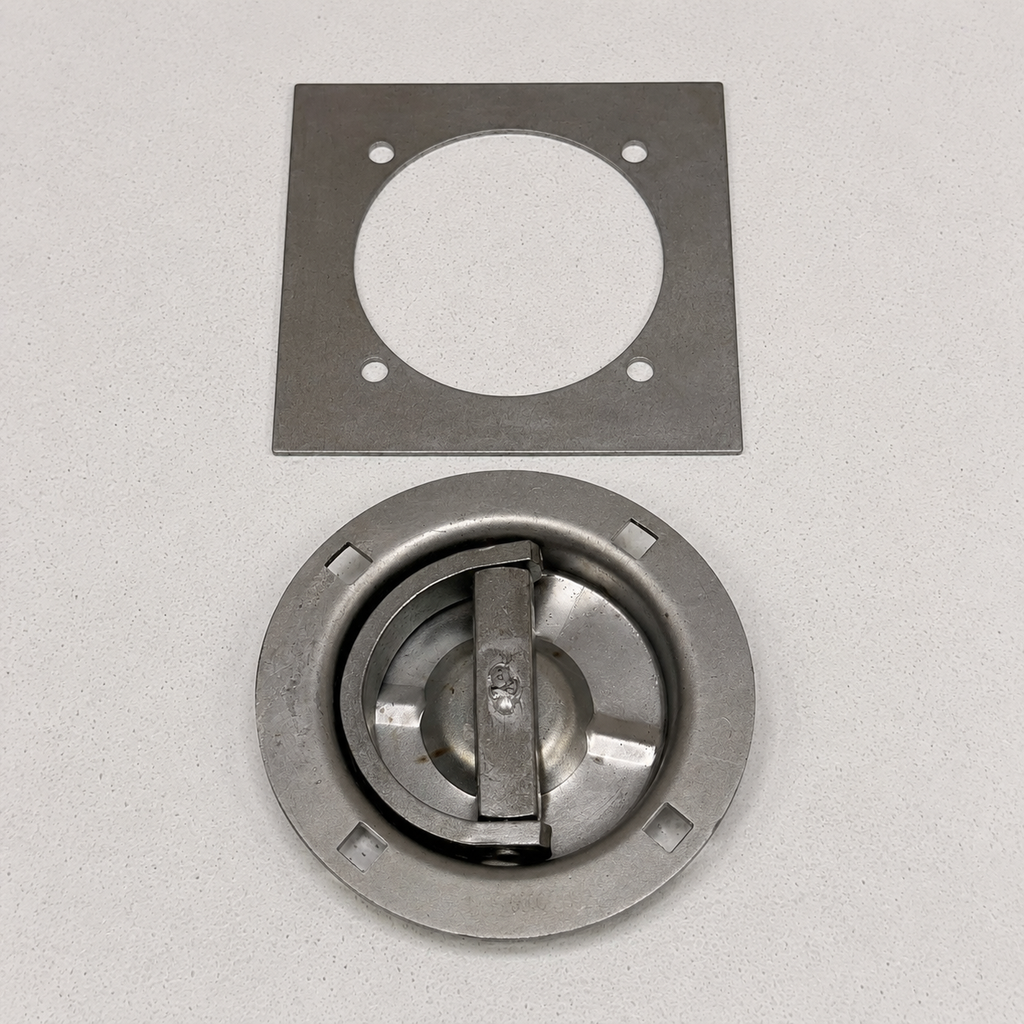

This RRQ6-BP-10 set includes ten recessed D-ring tie down assemblies and ten matching backing plates for trailer, truck, and cargo securement applications where multiple flush-mount anchor points are needed. Each RRQ6 D-ring assembly features full 360° swivel action, square mounting openings, and a recessed design that allows the ring to sit down into the trailer floor when not in use. RRQ6 replaces the earlier RR06 round-hole style while retaining the same fit where the installation layout matches.
|
R&P Service Insight
A set of ten recessed D-rings is useful when laying out a full trailer deck, enclosed trailer, car hauler, or truck cargo area with multiple anchor points. Proper placement, reinforcement, and hardware selection are critical for safe cargo securement.
|
R&P Knowledge Hub
Compatibility: Suitable for trailer and truck cargo tie-down installations where recessed 4-bolt D-rings, backing plates, and 6000 lb rated anchor assemblies match the application requirements.
Vehicle / System Fit: Used as floor-mounted cargo anchor points on compatible utility trailers, enclosed trailers, equipment trailers, cargo trailers, car haulers, and truck beds.
RR06 Replacement Note: RRQ6 uses square mounting openings and replaces the earlier RR06 round-hole style while retaining the same fit where the mounting layout matches.
Installation Notes: Each backing plate measures 6-1/2" x 6-1/2" with a 4-5/8" center opening. The diagram shows 3/8" diameter bolt holes. Verify hole pattern, mounting location, hardware choice, backing plate position, spacing, and load path before use.
Performance Insight: The recessed swivel design supports a cleaner deck surface while allowing each tie-down ring to rotate with the load angle.

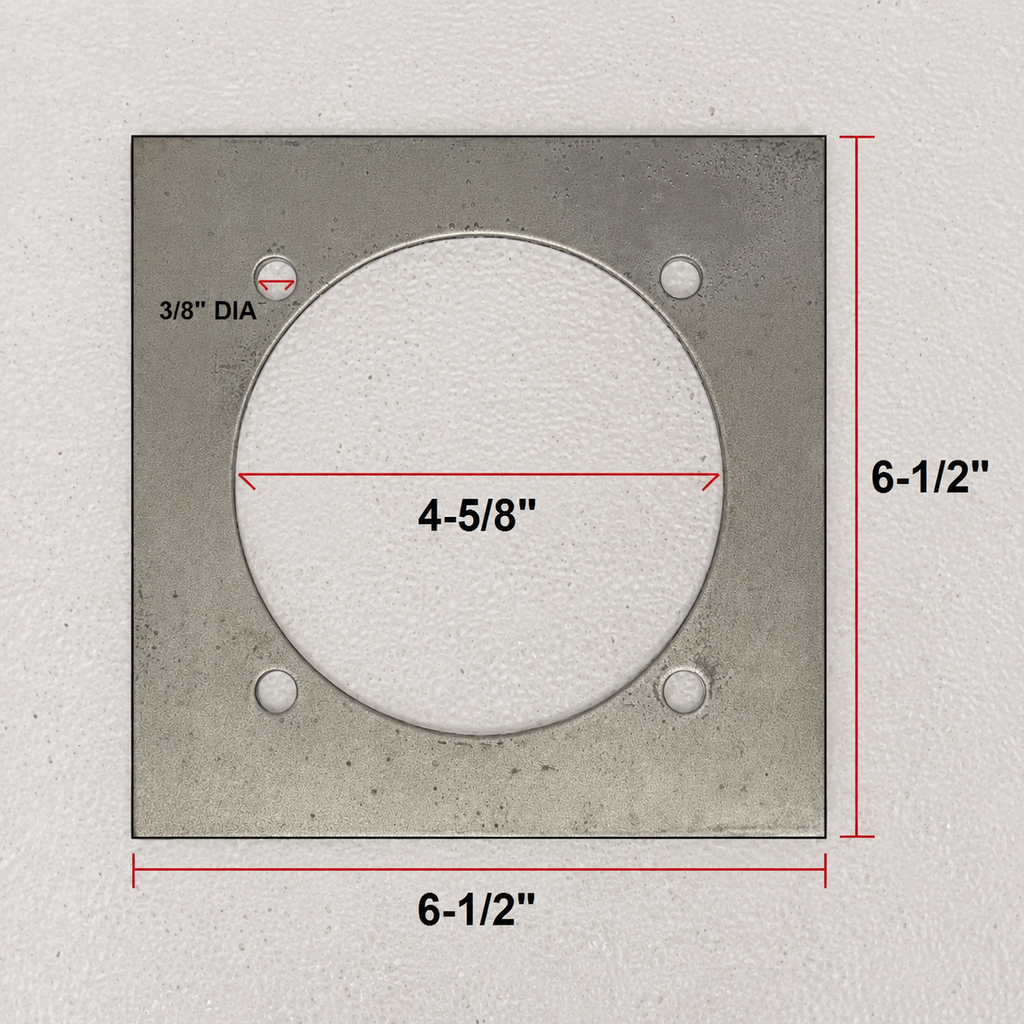

Backing Plate Diagram
Backing plate measurement reference: 6-1/2" overall width, 6-1/2" overall height, 4-5/8" center opening, and 3/8" diameter bolt holes shown in the diagram. Verify measurements against your trailer floor layout before cutting or drilling.
Brand & Fitment Note
Selling Brand: R&P Carriages.
Application Reference: Trailer types, truck cargo applications, and RR06 replacement language are listed only as fitment guidance where the mounting surface, reinforcement, hardware, spacing, and load requirements match.
What This Means: This listing is for a set of ten RRQ6 recessed 6000 lb rated D-ring tie down assemblies with backing plates, not a complete trailer cargo control system.
Before Ordering: Verify rated capacity needs, installation locations, deck structure, bolt pattern, hardware compatibility, backing plate clearance, and tie-down layout before installation.
R&P Repair Insight
Tie-down anchors are only as dependable as the structure they are mounted to. When replacing or adding multiple recessed D-rings, inspect the trailer floor and support structure at each mounting point before relying on the anchors for cargo securement.
- Deck Check: Inspect each mounting surface for rot, cracking, corrosion, or weak material before installation.
- Backing Plate Check: Confirm there is room for the 6-1/2" x 6-1/2" backing plate beneath each selected mounting point.
- Opening Style Check: RRQ6 uses square openings and replaces the earlier RR06 round-hole style while keeping the same fit where the layout matches.
- Hardware Check: Use compatible mounting hardware for the 4-bolt square-opening pattern and intended application.
Features
|
Set of Ten Anchor Assemblies
Includes ten recessed D-ring assemblies and ten matching backing plates for multiple trailer, truck, or cargo deck anchor points.
|
6000 lb Rated Each
Each D-ring assembly is rated for 6000 lb applications where the mounting surface, reinforcement, and hardware are properly matched.
|
|
RRQ6 Square-Opening Update
RRQ6 uses square mounting openings and replaces the earlier RR06 round-hole style while keeping the same fit where the installation layout matches.
|
Measured Backing Plates
Backing plate diagram shows 6-1/2" x 6-1/2" plate size with a 4-5/8" center opening and 3/8" bolt holes.
|
Included Components
Important: RRQ6 uses square mounting openings and replaces the earlier RR06 round-hole style while retaining the same fit where the mounting layout matches. Proper structural reinforcement beneath each mounting surface is required. Verify load requirements, installation locations, mounting surface strength, 6-1/2" x 6-1/2" backing plate clearance, 4-5/8" center opening clearance, D-ring spacing, and hardware compatibility before installation. Capacity is listed per D-ring assembly and should not be treated as a combined working capacity without verifying the full trailer structure and tie-down system.
Verify Measurements Before Ordering
