TecNiq 20" Slimline Red/Clear Stop Turn Tail light. Truck. Trailer. Light. LED.
TecNiq T16-RCW0-1 slimline red and clear LED trailer light with stop, turn, tail, and reverse function in one low-profile surface-mount housing.
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number / SKU | T16-RCW0-1 |
| Brand | TecNiq |
| Product Type | LED stop, turn, tail light with reverse |
| Approximate Length | 20" |
| Approximate Height | 1" |
| Manufacturer Reference Dimensions | 20.5" x 1.06" x 0.58" |
| Brake / Turn Current | 0.078A - 0.10A |
| Reverse Current | 0.17A - 0.23A |
| Wire Lead | 9" wire |
| LED Colors | Red / White combo |
| Quantity Included | 1 light |
Fitment / Application
| Category | Details |
|---|---|
| Trailer / Vehicle System | Trailer exterior lighting, stop/turn/tail lighting, and reverse lighting applications |
| Primary Fit | Verify before ordering by matching light length, housing profile, mounting style, wiring, and lighting function. |
| Mounting Style | Surface mount using two screws |
| Electrical Match | Confirm existing trailer wiring supports stop, turn, tail, and reverse light functions. |
| Important Note | This is a red/clear combo light. Verify lens color, light function, and mounting location before installation. |
Top Features
| Feature | Buyer Benefit |
|---|---|
| Stop / Turn / Tail + Reverse | Combines rear signal lighting and reverse lighting in one slimline assembly. |
| Low-Profile Design | 20" slim body works well on trailers where a clean, narrow light footprint is preferred. |
| Red / Clear LED Output | Red LEDs handle rear stop, turn, and tail functions while white LEDs support reverse lighting. |
| Surface Mount Installation | Designed to mount on the trailer surface using two screws. |
Overview
The TecNiq T16-RCW0-1 is a 20" low-profile red/clear LED stop, turn, tail light with integrated reverse function. This light is designed for trailer lighting applications where a slim surface-mount combo light is needed for rear visibility, signaling, and reverse illumination. Match the dimensions, mounting style, wire lead, and lighting functions to your existing trailer setup before ordering.
R&P Service Insight
When replacing a trailer light, the part number is helpful, but the physical fit and wiring function matter just as much. Confirm the light length, mounting holes, and wiring before installing so the replacement matches your trailer correctly.
- Mounting Check: This light is surface mounted using two screws.
- Function Check: Confirm your trailer uses stop, turn, tail, and reverse lighting at this location.
- Wiring Check: Match the 9" wire lead and electrical function to the existing trailer wiring before final installation.
R&P Knowledge Hub
Compatibility: Compatible with trailer applications where the T16-RCW0-1 dimensions, surface-mount design, wire lead, and red/clear stop-turn-tail/reverse function match the trailer’s existing lighting setup.
Vehicle / System Fit: Commonly used in trailer rear lighting systems requiring red stop, turn, and tail output with clear reverse lighting.
Installation Notes: Verify mounting screw location, available mounting surface, wire length, and electrical function before installation. Mounting hardware is not specified as included.
Performance Insight: The slim 20" profile helps provide a clean rear lighting layout while combining multiple lighting functions into one assembly.
Brand & Fitment Note
Selling Brand: TecNiq
Application Reference: Trailer, RV, utility trailer, cargo trailer, work trailer, and truck body lighting references are application-based only.
What This Means: This listing is for one TecNiq T16-RCW0-1 LED stop, turn, tail light with reverse. It should be matched by part number, dimensions, mounting style, and wiring function.
Before Ordering: Verify measurements, mounting style, connector or wire lead requirements, lens color, lighting function, and included components before installation.
R&P Repair Insight
Trailer lighting issues are often caused by wiring, grounding, corrosion, or a mismatched replacement light. Before replacing the light, check the trailer wiring and confirm the replacement is the correct function for the mounting location.
- Check Function First: Make sure the existing light location needs stop, turn, tail, and reverse functions.
- Check the Mounting Footprint: Compare the 20" approximate length and manufacturer reference dimensions against the old light.
- Check the Wiring: Confirm power and ground connections are clean, secure, and matched to the correct light functions.
Features
20" Slimline LED Trailer Light
Low-profile light assembly with an approximate 20" length and manufacturer reference dimensions of 20.5" x 1.06" x 0.58".

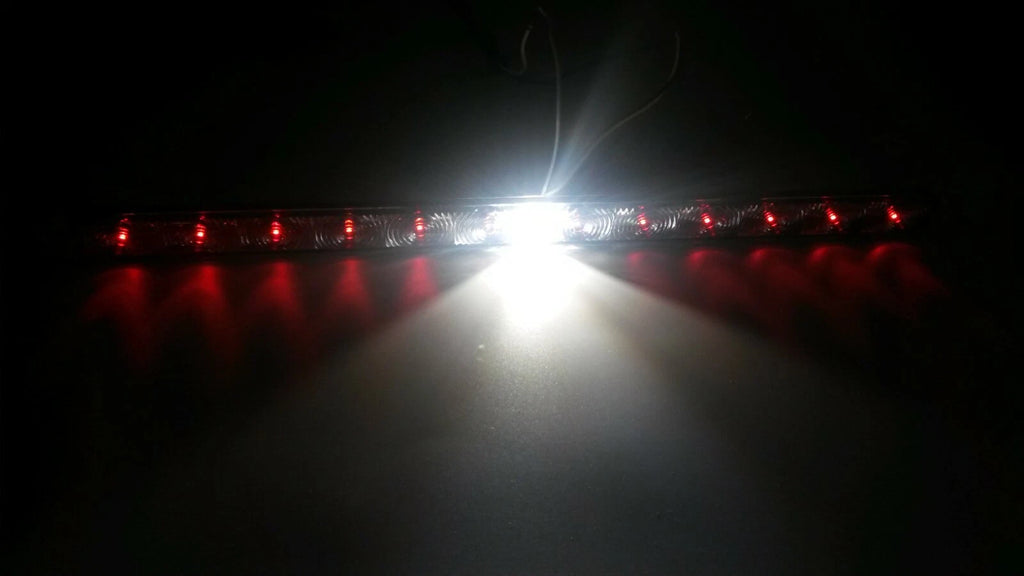

Stop, Turn, Tail & Reverse Function
Designed as a combination trailer light with red stop/turn/tail output and clear reverse lighting.
Red / White Combo LEDs
Red and white LED combination supports rear signaling and reverse light needs in one assembly.
Surface Mount Installation
Mounts to the trailer surface using two screws. Verify mounting surface and screw locations before installation.

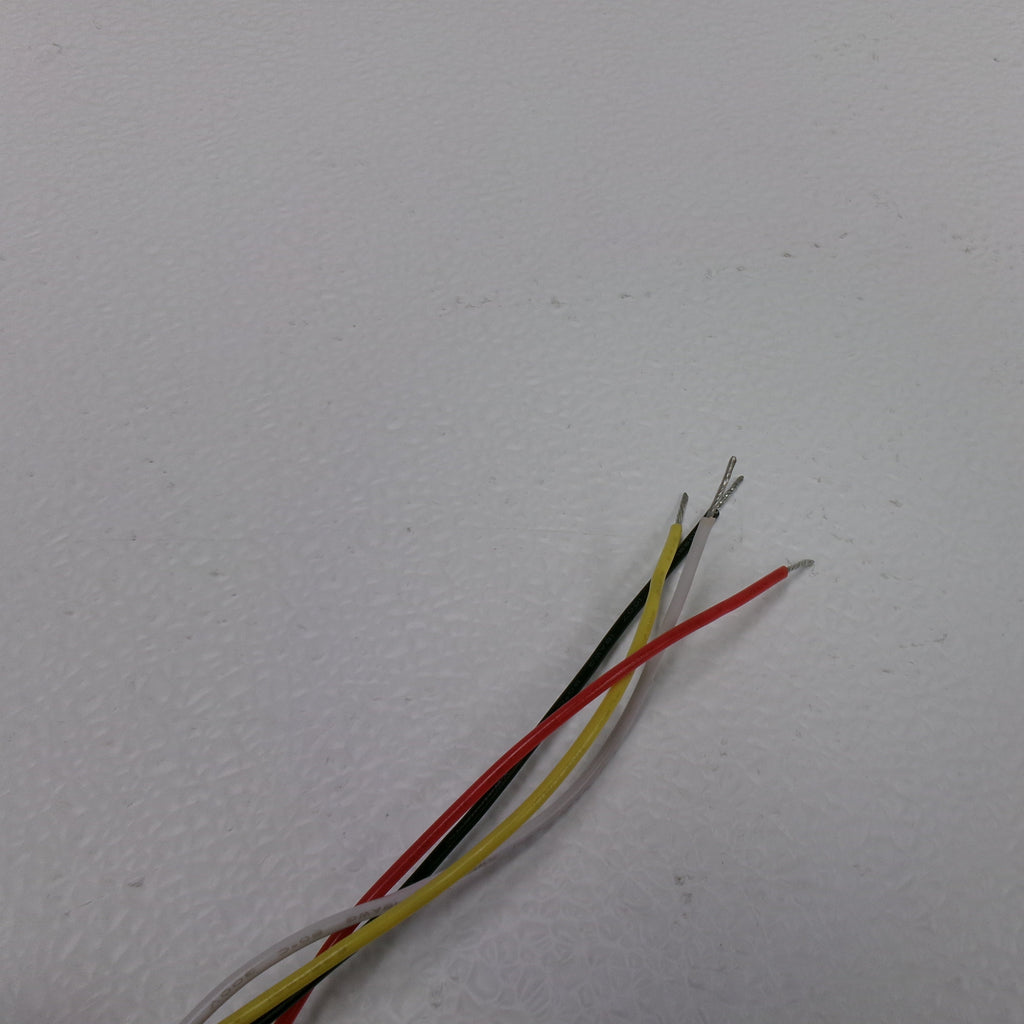

9" Wire Lead
Includes a 9" wire lead for connection into the trailer lighting system.
Low Current LED Design
Brake/turn current is listed at 0.078A - 0.10A, and reverse current is listed at 0.17A - 0.23A.
Included Components
| Quantity | Item |
|---|---|
| 1 | TecNiq T16-RCW0-1 20" slimline red/clear LED stop, turn, tail light with reverse |
| Not specified | Mounting hardware is not specified as included. |
