Match the part number, measurements and connection points that apply to your trailer.
| Function | Confirm stop, turn, tail, marker or clearance function. |
|---|---|
| Mount | Verify housing and mounting style. |
| Connection | Match the plug, pigtail or wiring. |

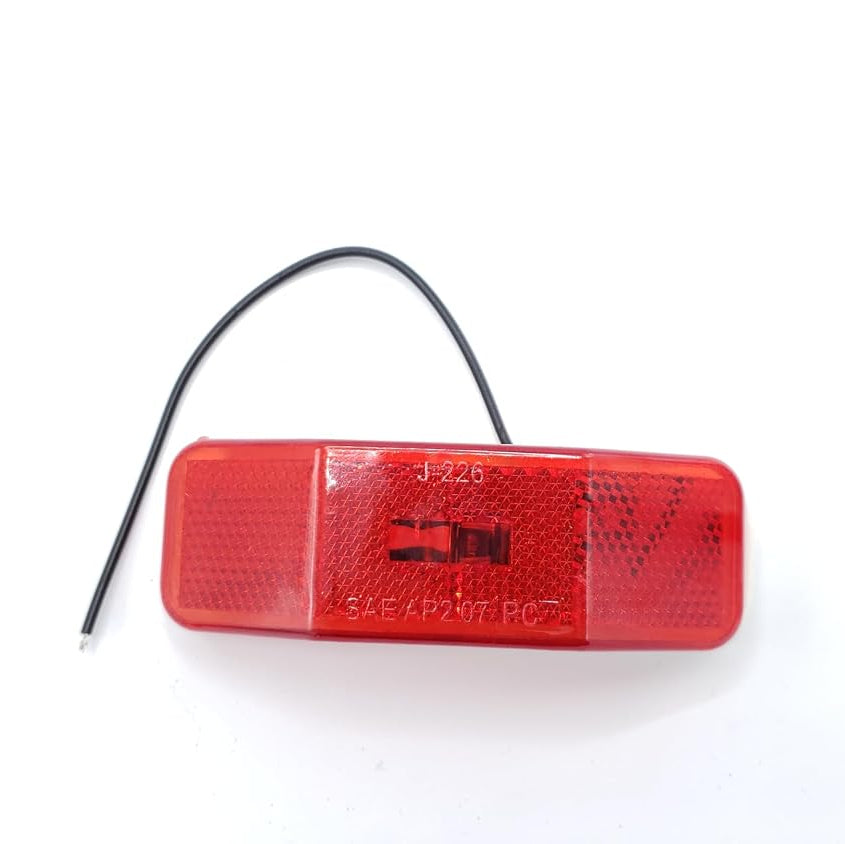

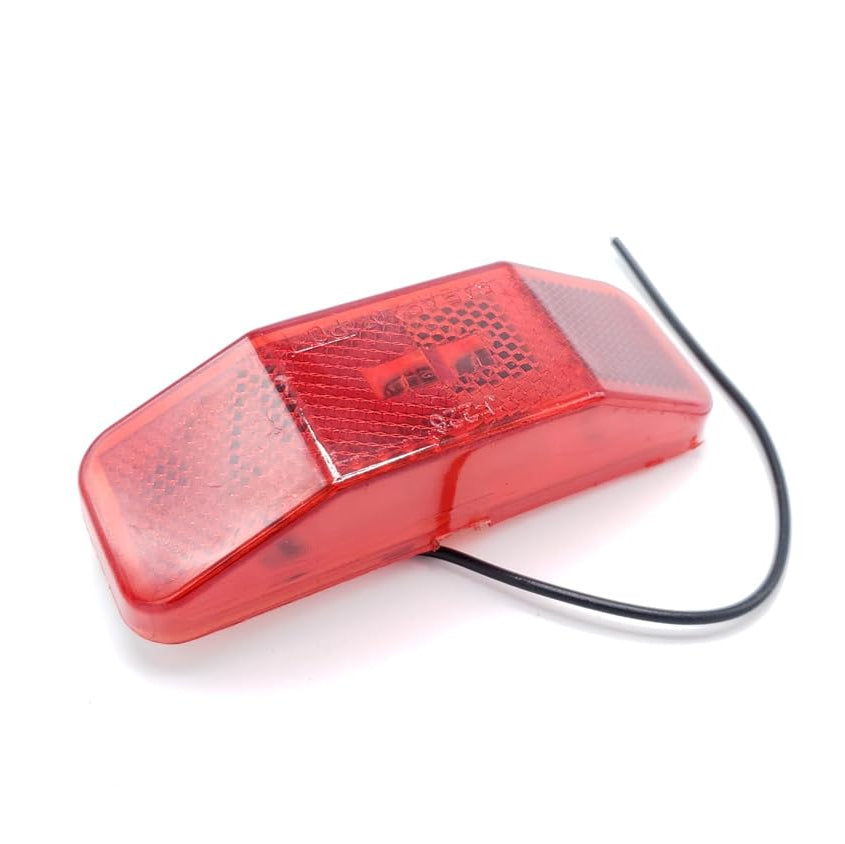

Red LED marker light designed as a Bargman 99 style replacement for trailers, campers, RVs, and utility trailer lighting applications where the mounting pattern and dimensions match.
| Specification | Detail |
|---|---|
| Part Number / SKU | J-225-R |
| Product Type | LED red marker / clearance light |
| Lens Color | Red |
| Light Size | 1-1/4" wide x 4" long |
| Mounting Hole Spacing | 3" center to center |
| Wiring | 6" lead |
| Mount Style | Screw mount / surface mount |

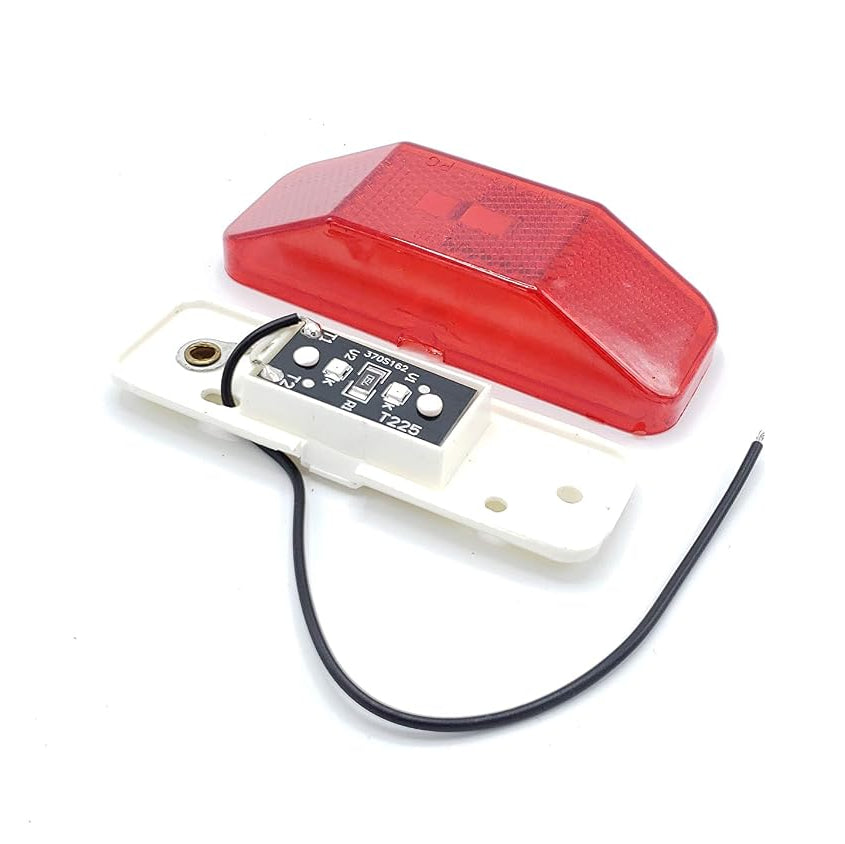

| LED Count | 2 high power LED lights |
| Quantity Included | 1 red LED marker light |
| Category | Details |
|---|---|
| Application | Trailer, camper, RV, truck, and utility trailer marker / clearance light applications |
| Primary Fit | Bargman 99 style replacement where size, wiring, and mounting pattern match |
| Fitment Method | Confirm 1-1/4" x 4" body size, 3" center-to-center screw spacing, and lead-wire connection before ordering |
| Important Note | Use Bargman 99 as an application style reference only; verify measurements and wiring before installation |
| Feature | Buyer Benefit |
|---|---|
| LED Design | Uses 2 high power LED lights for a modern replacement to older marker light styles |
| Red Lens | Common choice for rear and side marker / clearance lighting applications where red lighting is required |
| Surface Mount | Mounts directly to the trailer surface using screw mounting points |
| Bargman 99 Style | Designed as a replacement option for Bargman 99 style light applications when dimensions match |
Important Fitment Note: This light is a Bargman 99 style LED replacement. Verify the 1-1/4" wide x 4" long size, 3" center-to-center mounting pattern, red lens requirement, screw mount style, and 6" lead-wire connection before installation.
Compatibility: Fits Bargman 99 style marker light applications where the 1-1/4" x 4" size, 3" screw spacing, red lens, and lead-wire setup match.
Vehicle / System Fit: Commonly used on trailers, campers, RVs, trucks, and utility trailers requiring red marker or clearance lighting.
Installation Notes: Remove the old marker light, confirm the mounting hole spacing, connect the 6" lead wiring, and screw the replacement light to the trailer surface.
Performance Insight: The 2 high power LED design provides an LED replacement option for older marker light styles while keeping the same basic Bargman 99 style footprint.
Red lens marker light for compatible trailer, RV, camper, truck, and utility trailer lighting applications.
Designed as an LED replacement for Bargman 99 style lights when the mounting footprint and wiring match.
Screw mount design installs directly to the trailer surface using the 3" center-to-center mounting pattern.
Built with 2 high power LED lights for a compact LED marker light replacement.
| Quantity | Item |
|---|---|
| 1 | Jammy Bargman 99 style LED red marker light, part number J-225-R |
| Built In | 6" lead wiring |
| Not Included | Mounting screws and additional wiring connectors are not specified as included |
