Dexter 10,000# HD Hub 8x6.5 Bolt Pattern 5/8" Stud w/Bearings 395S 394A Trailer (8-214-5-KIT)

Dexter

Regular price $368.00

Dexter 10,000# Heavy Duty Hub KIT

8x6.5 Bolt Pattern 5/8" Stud
with Bearings and Seal

This fits 10K HEAVY DUTY Dexter Axles

(Will NOT fit 10K GD Axles)

Will this fit your axle?? read below
Your drum number should have the number 9-27 cast into the drum,
Your old plastic oil cap should say "DEXTER 21-36" molded into the plastic.
Your brake shoes should be 4" wide,
The brake assembly is bolted to the axle tube with 7 bolts

RP Part Number: 8-214-5-KIT

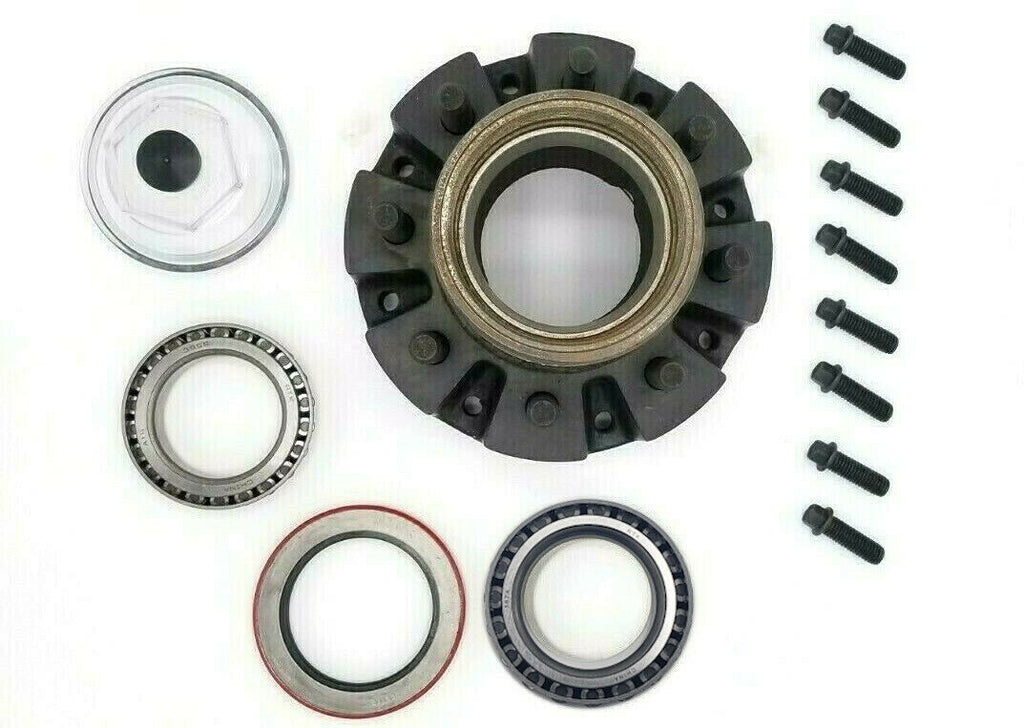

This auction contains:

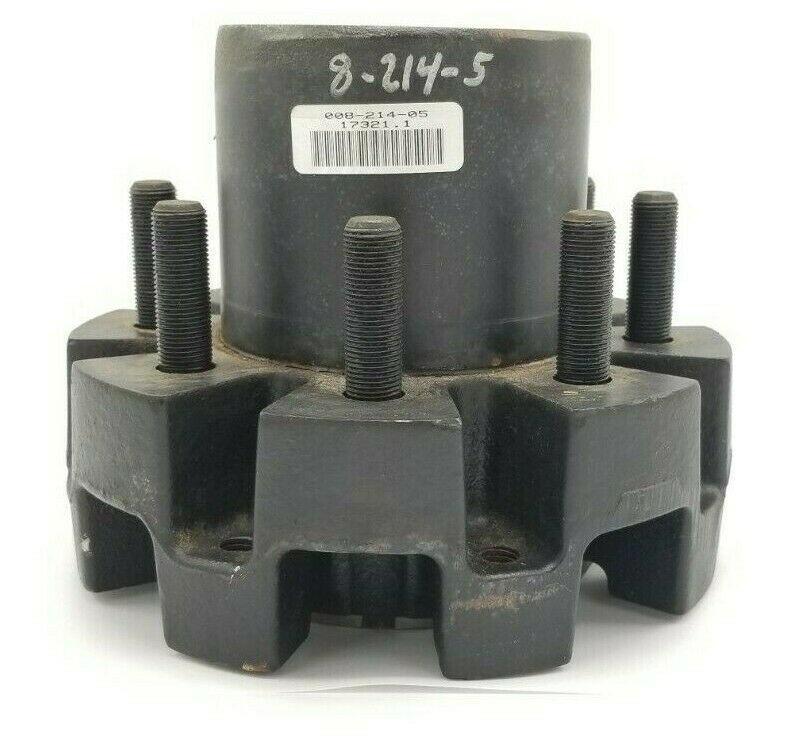

1x 10k HD 8x6.5 Hub (part#: 008-214-05)

8x Mounting Hex Screws (part#: 007-292-00)

1x Inner Bearing (part#: 395S)

1x Outer Bearing (part#: 387A)

1x 10-56 4.5" x 3.12" Dexter Unitized Seal (part#: 010-056-00)

1x Inner Race (part#: 394A)

1x Outer Race (part#: 382A)

1x 21-36 Oil Cap w/Plug & O-ring (Part#: 21-36)

Features:

Fits 10k Heavy Duty Axles (typically matched with a "9-27" drum)
Used with Dexter Drum (Part#:009-027-01), Not Included
Includes Bearing, Races (2 already pressed in), Seal, Oil Cap w/Plug & O-Ring, Mounting Screws, Hub

Specs:

10k Heavy Duty Axles (will not fit General Duty 10K axles)
8 Lug w/ 6.5" Bolt Circle
5/8"-18 Studs
Includes Bearing, Races (2 already pressed in), Seal, Oil Cap w/Plug & O-Ring, Mounting Screws, Hub
Capacity per Hub: 5,000#
Fits a 2 Piece System, Dexter Drum (part#: 009-027-01) Not Included

This hub is meant for heavy duty 10,000lbs axles. This is part of a 2 piece system. This hub works with Dexter drum part# 009-027-01, not included. This auction kit does come with the bearing, races, seal, oil cap, and mounting screws.

Dexter 10,000# HD Hub 8x6.5 Bolt Pattern 5/8" Stud w/Bearings 395S 394A Trailer (8-214-5-KIT)
