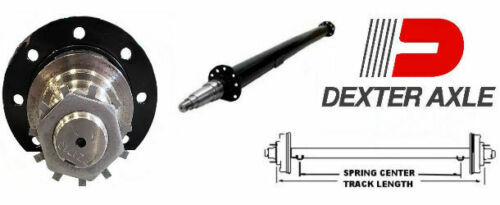

Dexter Trailer Axle Beam 10,000 lb – New Style, Straight, 5" Tube, 74" Hub Face

Part Number: 100GD-AF09-74

10,000 lb general duty trailer axle beam designed for new-style Dexter applications. This straight axle features a 5" round tube and is commonly used on car haulers, equipment trailers, and other heavy-duty trailer builds requiring a 74" hub face.

Features

• 10,000 lb general duty axle beam
• New-style straight axle with camber
• 74" hub face, 74.5" track width
• Standard 5" round tube construction
• Designed for 1-piece hub and drum assemblies
• Spring perches not installed (loose)

Reference Diagram

Diagram shown for general dimensional reference. Measurements and configurations should be confirmed prior to ordering to ensure compatibility with your trailer.

Spindle Detail

Specifications
