Dexter 10K–15K Rubber Spring Eye Bushing – 1" ID x 2" OD
Part Number: 14-06 | Dexter 014-069-00 | Replaces 14-69
Steel-sleeved rubber spring eye bushing designed for Dexter 10,000 lb to 15,000 lbheavy-duty slipper spring suspension systems. Fits 3" wide heavy-duty springsand is used with a 1" diameter spring bolt.
This listing is for one (1) bushing.
R&P Knowledge Hub
Rubber spring eye bushings isolate vibration between the spring eye and mounting bolt,reducing shock transfer into the trailer frame. The bonded steel inner sleeveprovides structural reinforcement for high-capacity suspension systems.
In heavy-duty 10K–15K applications, worn bushings can cause excess suspension playand uneven tire wear. Always verify bolt diameter, outside diameter, overall length,and spring width before installation.
Features
- Steel-sleeved rubber construction
- Designed for 10K, 12K, and 15K axle suspensions
- Fits 3" wide heavy-duty slipper springs
- Compatible with 1" diameter spring bolts
- Replaces Dexter 014-069-00 / 14-69
Specifications
| Specification | Detail |
| Dexter Part Number | 014-069-00 |
| Store Part Number | 14-06 |
| Replaces | 14-69 |

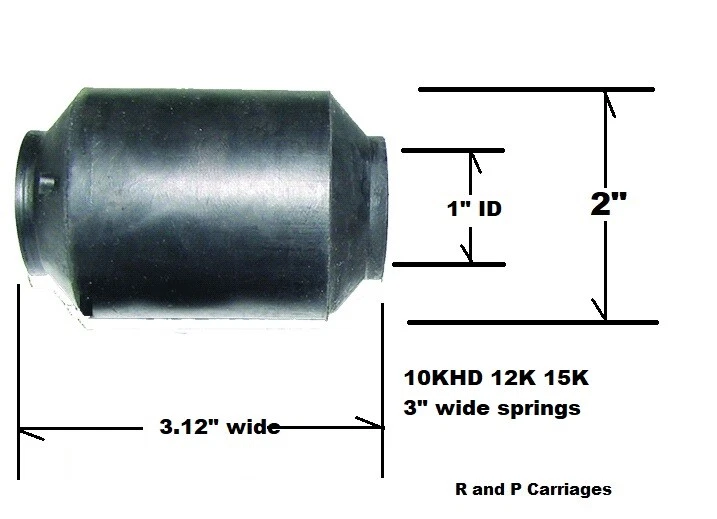

| Inside Diameter (ID) | 1" |
| Outside Diameter (OD) | 2" |
| Overall Width | Approximately 3.12" |
| Spring Compatibility | 3" Wide HD Slipper Springs (10K–15K) |
| Construction | Rubber with Bonded Steel Inner Sleeve |
| Quantity | One (1) Bushing |
Verify specifications before installation.
