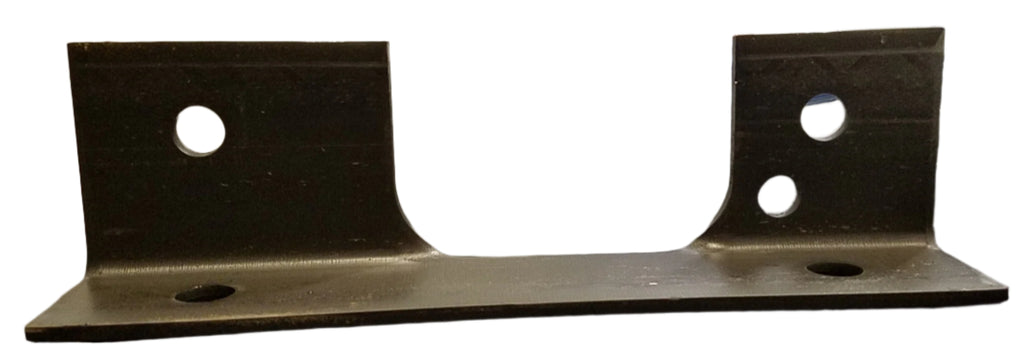

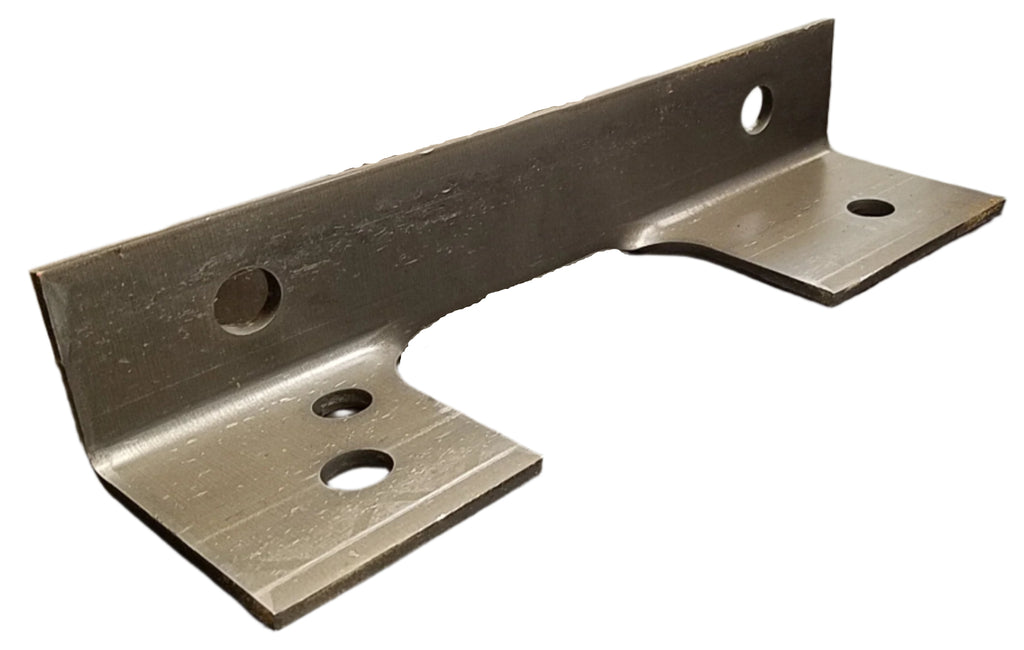

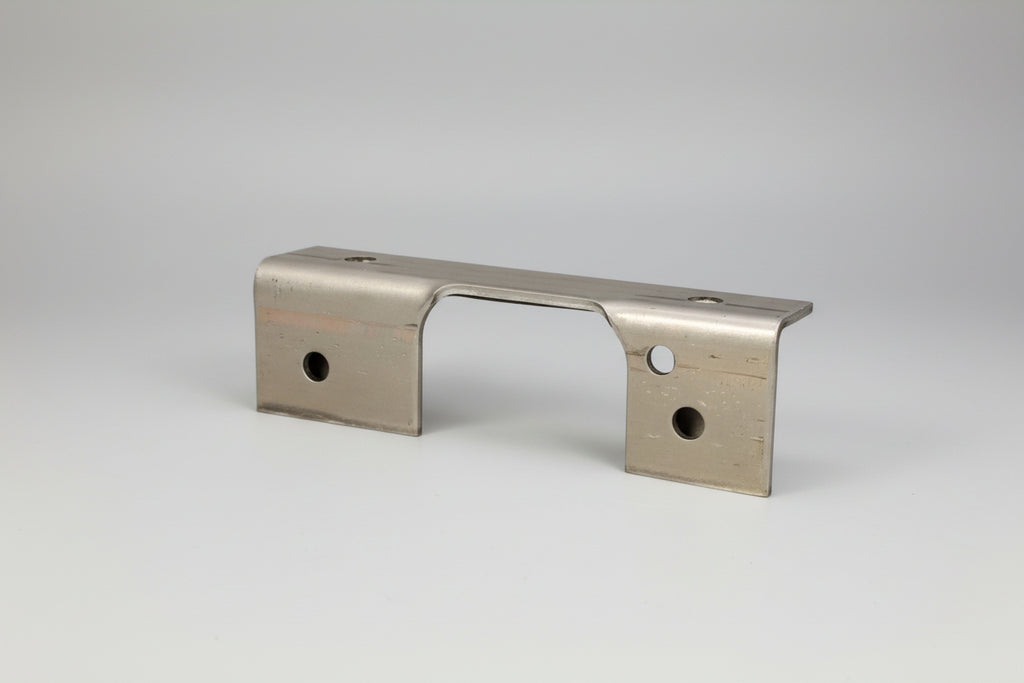

Dexter #12 Side Mount Hanger · Left Hand · 13" Steel Bracket
Part Number: 003-180-00
This listing is for one (1) Dexter-style side mount hanger designed specifically for use with #12 torsion axles. This is a left-hand (LH) bracket and is typically mounted on the driver side of the trailer when facing forward.
The hanger provides two mounting faces to accommodate different frame configurations and is constructed from heavy-duty steel for long-term durability.
Features
- Designed for Dexter #12 torsion axles
- Side-mount hanger bracket
- Left-hand (LH) orientation
- Heavy-duty steel construction
- Multiple mounting face options
Specifications
| Specification | Detail |
|---|---|
| Axle Type | Dexter #12 Torsion Axle |
| Orientation | Left Hand (LH) |
| Overall Length | 13" |
| Mounting Face Sizes | 3.5" and 2.5" |
| Bolt Hole Diameter | 5/8" |
| Bolt Spacing (3.5" Side) | 9-1/2" center-to-center |
| Bolt Spacing (2.5" Side) | 9" center-to-center |
This hanger is designed for torsion axle systems only. Not compatible with leaf spring suspensions. Always confirm axle series and orientation before installation.
