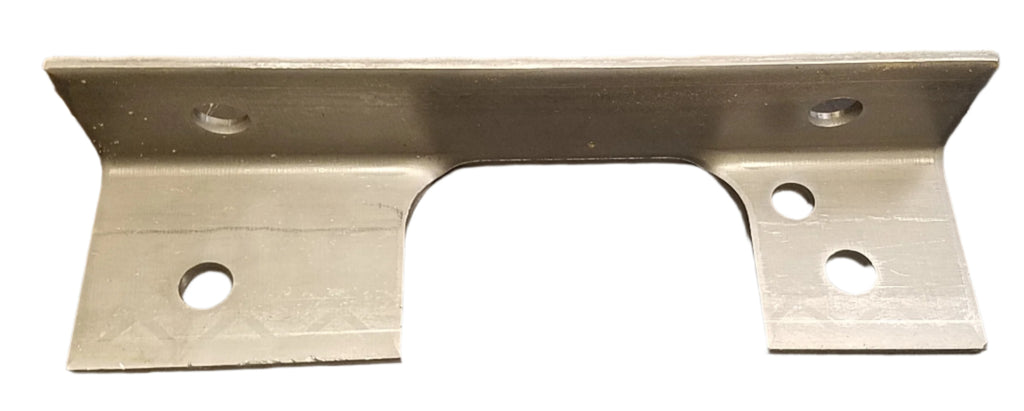

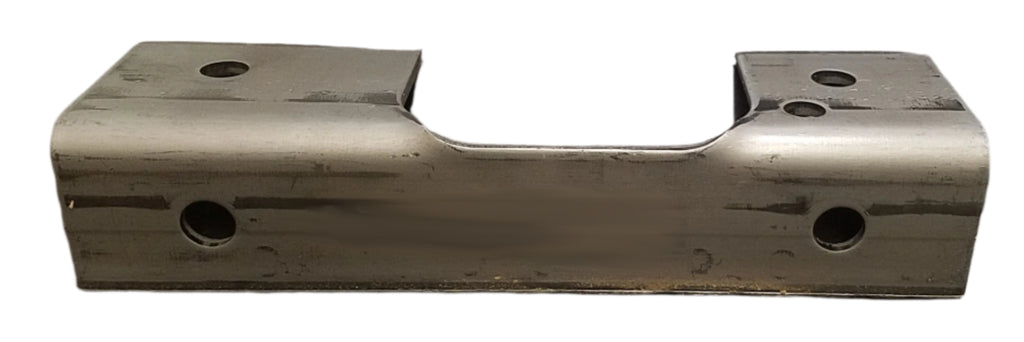

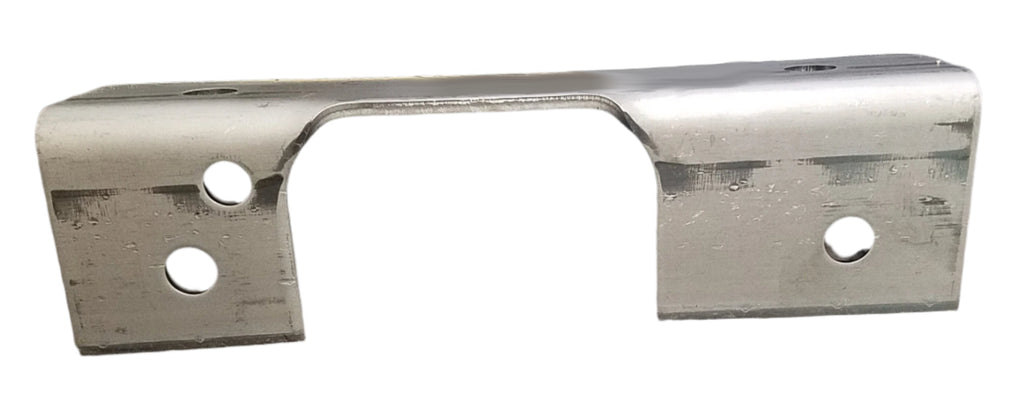

Dexter #12 Side Mount Hanger · Right Hand · 13" Steel Bracket
Part Number: 003-181-00
This listing is for one (1) Dexter-style side mount hanger designed for use with #12 Torflex torsion axles. This is the right-hand (RH) bracket, typically installed on the passenger side of the trailer when facing forward.
The hanger provides two mounting faces for flexible frame installation and is constructed from heavy-duty steel for long-term structural support.
Features
- Designed for Dexter #12 Torflex torsion axles
- Side-mount hanger bracket
- Right-hand (RH) orientation
- Heavy-duty steel construction
- Multiple mounting face options
Specifications
| Specification | Detail |
|---|---|
| Axle Type | Dexter #12 Torflex Torsion Axle |
| Orientation | Right Hand (RH) |
| Overall Length | 13" |
| Mounting Face Sizes | 3.5" and 2.5" |
| Bolt Hole Diameter | 5/8" |
| Bolt Spacing (3.5" Side) | 9-1/2" center-to-center |
| Bolt Spacing (2.5" Side) | 9" center-to-center |
This hanger is intended for torsion axle systems only and is not compatible with leaf spring suspensions. Always verify axle series and orientation before installation.
