Replacement or Conversion Disc Brake Kit for 3,500 LB Trailer Axles

Part Number:77-3.5KI-RTR-102-KIT

This listing is for One Wheel

Images are NOT to scale, for reference only

Fits Dexter and Lippert Axles

5 X 4-1/2" Lug Pattern

10" Diameter

Uses 13" thru 15" Rims

This Kit Includes

1 X (77-3.5KI-RTR-102) Disc Brake Hub Rotor

1 X (77-3.5KI-DBB) Disc Brake Mounting Bracket

1 X (77-3-6K) 3.5K-6K Trailer Axle Disc Brake Caliper

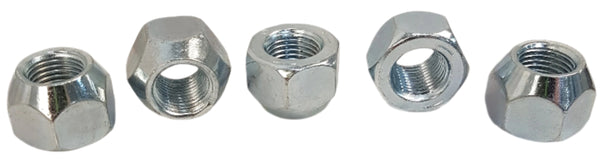

5 X (X1023R) 1/2-20 X 13/16" Lug Nuts

4 X (7-75) 7/16" Mounting Bolts

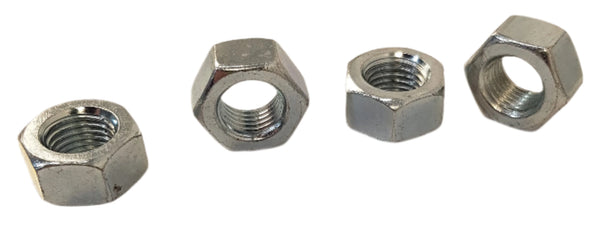

4 X (6-17) 7/16"-20 Nuts

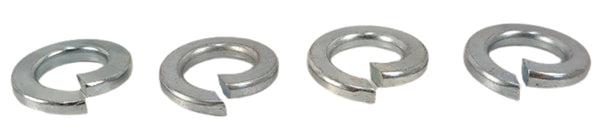

4 X (5-8) 7/16" Split Lock Washer

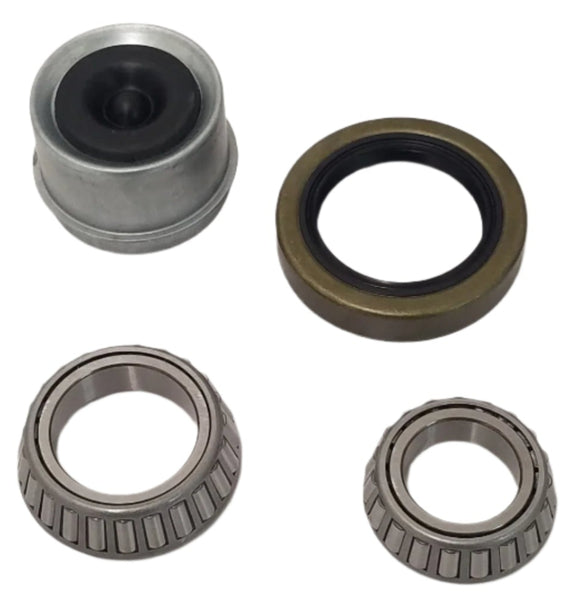

1 X (HD-3500-KIT) Hub/Drum Bearing Kit

HD-3500-Kit Includes:

1 X (L44649) 1.0625" ID Bearing

1 X (L68149)  1.378" ID Bearing

1 X (10-19)  1.719 X 2.56"  Grease Seal

1 X (DC-200L)  1.98" Grease Dust Cap

This kit can be used to replace Kodiak disc brakes or convert drum brakes to disc.

If you have any questions, please do not hesitate to contact us. We have an amazing team with an abundance of knowledge!
