Match the part number, measurements and connection points that apply to your trailer.
| Attachment | Match the track, anchor or mounting style. |
|---|---|
| Dimensions | Verify fitting and strap dimensions. |
| Rating | Check the complete securement-system rating. |

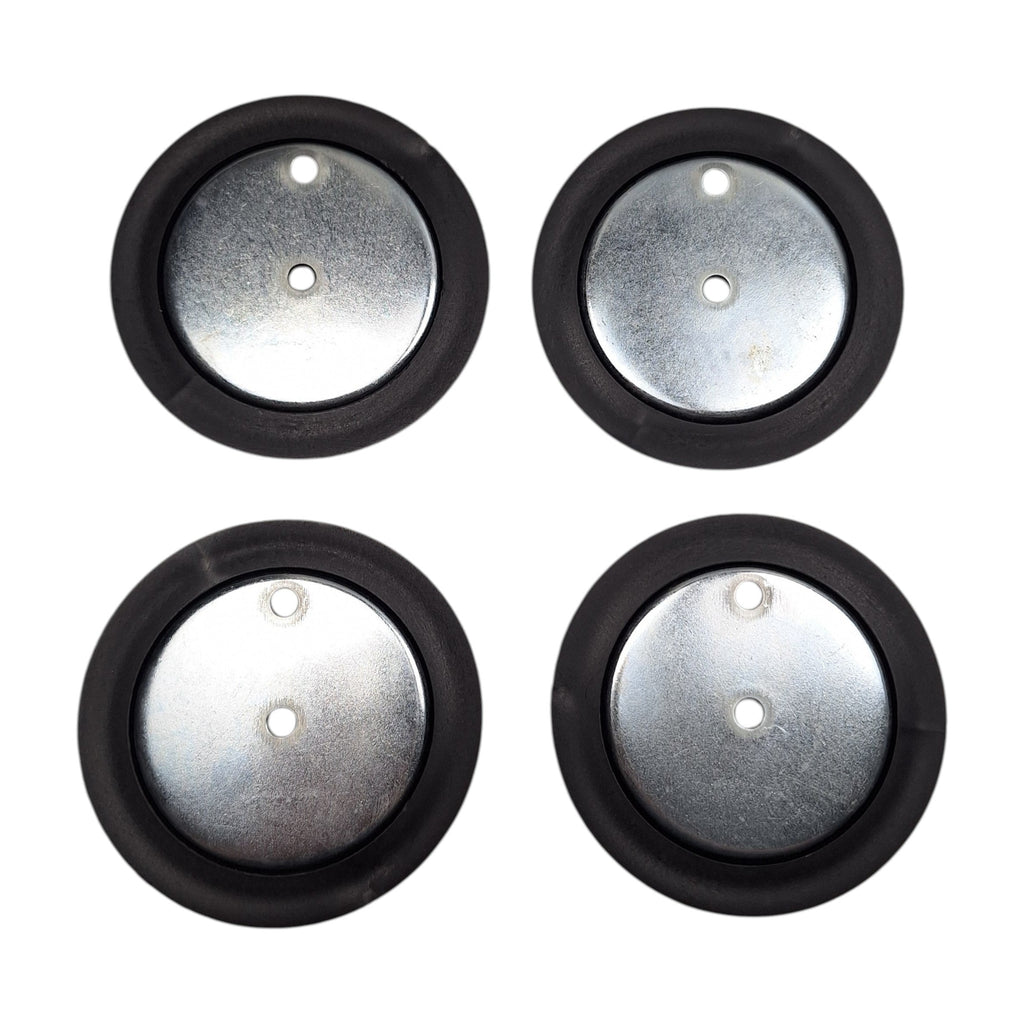

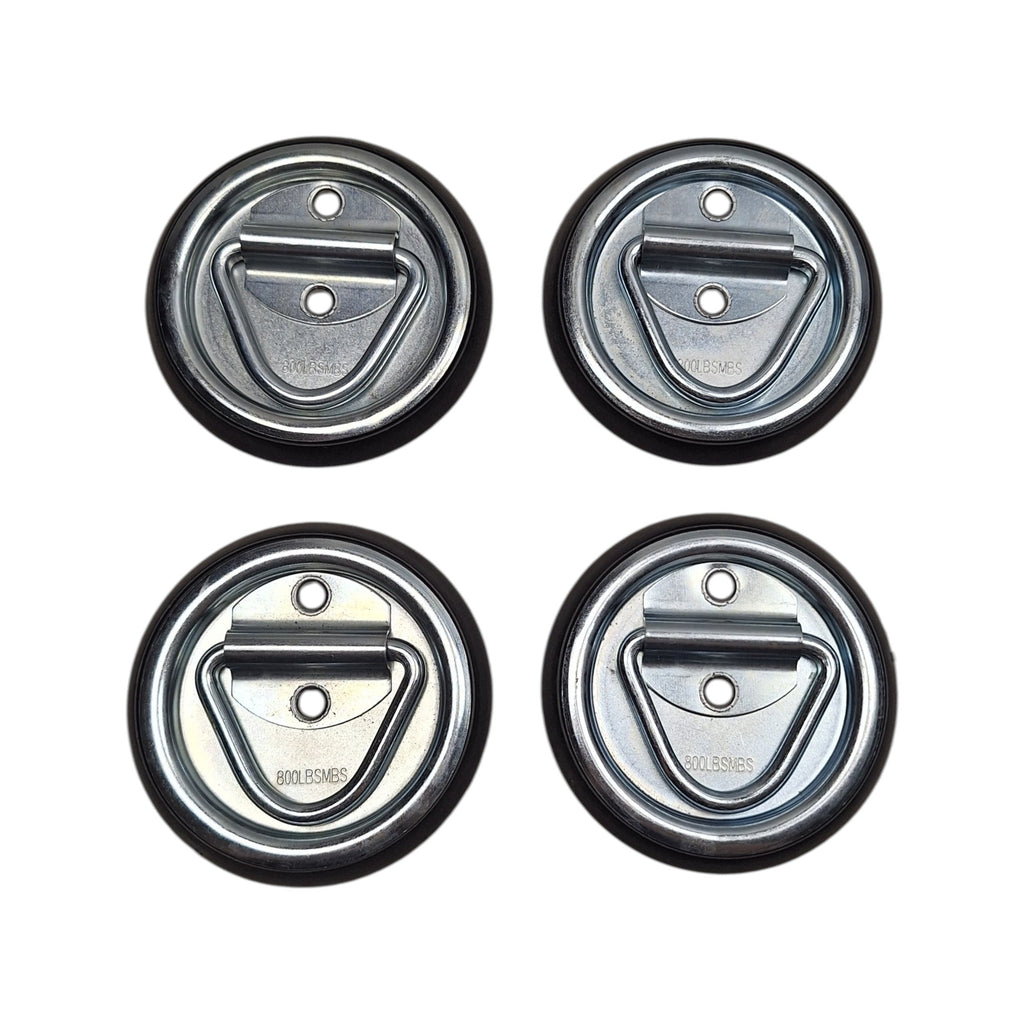

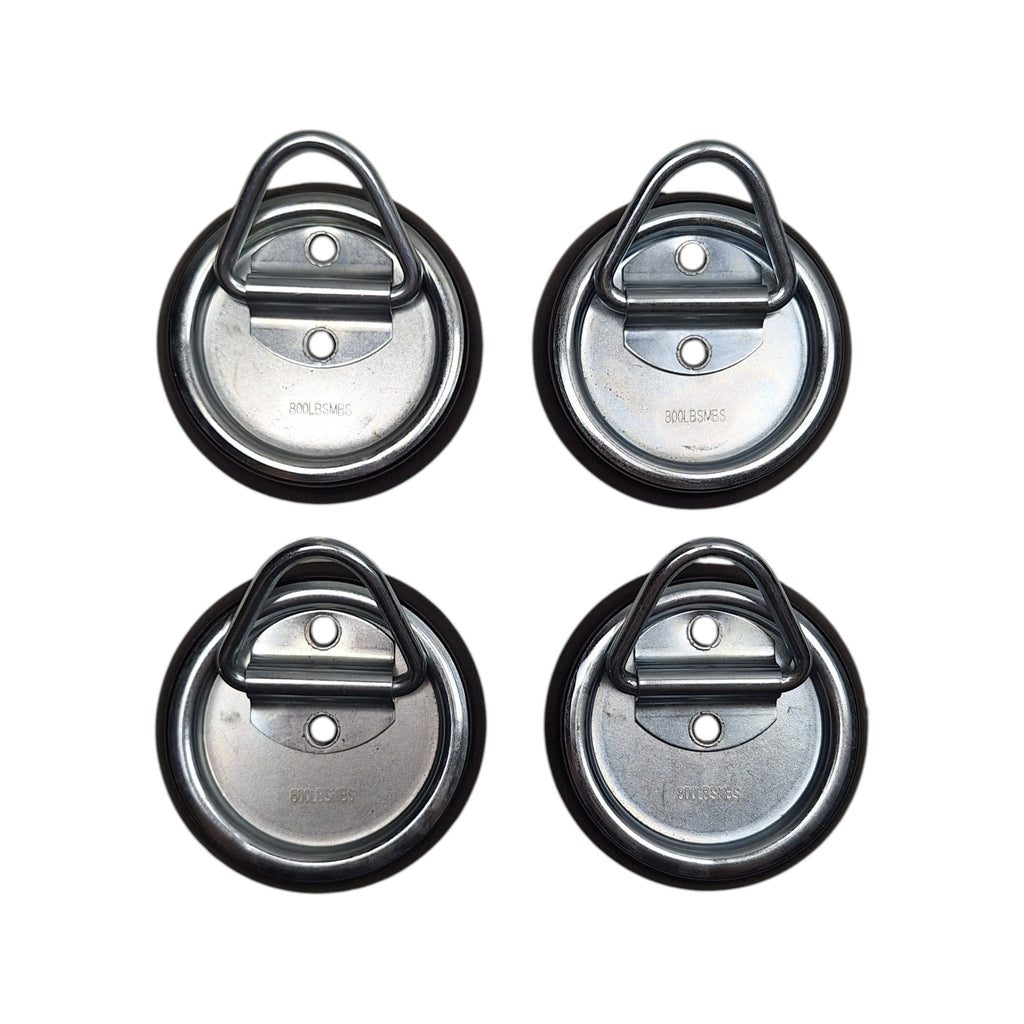

Part Number: RR02-LOTOF4
These 4" round surface-mount D-ring tie-downs provide reliable anchor points for securing cargo in trailers, vans, trucks, utility vehicles, barns, and enclosed spaces. Designed for practical, low-profile installation, they offer dependable strength without getting in the way when not in use.
| Quantity | 4 D-rings with bezels |
|---|---|
| Ring Thickness | 1/4" |
| Ring Height | 2" |
| Plastic Bezel OD | 4.0" |
| Steel Base OD | 3.5" |
| Recess Option | Fits 3.0" hole, 1/4" deep |
| Mounting Holes | Two 1/4" holes, 1-1/8" center-to-center |
| Working Load Rating | 800 lb (each) |
| Finish | Zinc plated |
Commonly used for floor or wall mounting in trailers, trucks, vans, and utility applications. Verify mounting surface thickness and load requirements before installation.
Selected from R&P customer feedback for Cargo Control products and related trailer service.
“Received swivel d-ring tie down 4 days after my wife ordered them , great price and came with backing plates. I received exactly what I paid for, thanks for the great service. Chris Davis , Mooresville NC”
“Would like to say thanks to everyone at R and P Carriages parts were delivered fast and with the very helpful staff, the right parts were sent the first time. Thanks Happy Holiday's.”
“I've ordered lots of trailer repair parts from them, always fast service, well packed, and the right parts. I highly recommend.”
Need help matching a part? Send us photos, part numbers and measurements. We can help narrow it down before you order.
