Match the part number, measurements and connection points that apply to your trailer.
| Attachment | Match the track, anchor or mounting style. |
|---|---|
| Dimensions | Verify fitting and strap dimensions. |
| Rating | Check the complete securement-system rating. |
|
These are the same D rings I install in the trailers I sell, when I set them up for Holding down Motorcycles, Lawn Mowers, ATV's, ETC. Not used for Cars or other heavy equipment 1/4" thick ring bent in a triangle shape 2" Plastic trim ring 4"O.D. Actual steel base measures 3.5" O.D. CAN BE RECESSED IN A 3" HOLE 1/4" DEEP I usually install right on a frame cross member for a strong mount. |
Dimensions
- 1/4" Thick Ring Bent into a triangle shape, 2" tall

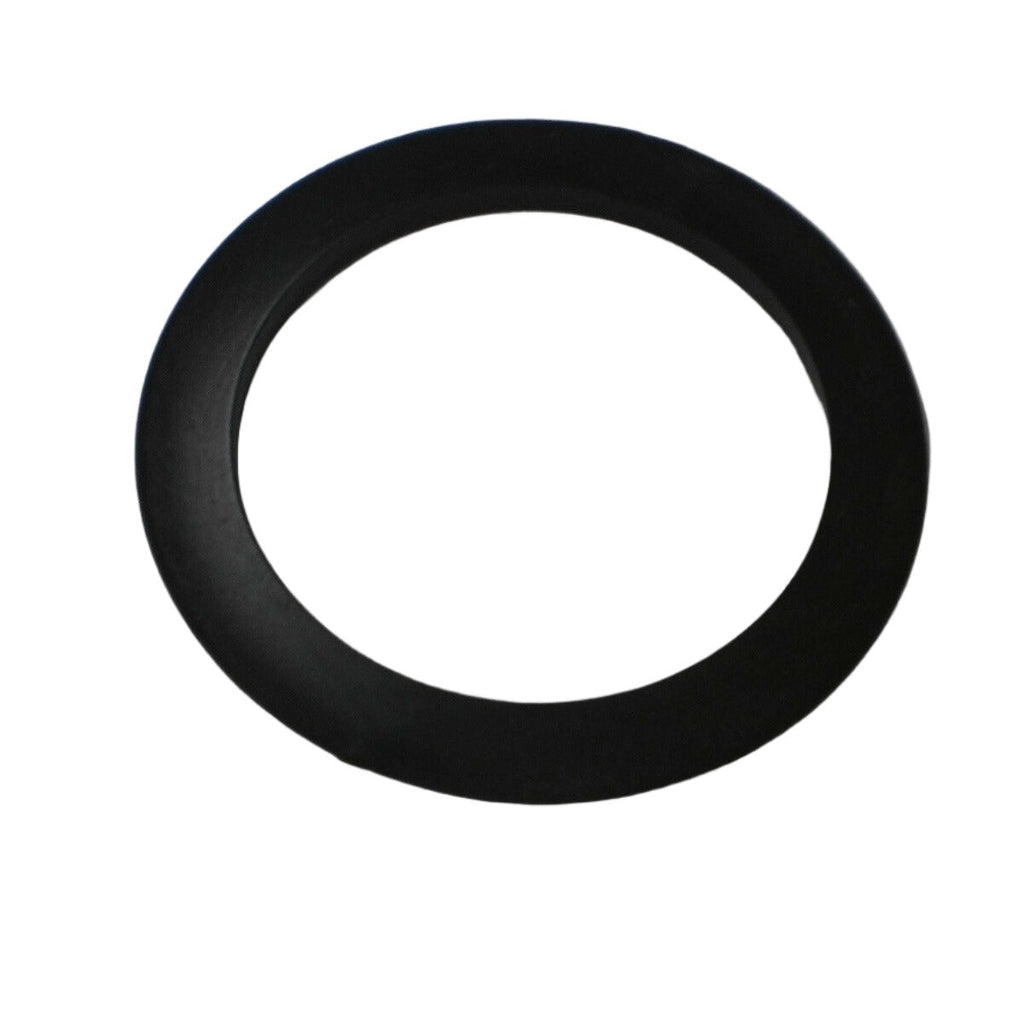

- 4" OD Plastic trim ring

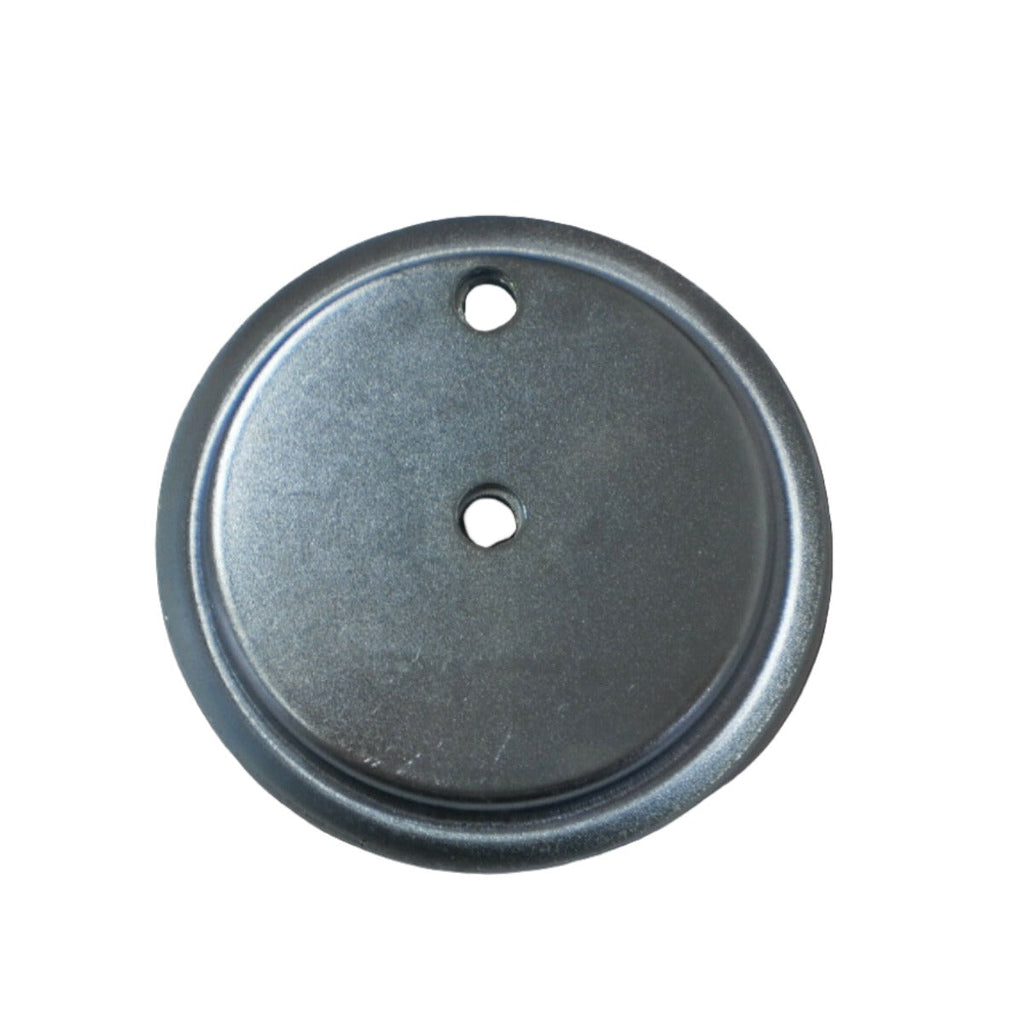

- Steel D ring base 3.5" OD
- If plastic trim ring is removed, can be recessed into a 3" hole that is 1/4" deep
- Mounting Holes are 1-1/8" center to center and are 1/4" wide (total of 3 holes, one in the center)
- Rated to 800#
|
Click on Any Picture for a Larger, Higher Quality Image | ||
|
|
|
Selected from R&P customer feedback for Cargo Control products and related trailer service.
“Received swivel d-ring tie down 4 days after my wife ordered them , great price and came with backing plates. I received exactly what I paid for, thanks for the great service. Chris Davis , Mooresville NC”
“Would like to say thanks to everyone at R and P Carriages parts were delivered fast and with the very helpful staff, the right parts were sent the first time. Thanks Happy Holiday's.”
“I've ordered lots of trailer repair parts from them, always fast service, well packed, and the right parts. I highly recommend.”
Need help matching a part? Send us photos, part numbers and measurements. We can help narrow it down before you order.
