Sloan's Kwik-Load Texas Rollback Trailer Deck Roller Wheel Castor Kit

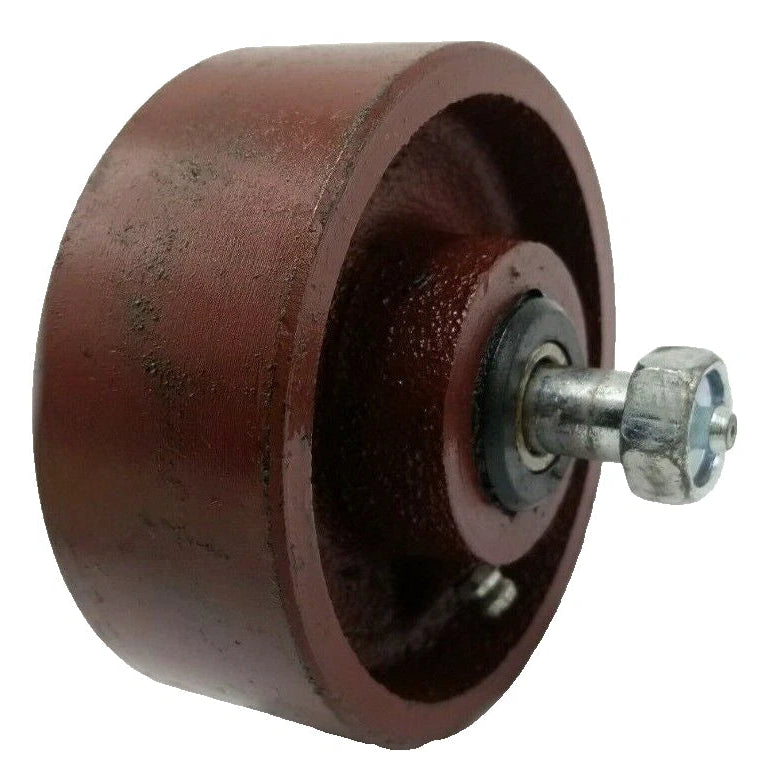

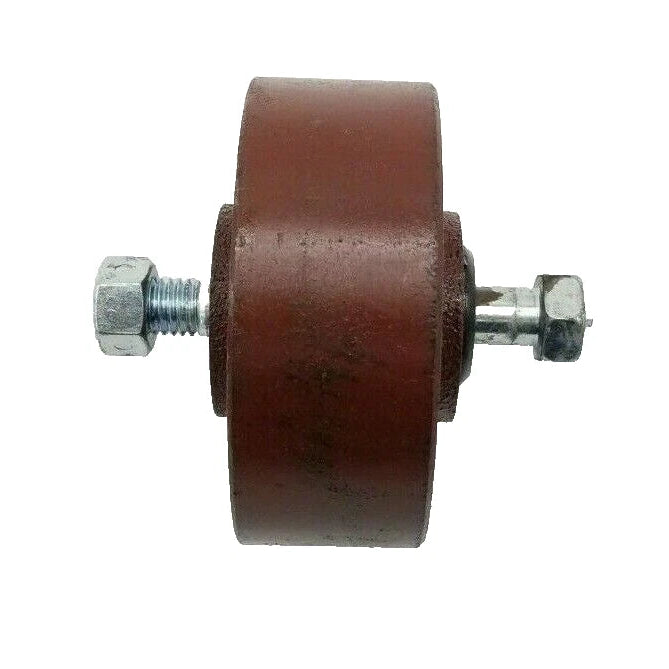

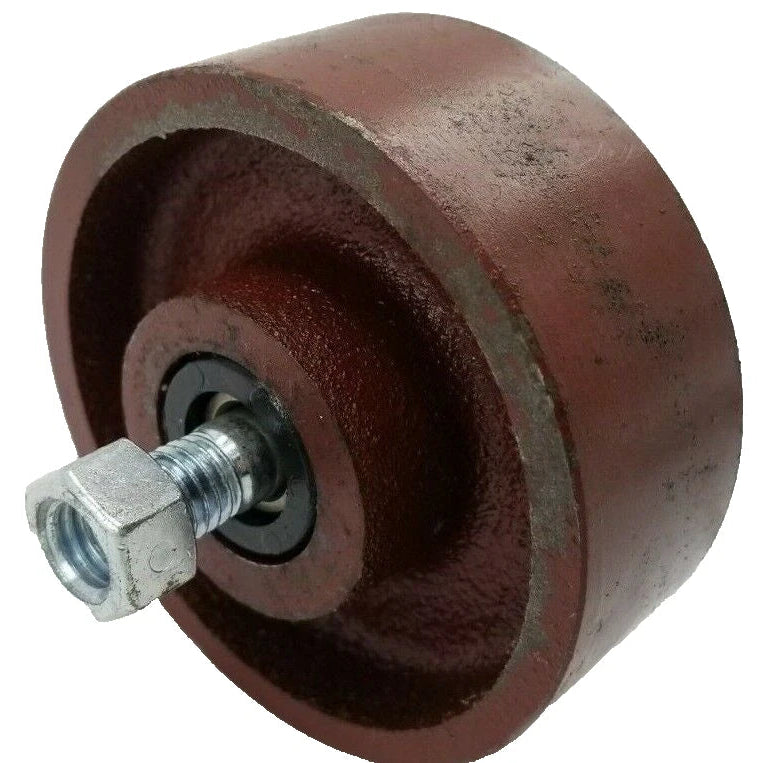

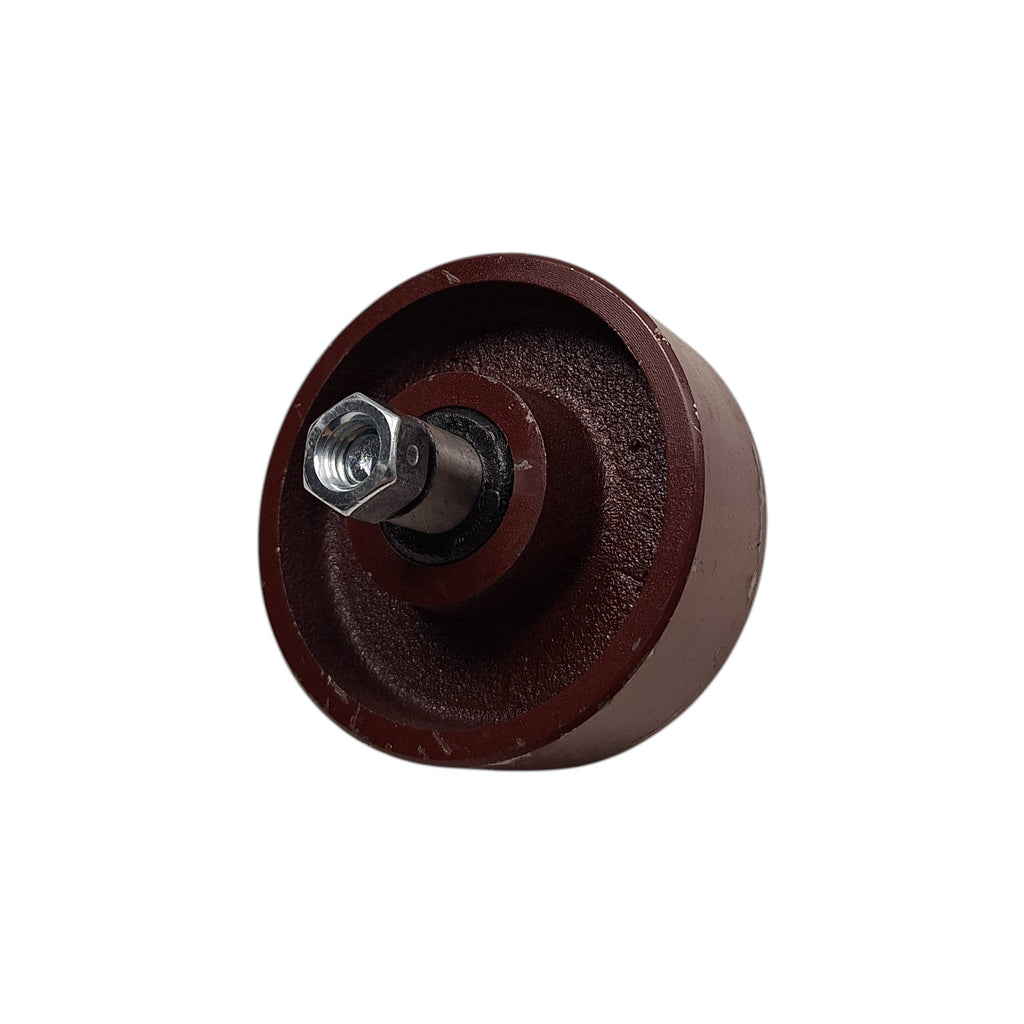

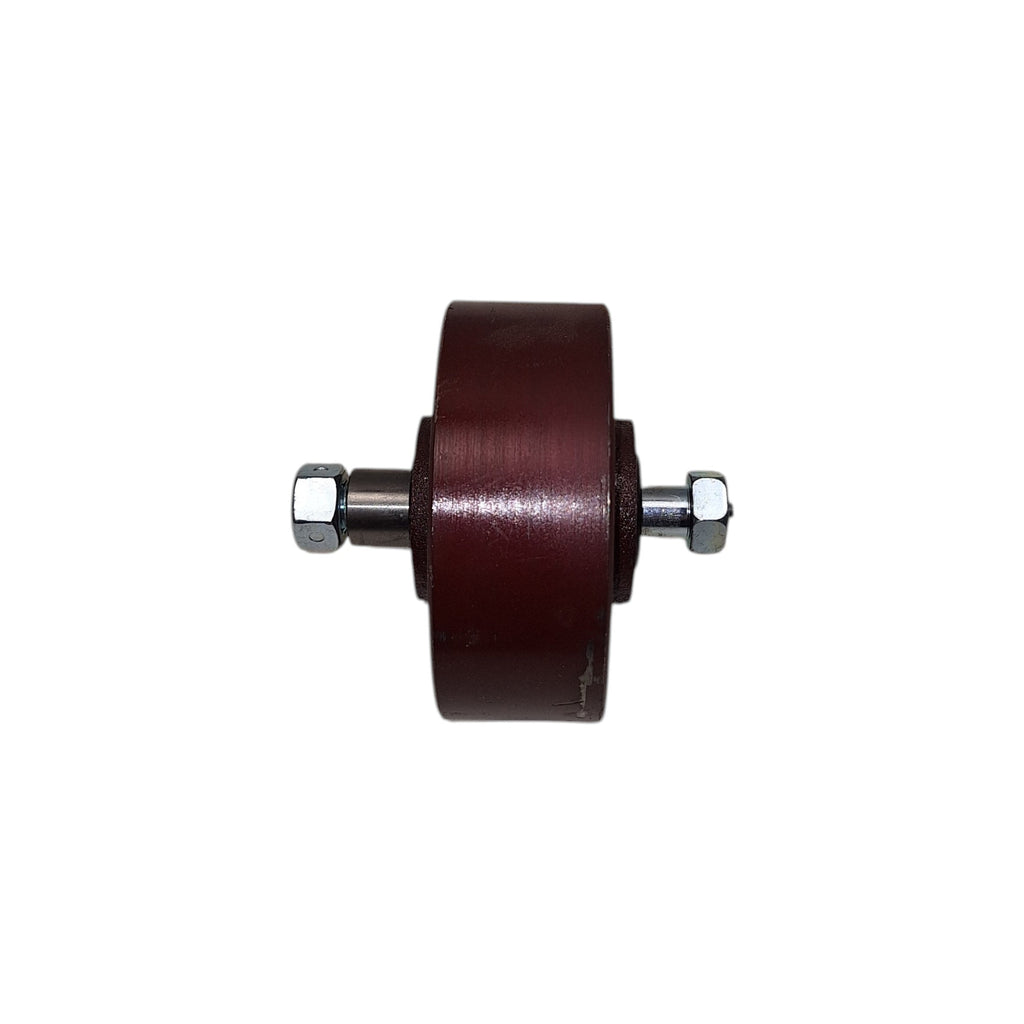

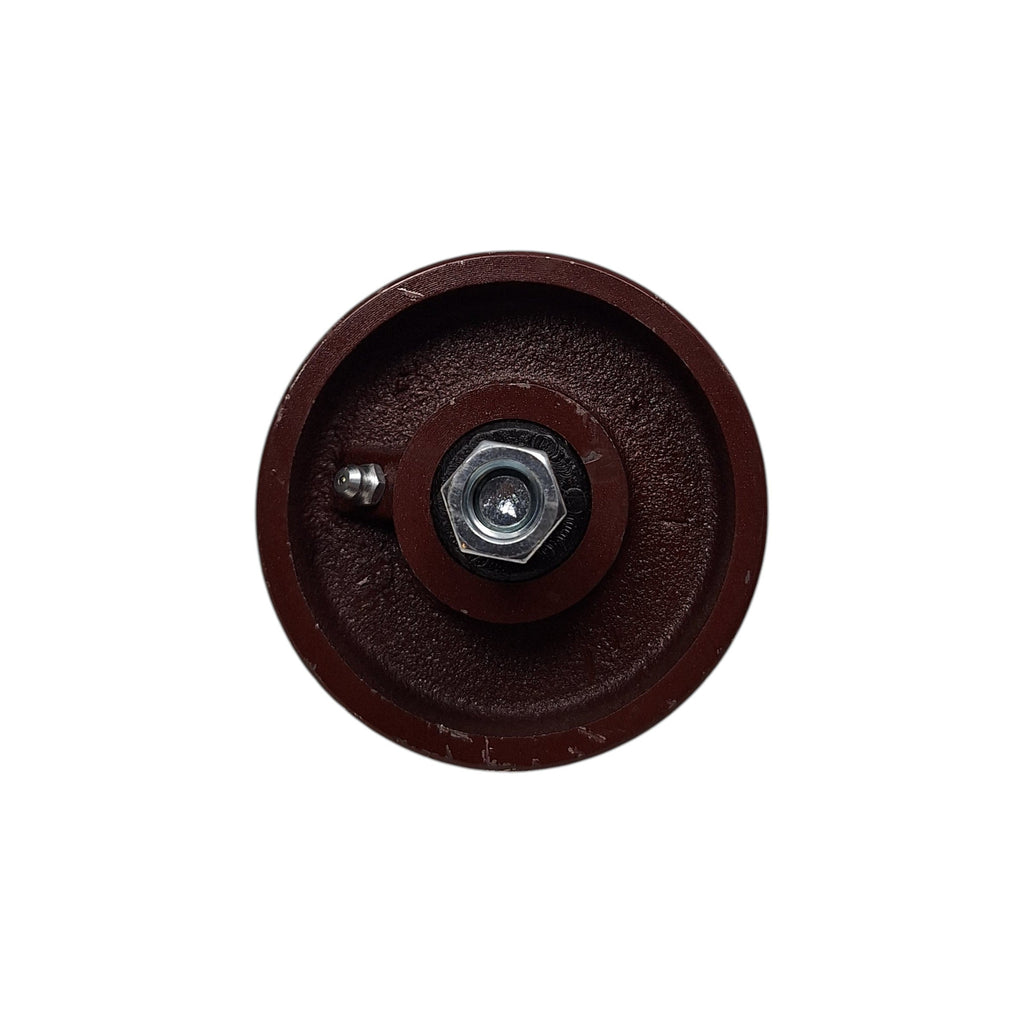

Application-specific roller service kit for Sloan's Kwik-Load “Texas Rollback” trailer bed frame roller locations. Includes one greaseable roller, one bushing, and one greaseable bolt with nut.
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number / SKU | KLR |
| Brand / Application | Sloan's Kwik-Load “Texas Rollback” |
| Product Type | Deck roller wheel castor kit for bed frame mechanism |

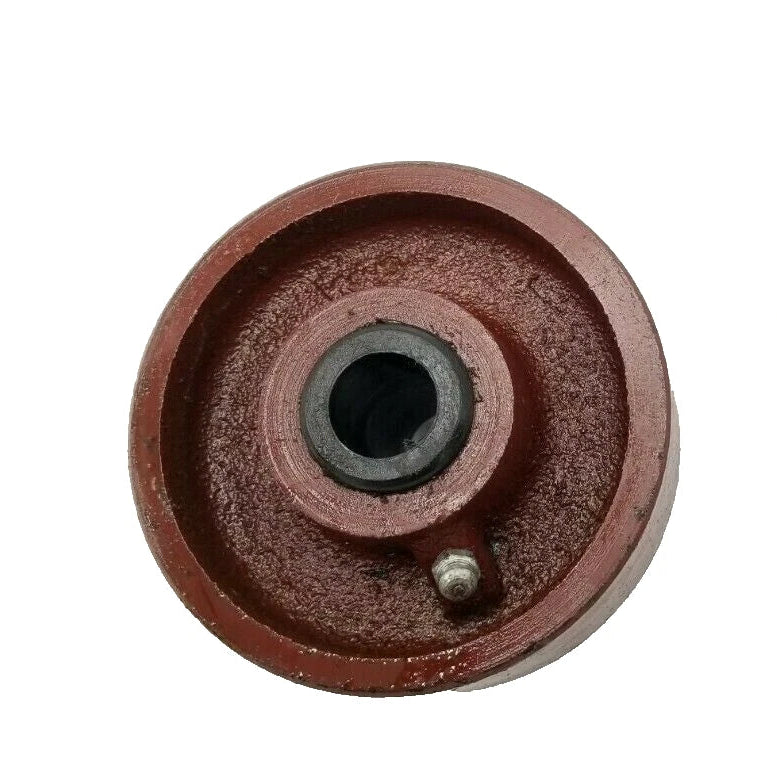

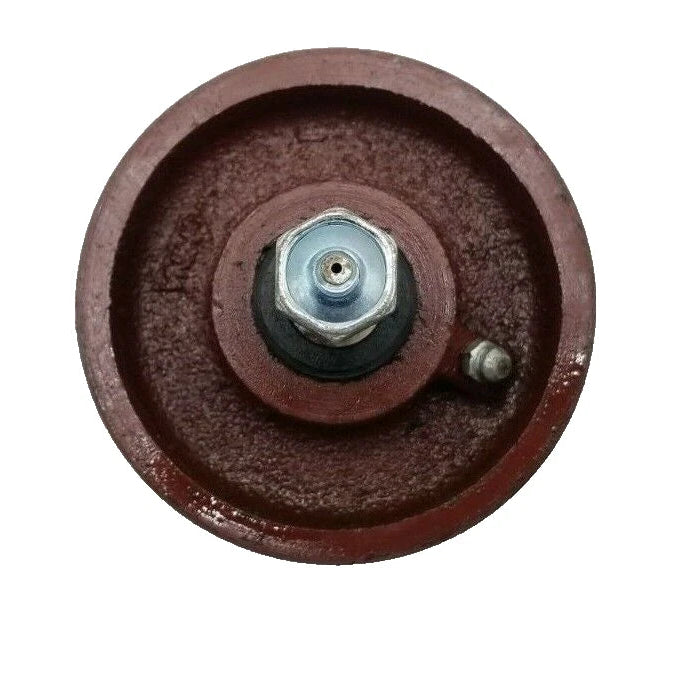

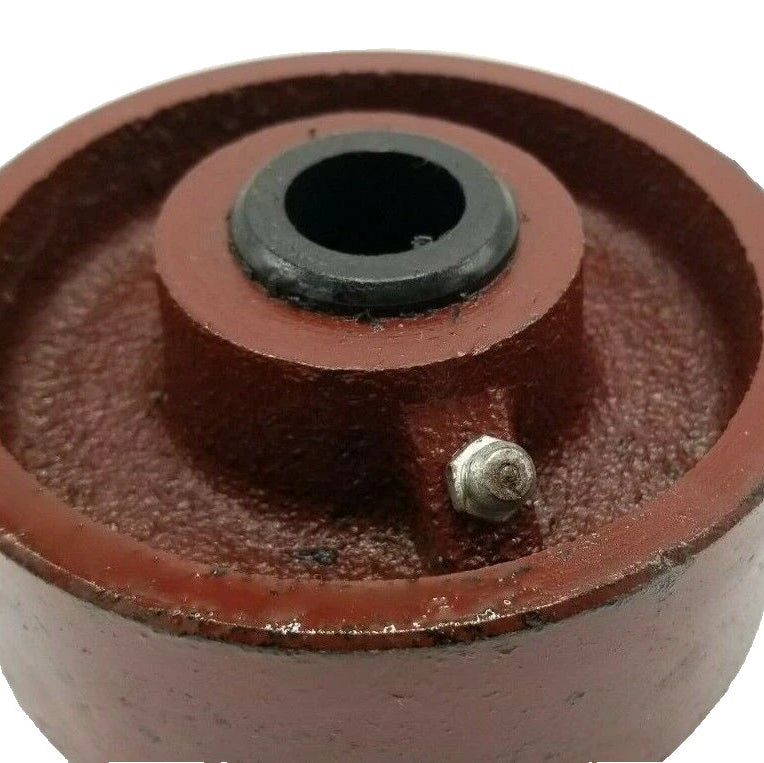

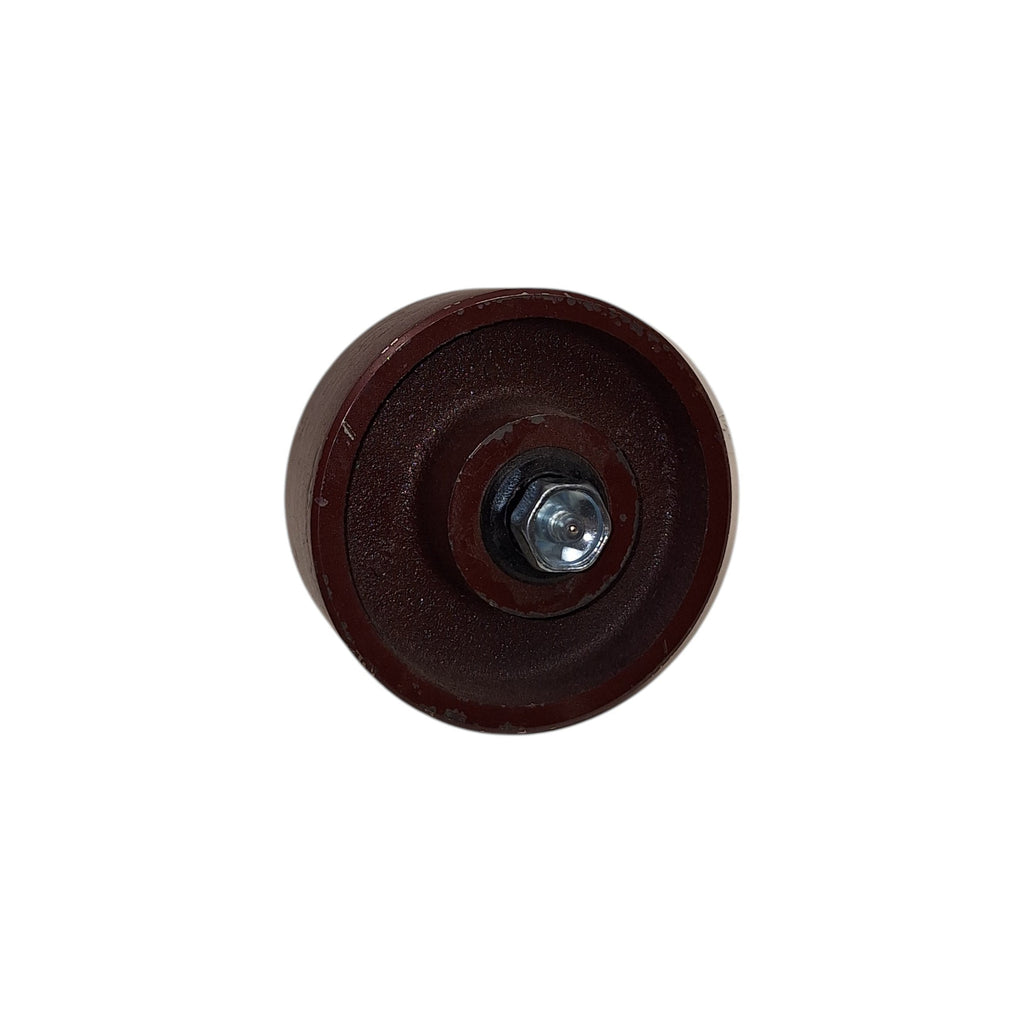

| Roller Size | 4" diameter x 1-1/2" wide with 3/4" bushing |

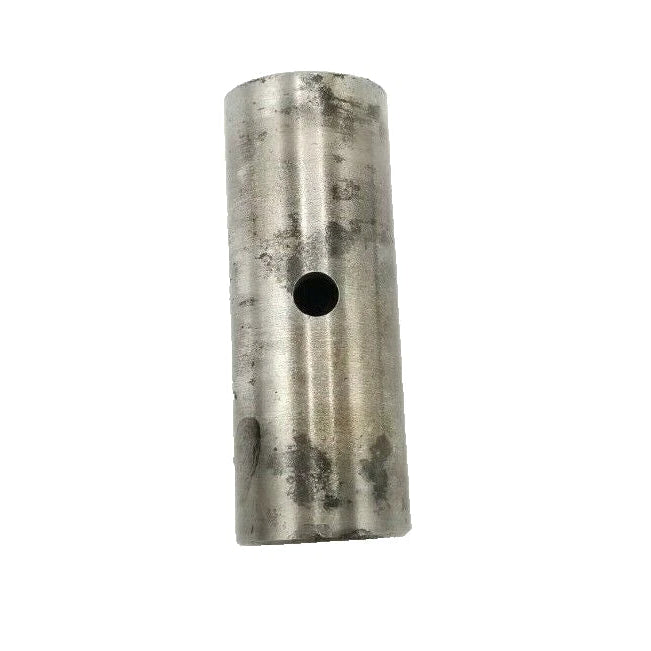

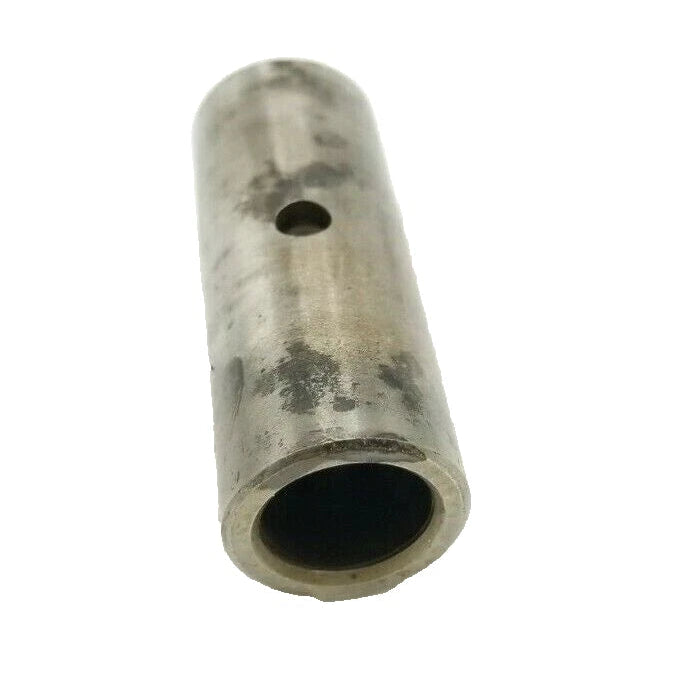

| Bushing Size | 2" long x 3/4" OD x 1/2" ID; hole measures 1" centered |

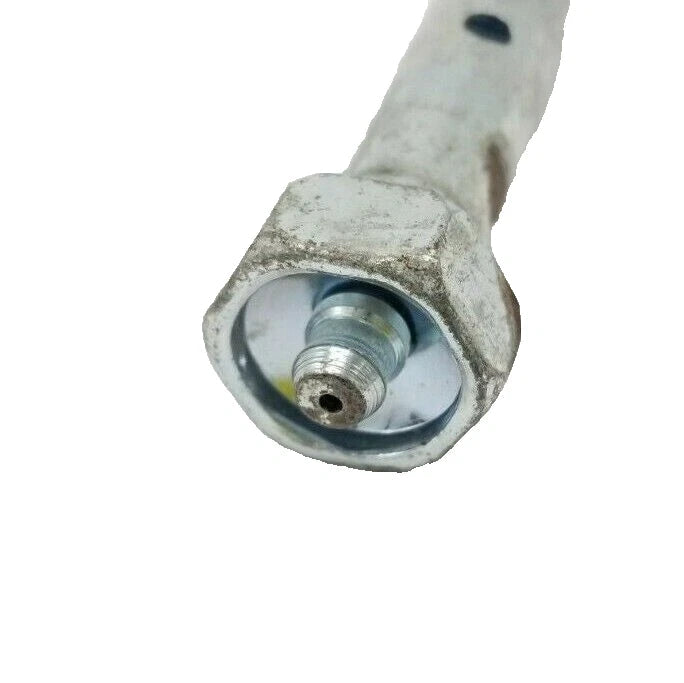

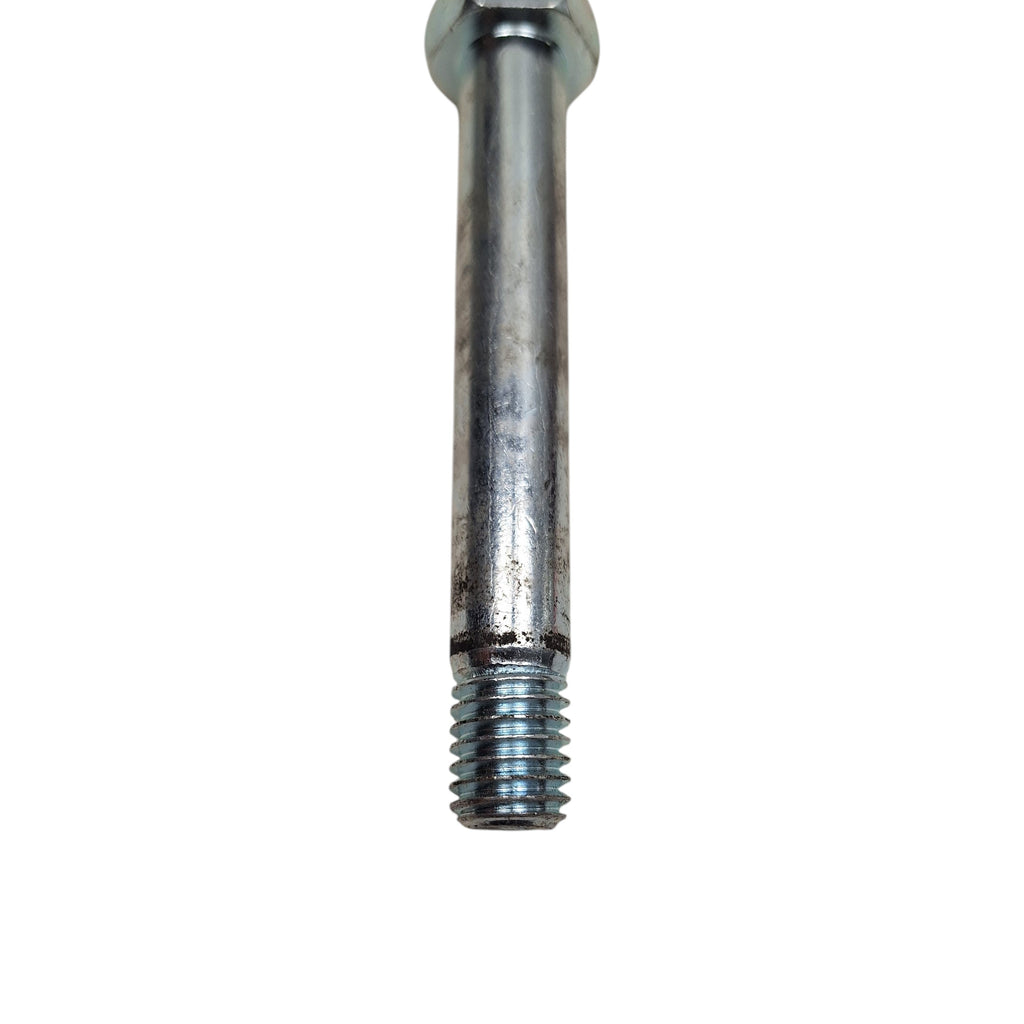

| Bolt Size | 3-1/2" long below head x 1/2" diameter; 16 threads per inch; hole measures 1-3/16" below head |
| Nut | 1/2" coarse thread |
| Quantity Included | One complete roller kit |
Fitment / Application
| Category | Details |
|---|---|
| Trailer System | Sloan's Kwik-Load “Texas Rollback” trailer bed frame roller system |
| Primary Fit | Made for Kwik-Load Trailers brand Texas Rollback applications only |
| Model Year Fit | Listed to work with Sloan's Kwik-Load Rollback Trailers regardless of year |
| Fitment Method | Verify existing roller, bushing, and bolt dimensions before ordering |
| Important Note | This is application-specific and should not be treated as a universal trailer roller kit |
Top Features
| Feature | Buyer Benefit |
|---|---|
| Greaseable Roller | Supports serviceability at the deck roller location |
| Matched Bushing | Includes the bushing needed for the listed roller setup |
| Greaseable Bolt With Nut | Provides the bolt and nut for the roller service point |
| Application-Specific Kit | Built around the Kwik-Load Texas Rollback bed frame roller application |
Overview
This Sloan's Kwik-Load Texas Rollback roller kit is for the bed frame roller mechanism on Kwik-Load rollback trailers. The kit includes one greaseable roller, one bushing, and one greaseable bolt with nut, giving you the core parts needed to replace one roller service point on the trailer bed frame.
R&P Service Insight
Rollback trailer bed roller parts are fitment-sensitive. Before ordering, match your existing roller, bushing, and bolt measurements to the listed specifications instead of relying on visual appearance alone.
- Confirm the trailer: This kit is for Sloan's Kwik-Load “Texas Rollback” applications only.
- Check the roller: Match the 4" diameter, 1-1/2" width, and 3/4" bushing size.
- Check the hardware: Confirm the 1/2" greaseable bolt, 16 TPI thread count, and coarse-thread nut before installation.
R&P Knowledge Hub
Compatibility: This kit is application-specific for Sloan's Kwik-Load “Texas Rollback” trailer roller locations. It is not listed as a universal trailer roller kit.
Trailer / System Fit: Designed for the bed frame roller wheel castor application on Kwik-Load Trailers brand Texas Rollback trailers.
Installation Notes: Replacement is listed as a simple service job, but the existing roller location should be inspected for wear, damage, and matching dimensions before installing the new kit.
Performance Insight: A correctly matched roller, bushing, and greaseable bolt help the rollback bed mechanism move as intended at the service point.
Brand & Fitment Note
Selling Brand / Application: Sloan's Kwik-Load “Texas Rollback” application replacement roller kit.
Application Reference: Sloan's Kwik-Load and Texas Rollback references are used to identify the intended trailer application for this kit.
What This Means: This listing is for one KLR deck roller wheel castor kit for the listed Kwik-Load trailer application, not a universal-fit trailer roller assembly.
Before Ordering: Verify your trailer brand, roller location, roller diameter, roller width, bushing size, bolt size, and thread style before installation.
R&P Repair Insight
For best results, inspect the roller area before replacing parts. A new roller kit should be installed into a compatible, serviceable mounting location where the surrounding bed frame components are not damaged or excessively worn.

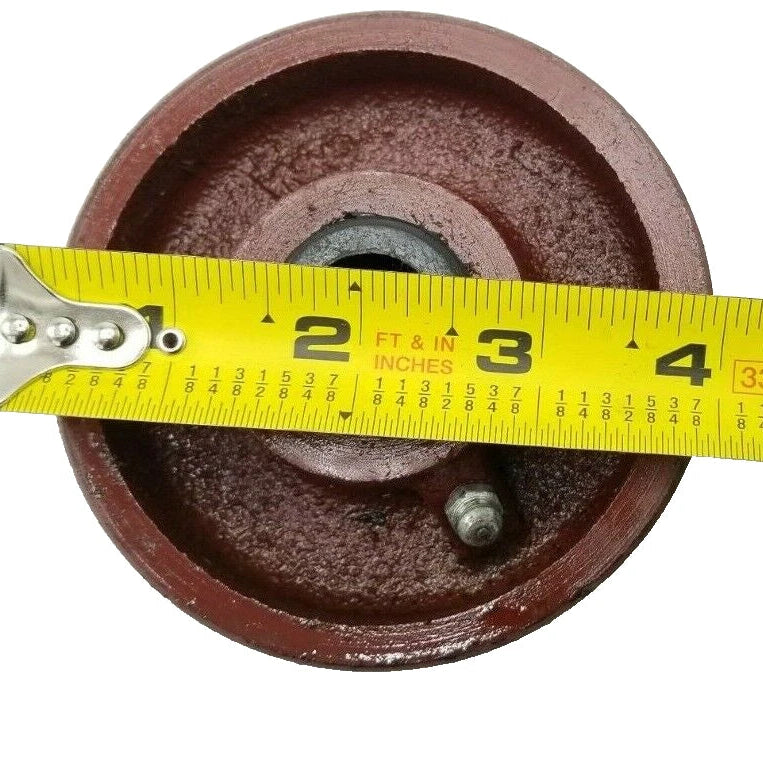

- Roller Check: Compare your old roller against the listed 4" diameter x 1-1/2" wide measurement.
- Bushing Check: Confirm the 2" long bushing with 3/4" OD and 1/2" ID before ordering.
- Bolt Check: Confirm the 3-1/2" length below head, 1/2" diameter, 16 TPI thread, and grease hole location.
Features
Complete One-Position Kit
Includes one greaseable roller, one bushing, and one greaseable bolt with nut for one bed frame roller service point.
Kwik-Load Specific Fit
Application-specific for Sloan's Kwik-Load “Texas Rollback” trailers and not intended as a universal trailer roller kit.
Greaseable Design
The roller and bolt are greaseable, supporting routine service at the roller location.
Measured Replacement Parts
Key roller, bushing, bolt, and nut specifications are listed so buyers can compare against the existing trailer parts before ordering.

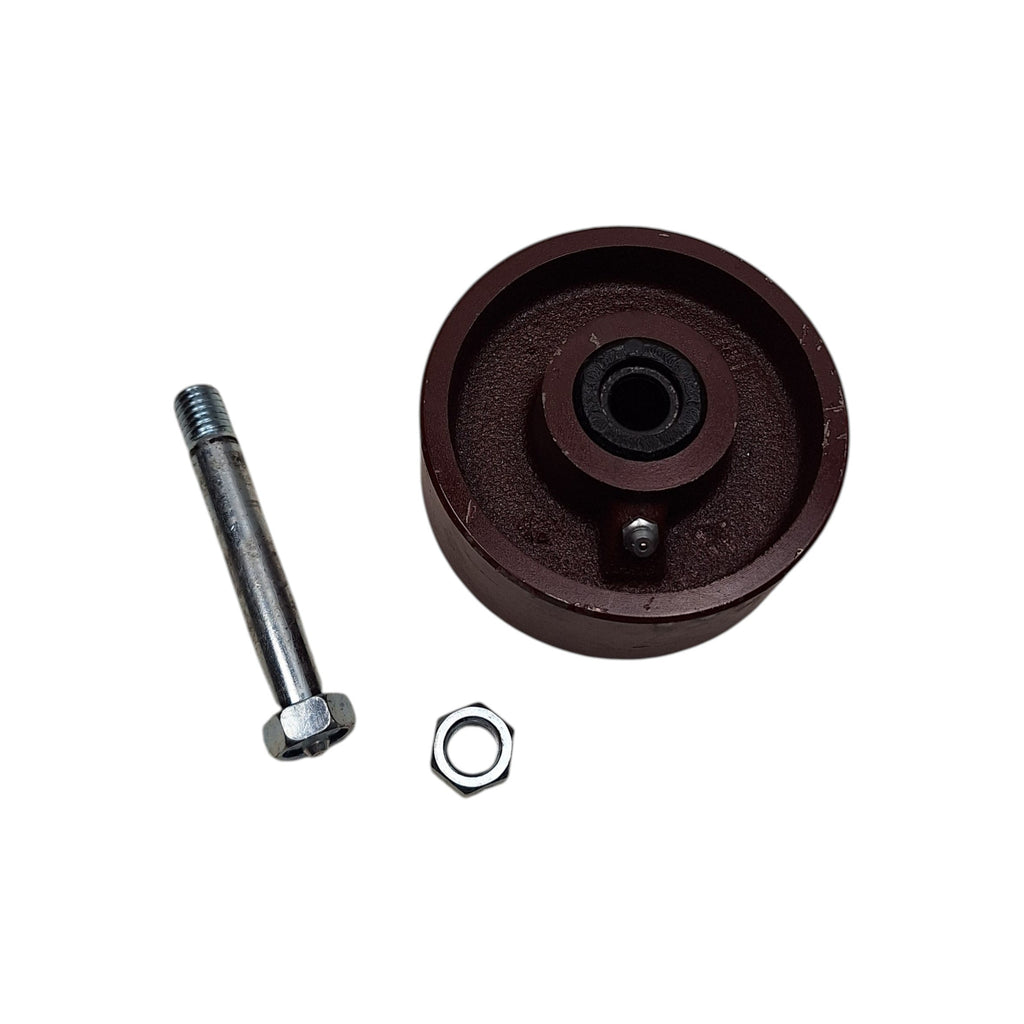

Included Components
| Quantity | Item |
|---|---|

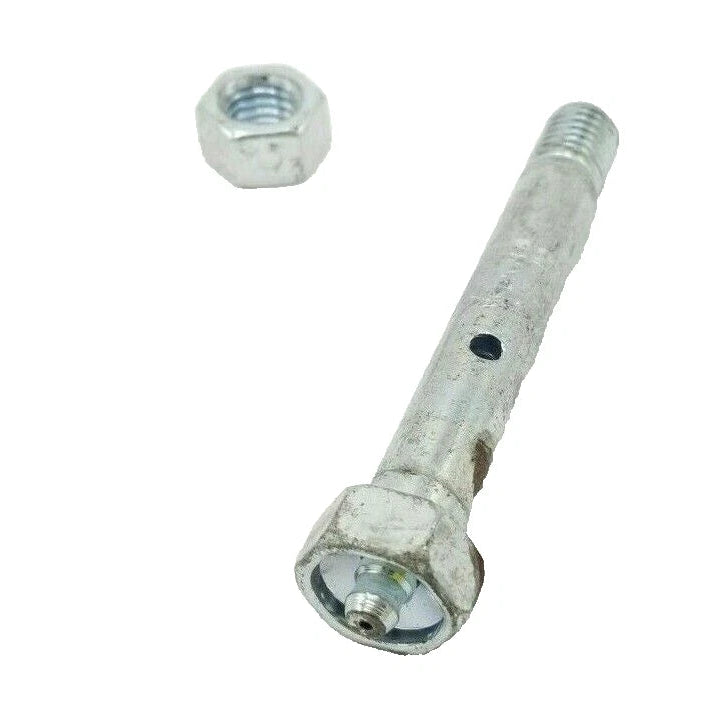

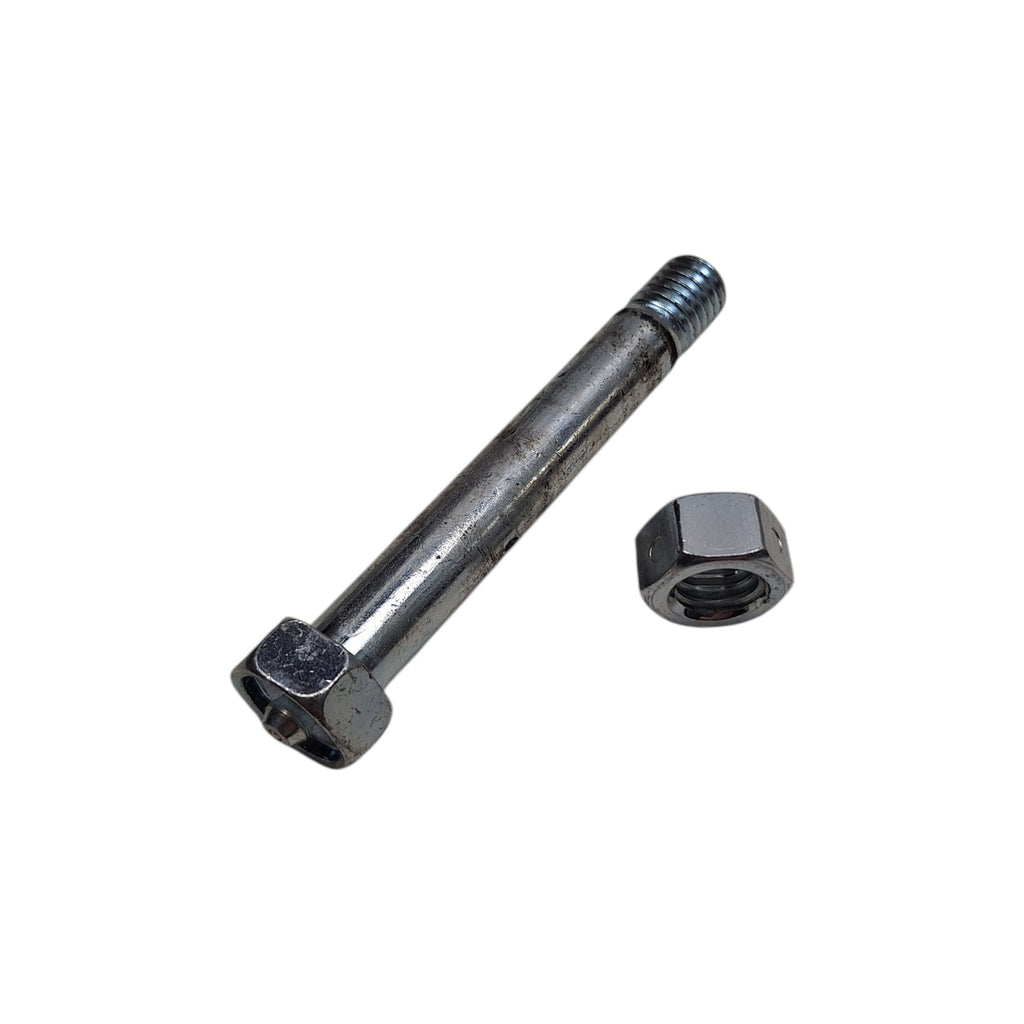

| 1 | Greaseable bolt with nut |
| 1 | Bushing |
| 1 | Greaseable roller |
