10,000 lb Dexter GD SHORT Trailer Axle Spindle - General Duty
A SHORT-style replacement spindle engineered specifically for Dexter 10,000 lb General Duty (GD) trailer axles to restore alignment and braking geometry.
Overview
The TAD10KGD is designed ONLY for Dexter 10,000 lb General Duty axles. It is a weld-on solution used to repair axles where the original spindle has been damaged or worn. This spindle maintains proper hub support and braking geometry when installed according to Dexter dimensional standards.
R&P Service Insight
Identification is everything. Dexter produced both "Long" and "Short" versions of the 10K GD spindle. They are not interchangeable.
- Critical Measurement: Measure from the bearing shoulder to the end of the threads. If it is 5.00", this is your spindle.
- Exclusivity: This will NOT fit Lippert, AL-KO, or other brands.
- Installation: Weld-on spindles require precise alignment to prevent premature tire wear and bearing failure.
R&P Knowledge Hub
Compatibility: Replacement for Dexter 10,000 lb General Duty (GD) Axles only.
Component Match: Designed for use with Inner Bearing 25580, Outer Bearing 387A, and Seal 10-51 (2.875" ID).
Primary Identification: 5.00-inch distance from the bearing shoulder to the end of the threads.
Safety Note: Because this involves structural welding on a load-bearing axle, professional installation by a qualified welder/mechanic is strongly recommended.
R&P Repair Insight
Replacing a spindle is a precision job. Ensure the axle tube is cut clean and squared before beginning the welding process.
- Removal: Cut the old spindle approximately 1" from the original weld.
- Alignment: Carefully align for correct camber and toe; tack weld and verify before final 360° weld.
- Reassembly: Always use new bearings, races, and seals when installing a new spindle.
Key Features
Short-Style Configuration
Specifically machined to Dexter GD short-style standards with a 5" bearing-to-thread length.
Weld-On Ready
Designed for heavy-duty replacement applications with a 3.30" weld-end diameter.
Precision Machined
Journals are machined to exact tolerances for 25580 inner and 387A outer bearings.
Heavy Duty Support
Full 10,000 lb capacity rating per spindle when properly installed on a matching axle tube.

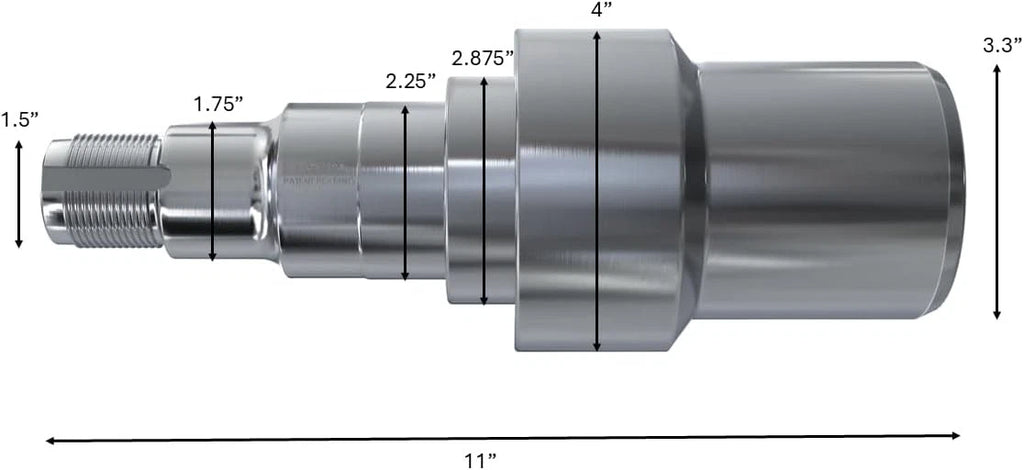

Specifications
| Measurement | Detail |
|---|---|
| Overall Length | 11.00 in |
| Shoulder to Thread End | 5.00 in (SHORT) |
| Inner Bearing Journal | 2.25 in |
| Outer Bearing Journal | 1.75 in |
| Seal Surface | 2.875 in |
| Weld End Diameter | 3.30 in |
| Thread Diameter | 1.50 in (1-1/2"-12) |
Required Components
| Part Type | Compatible Part # |
|---|---|
| Inner Bearing | 25580 |
| Outer Bearing | 387A |
| Oil/Grease Seal | 10-51 |
| Spindle Nuts | 1-1/2"-12 UNF Double Hex |
| Washers | Tang and Tongue Style |
| Note | Bearings/hardware sold separately. |
Installation Demonstration
Click above to watch a real step-by-step spindle replacement demonstration
