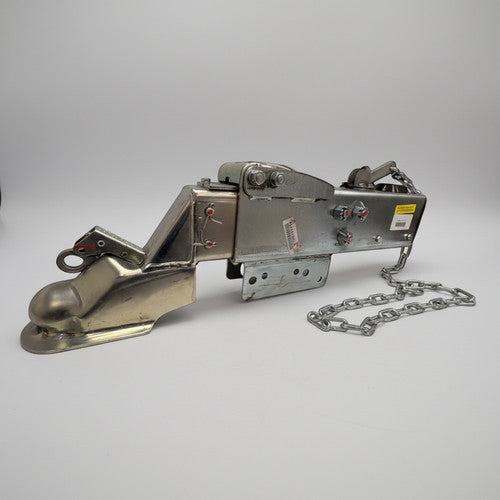

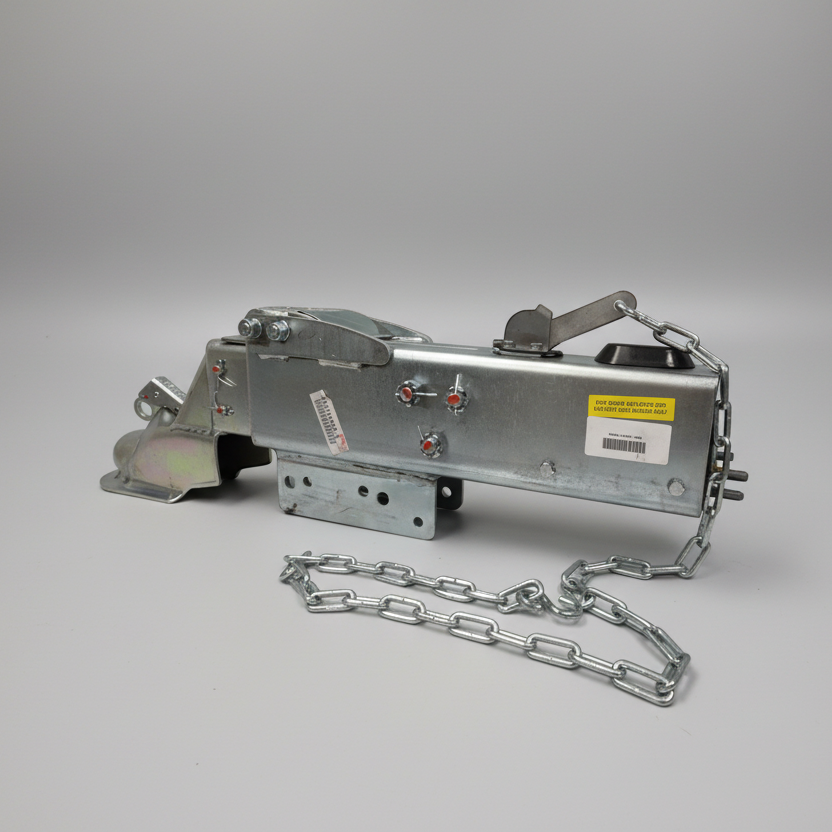

Dexter Titan Model 20 Disc Brake Actuator
Heavy-duty 20,000 lb GVWR surge actuator for hydraulic disc brake systems, featuring a zinc-plated finish and integrated reversing solenoid.
Overview
The Dexter Titan Model 20 is a surge-style hydraulic actuator built for heavy-duty trailer disc brake applications. Rated for 20,000 lb GVWR with a 2,000 lb tongue load, this zinc-plated unit is designed for strength, corrosion resistance, and long service life. It includes a built-in reversing solenoid to prevent brake engagement while backing and an extended housing cover to help protect hydraulic components.
R&P Service Insight
Heavy-duty disc brake actuators work in a demanding environment where load, weather, and repeated braking all matter.
- Wear: Sliding and hydraulic components can lose responsiveness after repeated braking cycles.
- Exposure: Zinc plating helps resist corrosion in harsh road and marine-adjacent conditions.
- Load: Higher-capacity trailers place real stress on the coupler body and master cylinder assembly.
R&P Knowledge Hub
Compatibility: Designed for surge-style hydraulic disc brake systems using a 2-5/16" hitch ball connection.
Vehicle / System Fit: Built for heavy-duty trailers up to 20,000 lbs GVWR with a 3" wide straight tongue frame.
Installation Notes: Verify your frame width is 3" and confirm your mounting pattern matches the 3" and 5" front-to-back hole spacing before ordering.
Performance Insight: The extended housing helps shield the reversing solenoid and brake line connection area from road debris and impact exposure.
R&P Repair Insight
Before installing a replacement actuator, confirm the full coupler and brake setup matches your trailer’s actual configuration.
- Frame Check: Confirm a 3" tongue width and correct mounting hole spacing.
- Brake System Check: This actuator is for hydraulic disc brake applications, not every hydraulic drum setup.
- Wiring Check: The reversing solenoid must be wired correctly to the tow vehicle’s reverse circuit for proper backing function.
Features
20,000 lb GVWR Capacity
Built for heavy-duty towing applications requiring a high-capacity surge brake actuator.
Zinc-Plated Finish
Helps protect the actuator body against corrosion in tough service conditions.
Integrated Reversing Solenoid
Allows backing without unwanted trailer brake activation when wired correctly.
Extended Housing Design
Adds protection around the solenoid and hydraulic connection area.
Specifications
| Specification | Detail |
|---|---|
| Part Number | D068-507-00 |
| Product Type | Disc Brake Actuator |
| Application | Hydraulic Disc Brake Systems |
| Material / Finish | Zinc-Plated Steel |
| GVWR | 20,000 lbs |
| Tongue Load | 2,000 lbs |
| Ball Size | 2-5/16" |
| Frame Fit | 3" Wide Straight Tongue |
| Mounting Pattern | 3" and 5" on center (front-to-back) |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / System | Heavy-duty hydraulic trailer brake systems |
| Primary Fit | Hydraulic disc brake trailer applications with a 3" straight tongue |
| Secondary Fit | 2-5/16" hitch ball coupler setups requiring surge braking |
| Notes | Use flexible brake lines at calipers for disc brake applications and verify mounting dimensions before installation. |
Included Components
| Quantity | Item |
|---|---|
| 1 | Dexter Titan Model 20 Disc Brake Actuator |
| 1 | Reversing Solenoid (Pre-installed) |
| 1 | Extended Housing Cover |
| 1 | Internal Master Cylinder Assembly |
