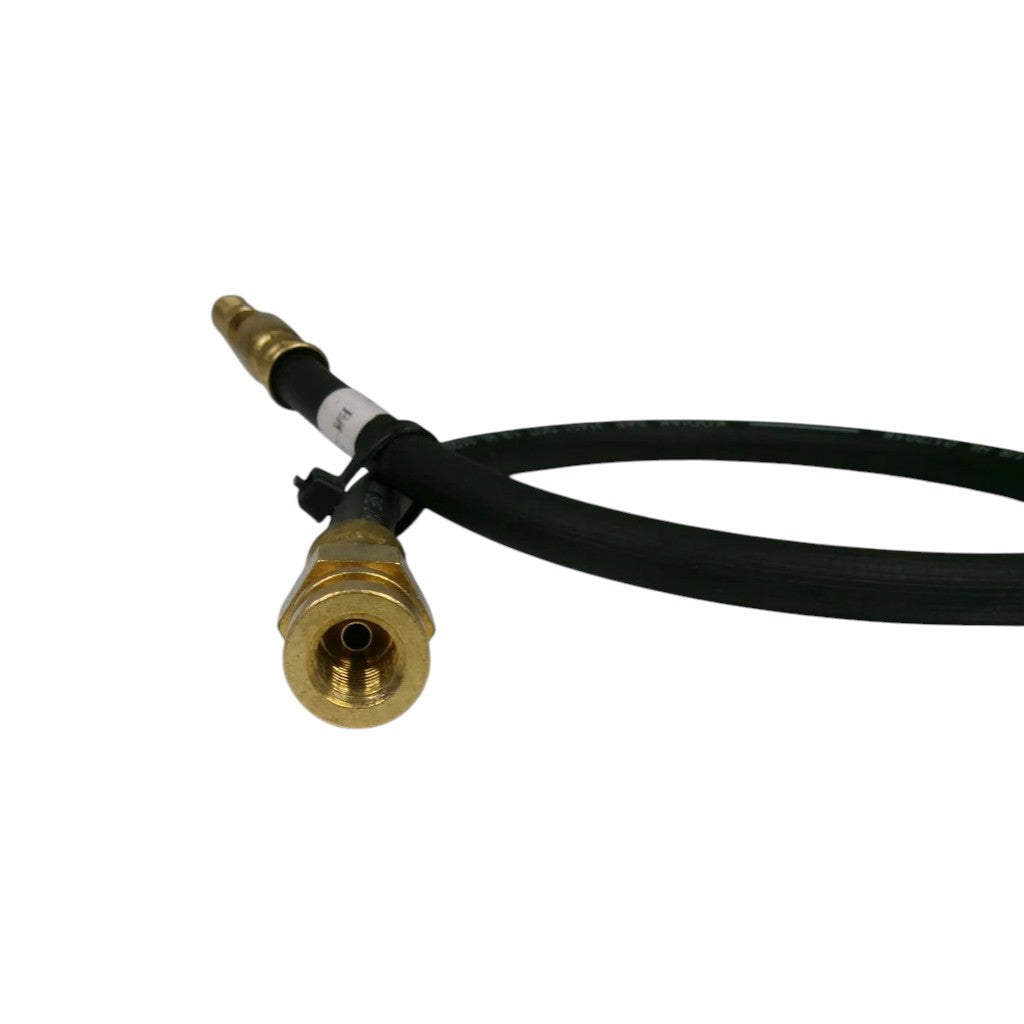

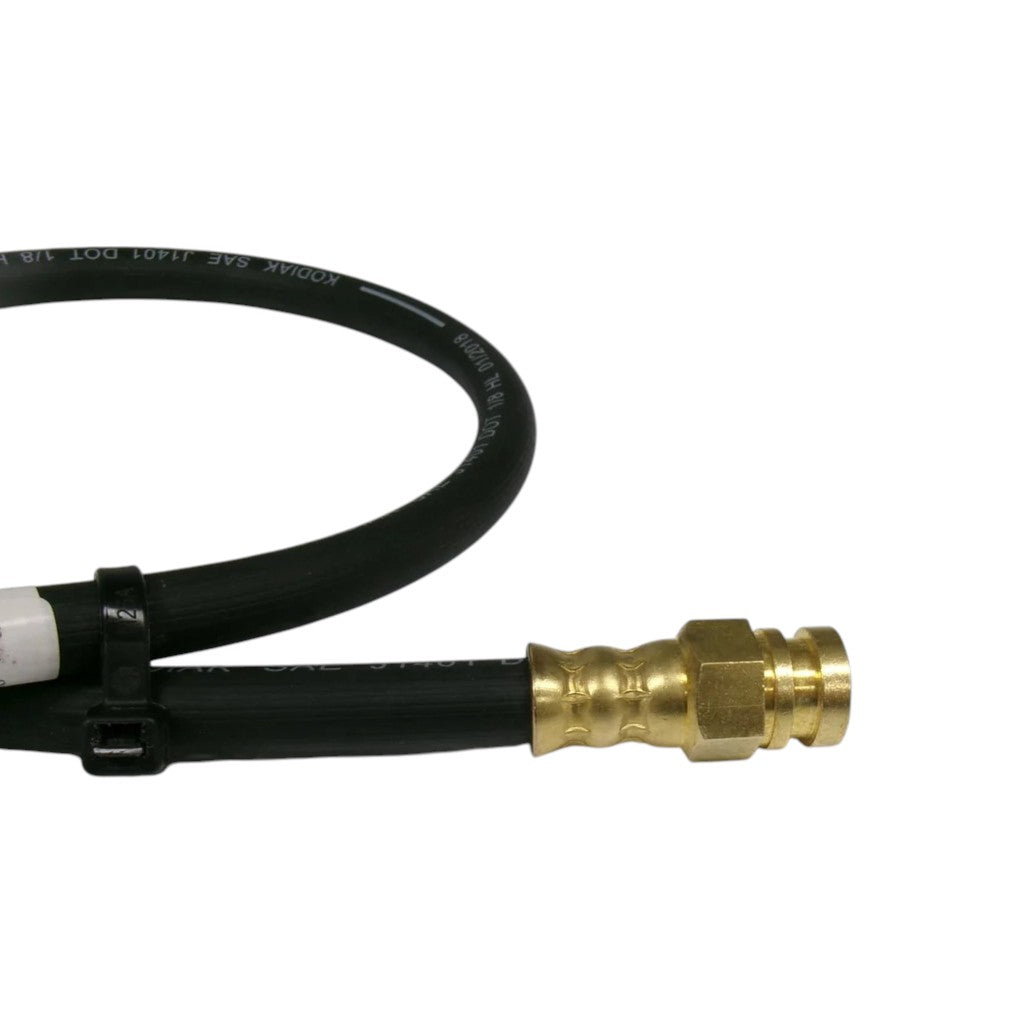

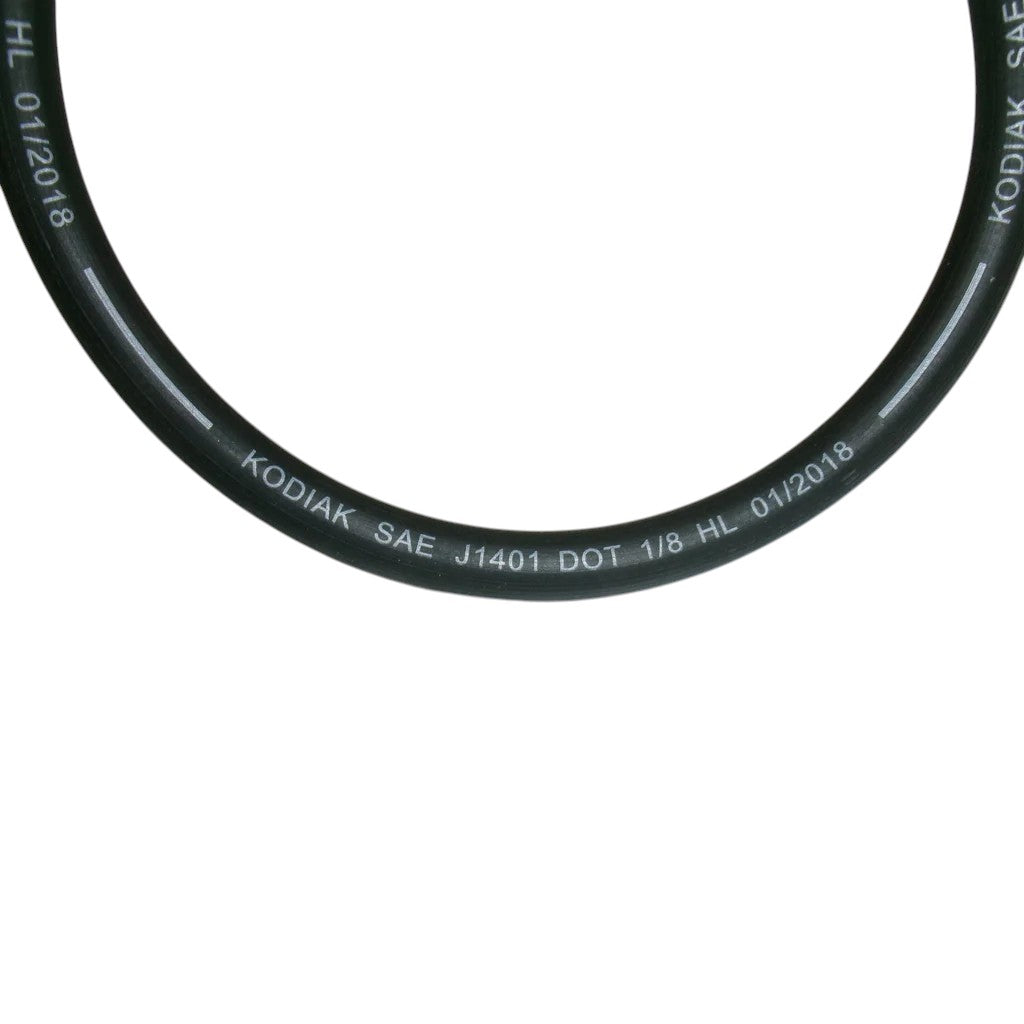

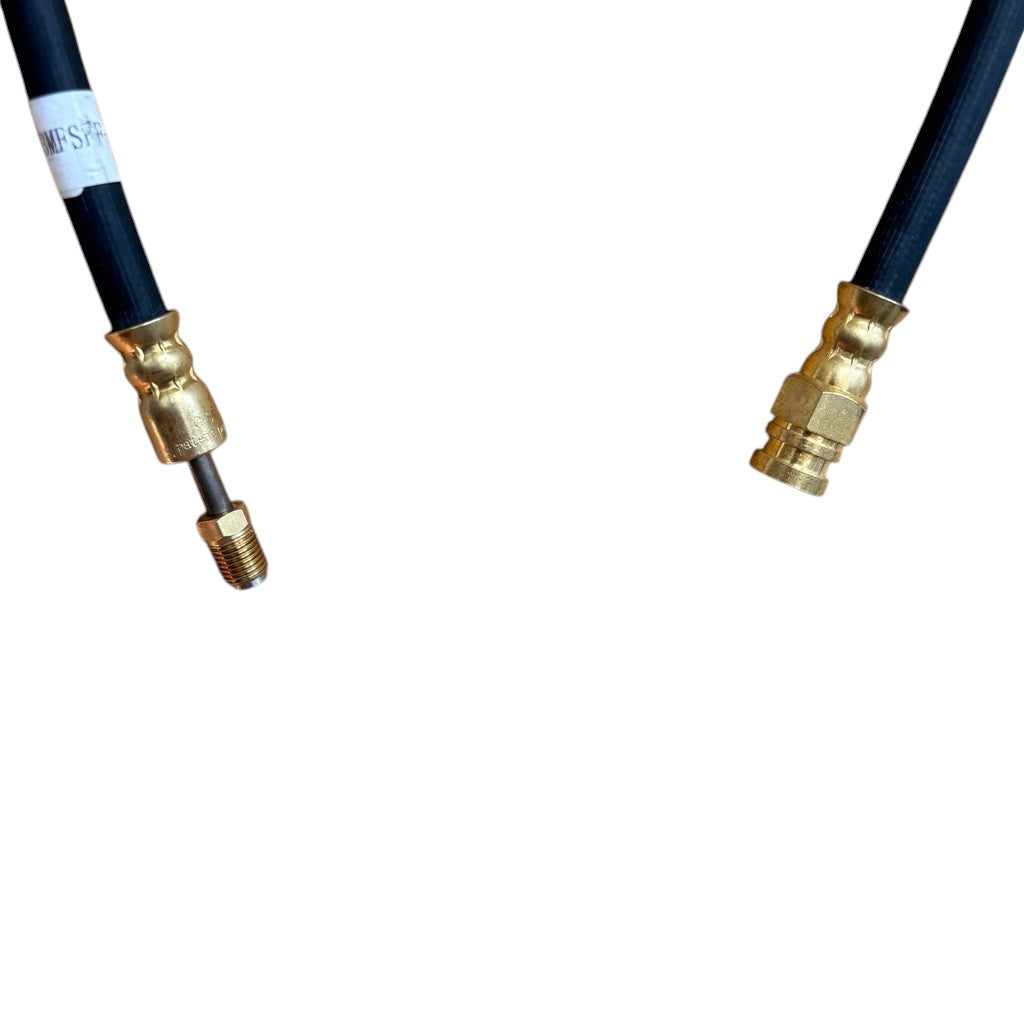

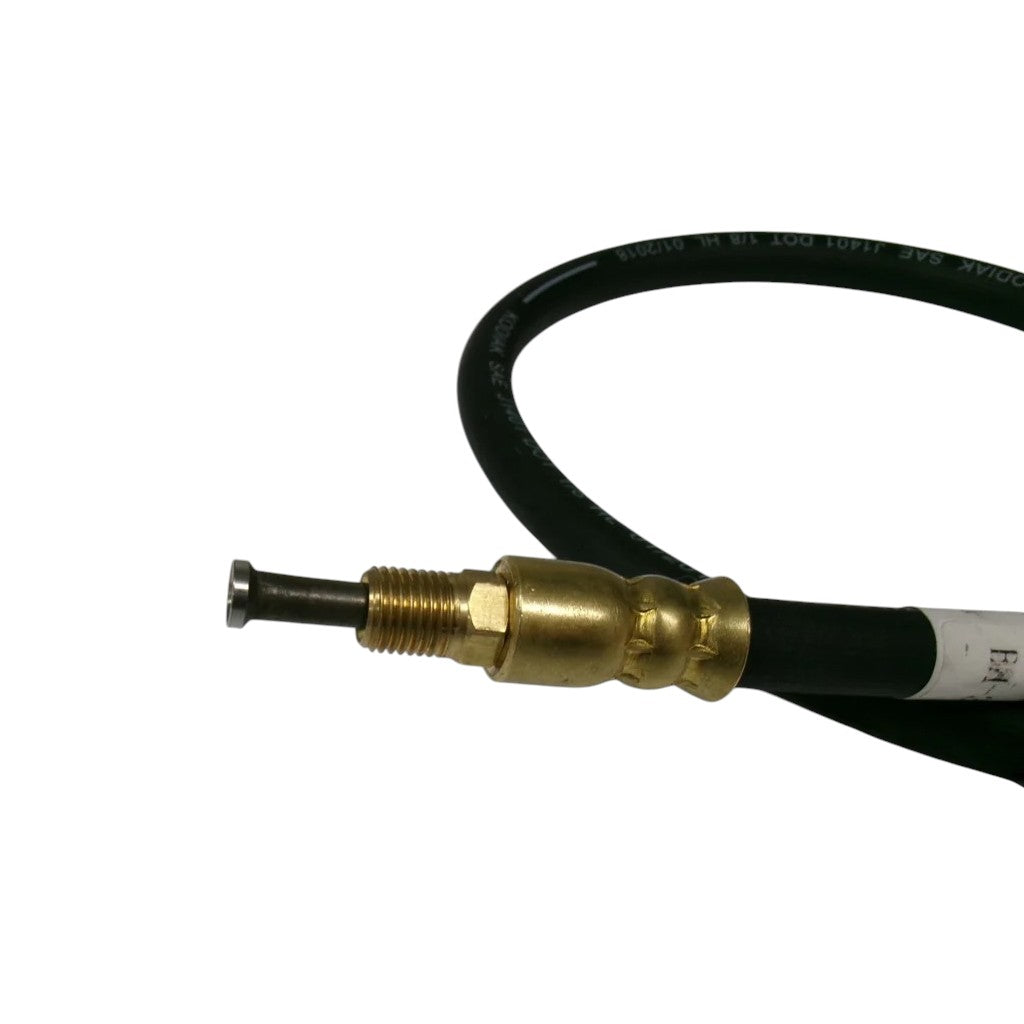

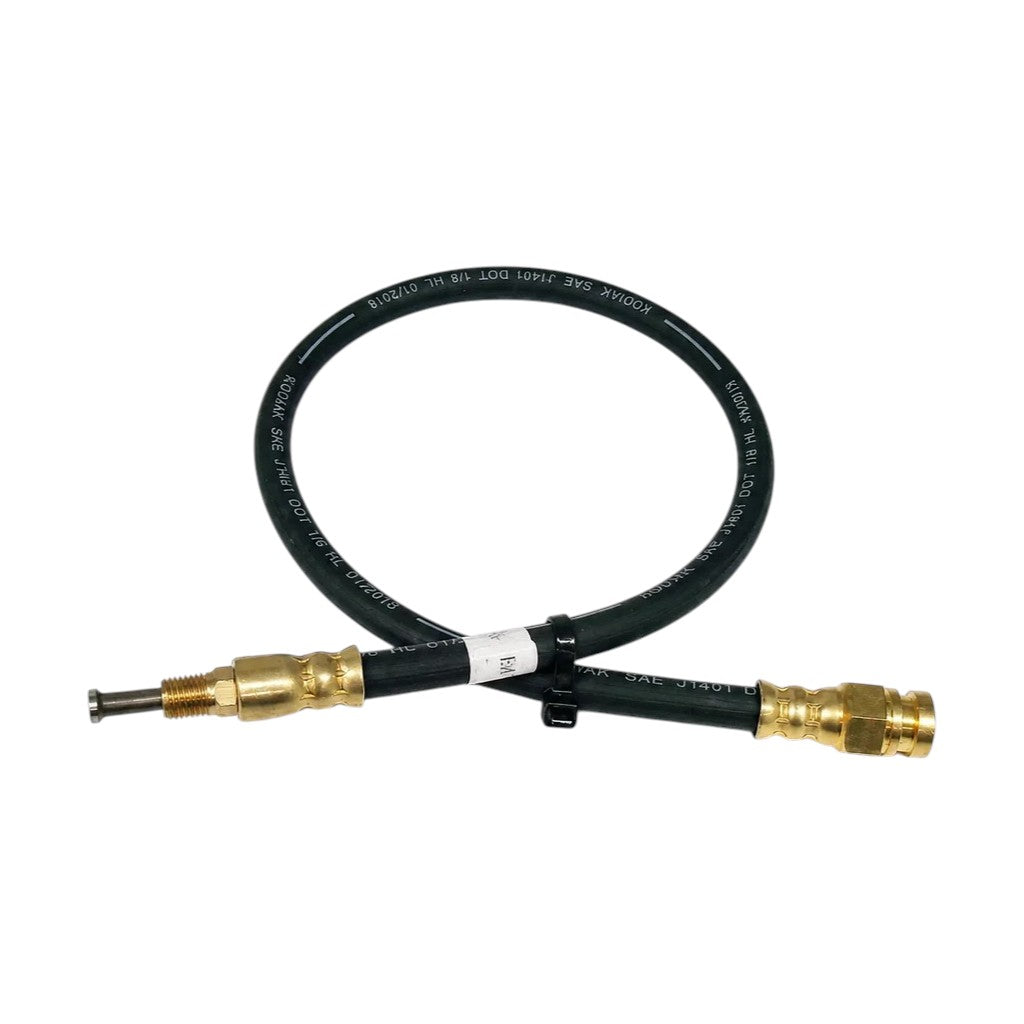

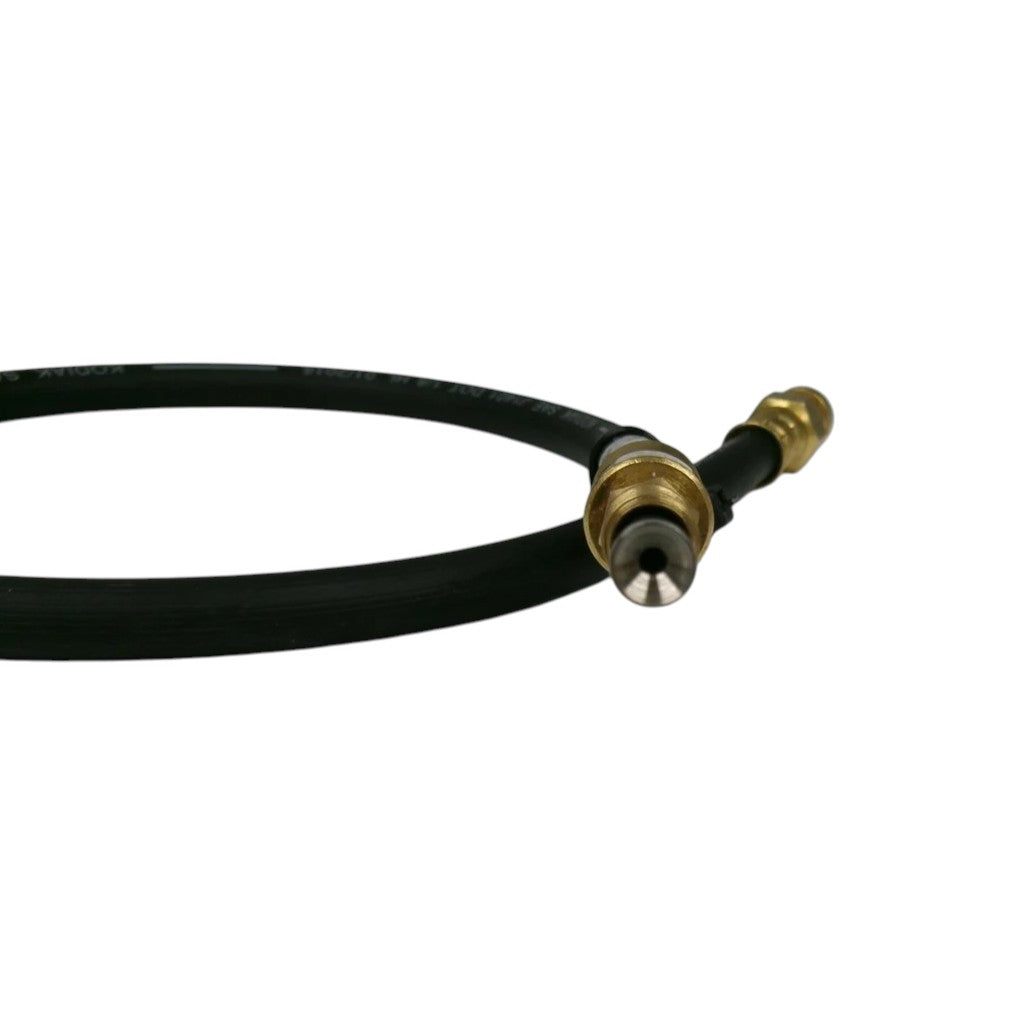

24" Hydraulic Trailer Brake Hose – 3/8"-24 Male to Female Swivel
Flexible 24-inch DOT hydraulic brake hose with a 1/8-inch inside diameter, a 3/8"-24 male threaded fitting on one end and a 3/8"-24 female swivel fitting on the opposite end.
Key Measurements & Specs
| Specification | Detail |
|---|---|
| SKU | BH-3MFSFF-024 |
| Product Type | Flexible hydraulic trailer brake hose |
| Overall Length | 24 inches |
| Inside Diameter | 1/8 inch |
| Brake-Line Size | For compatible 3/16-inch brake-line applications |
| Male End | 3/8"-24 male threaded fitting |
| Female End | 3/8"-24 female swivel fitting |
| Hose Color | Black |
| Fitting Finish | Gold-colored finish |
| Compliance | DOT brake hose |
| Quantity Included | 1 brake hose |
Fitment / Application
| Category | Details |
|---|---|
| Brake System | Compatible hydraulic trailer brake systems |
| Required Length | Application must accept a 24-inch flexible hose |
| Connection Style | 3/8"-24 male connection to 3/8"-24 female swivel connection |
| Brake-Line Application | Compatible applications using the specified fittings with applicable 3/16-inch brake lines |
| Fitment Check | Compare hose length, thread pitch, fitting gender and seat style with the existing brake line before ordering |
Top Features
| Feature | Buyer Benefit |
|---|---|
| 24" Flexible Hose | Provides a defined flexible connection for compatible trailer brake-line routing |
| Male-to-Female Configuration | Connects compatible components requiring one male end and one female swivel end |
| 3/8"-24 Threads | Provides a clearly specified thread size for accurate fitment comparison |
| Female Swivel End | Allows the female fitting to turn during connection without twisting the hose |
| DOT Brake Hose | Designed for applicable hydraulic brake-hose use |
R&P Knowledge Hub
Compatibility: Intended for compatible hydraulic trailer brake systems requiring a 24-inch flexible hose with 3/8"-24 male and female swivel connections.
Brake-Line Fit: Suitable for applicable 3/16-inch brake-line systems where the thread size, fitting gender and sealing-seat style match.
Installation Notes: Route the hose away from sharp edges, heat sources, moving suspension components and areas where it could be pinched or rubbed.
Why the Swivel Matters: The female swivel fitting can rotate during connection, helping prevent the flexible hose from twisting while the fitting is tightened.
Features
24-Inch Flexible Construction
Provides a flexible hydraulic connection for compatible trailer brake applications requiring a 24-inch hose.
1/8-Inch Inside Diameter
Features the specified 1/8-inch hose inside diameter for applicable hydraulic brake systems.
3/8"-24 Male Fitting
One end is equipped with a 3/8"-24 male threaded connection for compatible mating fittings.
3/8"-24 Female Swivel
The opposite end features a female swivel connection that allows fitting rotation during installation.
Brake-Line Compatibility
Designed for compatible applications using the specified connections with applicable 3/16-inch brake lines.
Black and Gold Finish
Constructed with a black flexible hose and gold-colored fitting ends for easy visual identification.
DOT Brake Hose
Identified as a DOT brake hose for applicable hydraulic trailer braking applications.
Single-Hose Replacement
Supplied as one hose for repairs or installations requiring this exact length and fitting configuration.
Included Components
| Quantity | Item |
|---|---|
| 1 | 24" flexible hydraulic trailer brake hose with 3/8"-24 male fitting and 3/8"-24 female swivel fitting |
| Not included | Additional brake lines, adapters, mounting hardware, brake fluid and installation tools |
