7-Way RV Blade Extension Cord — 48" Trailer Wiring Extension Cable
Heavy-duty 48" 7-way RV blade extension cord with male blades on one end and a female 7-way socket on the other. Designed to bridge the gap between vehicle and trailer wiring without permanent rewiring.
Overview
This 48" 7-way RV blade extension cord is a plug-and-play trailer wiring solution for towing setups that need extra reach between the vehicle socket and the trailer plug. One end uses a male 7-way RV blade plug that connects to the vehicle-side socket, while the opposite end provides a female 7-way RV blade socket for the trailer-side plug. The 4-foot length gives practical slack for extended hitches, tight turns, long tongues, and specialized mounting locations while helping avoid excess cable dragging near the road surface.
R&P Service Insight
A 7-way extension cord is often used when the trailer plug cannot comfortably reach the tow vehicle socket. The goal is simple: preserve all standard trailer circuits while adding enough cable length for safe movement between the vehicle and trailer.
- Turn Clearance: Leave enough slack so the wiring does not pull tight during sharp turns or jackknife-style maneuvering.
- Cable Routing: Route the cord through or near the trailer tongue area and secure it so it stays away from the ground, coupler pinch points, and moving suspension parts.
- Connection Protection: Keep the female socket closed when not in use and avoid leaving the socket face-up where water can collect.
R&P Knowledge Hub
Compatibility: Designed for standard 7-way RV blade trailer wiring connections with a male blade plug on the vehicle-input side and a female blade socket on the trailer-output side.
Vehicle / System Fit: Commonly used with tow vehicles equipped with a 7-way round RV blade socket and trailers using a 7-way RV blade plug.
Installation Notes: Align the keyway/notch before pushing the plug into the socket. The connection should seat securely, and the spring-loaded lid should catch the plug tab where applicable.
Performance Insight: The extension carries standard 7-way functions including ground, electric brakes, 12V auxiliary power, tail/marker lights, left turn/brake, right turn/brake, and reverse/auxiliary lighting where those circuits are wired on the tow vehicle and trailer.
Brand & Fitment Note
Selling Brand: R&P Carriages / EXT-48-A Trailer Wiring Extension.
Application Reference: This listing describes a standard RV-style 7-way blade extension cord configuration. Any reference to RV, trailer, tow vehicle, or 7-way blade systems is used to describe the connector style and application.
What This Means: This listing is for a 48" 7-way male-to-female extension cord. It is not a vehicle-specific harness unless otherwise stated.
Before Ordering: Verify that your tow vehicle uses a 7-way RV blade socket and that your trailer uses a matching 7-way RV blade plug. Also verify required length, routing path, clearance, and wiring needs before installation.
R&P Repair Insight
Trailer lighting and brake issues are often caused by loose connections, corrosion, stretched wiring, or a plug that cannot seat securely. Adding an extension cord can solve a reach problem, but the cable still needs to be routed and maintained correctly.
- Check Connector Style: Confirm the male end has 7 flat RV-style blades and the female end has 7 matching rectangular slots inside a round socket housing.
- Check Slack: With the vehicle and trailer connected, turn through the expected range of motion and confirm the extension does not pull tight.
- Check Corrosion: Inspect both connectors for white or green oxidation, dirt, water intrusion, bent contacts, or weak lid tension before towing.
Features
48" Plug-and-Play Reach
Four-foot extension length helps bridge the gap between the tow vehicle and trailer without cutting, splicing, or permanently modifying the wiring.
7-Way RV Blade Configuration
Male 7-way RV blade plug connects to the vehicle-side socket, while the female 7-way RV socket receives the trailer-side plug.
Standard Trailer Circuit Support
Designed to carry the standard 7-way circuit group: ground, electric brakes, 12V power, tail/marker lights, left turn/brake, right turn/brake, and reverse/auxiliary.
Molded Outdoor-Use Design
Molded connector heads, strain-relief necks, keyed alignment, and spring-lid retention help support reliable connection in normal towing use.
Specifications
| Specification | Detail |
|---|---|
| Part Number | EXT-48-A |
| Product Type | 7-Way RV blade trailer wiring extension cord |

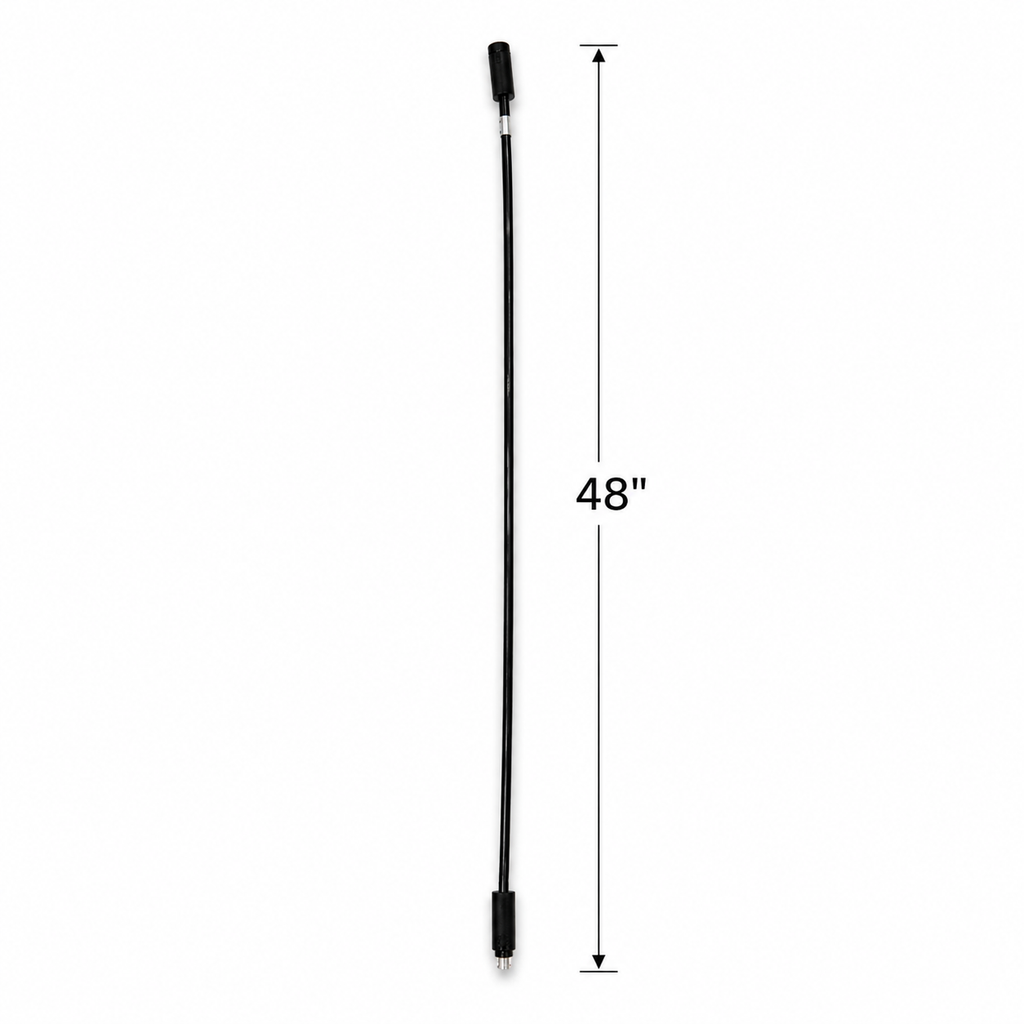

| Total Length | 48" / 4 ft / approximately 121.9 cm |
| Connector Configuration | Male 7-way RV blade plug to female 7-way RV blade socket |
| Vehicle-Side End | Male 7-way RV blade plug with 7 flat metal blades |
| Trailer-Side End | Female 7-way RV blade socket with 7 rectangular slots / holes |
| Housing Style | Round RV-style molded connector heads with keyed alignment |
| Approx. Housing Diameter | Approximately 2" to 2.15" round face size; verify against your application |
| Wire Configuration | 7-way copper-core trailer wiring configuration |
| Typical Internal Wire Gauges | Common heavy-duty 7-way cords may use larger gauge wires for ground / power / brake circuits and smaller gauge wires for lighting signals. Verify exact gauge on received product or manufacturer documentation before using for a critical load calculation. |
| Common Gauge Reference | Often referenced as 10 AWG for heavier circuits and 14 AWG for signal circuits; some 7-way cords may use a 10 / 12 / 14 AWG step-down configuration depending on manufacturer build. |
| Contact Style | 7-way RV blade terminals / socket contacts; material should be verified on the received product if brass or copper contact material is required. |
| Housing Material | Molded PVC-style weather-resistant connector housing; verify exact compound and UV rating if required for fleet or specification-controlled use. |
| Latch / Retention | Safety tab and spring-loaded lid retention where applicable |
Fitment / Application
| Category | Details |
|---|---|
| Primary Use | Extending the wiring connection between a tow vehicle and trailer |
| Vehicle Connection | Plugs into a vehicle-side 7-way RV blade socket |
| Trailer Connection | Accepts a trailer-side 7-way RV blade plug |
| Common Applications | Extended hitches, longer trailer tongues, relocated plug mounts, tight-turn setups, or situations where the trailer plug is just short of the tow vehicle socket |
| Not a Converter | This cord extends an existing 7-way connection. It does not convert a 4-way flat, 5-way, 6-way round, or other wiring format into a 7-way system. |
| Install Type | Tool-free plug-in connection unless the user chooses to mount or secure the female end permanently. |
| Important Note | Verify connector style, required cable length, lid clearance, routing path, and tow vehicle / trailer circuit function before towing. |
Connection Units & Measurements
| Component | Type / Measurement | Visual Identifier |
|---|---|---|
| Male End / Input | 7-way RV blade plug | 7 flat metal blades sticking out from the round plug face |
| Female End / Output | 7-way RV blade socket | 7 rectangular holes / slots inside a round housing |
| Cable Length | 48" / 121.9 cm | Measured as the listed extension length; confirm exact end-to-end measurement if your installation has a tight tolerance |
| Housing Diameter | Approximately 2" to 2.15" | Standard round RV-style 7-way connector head size |
| Latch Mechanism | Safety tab and spring-loaded lid / hook style retention | Vehicle lid catches the male plug tab; female lid helps retain the trailer plug tab |
| Keyway Alignment | Indexed connector orientation | Bump / groove alignment helps prevent plugging the connector in upside down |
7-Way RV Blade Circuit Layout
When looking into the holes of a typical female 7-way RV blade socket, the traditional North American RV blade layout is commonly assigned as follows. Wire colors may vary by manufacturer or trailer wiring history, so always test and verify circuits before repair or installation.
| Clock Position | Common Circuit | Common Wire Color Reference |
|---|---|---|
| Center | Reverse / Auxiliary Lights | Purple |
| 1 o'clock | Tail / Running / Marker Lights | Brown |
| 3 o'clock | Right Turn / Brake | Green |
| 5 o'clock | 12V Battery / Auxiliary Power | Black |
| 7 o'clock | Ground | White |
| 9 o'clock | Left Turn / Brake | Yellow |
| 11 o'clock | Electric Trailer Brakes | Blue |
How to Install & Use
This extension is designed for a simple plug-in installation. No cutting or permanent wiring is required for normal use.
- Vehicle Connection: Align the notch on the male 7-way blade end with the groove in the vehicle bumper socket. Push the plug in until the vehicle socket lid can lock over the plug tab.
- Cable Routing: Route the 48" cable along the trailer tongue area and secure it with an appropriate clip or zip tie if needed. Keep the cord away from the ground, coupler pinch points, sharp edges, and moving parts.
- Turn Clearance: Leave enough slack so a sharp turn does not pull the cable tight. A cable that becomes taut can damage the plug, socket, or trailer wiring.
- Trailer Connection: Open the spring-loaded lid on the female end of the extension, insert the trailer plug, and make sure the lid snaps down onto the trailer plug tab to help prevent disconnection during travel.
Cleaning & Maintenance
Why It Matters: Trailer wiring lives in the spray zone where rain, road grime, salt, and dirt can collect inside connector terminals. Keeping the socket clean helps prevent lighting, brake, and auxiliary power issues.
Dielectric Grease: Once or twice a year, apply a small amount of dielectric grease into the female socket holes to help protect the terminals from moisture and oxidation.
Corrosion Cleaning: If white or green powder appears inside the socket, use electrical contact cleaner and a small pipe cleaner or folded fine sandpaper to gently clean the contacts.
Heavy Corrosion Tip: A Q-tip lightly dipped in white vinegar may help dissolve heavy oxidation. Dry thoroughly before applying dielectric grease or reconnecting the cord.
Storage: Do not leave the female socket face-up in the rain or sitting on the ground. Close the lid and tuck the connector under the trailer frame when possible.
Physical Construction Features
Molded Connector Heads
The connector heads are molded around the cable entry area to help reduce water intrusion and support outdoor towing use.
Strain Relief Necks
Reinforced necks at each connector help reduce stress where the cable bends near the plug and socket housings.
Keyed Connection
The 7-way blade shape and keyed alignment help keep the connector oriented correctly during installation.
Spring-Lid Retention
Spring-loaded lid retention helps hold the plug tab in place when properly seated, reducing the chance of road vibration disconnecting the harness.
Included Components
| Quantity | Item |
|---|---|

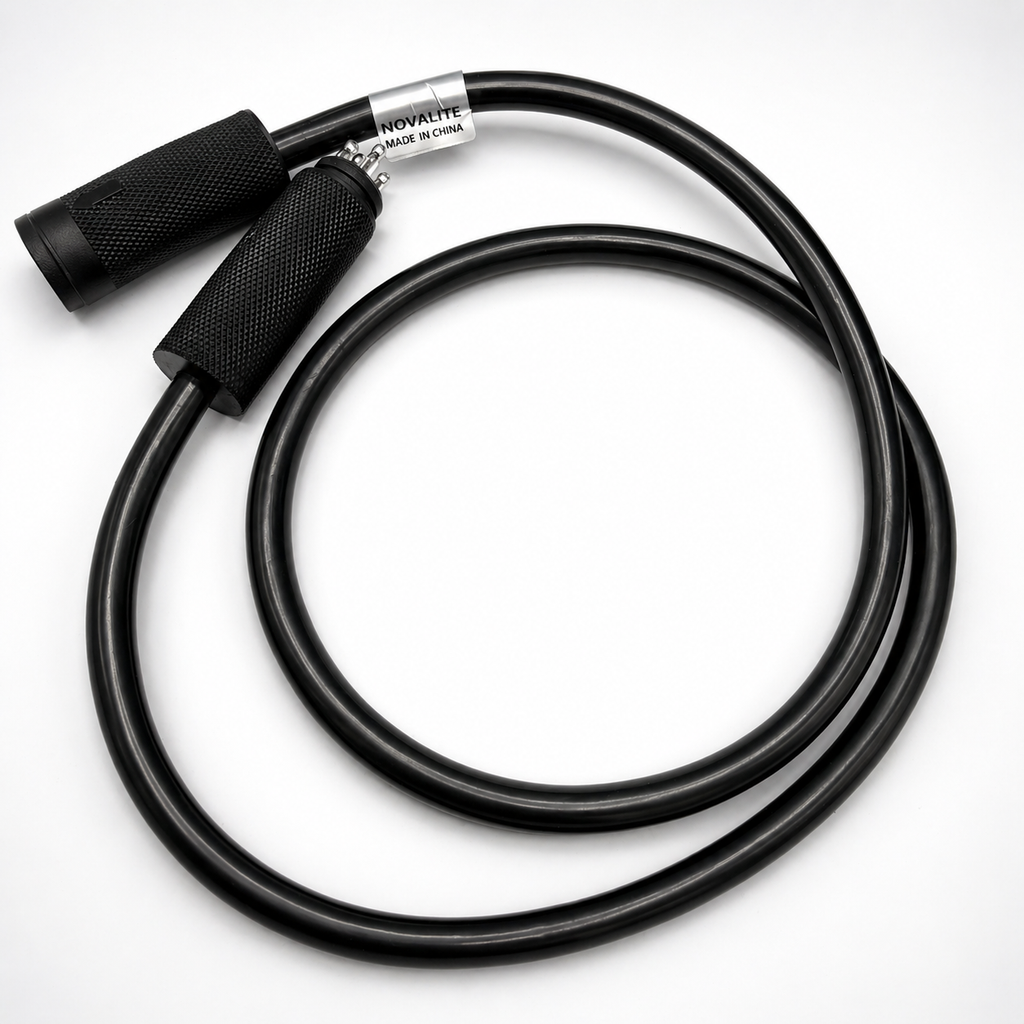

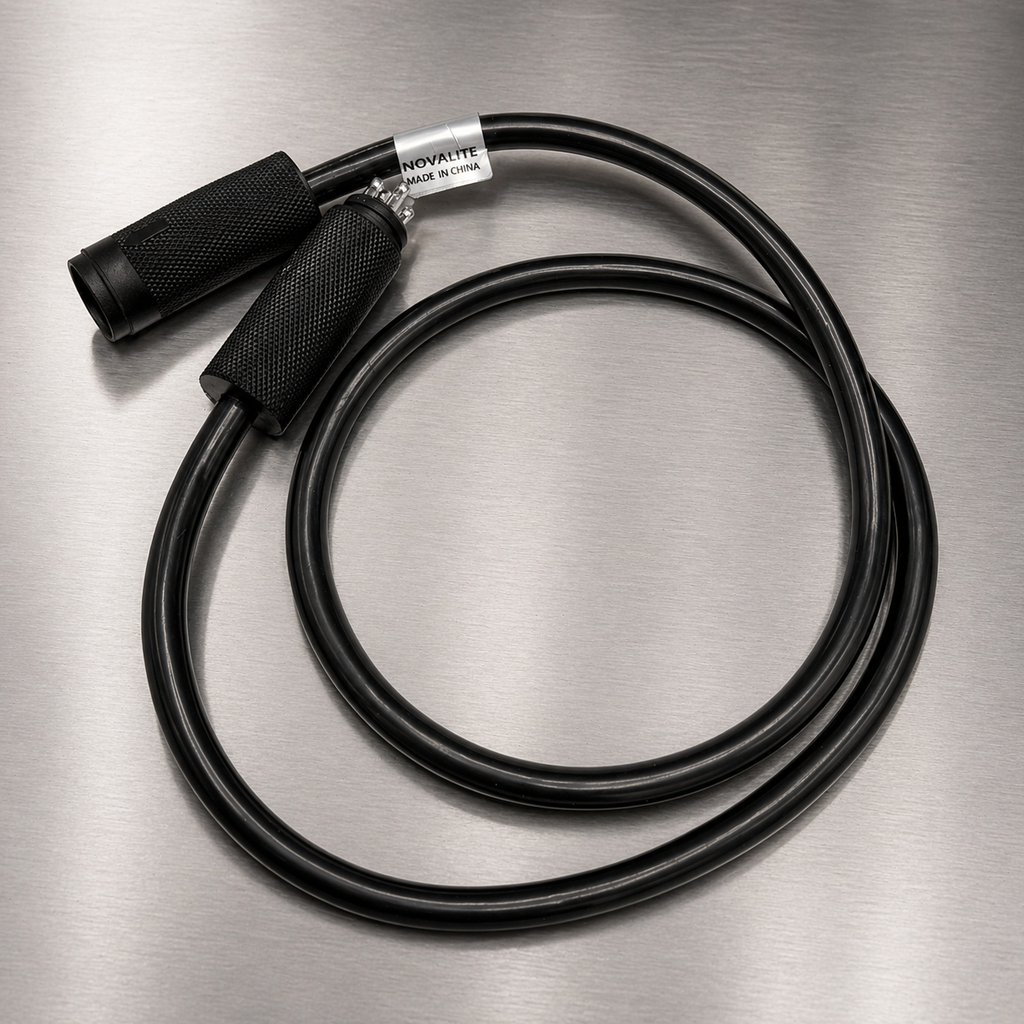

| 1 | 48" 7-way RV blade extension cord |
| 1 | Male 7-way RV blade plug end |
| 1 | Female 7-way RV blade socket end with spring-style lid |
| Included | Molded cable body with strain-relief connector ends |
| Not Included | Mounting hardware, dielectric grease, contact cleaner, zip ties, and vehicle/trailer wiring adapters unless separately shown or stated |
