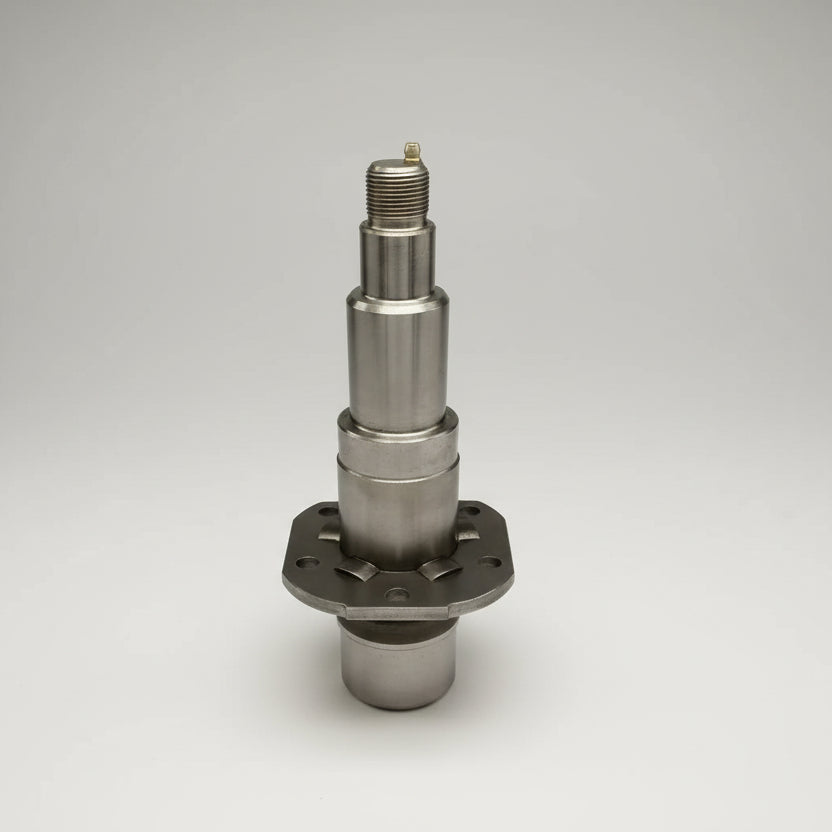

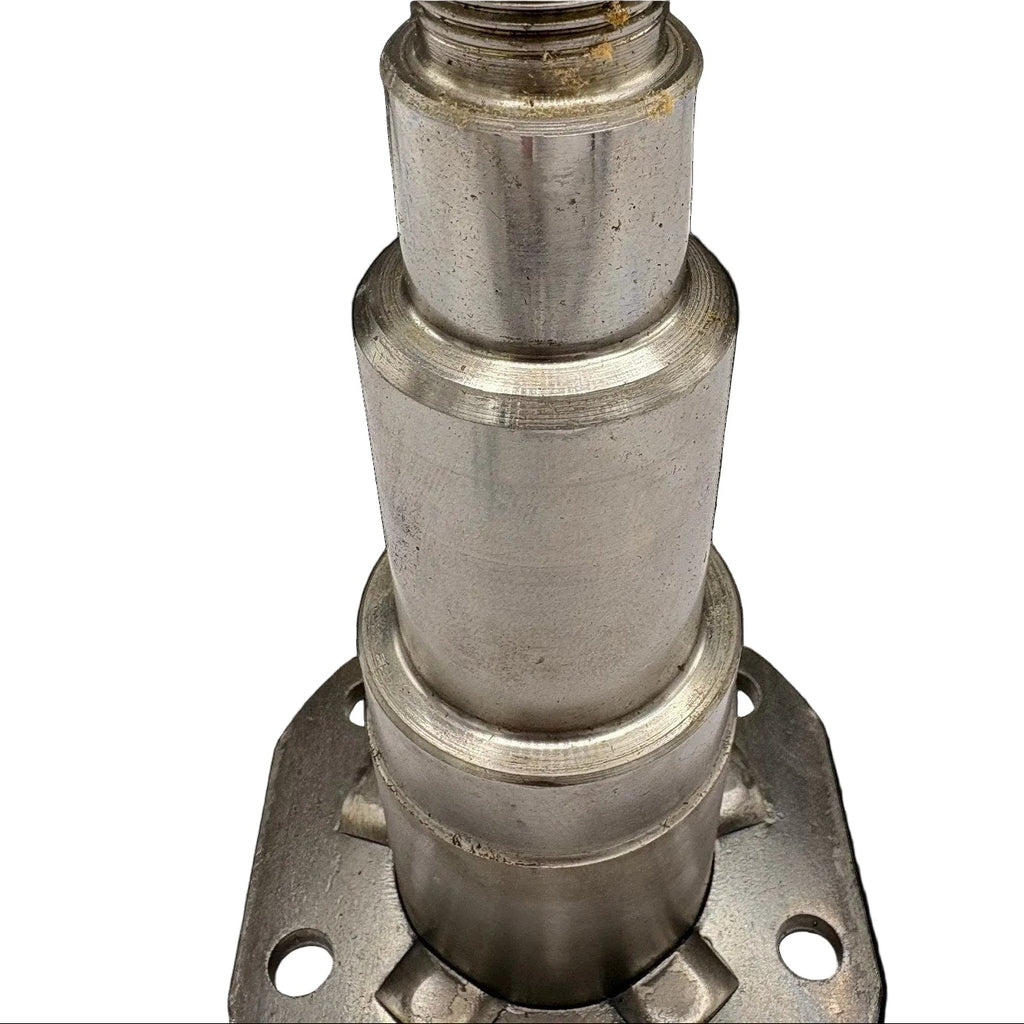

7K #42 Round EZ-Lube Trailer Spindle Kit – 2.50" x 6" Flanged w/ Brake Hardware (SP-25042FZ-225-DD-KIT)
Weld-on #42 round EZ-Lube spindle kit for 7,000 lb trailer axle repair or custom axle fabrication. Includes the flanged 2.50" spindle and brake-mounting hardware for service-ready installation work.
R&P Knowledge Hub
Compatibility: Built around a #42 round EZ-Lube spindle configuration with a 2.50" round weld section, brake flange installed, and grease zerk for through-spindle lubrication. Intended for matching hub, brake, and seal combinations only.
Vehicle / System Fit: Commonly used in 7,000 lb trailer axle repair, spindle replacement, and build-your-own axle work on equipment trailers, car haulers, dump trailers, enclosed cargo trailers, deckover trailers, landscape trailers, utility trailers, and industrial/custom trailers.
Installation Notes: This is a weld-on spindle kit. Proper alignment is critical during installation to protect bearing life, brake alignment, and tire tracking. Verify axle tube dimensions, brake-flange pattern, bearing numbers, and seal requirements before welding.

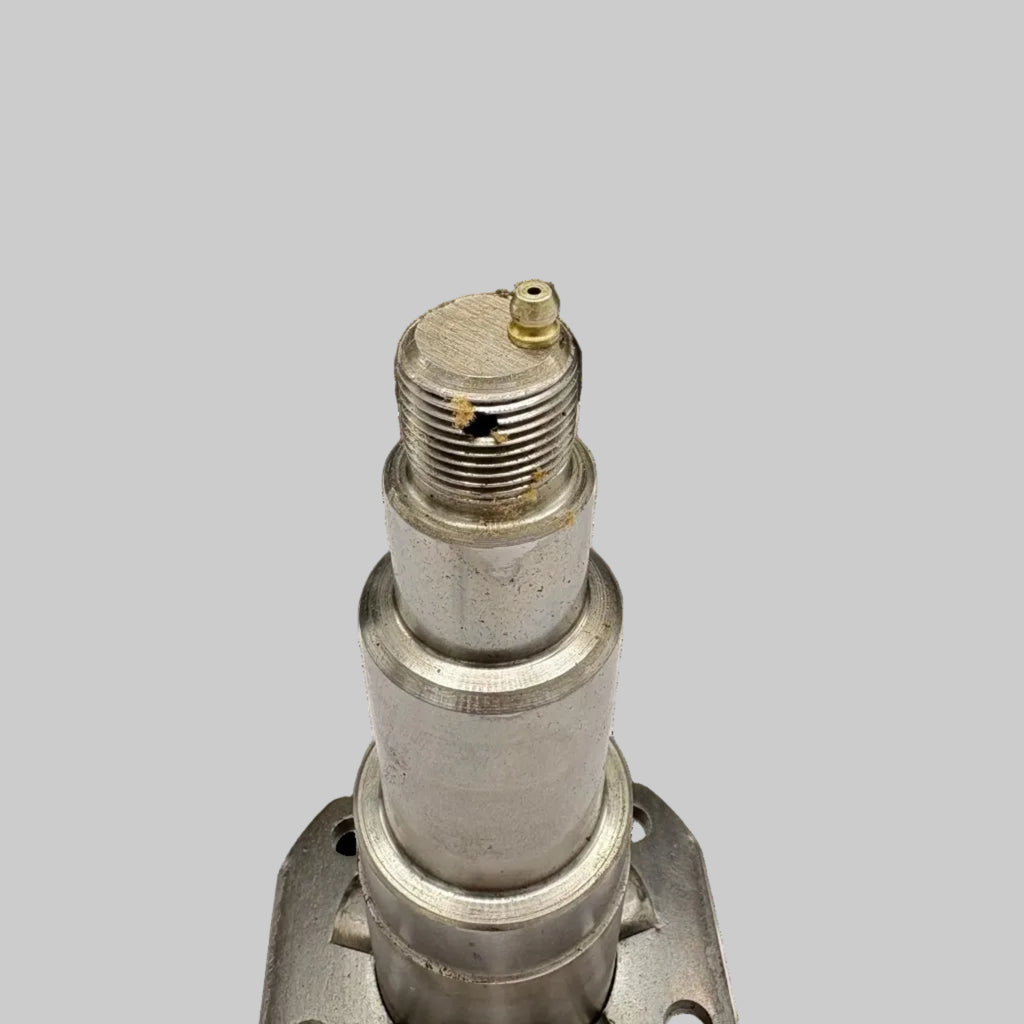

Performance Insight: The EZ-Lube design allows grease to be fed through the spindle from the zerk fitting at the end, making routine bearing maintenance easier than a non-EZ-Lube spindle when used with compatible hubs and seals.
R&P Service Insight
Spindles are usually replaced because of collision damage, bent axle ends, worn bearing journals, damaged threads, heat damage, or long-term wear from overloaded or poorly aligned running gear.
- Wear: Bearing surfaces and seal areas can become scored or worn over time
- Exposure: Water intrusion, rust, and contaminated grease accelerate spindle and bearing damage
- Load Stress: Braking forces, side loading, curb strikes, and overload conditions can bend or distort the spindle end
Features
- 7,000 lb axle-class #42 round EZ-Lube spindle for repair or custom axle fabrication
- 2.50" round weld section with brake flange already installed
- Includes brake hardware for backing plate or bracket mounting
- Ideal for replacing a damaged spindle without replacing the full axle beam
Specifications
| Specification | Detail |
| Type | Trailer axle spindle kit |
| Application | Weld-on spindle replacement or custom axle fabrication |
| Fitment | #42 round EZ-Lube spindle applications in the 7,000 lb axle class where dimensions and bearing/seal stack match |
| Material / Finish | Steel spindle with integrated grease zerk and installed brake flange |
| Key Measurement | 2.50" round weld section x 6" listing callout |
| Axle Rating | 7,000 lb axle class |
| Spindle Style | #42 round spindle |
| Lubrication | EZ-Lube grease passage with zerk fitting |
| Length Before Flange | Approx. 3.5" |
| Overall Length | Approx. 11" to 11.75" overall, depending on reference measurement point |
| Axle Tube Fit | Commonly used with 3" OD round axle tubes with matching wall thickness where compatible |
| Part Number | SP-25042FZ-225-DD-KIT |
Fitment / Application
| Category | Details |
| Vehicle / System | Trailer axle repair, heavy-duty trailer axle fabrication, and brake-ready axle builds |
| Axle / Capacity | 7,000 lb round axle class |
| Notes | Verify tube dimensions, bearing numbers, seal dimensions, brake-mounting pattern, and hub compatibility before installation. This listing is for one spindle kit only. |
Common Use Cases
| Use Case | Description |
| Spindle Replacement | Replace a bent, damaged, or worn spindle without replacing the full axle beam |
| Custom Axle Fabrication | Build a brake-ready 7K trailer axle using compatible round axle tubing and hub components |
| Heavy Trailer Repair | Restore serviceability on equipment trailers, dump trailers, car haulers, and enclosed cargo trailers |
| Brake Hardware Service | Mount compatible brake backing plates or brackets using the included hardware |
| Shop Stock | Useful as a service-shop spindle repair part for common round-axle trailer work |

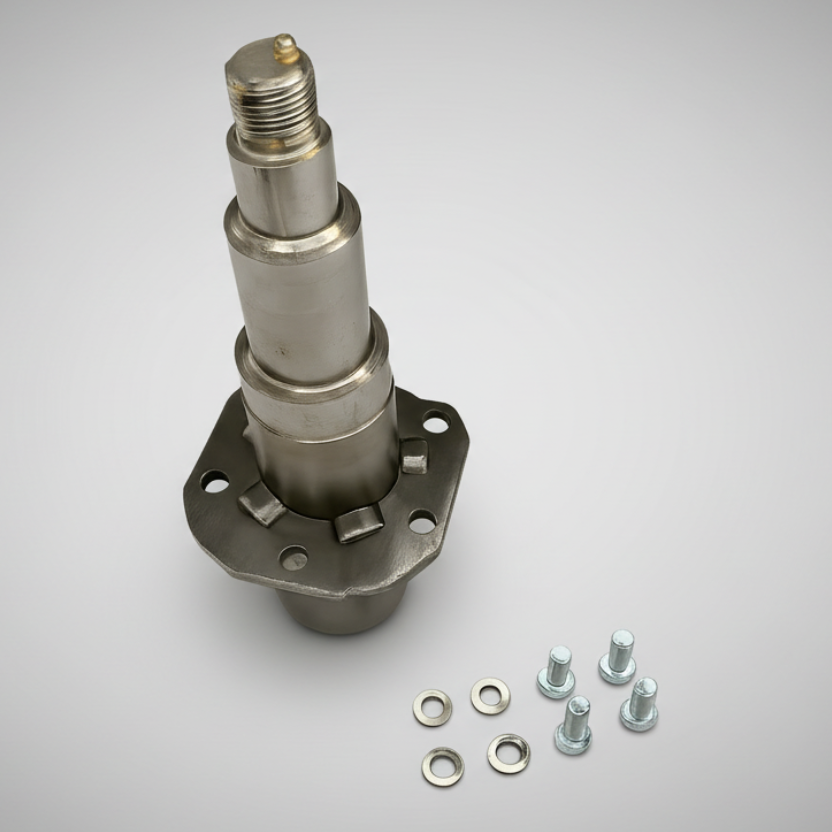

Included Components
| Quantity | Item |
| 1 | SP-25042FZ-225 #42 round EZ-Lube flanged spindle |
| 4 | 38LW lock washers |
| 4 | 5C38241 bolts |

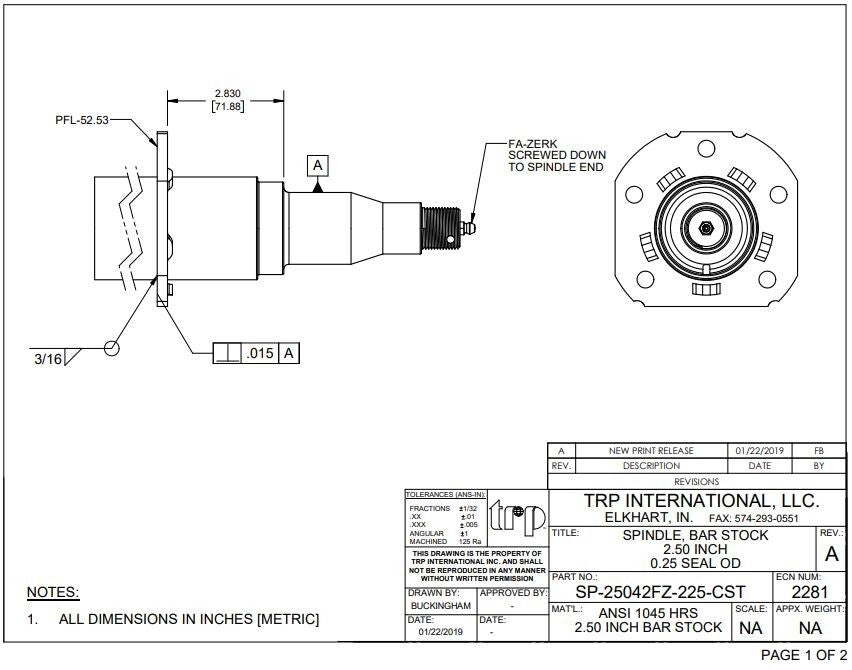

Reference Diagram
Use the linked reference page for the spindle diagram and visual measurement layout shown in your source material.
View Diagram / Reference PageVerify all specifications, dimensions, bearing and seal requirements, and brake-hardware compatibility before installation.
