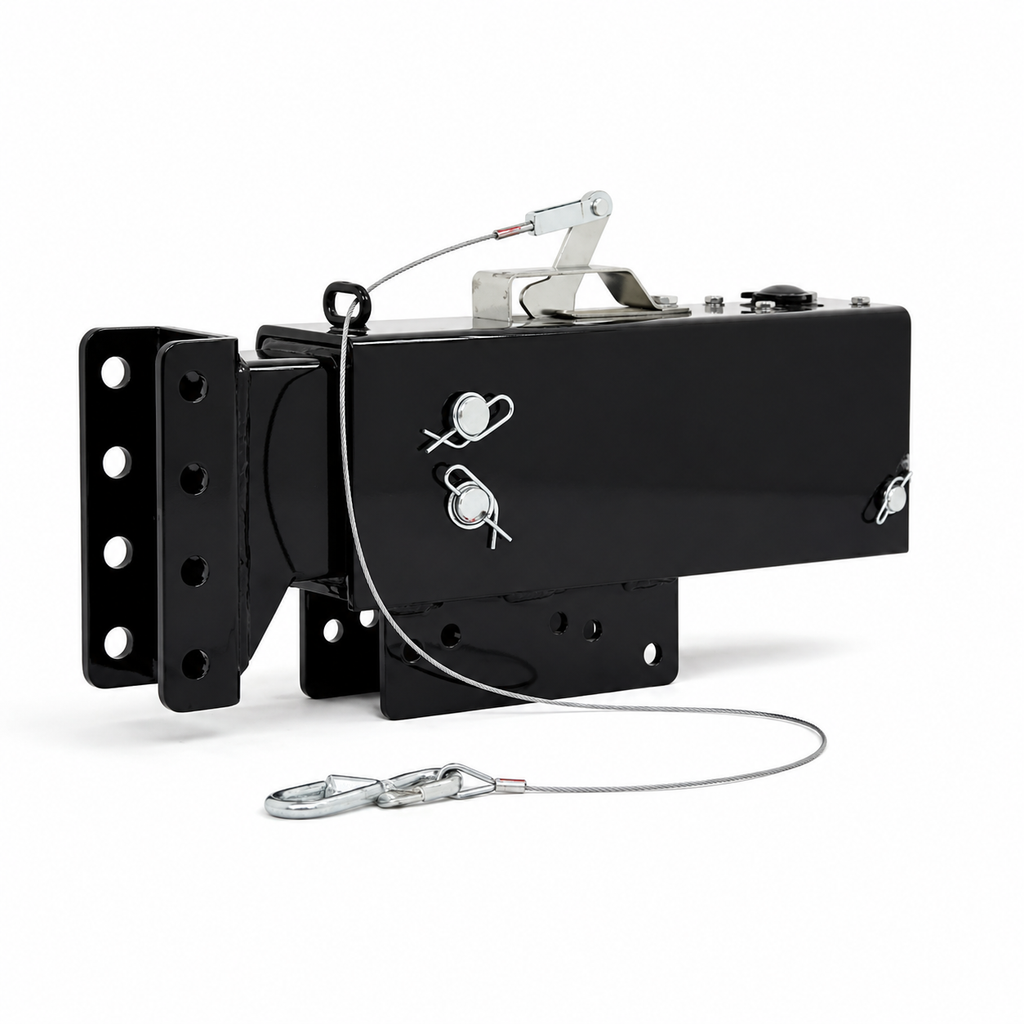

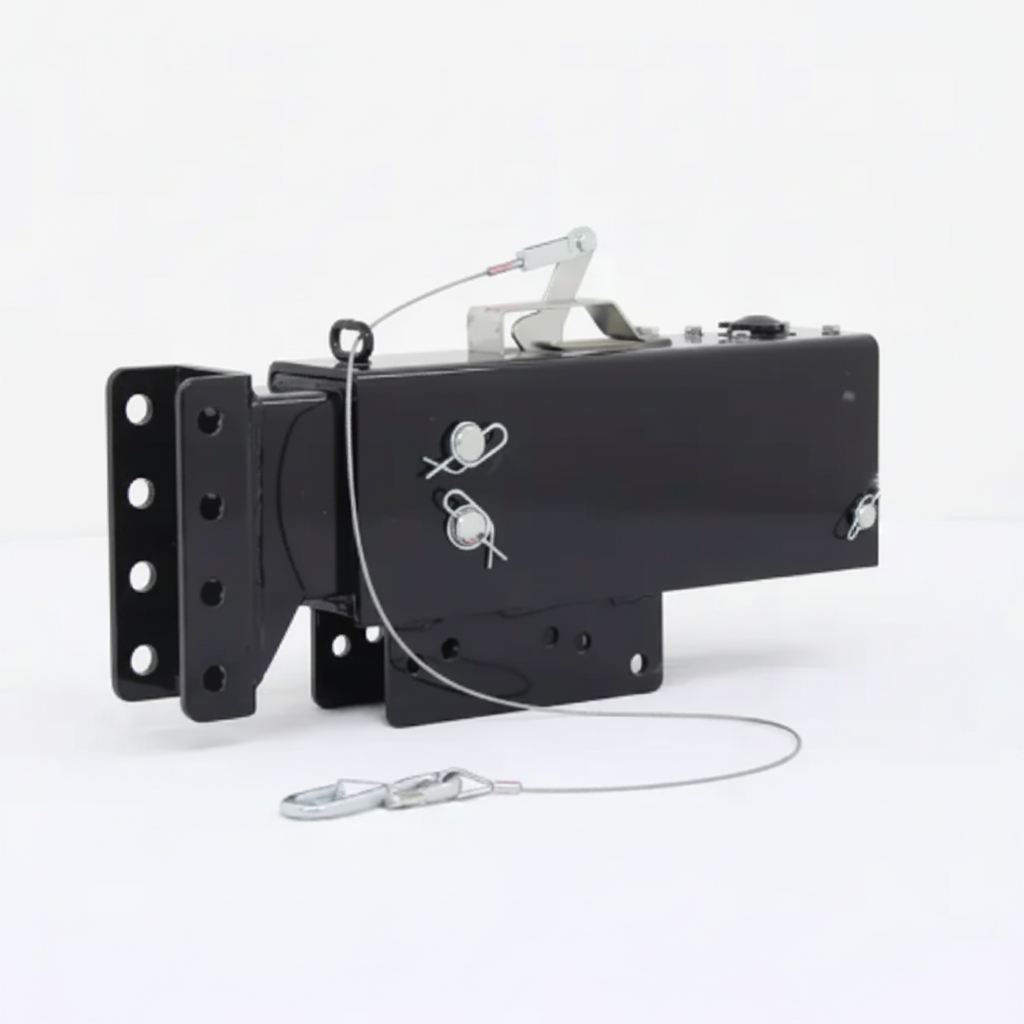

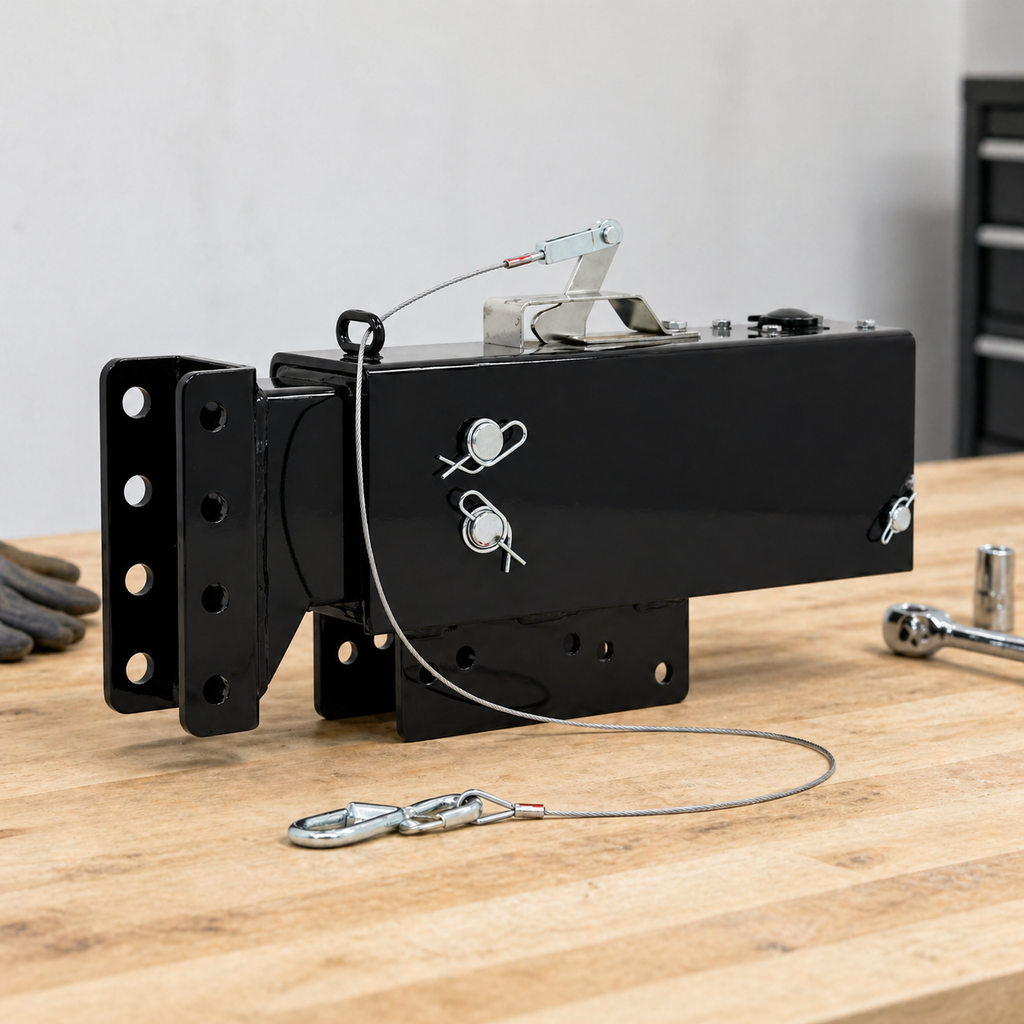

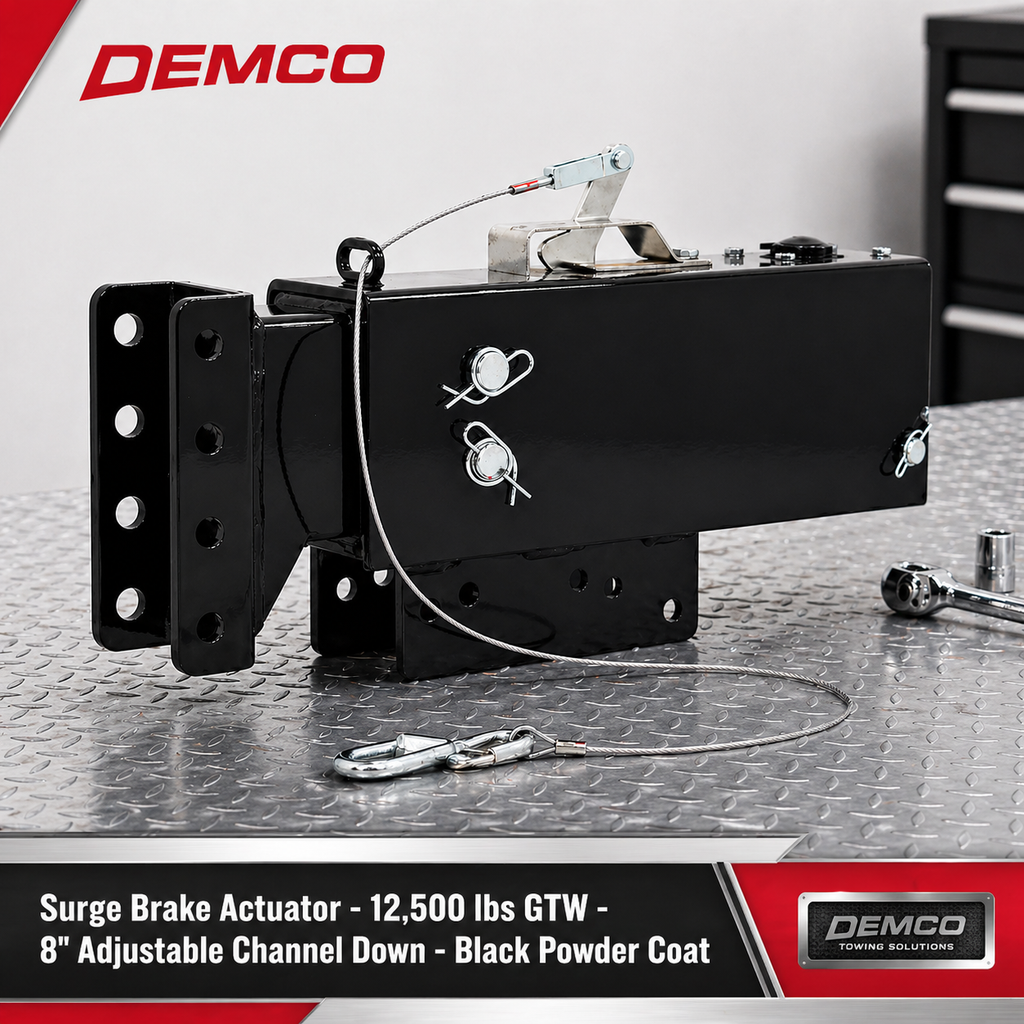

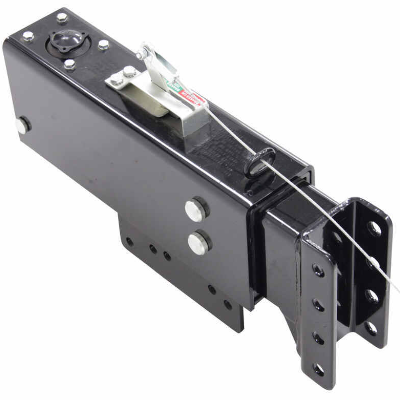

Surge Brake Actuator - 12,500 lbs GTW - 8" Adjustable Channel Down - Black Powder Coat
High-capacity hydraulic surge actuator designed for trailers with drum brakes, featuring a corrosion-resistant composite master cylinder and adjustable mounting for level towing.
Overview
This heavy-duty surge brake actuator is a professional-grade replacement solution designed for high-capacity trailers using hydraulic drum brakes. Featuring a specialized 8" adjustable channel design, it allows for three mounting positions to ensure perfect trailer leveling even on taller setups. The enclosed composite master cylinder ensures smooth, rust-free operation in marine or road-salt environments, solving the common problem of seized hydraulic components in traditional steel units.
R&P Service Insight
A properly leveled trailer is critical for safety; the 8" drop on this channel provides the versatility needed for custom builds or tall truck hitches.
- Braking Logic: Surge design activates automatically as the tow vehicle slows.
- Maintenance: The composite master cylinder avoids internal rust common in iron cylinders.
- Marine Grade: Black powder coat and reinforced nylon make this ideal for boat trailers.
R&P Knowledge Hub
Compatibility: Designed exclusively for trailers equipped with hydraulic drum brakes.
Vehicle / System Fit: Fits 3" wide straight trailer tongues with a 5-bolt mounting pattern.
Installation Notes: Requires 1/2" x 4-1/2" Grade 5 bolts for installation (not included). Couplers (ball, lunette, or clevis) are sold separately.
Performance Insight: The integrated breakaway system provides an essential safety layer, automatically engaging brakes if the trailer disconnects from the vehicle.
R&P Repair Insight
When upgrading or replacing an actuator, always check your brake style. This model does not include a reverse lockout solenoid, which impacts how you back up.
- Reverse Tip: We strongly recommend pairing this actuator with "free-backing" drum brakes to prevent brake engagement while reversing.
- Tongue Check: Ensure your trailer tongue is exactly 3" wide for the bolt-on case to seat properly.
- Fluid Seal: Features an automotive-style diaphragm cap to keep water and road grime out of your brake fluid.
Features
8" Adjustable Channel
Offers 3 mounting positions for the coupler, allowing you to fine-tune height for a perfectly level tow.

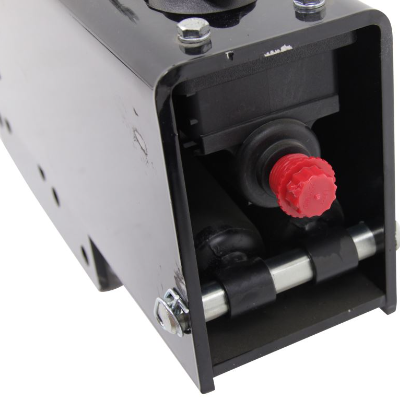

Composite Master Cylinder
Glass-reinforced nylon construction with acetal copolymer lining resists corrosion and ensures smooth telescoping action.
12.5K Towing Capacity
Heavy-duty steel construction rated for 12,500 lbs GTW and 1,250 lbs tongue weight.
Corrosion Protection
Finished in a durable black powder coat to withstand marine use, road grime, and harsh weather.
Specifications
| Specification | Detail |
|---|---|
| GTW Rating | 12,500 lbs |
| Max Tongue Weight | 1,250 lbs |
| Brake Type | Hydraulic Drum |
| Channel Height | 8" (Adjustable) |
| Channel Width | 3" Internal |
| Finish | Black Powder Coat |
| Hardware Req. | 1/2" x 4-1/2" Grade 5 Bolts |
Fitment / Application
| Category | Details |
|---|---|
| Mounting | Straight 3" Wide Tongue |
| Case Style | 5-Hole Bolt-On Case |
| Brake System | Drum Brakes Only |
| Reverse Note | Use with free-backing brakes |
Included Components
| Quantity | Item |
|---|---|
| 1 | 12.5K Surge Actuator Assembly |
| 1 | Adjustable 8" 3-Position Channel |
| 1 | Integrated Breakaway Cable & S-Hook |
| 1 | Enclosed Composite Master Cylinder |
