Dexter Equalizer Center Bushing 014-113-00 — 1.00" ID x 2.0625" OD x 3.25" Length
Dexter equalizer center pivot bushing for select Dexter trailer suspension equalizers using 2-1/2" wide leaf spring systems. Built for the center pivot point where verified bushing dimensions and equalizer application match.

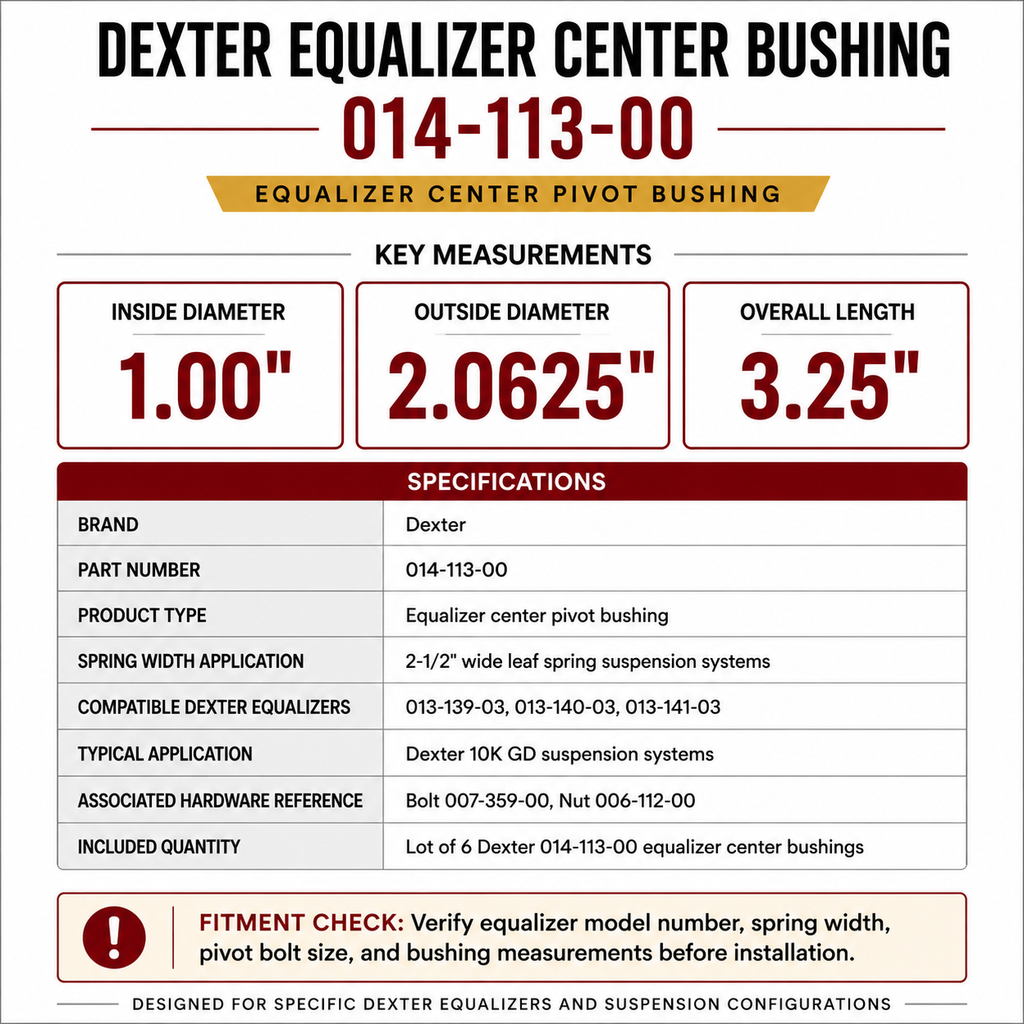

Specifications & Measurements
| Specification | Detail |
|---|---|
| Brand | Dexter |
| Part Number | 014-113-00 |
| Product Type | Equalizer center pivot bushing |
| Inside Diameter | 1.00" |
| Outside Diameter | 2.0625" |
| Overall Length | 3.25" |
| Spring Width Application | 2-1/2" wide leaf spring suspension systems |
| Compatible Dexter Equalizers | 013-139-03, 013-140-03, 013-141-03 |
| Typical Application | Dexter 10K GD suspension systems |
| Associated Hardware Reference | Bolt 007-359-00, Nut 006-112-00 |
Overview
This Dexter 014-113-00 equalizer center bushing installs at the center pivot point on select Dexter trailer suspension equalizers. It is used with specified Dexter equalizers and suspension configurations where the 1.00" inside diameter, 2.0625" outside diameter, and 3.25" overall length match the existing component.
R&P Service Insight
The center pivot bushing is a wear point in a trailer equalizer assembly. Correct sizing is critical because the bushing supports pivot movement between the equalizer, center bolt, and suspension load path.
- Measure Before Ordering: Confirm inside diameter, outside diameter, and overall length against the removed bushing.
- Equalizer Match: Verify the equalizer part number before installation.
- Hardware Check: Inspect the related pivot bolt and nut when servicing the bushing.
R&P Knowledge Hub
Compatibility: Designed for compatible Dexter equalizers 013-139-03, 013-140-03, and 013-141-03 where dimensions and suspension configuration match.
Vehicle / System Fit: Used in select Dexter trailer suspension systems with 2-1/2" wide leaf springs.
Installation Notes: Verify equalizer model number, spring width, pivot bolt size, and bushing measurements before installation.
Performance Insight: A properly sized center bushing helps maintain correct equalizer pivot function in heavy-duty trailer suspension service.
Brand & Fitment Note
Selling Brand: Dexter
Application Reference: Dexter equalizer and suspension references in this listing describe verified compatibility targets for the listed bushing dimensions and application.
What This Means: This listing is for a Dexter 014-113-00 equalizer center pivot bushing.
Before Ordering: Verify inside diameter, outside diameter, overall length, equalizer part number, spring width, pivot bolt size, and included components before installation.
R&P Repair Insight
Equalizer bushing replacement should be matched by exact measurement and suspension configuration. Wear at the center pivot can affect equalizer movement, pivot alignment, and related suspension hardware condition.
- Dimension Check: Match 1.00" ID, 2.0625" OD, and 3.25" overall length before installing.
- Equalizer Check: Confirm compatibility with Dexter equalizers 013-139-03, 013-140-03, or 013-141-03.
- Suspension Check: Inspect the center bolt, nut, equalizer bore, and surrounding suspension components during service.
Features
Dexter Center Pivot Bushing
Manufactured by Dexter for use as an equalizer center pivot bushing in compatible trailer suspension applications.
Exact Listed Measurements
Specified at 1.00" inside diameter, 2.0625" outside diameter, and 3.25" overall length.
Compatible Equalizer Reference
Listed for Dexter equalizers 013-139-03, 013-140-03, and 013-141-03 where suspension configuration matches.
Heavy-Duty Suspension Application
Typical application includes Dexter 10K GD suspension systems using 2-1/2" wide leaf springs.
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / System | Trailer suspension equalizer center pivot |
| Primary Fit | Select Dexter equalizers using center bushing 014-113-00 |
| Compatible Equalizers | 013-139-03, 013-140-03, 013-141-03 |
| Spring Width | 2-1/2" wide leaf spring suspension systems |
| Typical Application | Dexter 10K GD suspension systems |
| Notes | Verify equalizer model number, spring width, pivot bolt size, and bushing dimensions before installation. |
Included Components
| Quantity | Item |
|---|---|

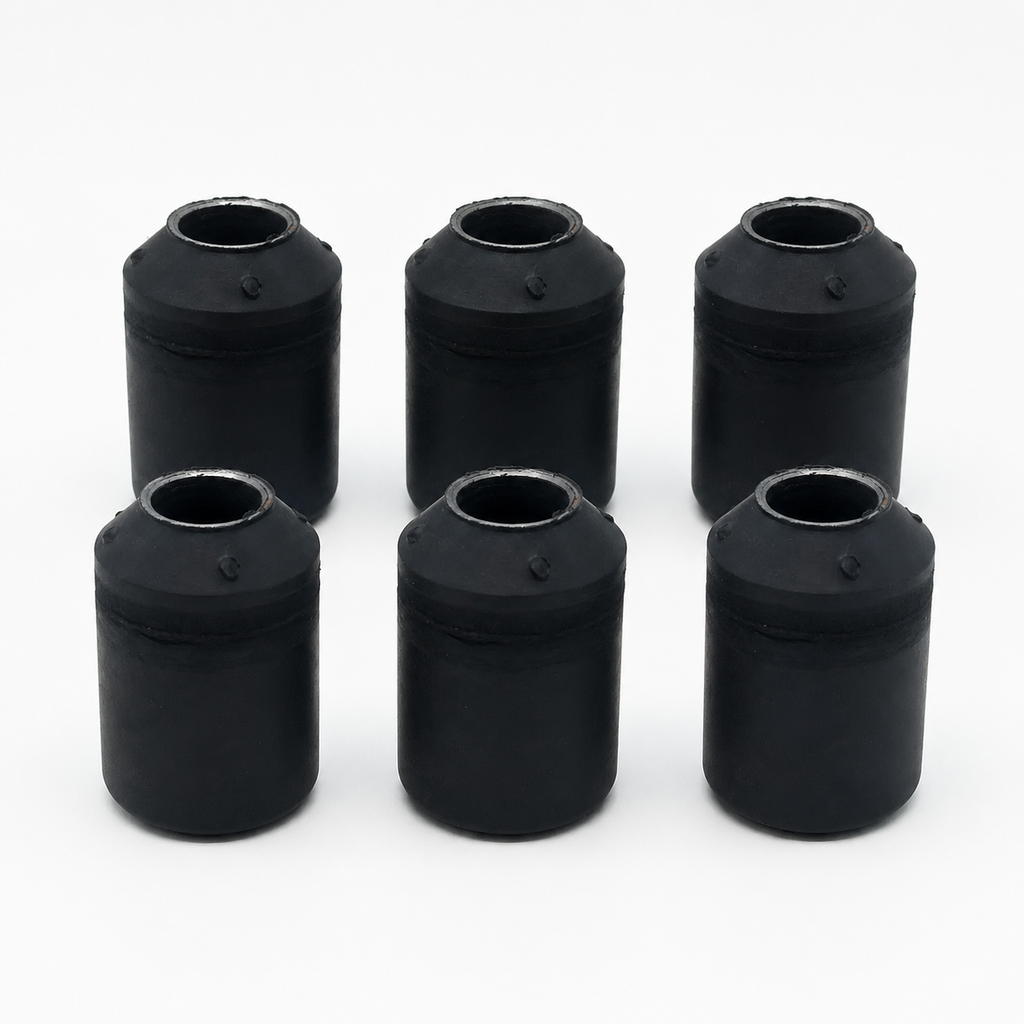

| Lot of 6 | Dexter 014-113-00 equalizer center bushings |
| Not Included | Pivot bolt 007-359-00 |
| Not Included | Nut 006-112-00 |
