Pollak 12-741 7-Way RV Blade LED Circuit Tester for Vehicle Socket
Check your tow vehicle’s 7-way before you hook up and head out. This compact Pollak tester gives you a fast visual read on key trailer wiring functions so you can diagnose a dead circuit before it becomes a road trip problem.
Overview

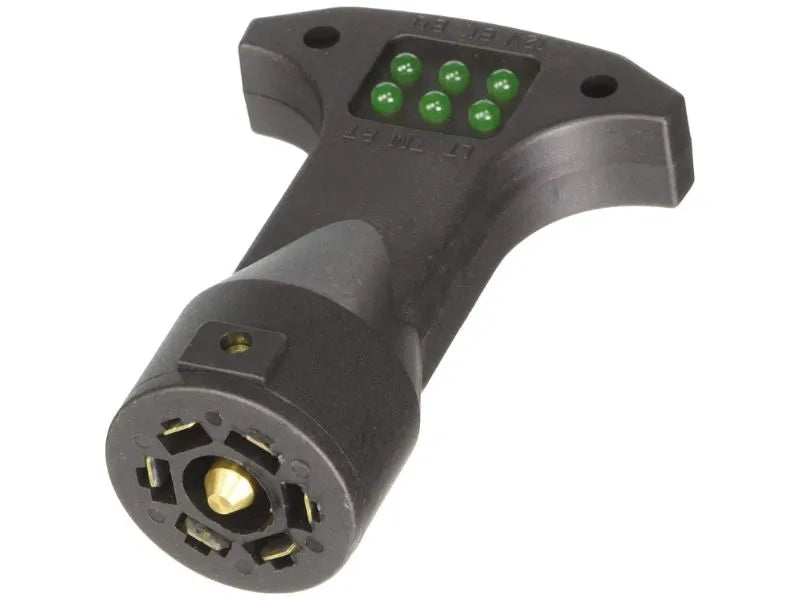

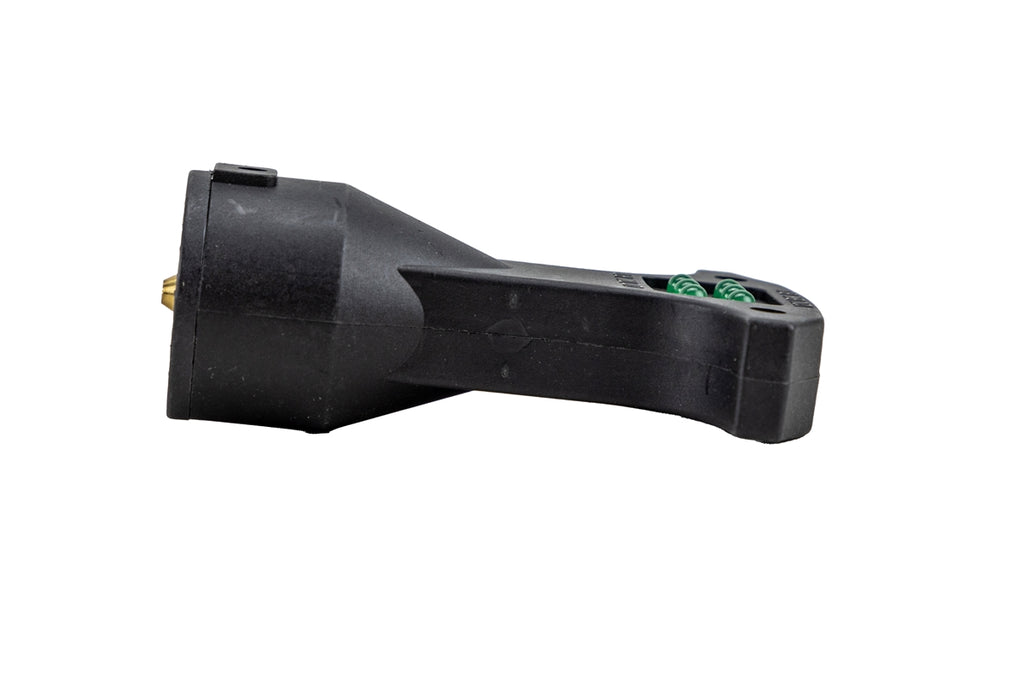

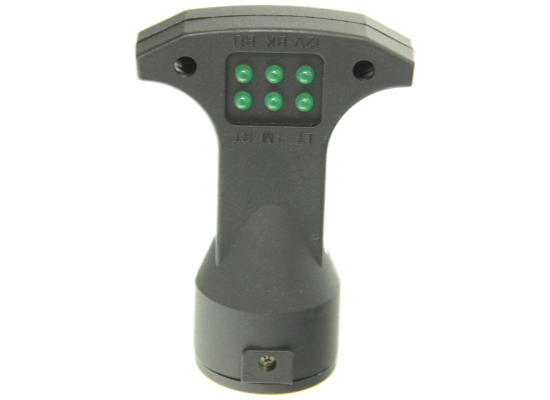

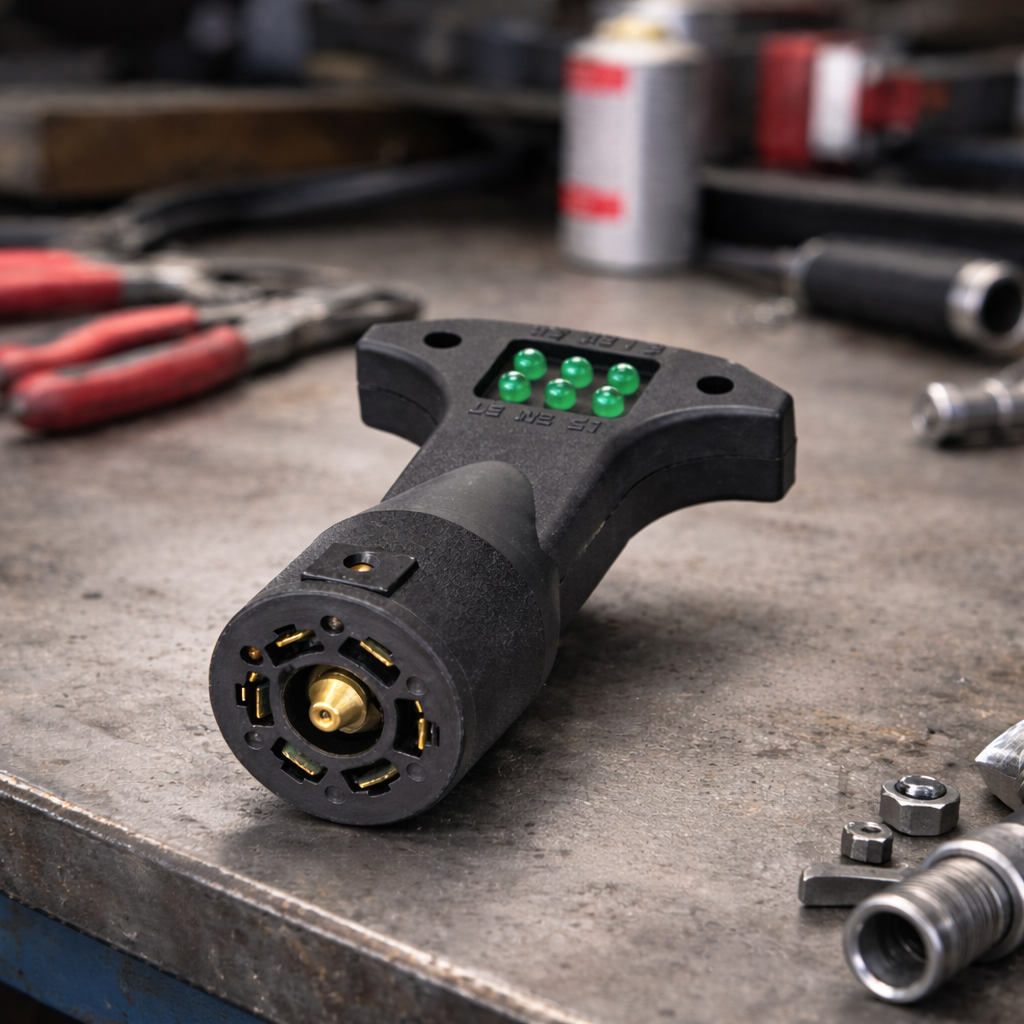

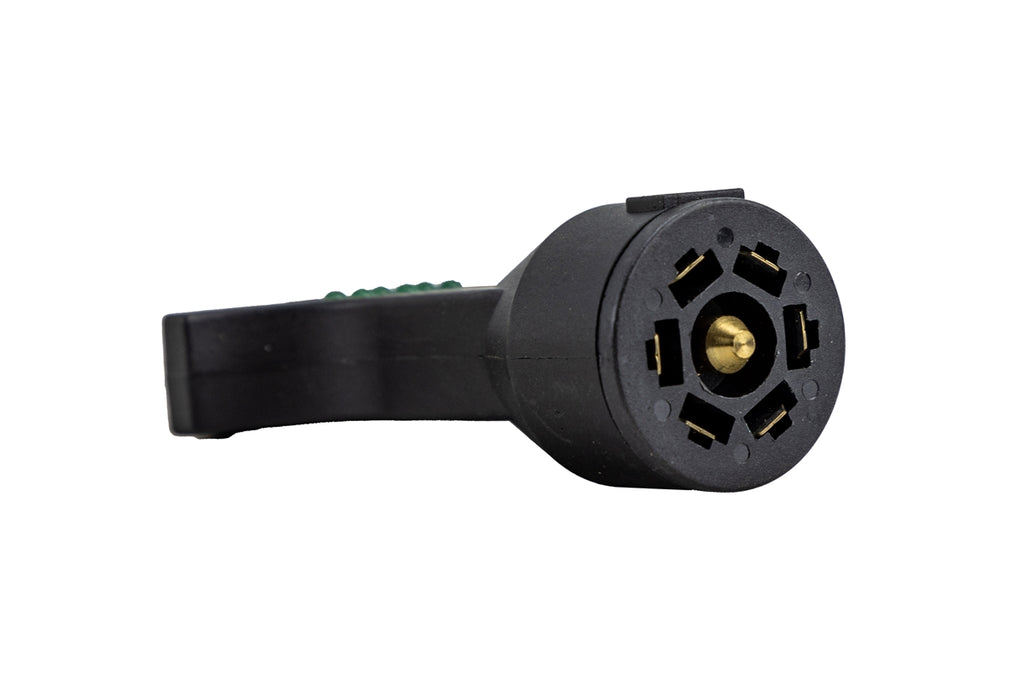

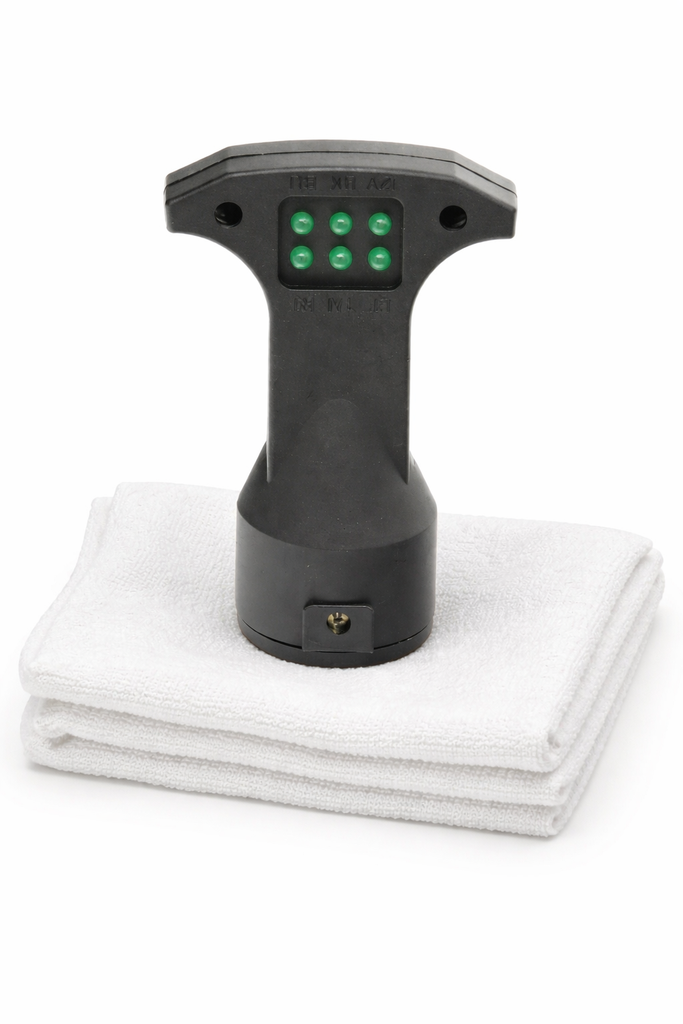

The Pollak 12-741 is a 7-way RV blade LED circuit tester built for the vehicle-side socket. Plug it into a standard 7-way RV blade connector and verify the presence of reverse, right turn / brake, left turn / brake, taillight, brake controller output, and 12V auxiliary power signals. It is a smart first step when trailer lights, brake controller output, or power feed issues need to be isolated quickly.
Quick Tech Specs
| Spec | Detail |
|---|---|
| Connector Style | 7-way RV blade |
| Use Position | Vehicle-end socket tester |
| Voltage | 12 volts |
| Construction | High-impact plastic |
| Function LEDs | BU, RT, TM, LT, BK, 12V |
| Cross References | 12-741, 12-741E, replaces 12-741EV |
R&P Knowledge Hub
Compatibility: Designed for standard 7-way RV blade vehicle sockets. This is not the round-pin 7-way tester.
Vehicle / System Fit: Best for checking the tow vehicle’s 7-way connector before trailer hookup or during wiring troubleshooting.
Installation Notes: Plug the tester into the vehicle socket, activate the relevant lighting or power function, and verify that the matching LED illuminates. Confirm you are working with a standard RV blade socket before ordering.
Performance Insight: This tester is excellent for quick function checks, but it is not a load tester. It helps confirm signal presence fast, which can save time when you are separating a vehicle-side problem from a trailer-side problem.
R&P Repair Insight
When a customer says “the trailer lights quit” or “the brake controller is not talking to the trailer,” the first question is whether the tow vehicle is actually sending the signal. This tester helps answer that immediately and can keep you from chasing the wrong side of the system.
- Check the Socket Style: This unit is for the 7-way RV blade format, not a 7-way round-pin socket.
- Check the Vehicle Side First: If the LEDs do not respond correctly here, diagnose the tow vehicle socket and wiring before replacing trailer-side components.
- Check Sensitive Tow Systems: Some newer vehicles with trailer detection or low-draw sensitivity may need a loaded adapter for deeper testing beyond a simple LED function check.
Features
Fast Visual Circuit Check
LED indicators let you confirm key tow functions at a glance so you can spot a missing circuit before connecting the trailer.
Built for 7-Way RV Blade Sockets
Made for the common RV-style blade connector used on many tow vehicles, pickups, SUVs, and trailer-ready rigs.
Labeled Function Codes

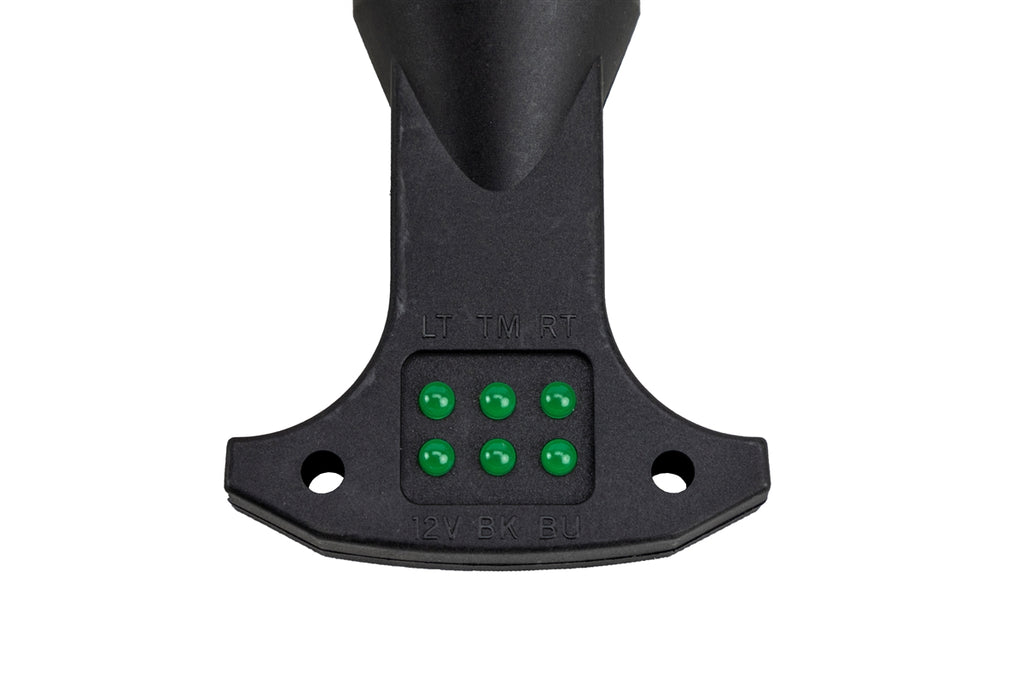

The tester clearly marks BU, RT, TM, LT, BK, and 12V so you can match each illuminated LED to the correct function quickly.
Shop-Useful, Road-Useful Tool
Compact, simple, and easy to keep in the truck or toolbox for pre-tow checks, intake inspections, and wiring diagnosis.
Specifications
| Specification | Detail |
|---|---|
| Part Number | 12-741 |
| Product Type | LED circuit tester |
| Application | Standard 7-way RV blade vehicle socket |
| Material / Finish | High-impact plastic, black |
| Voltage | 12 volts |
| Fitment | Vehicle-end 7-way RV blade connector systems |
| Function Indicators | BU, RT, TM, LT, BK, 12V |
| Alternate References | 12-741E; replaces 12-741EV |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / System | Tow vehicle 7-way RV blade socket |
| Primary Fit | Vehicle-side function testing for trailer lighting, brake output, reverse, and 12V auxiliary feed |
| Secondary Fit | Useful for shop diagnosis, pre-trip trailer hookup checks, and wiring verification |
| Notes | Verify connector style before ordering. This tester is for RV blade sockets and is not intended to replace a full load-based electrical diagnosis. |
Included Components
| Quantity | Item |
|---|---|
| 1 | Pollak 12-741 7-way RV blade LED circuit tester |
| Built In | Labeled LED function indicators |
| Built In | Two pull tabs for removal from the socket |
| Not Included | Trailer plug, adapter, or additional wiring hardware |
