Fastway E-Series Adjustable 2-Ball Mount — 2" Receiver — 4" Drop / 5" Rise — 10,000 lb GTW
A polished solid aluminum adjustable ball mount built for heavy towing, quick trailer changes, and clean height adjustment with both 2" and 2-5/16" chrome hitch balls.
Overview
The Fastway FLASH™ adjustable 2-ball mount is designed for drivers who tow more than one trailer and need a clean, strong, easy-to-adjust setup. The reversible ball platform lets you switch between a 2" ball rated for 8,000 lbs and a 2-5/16" ball rated for 10,000 lbs, while the 4" drop and 5" rise range helps level trailers, campers, boats, utility trailers, and equipment haulers. Its polished aircraft-grade aluminum body keeps weight down without giving up towing strength or corrosion resistance.
R&P Service Insight
Adjustable ball mounts are especially useful when one tow vehicle pulls multiple trailers with different coupler heights.
- Level Towing: Helps keep the trailer even and stable on the road.
- Dual Ball Setup: Switch between 2" and 2-5/16" couplers without changing mounts.
- Clean Adjustment: 1" height increments make setup faster and more precise.
R&P Knowledge Hub
Compatibility: Fits standard 2" x 2" trailer hitch receivers.
Vehicle / System Fit: Commonly used with trucks, SUVs, campers, boats, utility trailers, cargo trailers, and equipment trailers within the stated towing ratings.
Installation Notes: Slide the shank into the receiver, secure with the proper hitch pin, then set the ball platform height for the trailer coupler.
Performance Insight: A level trailer improves road manners, helps distribute load properly, and reduces nose-high or nose-low towing problems.
Brand & Fitment Note
Selling Brand: Fastway FLASH™
Application Reference: Adjustable 2-ball mount for 2" receiver hitches.
What This Means: This mount gives you two common hitch ball sizes and adjustable height in one polished aluminum setup.
Before Ordering: Verify your receiver size, trailer coupler size, trailer weight, tongue weight, and required drop or rise before towing.
R&P Repair Insight
Before towing, always inspect the receiver, hitch pin, ball platform, trailer coupler, safety chains, lights, and breakaway system. The ball mount rating is only one part of the full towing setup; the lowest-rated component determines the safe working capacity.
- Check Receiver Rating: Confirm the tow vehicle hitch is rated for the trailer load.
- Check Coupler Size: Match the trailer coupler to either the 2" or 2-5/16" ball.
- Check Trailer Height: Adjust the mount so the trailer rides level before traveling.
Features
Keeps Your Trailers Level
The 4" drop and 5" rise range adjusts in 1" increments so you can fine-tune trailer height for campers, boats, utility trailers, and other towable equipment.
Two Hitch Balls in One Mount

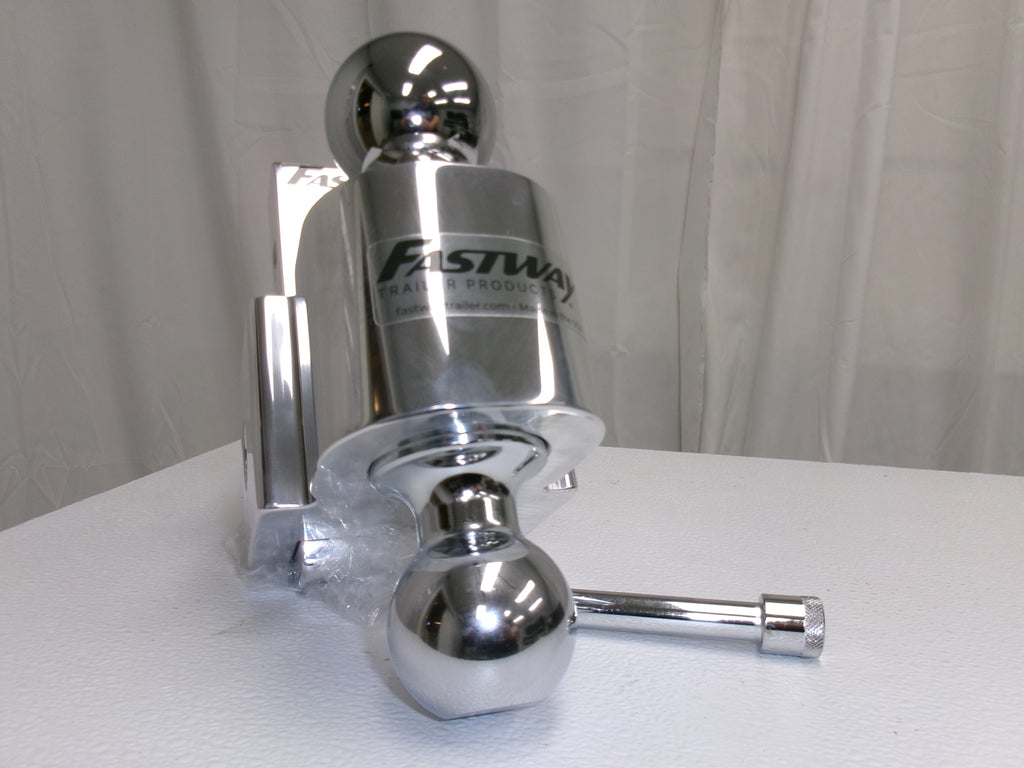

The reversible ball platform includes a 2" ball rated for 8,000 lbs and a 2-5/16" ball rated for 10,000 lbs, helping cover common trailer coupler sizes.
Solid Aluminum Strength
Machined aircraft-grade aluminum provides strength without the bulk of many heavy steel mounts, while the solid design avoids welded weak points.
Polished, Corrosion-Resistant Finish
The mirror-bright polished aluminum body resists rust, while the chrome-plated steel balls help maintain a clean, durable towing surface.
Specifications
| Specification | Detail |
|---|---|
| Part Number | 42-00-2400 |
| Listing SKU | 42-00-2400 |
| Brand | Fastway FLASH™ |
| Product Type | Adjustable 2-Ball Trailer Hitch Ball Mount |
| Quantity Included | One adjustable ball mount assembly |
| Application | 2" x 2" trailer hitch receivers |
| Material / Finish | Solid aircraft-grade billet aluminum, polished finish; chrome-plated steel balls |
| Key Measurement | 4" maximum drop / 5" maximum rise |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / System | Tow vehicles equipped with a 2" receiver hitch |
| Primary Fit | Trailers using 2" or 2-5/16" couplers within rated capacity |
| Secondary Fit / Common Uses | Campers, boats, cargo trailers, utility trailers, car haulers, and equipment trailers |
| Notes | Always verify receiver rating, coupler size, loaded trailer weight, tongue weight, and required drop or rise. |
Detailed Measurements

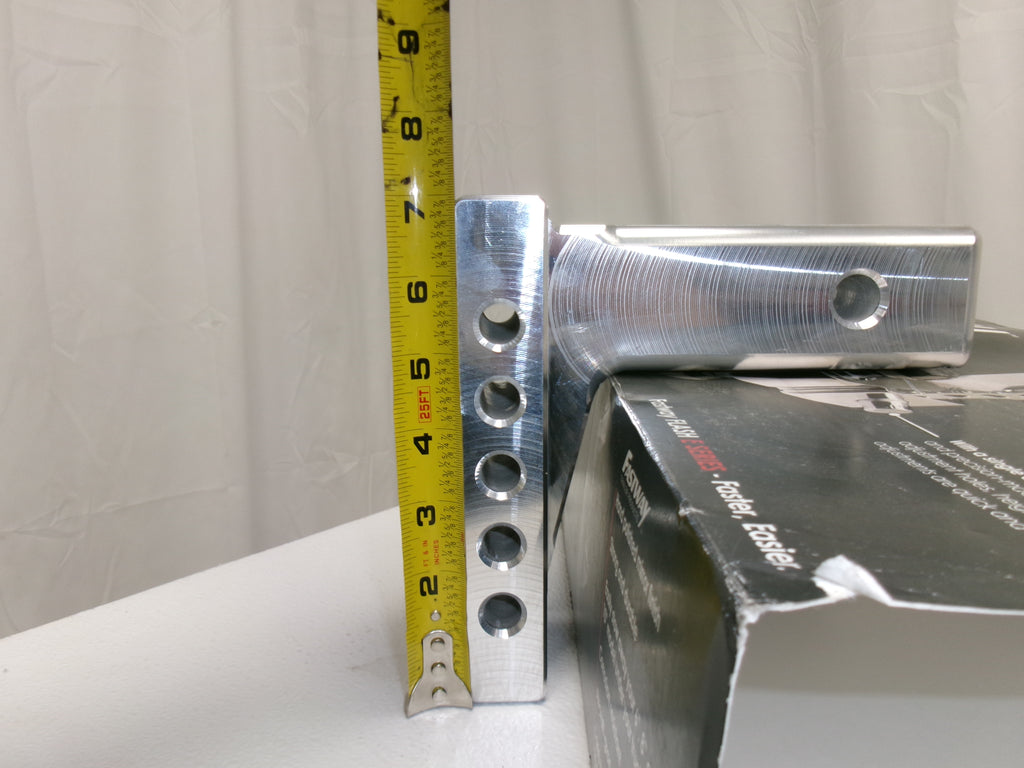

| Key Dimension | Measurement |
|---|---|
| Ball Diameters | 2" and 2-5/16" |
| Maximum Rise | 5" from the top of the hitch receiver opening |
| Maximum Drop | 4" from the top of the hitch receiver opening |
| Height Adjustment | 1" increments |
| 2" Ball Capacity | 8,000 lbs GTW |
| 2-5/16" Ball Capacity | 10,000 lbs GTW |
| Tongue Weight Capacity | 1,000 lbs |
| Hitch Pin Hole to Back of Upright Bar | 4-1/4" |
| Hitch Pin Hole to Center of Ball | 8-1/2" |

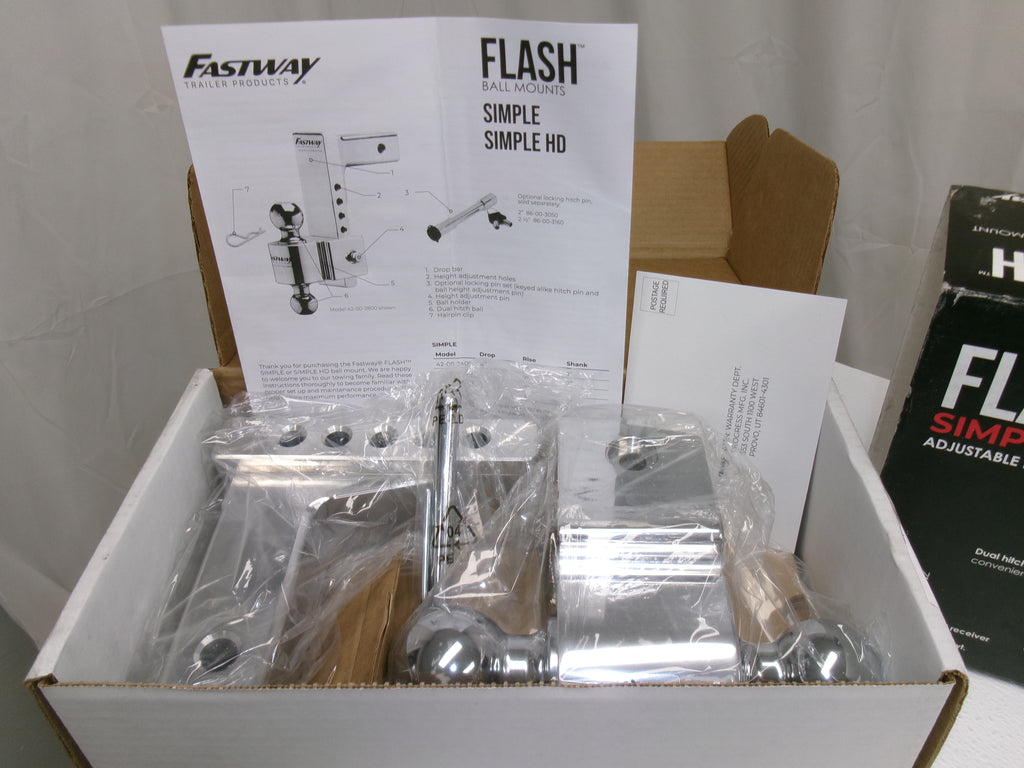

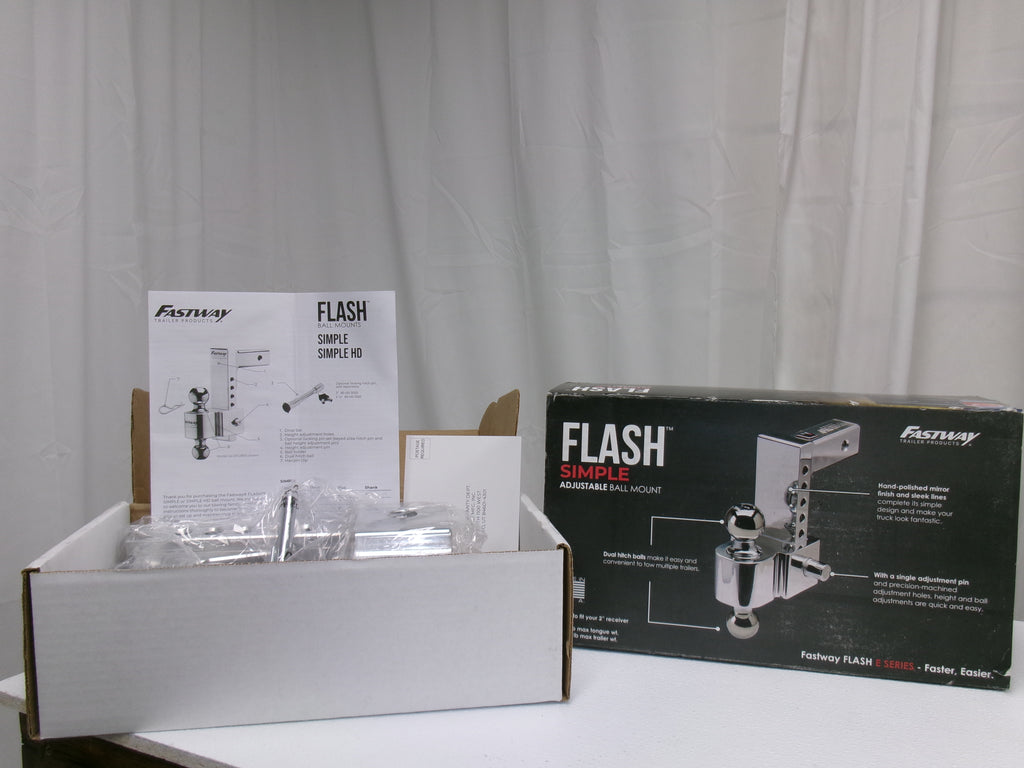

Included Components
| Quantity | Item |
|---|---|

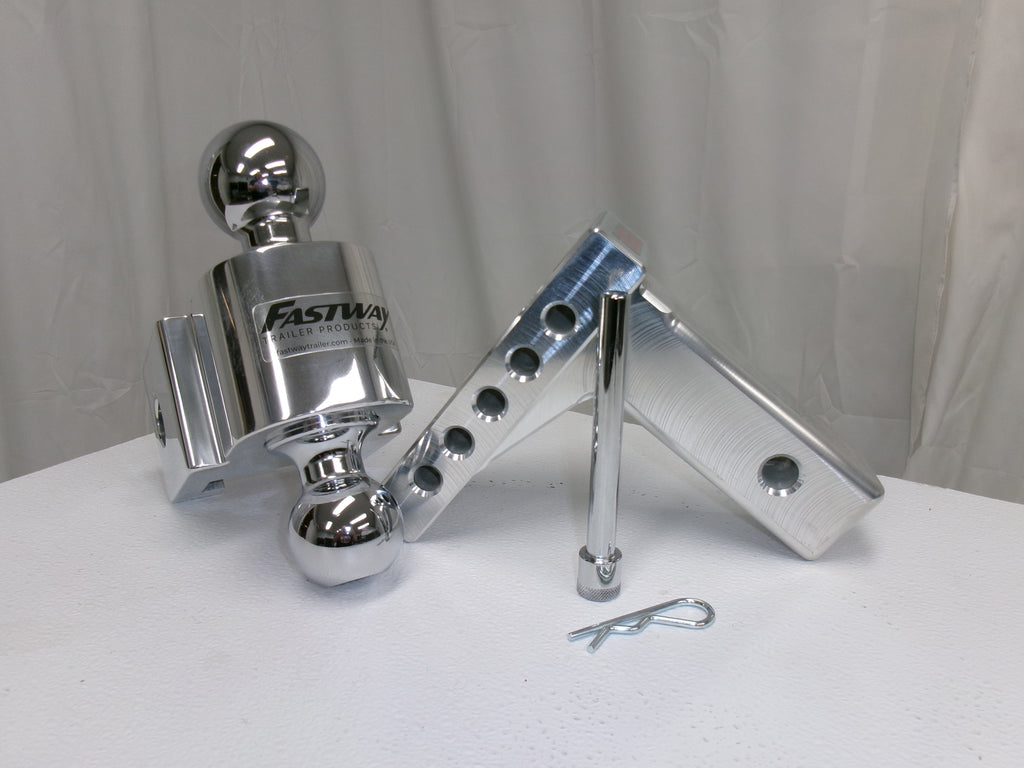

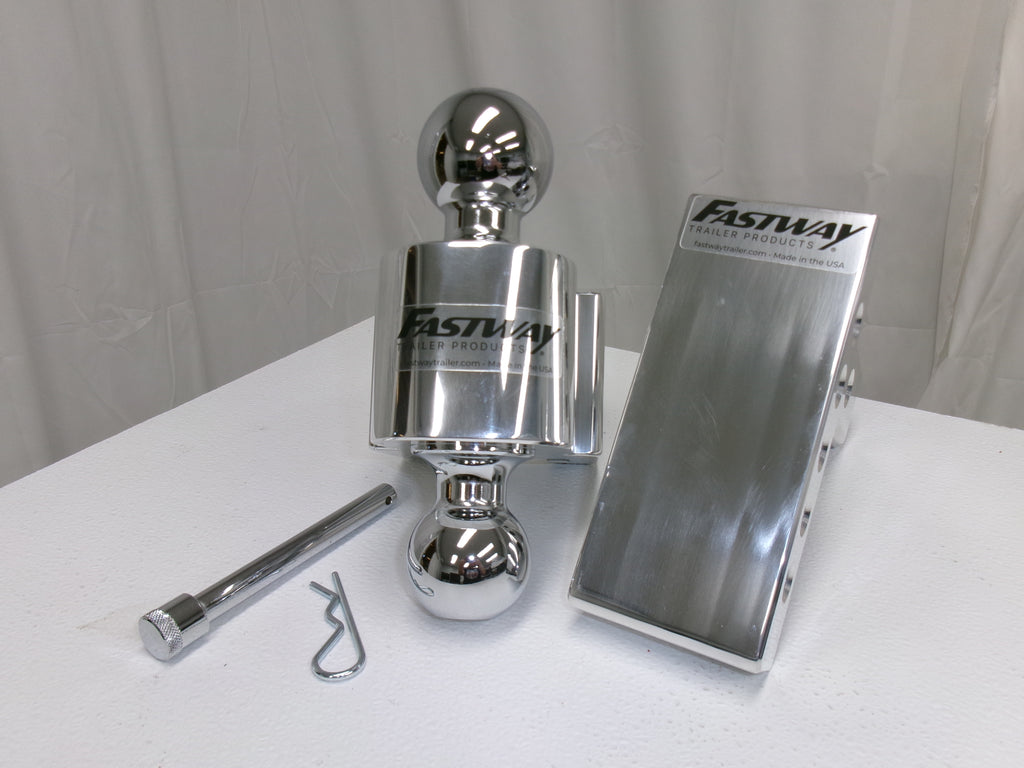

| 1 | Fastway FLASH™ adjustable aluminum ball mount shank |
| 1 | Reversible dual-ball platform with 2" and 2-5/16" chrome hitch balls |

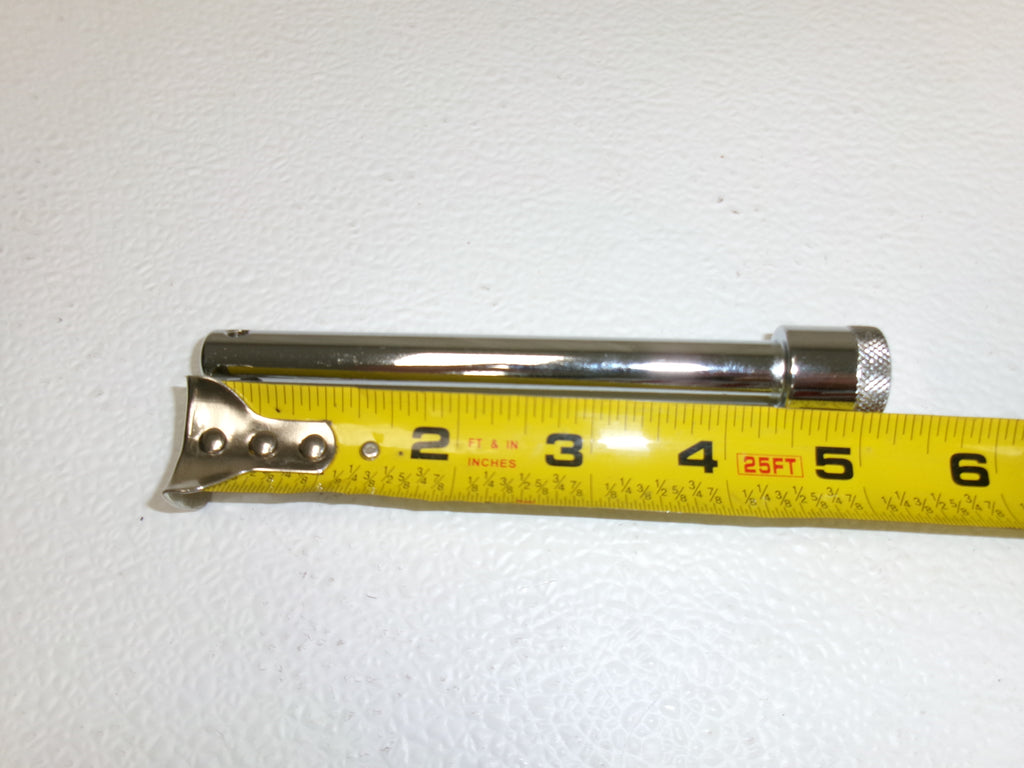

| Included | Height adjustment hardware for the ball platform |
| Not Included | Receiver hitch, trailer coupler, safety chains, wiring, and vehicle-side towing components |
