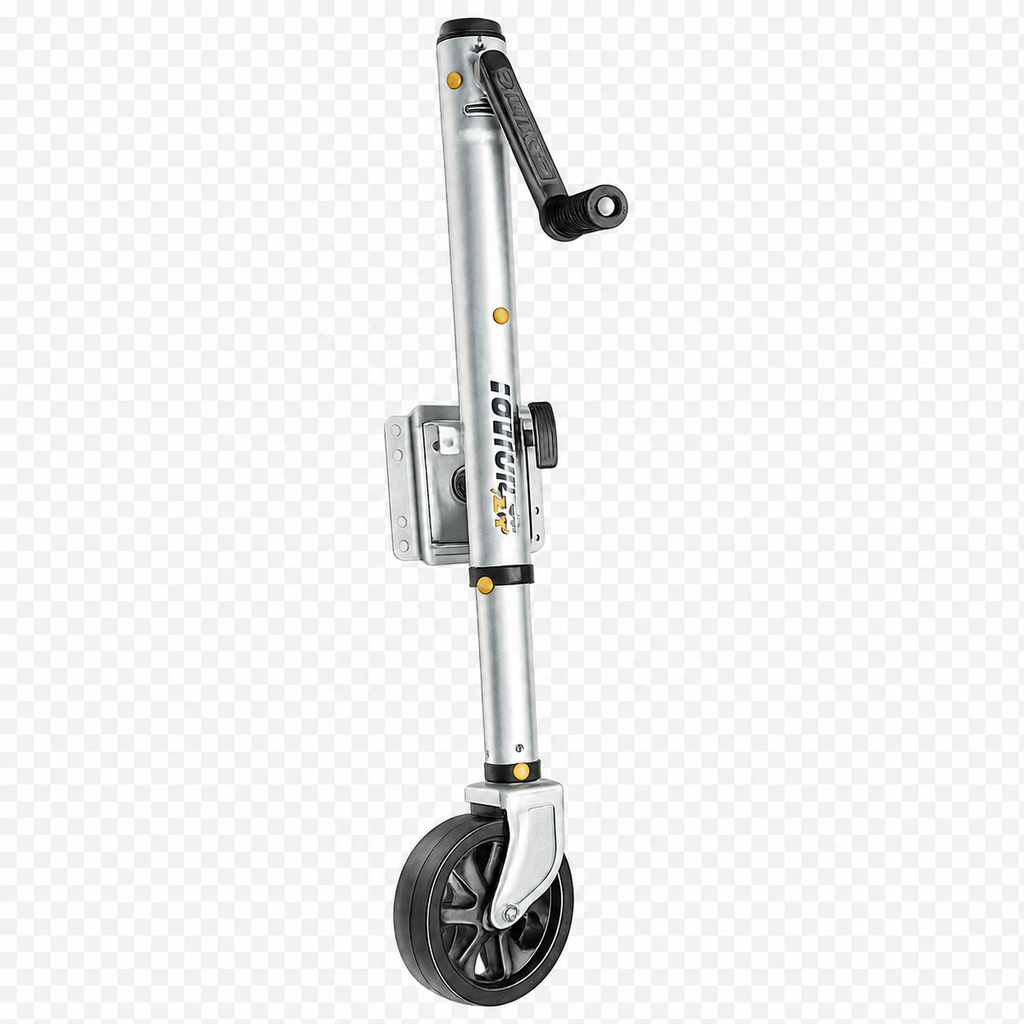

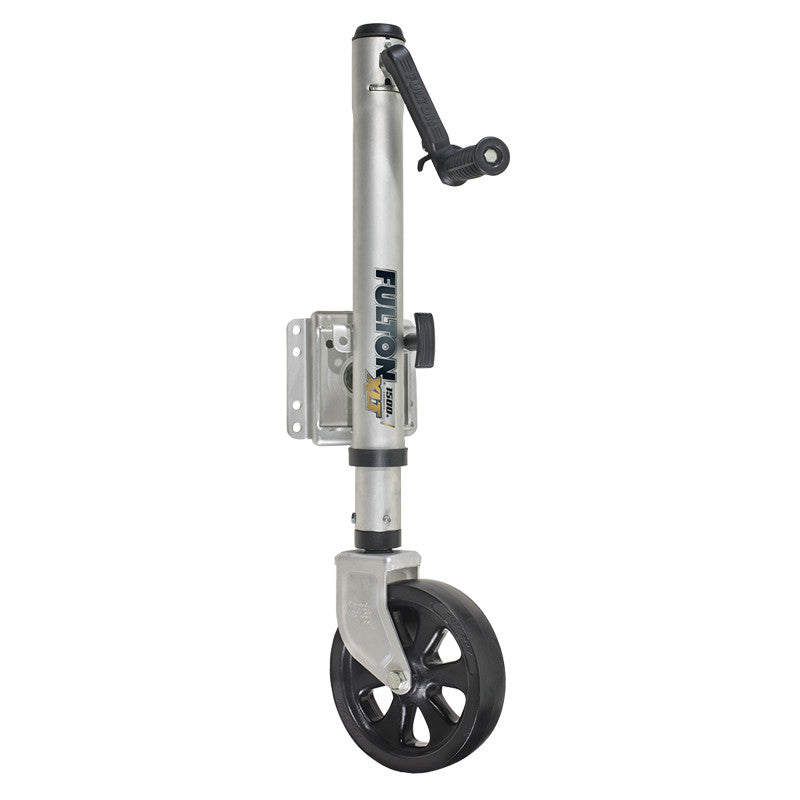

Fulton XLT 1,500 lb Swivel Trailer Jack with 8" Wheel, Sidewind Handle & Bolt-On Side Mount
Premium Fulton XLT side-mount swivel trailer jack with 1,500 lb capacity, 12" travel, 8" poly wheel, sidewind handle, and bolt-on mounting for compatible trailer frames up to 3" wide by 5" high.
Overview
The Fulton XLT 141133 is a premium swivel trailer jack designed for marine, personal watercraft, snowmobile, and utility trailer applications where a bolt-on side-mount jack with an 8" wheel is required. This jack is built for trailer owners who want smoother maneuvering, corrosion protection, serviceable grease points, and reliable tongue support on compatible frames.
R&P Service Insight
A trailer jack takes daily abuse from loading, launching, parking, storage, and tight maneuvering. A properly matched swivel jack helps support the trailer tongue and makes positioning easier when the trailer is disconnected from the tow vehicle.
- Frame Fit Check: Designed for bolt-on applications fitting trailer frames up to 3" wide and 5" high.
- Transit Check: Fully retract and swivel the jack into the horizontal travel position before towing.
- Service Check: Use the integrated grease fittings to help maintain smooth operation over time.
R&P Knowledge Hub
Compatibility: Designed for bolt-on side-mount trailer jack applications on compatible trailer frames up to 3" wide and 5" high.

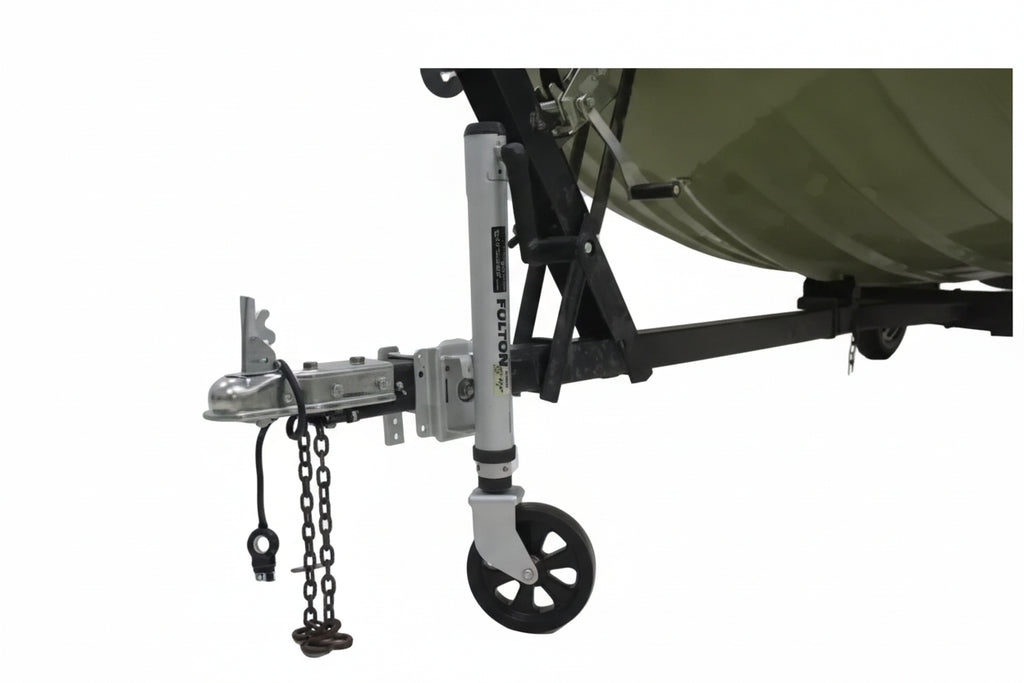

Vehicle / System Fit: Ideal for many mid-to-large boat trailers, personal watercraft trailers, snowmobile trailers, and utility trailers requiring a swivel jack with wheel support.
Installation Notes: Confirm trailer frame size, mounting location, clearance, tongue weight needs, and wheel clearance before installation. Retract fully before transit and secure the spring-loaded swivel pull-pin in the travel position.
Performance Insight: The XLT design includes TruTurn 360™ caster technology, Sharkskin™ finish, and three integrated grease fittings for the screw, swivel, and pivot areas.
Brand & Fitment Note
Selling Brand: Fulton
Application Reference: Trailer type references in this listing describe common compatible use cases only. Final fit depends on trailer frame dimensions, mounting clearance, jack capacity needs, and installation configuration.
What This Means: This listing is for a Fulton XLT swivel trailer jack, part number 141133.
Before Ordering: Verify frame width, frame height, mounting style, travel requirements, wheel clearance, handle clearance, and included components before installation.
R&P Repair Insight
Trailer jack replacement is usually straightforward when the frame size and mounting style match, but incorrect frame dimensions, clearance conflicts, or an underrated jack can create service problems. Always compare the new jack against the existing mount location before installation.
- Frame Size Check: Confirm the trailer frame does not exceed 3" wide by 5" high for this bolt-on mount style.
- Clearance Check: Make sure the wheel, handle, and swivel body clear the trailer frame, coupler area, boat hull, winch stand, or trailer accessories.
- Capacity Check: Match jack capacity to the trailer tongue support requirement, not the trailer’s total gross weight.
Features
TruTurn 360™ Technology
Proprietary castering system allows the wheel to pivot fluidly for improved maneuvering in tight spaces.
Fast Raise / Lower Design
Engineered to raise and lower faster than conventional jacks, helping save time during trailer hookup, launch, and storage routines.
Serviceable Grease Points
Includes three integrated grease fittings for the screw, swivel, and pivot areas to support long-term smooth operation.
Sharkskin™ Protection
Premium corrosion-resistant Sharkskin™ finish is designed for harsh marine and outdoor trailer environments.

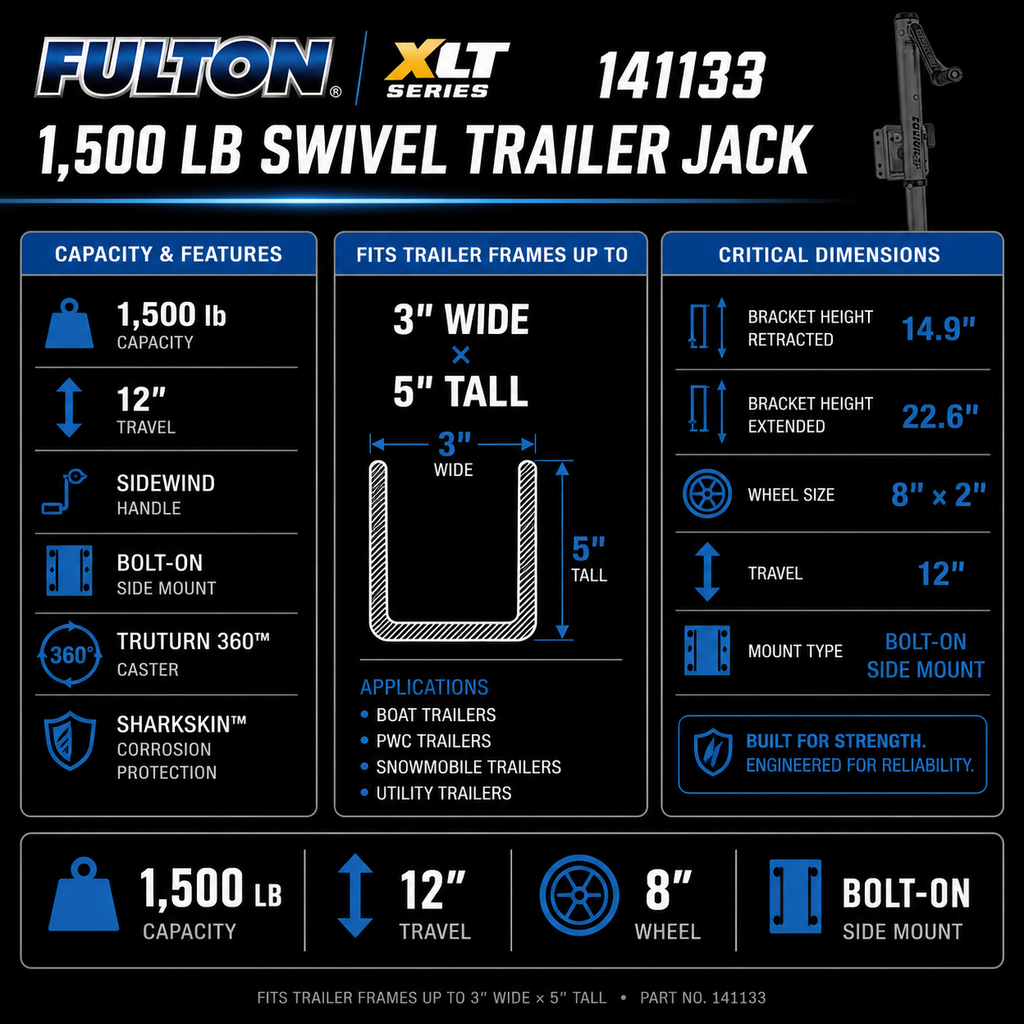

Specifications
| Specification | Detail |
|---|---|
| Part Number | 141133 |
| Brand | Fulton |
| Product Type | Swivel side-mount trailer jack |
| Application | Marine, PWC, snowmobile, and utility trailer applications |
| Material / Finish | Steel with Sharkskin™ coating |
| Capacity | 1,500 lb lift / support capacity |
| Travel Distance | 12" |
| Wheel Size | 8" diameter x 2" wide poly wheel |
| Mounting Style | Bolt-on side mount |
| Handle Style | Sidewind handle with soft-touch grip |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / System | Marine trailers, PWC trailers, snowmobile trailers, and compatible utility trailers |
| Primary Fit | Bolt-on applications fitting trailer frames up to 3" wide and 5" high |
| Bracket Heights | 14.9" retracted / 22.6" extended |
| Swivel Function | Spring-loaded swivel pull-pin for horizontal storage during transit |
| Notes | Verify trailer frame dimensions, clearance, capacity requirement, mounting location, and handle/wheel swing before ordering. |

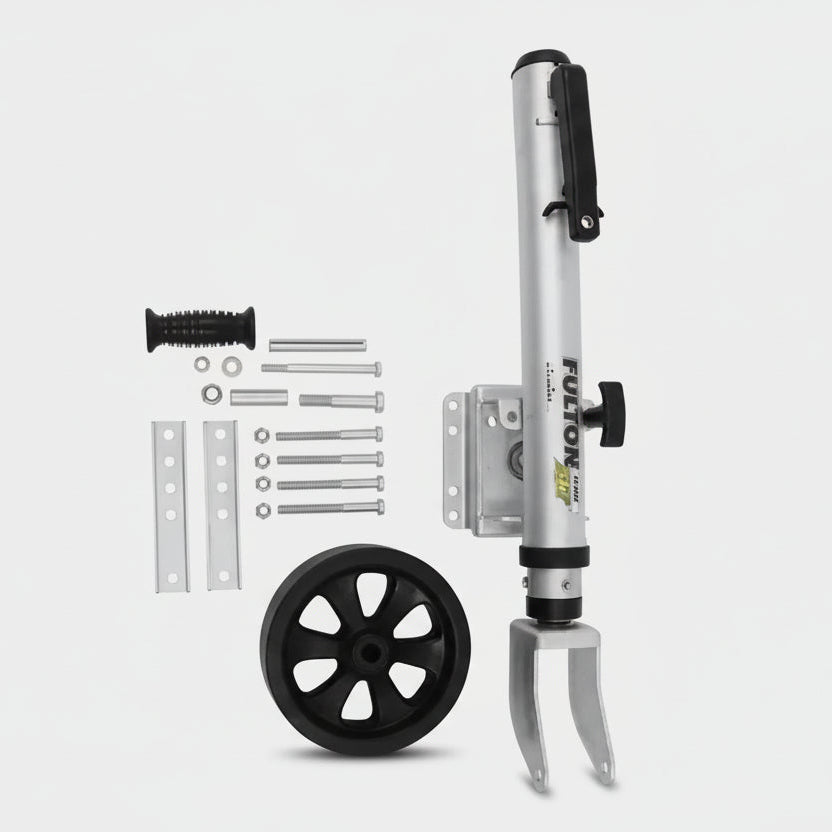

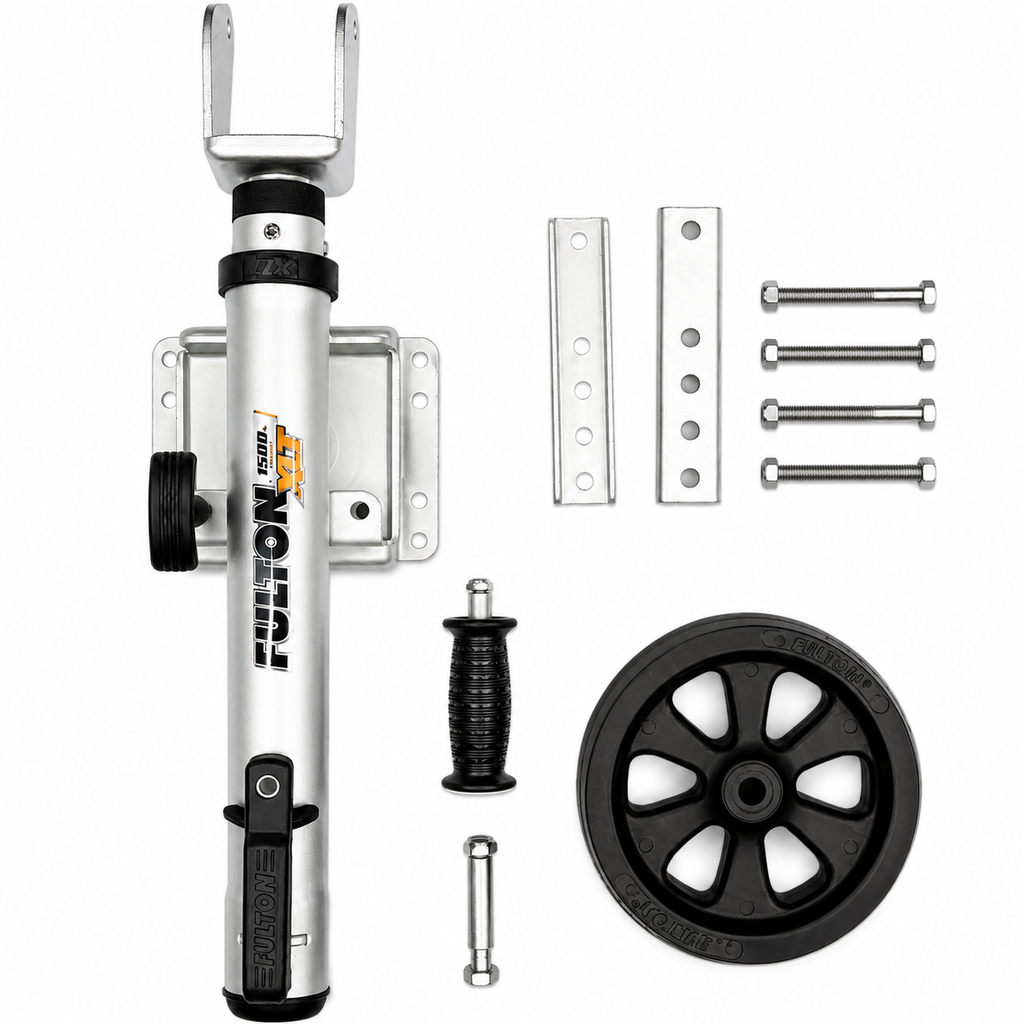

Included Components
| Quantity | Item |
|---|---|
| 1 | Fulton XLT 1,500 lb swivel trailer jack assembly |
| 1 | Complete bolt-on mounting hardware kit |
