Kodiak Stainless Disc Brake Kit – 13" Rotor – 8 on 6.5 – 7K Axle – 1/2" Studs (K71-2R-133-7-8-SSS)
Affordable Pricing
Quality Products
|
Fast Shipping
Ships from our warehouse
|
Fitment Help
Real trailer-parts experts
|
Kodiak Stainless Disc Brake Kit – 13" Rotor – 8 on 6-1/2 – 7K Axle – 1/2" Bolts
Premium Stainless Disc Brake System
This Kodiak stainless system delivers a major step up from drum brakes—stronger stopping power, smoother engagement, and long-term reliability in harsh environments.
| High-Torque Braking 13" vented rotors paired with a 2-1/2" stainless piston deliver increased braking force—roughly 30% more than many standard systems. | Marine-Grade Durability Full stainless steel construction resists corrosion with a 1,000-hour salt-spray rating—ideal for boat trailers and coastal environments. |
| Runs Cooler, Lasts Longer Vented rotor design dissipates heat quickly, reducing brake fade and protecting components during long hauls or steep grades. | Balanced, Low-Drag Performance Self-adjusting calipers apply even pressure and retract efficiently, reducing heat buildup and improving towing efficiency. |
Simplified Installation & Service
Kodiak’s slip-on rotor design installs over your existing hub—no need to replace full hub assemblies. This makes conversions faster and maintenance significantly easier. When service is needed, rotors can be removed independently without disassembling the entire system.
Reinforced Mounting System
Heavy-duty stainless brackets feature enhanced embossing for improved thread engagement. The side-support design transfers braking forces into the bracket structure rather than the mounting bolts, increasing long-term reliability.
Where This Kit Excels
| Application | Why It Matters |
| Boat Trailers | Resists saltwater corrosion and rinses clean easily |
| Heavy Equipment Trailers | Improved stopping power under load |
| Enclosed / Cargo Trailers | Smooth, controlled braking reduces wear |
| Long Distance Hauling | Reduced heat and fade on extended trips |
Technical Specifications
| Category | Detail |
| Axle Capacity | 7,000 lbs |
| Spindle Compatibility | #42 |
| Rotor Diameter | 13" |
| Bolt Pattern | 8 on 6-1/2" |
| Wheel Size | 16" and larger |
| Wheel Bolt Diameter | 1/2" |
| Brake Flange | 5 Bolt |
| Construction | Stainless Steel |
| Corrosion Rating | 1,000-Hour Salt Spray |
| Warranty | 6-Year |

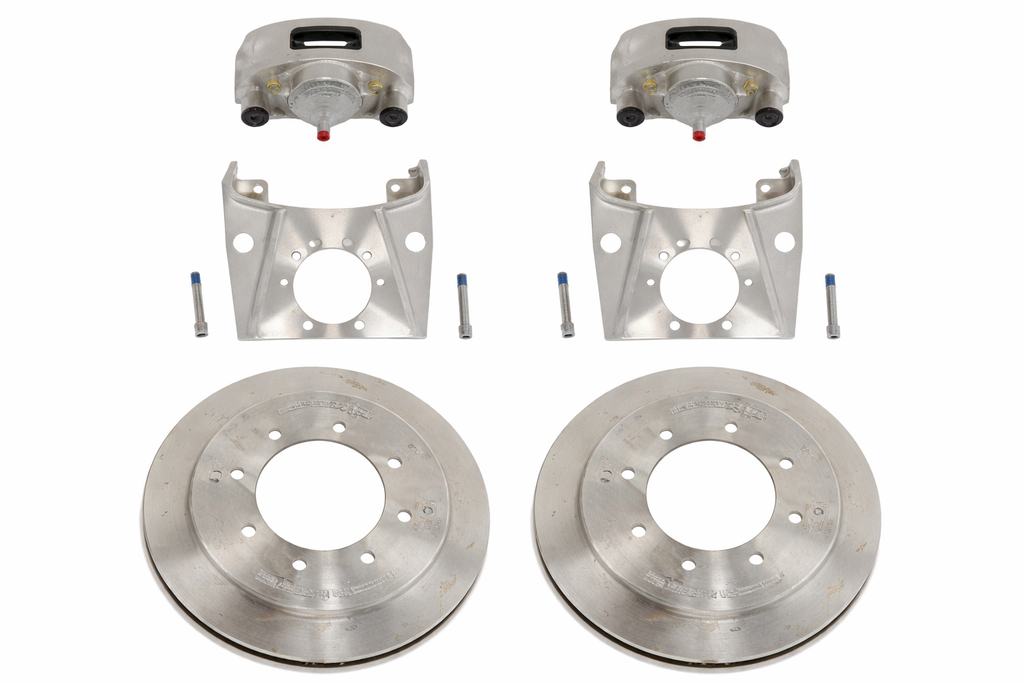

Included Components
| Qty | Component |

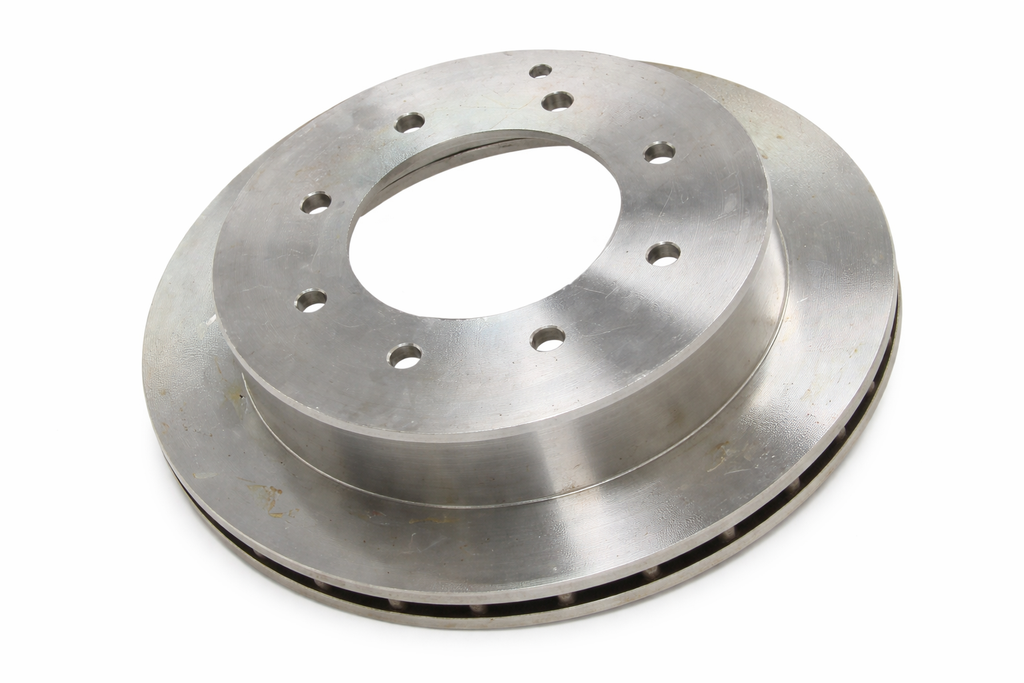

| 2 | 13" Stainless Rotors |

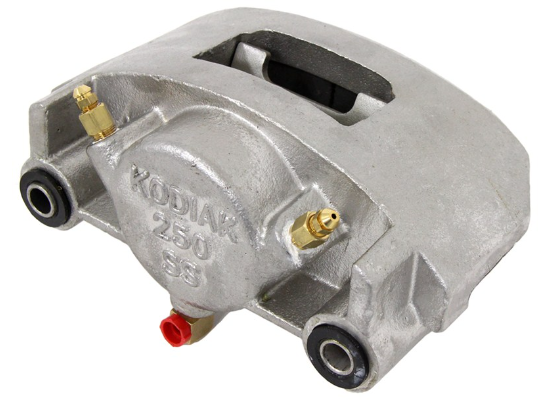

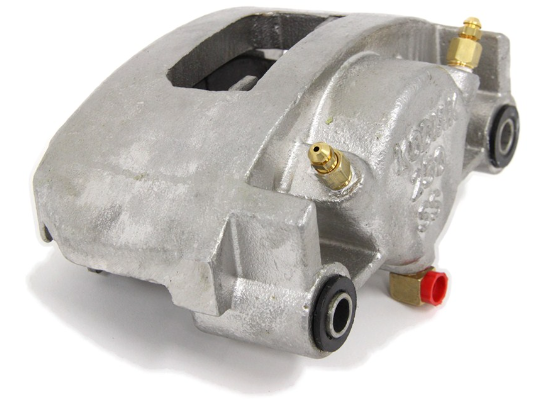

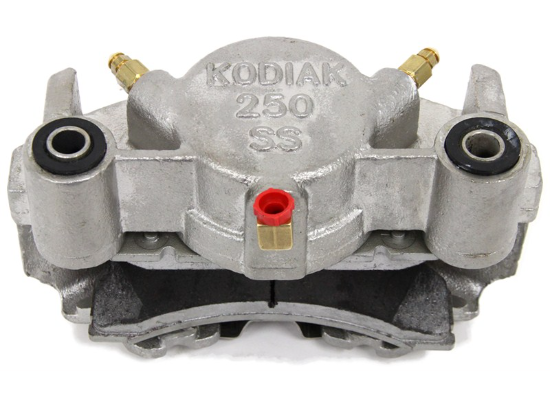

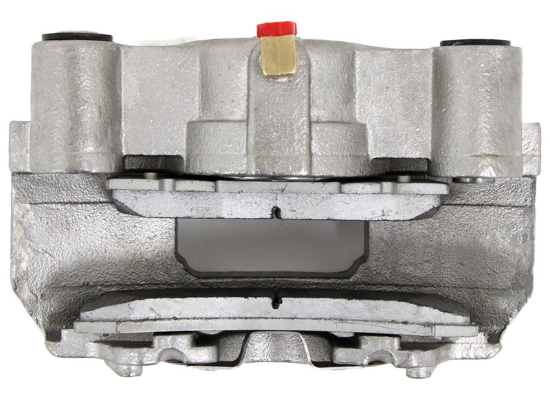

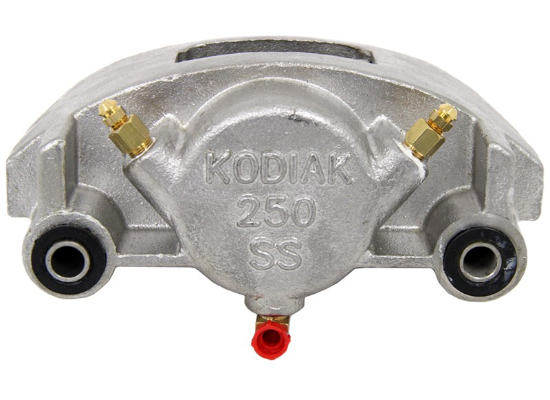

| 2 | Stainless Calipers |
| 2 | Mounting Brackets |
Installation & Documentation
Official Dexter / Kodiak Installation Guide:
Built for saltwater, heavy loads, and long-term reliability, this Kodiak stainless system eliminates the common failure points of drum brakes. Higher upfront cost—significantly lower lifetime maintenance and replacement cost.
|
Not sure if this will fit your trailer?
Send us a message – our trailer-parts experts are standing by to help you get the right part the first time.
|
