Kodiak 13" Disc Brake Kit 8-on-6.5" Dacromet Rotor & Stainless Caliper 8K Oil Bath
This premium Kodiak disc brake kit features a 13-inch integral hub/rotor designed for 8,000 lb. Dexter oil bath axles. It combines a corrosion-resistant Dacromet finish with a stainless steel caliper for ultimate stopping power and longevity in marine or heavy-duty environments.
R&P Knowledge Hub
Compatibility: Designed specifically for 8,000 lb. Dexter axles with #42 spindles. Fits standard 16" or larger dual or single wheels with an 8-on-6.5" bolt pattern.
Vehicle / System Fit: Ideal for heavy-duty flatbeds, equipment trailers, and large boat trailers utilizing oil-bath lubrication systems.
Installation Notes: Ensure your axle is rated for 8K and uses the 5-bolt brake flange. Requires a hydraulic surge actuator rated for disc brakes (1,500 PSI recommended) or an electric-over-hydraulic (EOH) unit.
Performance Insight: The vented integral rotor dissipates heat faster than standard drums, significantly reducing brake fade. The stainless steel caliper provides maximum rust protection for long-term reliability.
Features
- Universal 8-on-6.5" Pattern: Standard fitment for heavy-duty 8-lug trailer wheels.
- Stainless Steel Caliper: Offers the highest level of corrosion resistance available for marine or road salt exposure.
- Integral Hub/Rotor: One-piece machined design ensures a truer run-out and easier installation than two-piece units.
- Dacromet Coating: High-performance zinc-flake finish provides over 500 hours of salt spray protection.
Specifications
| Specification | Detail |
| Type | Integral Hub & Rotor Disc Brake |
| Application | 8,000 lb. Dexter Axles (Oil Bath) |
| Fitment | 8 on 6-1/2" Bolt Pattern |
| Material / Finish | Dacromet Rotor / Stainless Caliper |
| Rotor Diameter | 13" Vented |
| Less Upkeep | Fewer Moving Parts Means Minimal Maintenance Over Time |
Fitment / Application
| Category | Details |
| Axle / Spindle | Dexter 8K Axle / #42 Spindle |
| Wheel Size | 16" and larger |
| Notes | Requires oil bath caps and 5-bolt flange mounting. Not for use with manual surge actuators. |

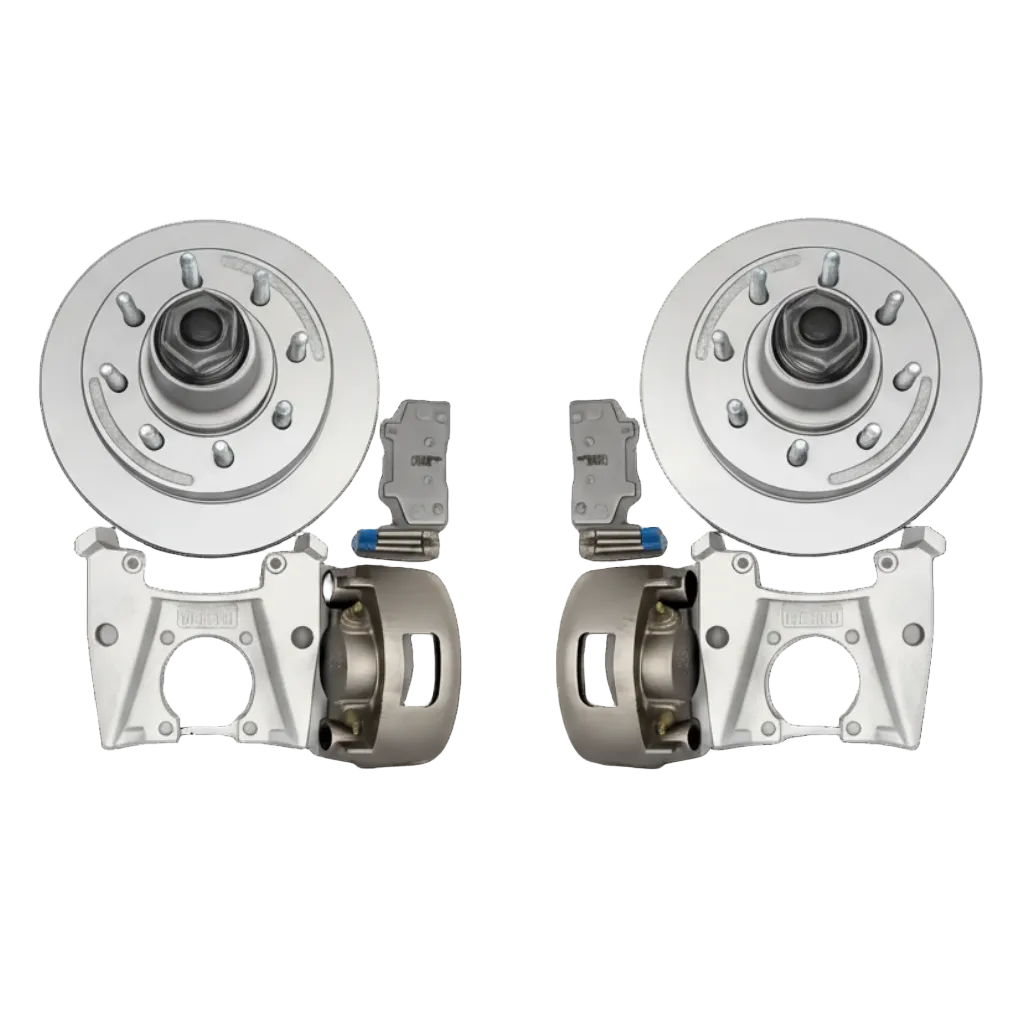

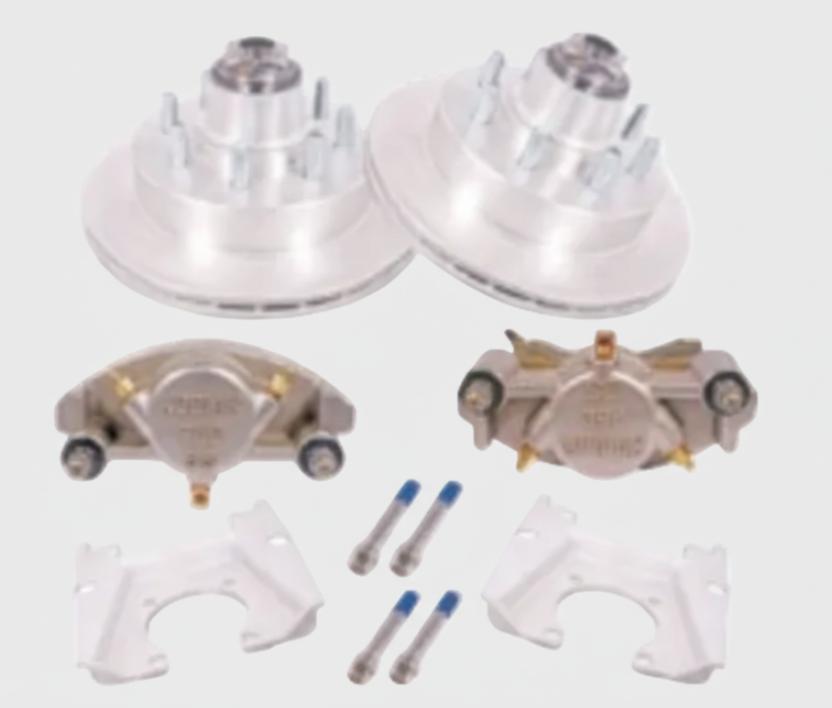

Included Components
| Quantity | Item |
| 1 | 13" Dacromet Integral Hub/Rotor |
| 1 | Stainless Steel Caliper with Ceramic Pads |
| 1 | Dacromet Caliper Mounting Bracket |
Verification: Please verify your bearing sizes and spindle type before ordering. This kit is intended for oil bath applications; bearings, seals, and oil caps are sold separately.
