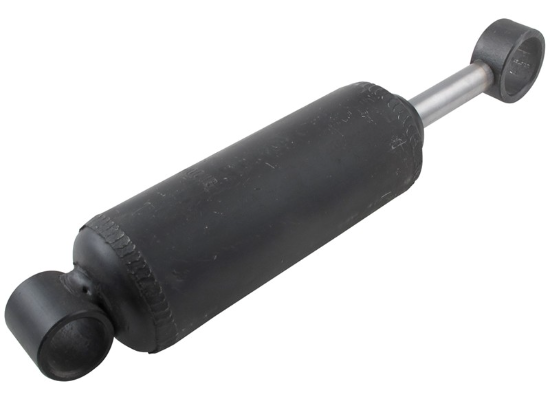

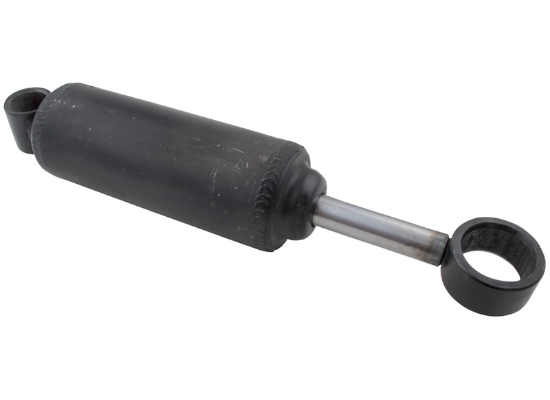

Dexter T1242600 Replacement Shock for Model 6 and Model 10 Brake Actuators
Replacement shock for Dexter Model 6 and Model 10 brake actuators. Designed to restore proper actuator damping in compatible hydraulic drum brake and disc brake surge actuator applications.
Overview
This Dexter T1242600 replacement shock is used on compatible Dexter Model 6 and Model 10 brake actuators. The actuator shock helps control surge coupler movement during compression and rebound, supporting smoother brake engagement and proper actuator function when the trailer pushes forward during braking.
R&P Service Insight
A weak, worn, or leaking actuator shock can make a surge brake coupler feel harsh, loose, or inconsistent. Replacing the shock is a practical service step when rebuilding or repairing a compatible Dexter Model 6 or Model 10 actuator.
- Coupler Control: Helps dampen actuator movement during brake apply and release.
- Brake Feel: A worn shock can contribute to clunking, grabbing, or uneven actuator motion.
- Service Check: Verify actuator model, shock length, mounting ring sizes, and required quantity before ordering.
R&P Knowledge Hub
Compatibility: Replacement shock for Dexter Model 6 and Model 10 brake actuators.
Vehicle / System Fit: Used in compatible surge brake actuator assemblies for hydraulic drum brake and disc brake trailer systems.
Installation Notes: Confirm the actuator model and compare the removed shock to the listed extended length, collapsed length, mounting ring inner diameters, and body diameter before installation.
Performance Insight: The actuator shock controls compression and rebound inside the surge coupler, helping reduce harsh movement and supporting consistent brake actuator operation.
Brand & Fitment Note
Selling Brand: Dexter
Application Reference: Dexter Model 6 and Model 10 names in this listing describe supported brake actuator compatibility for this replacement shock.
What This Means: This listing is for one Dexter T1242600 replacement actuator shock for listed compatible brake actuator applications.
Before Ordering: Verify actuator model, mounting points, extended and collapsed length, mounting ring inner diameters, body diameter, and required shock quantity before installation.
R&P Repair Insight
Actuator shocks are small internal service parts, but they play an important role in surge brake control. Before replacing the shock, inspect the actuator for worn pins, damaged mounting hardware, corrosion, bent components, or other issues that could affect proper coupler movement.
- Model Check: Confirm you are servicing a Dexter Model 6 or Model 10 brake actuator.
- Quantity Check: This listing includes 1 shock; some Model 10 actuator assemblies may require 2 shocks.

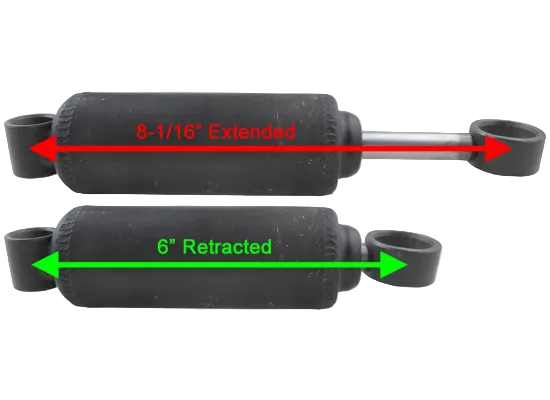

- Measurement Check: Compare your existing shock to the listed 8-1/16" extended length, 6" collapsed length, and mounting ring inner diameters before installation.
Features
Replacement Actuator Shock
Replaces the shock used in compatible Dexter Model 6 and Model 10 brake actuator assemblies.
Supports Surge Coupler Control
Helps manage actuator compression and rebound for smoother hydraulic brake actuator movement.
Disc and Drum Brake Applications
Listed for use with compatible Dexter brake actuator applications for disc brakes and hydraulic drum brakes.
Single Shock Included
Includes 1 replacement shock. Verify whether your actuator assembly requires one shock or more before ordering.
Specifications
| Specification | Detail |
|---|---|
| Part Number | T1242600 |
| Brand | Dexter |
| Product Type | Brake actuator replacement shock |
| Application | Dexter Model 6 and Model 10 brake actuators |
| Material / Finish | Not specified |
| Extended Length | 8-1/16" |
| Collapsed Length | 6" |
| Mounting Ring Inner Diameter | 0.63" and 0.90" |
| Body Outer Diameter | 1.63" |
| Included Quantity | 1 shock |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / System | Trailer surge brake actuator |
| Primary Fit | Dexter Model 6 brake actuator |
| Secondary Fit | Dexter Model 10 brake actuator |
| Brake Type | Compatible Dexter actuator applications for disc brakes and hydraulic drum brakes |
| Notes | This listing includes 1 shock. Some Model 10 actuator assemblies may require 2 shocks, so verify your actuator configuration before ordering. |
Included Components
| Quantity | Item |
|---|---|
| 1 | Dexter T1242600 replacement brake actuator shock |
| Not specified | Mounting hardware is not listed as included |
