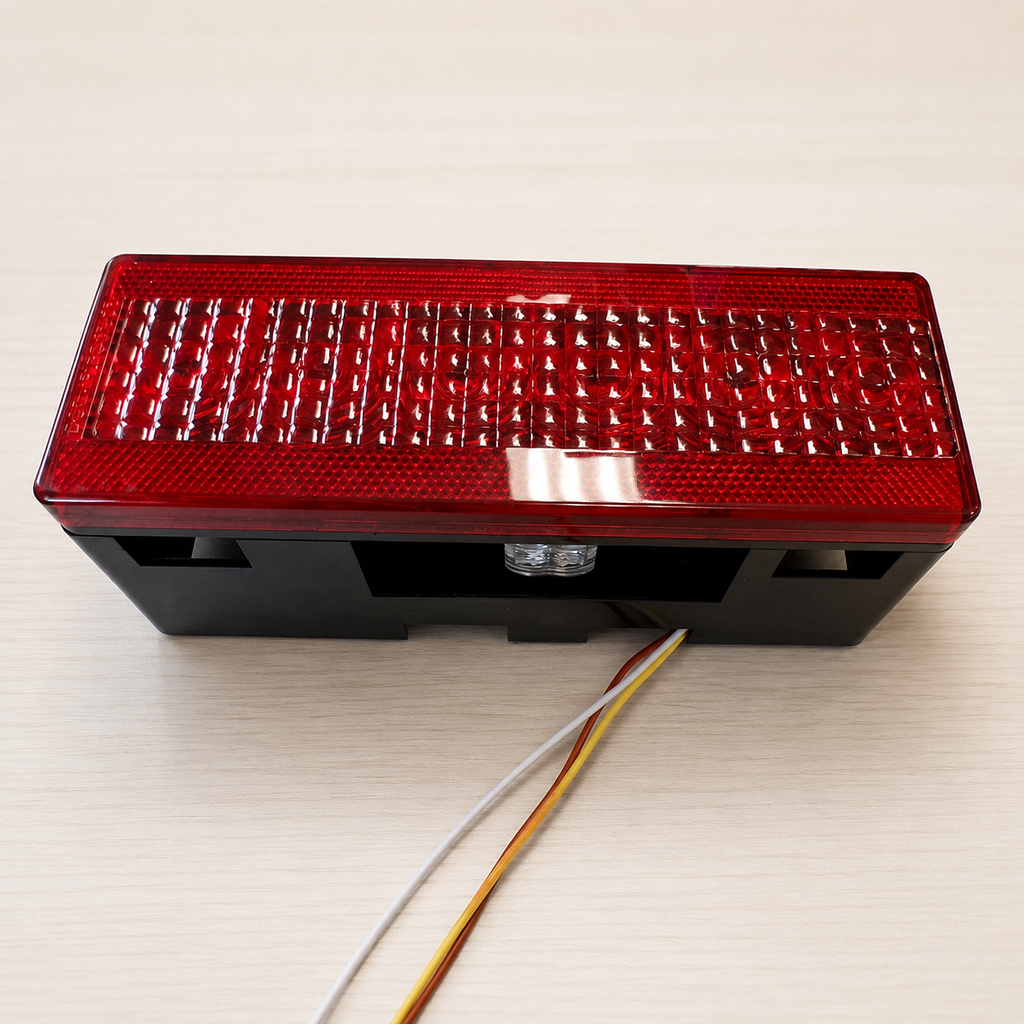

TecNiq 8" Rectangle LED Tail Light - Driver Side / Left Hand

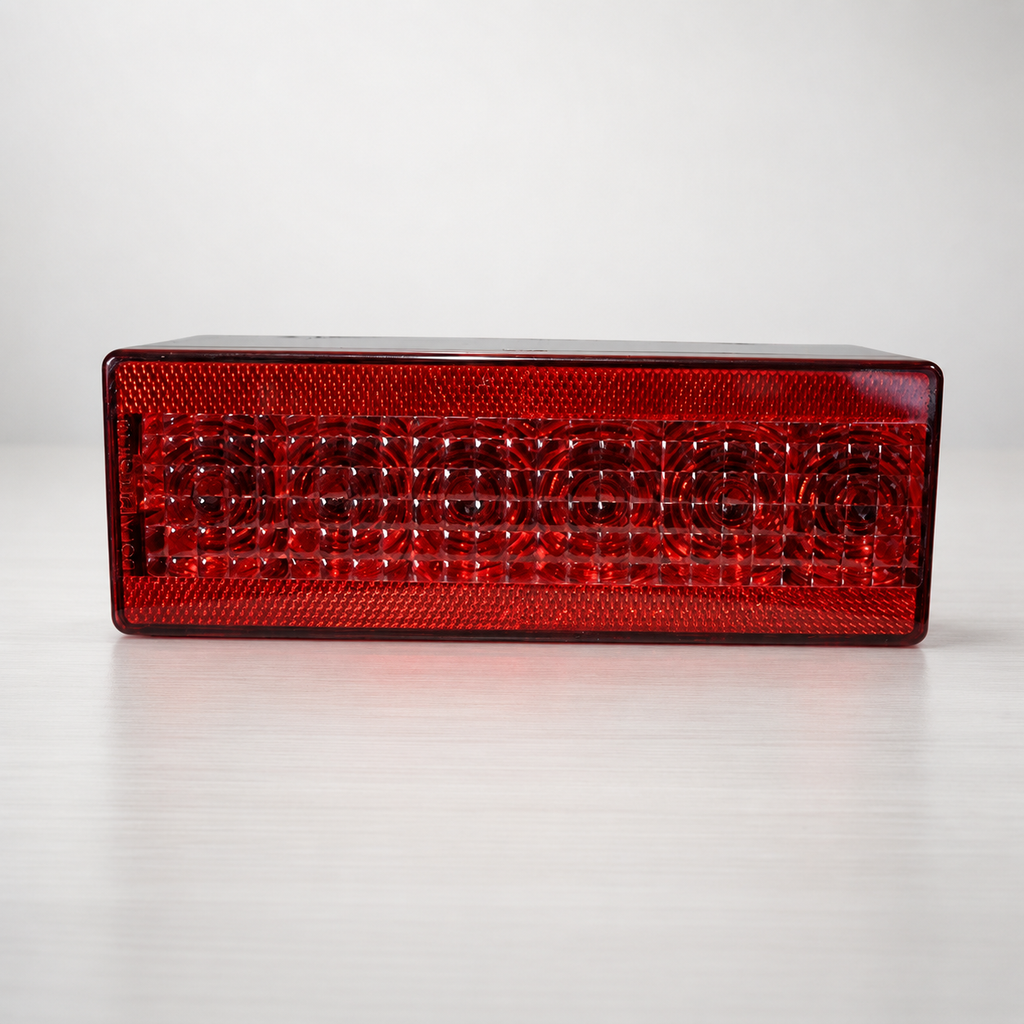

Left-side TecNiq T80 Series 8-function rectangular LED trailer tail light with red lens, 9" pigtail wiring, and integrated white license plate light.
Overview
This listing is for one TecNiq T80-RRLP-1 driver-side / left-hand 8" rectangular LED trailer tail light. The T80 left-side version is an 8-function rear trailer lamp used for stop, turn, tail, clearance, side marker, side reflector, rear reflector, and license plate illumination functions.
R&P Service Insight
Driver-side and passenger-side T80 lights are not the same. The left-side version includes the license plate light function and uses the yellow wire for left stop / turn.
- Side Check: This is the driver-side / left-hand unit.
- Wiring Check: White = ground, brown = low intensity / tail / license, yellow = left stop / turn.
- Mounting Check: Verify 2" mounting center spacing before installation.
R&P Knowledge Hub
Compatibility: Intended for rear trailer lighting applications where the TecNiq T80-RRLP-1 part number, dimensions, wiring, side orientation, and mounting points match.
Lighting Functions: Stop, turn, tail, clearance, side marker, side reflector, rear reflector, and license plate light.
Installation Notes: White wire is ground, brown wire is low intensity / tail / license light, and yellow wire is left stop / turn. Green wire is used on the right-side stop / turn version and should not be treated as the left-side high wire for this T80-RRLP-1 listing.
Fitment Reminder: Match the part number, overall dimensions, wire colors, pigtail style, and mounting spacing before checkout.
Brand & Fitment Note
Selling Brand: TecNiq.
Application Reference: This listing is for a rear trailer lighting application where the TecNiq T80-RRLP-1 size, side orientation, wiring, and mounting pattern match the trailer being serviced.
What This Means: This is the driver-side / left-hand version with the license plate light function. It should not be substituted for the passenger-side light unless the wiring, side orientation, and required functions are verified.
Before Ordering: Verify part number, lens shape, overall dimensions, wire colors, pigtail style, mounting centers, and trailer side before installation.
R&P Repair Insight
Tail light replacement problems usually come from side mix-ups, mismatched wiring, or relying on a tape-measure photo taken at an angle. Use the confirmed part number and mounting pattern as the fitment anchor.
- Left vs. Right: The left-side T80-RRLP-1 includes the license plate light function.
- Wire Color: Yellow is the left stop / turn lead for this driver-side lamp.

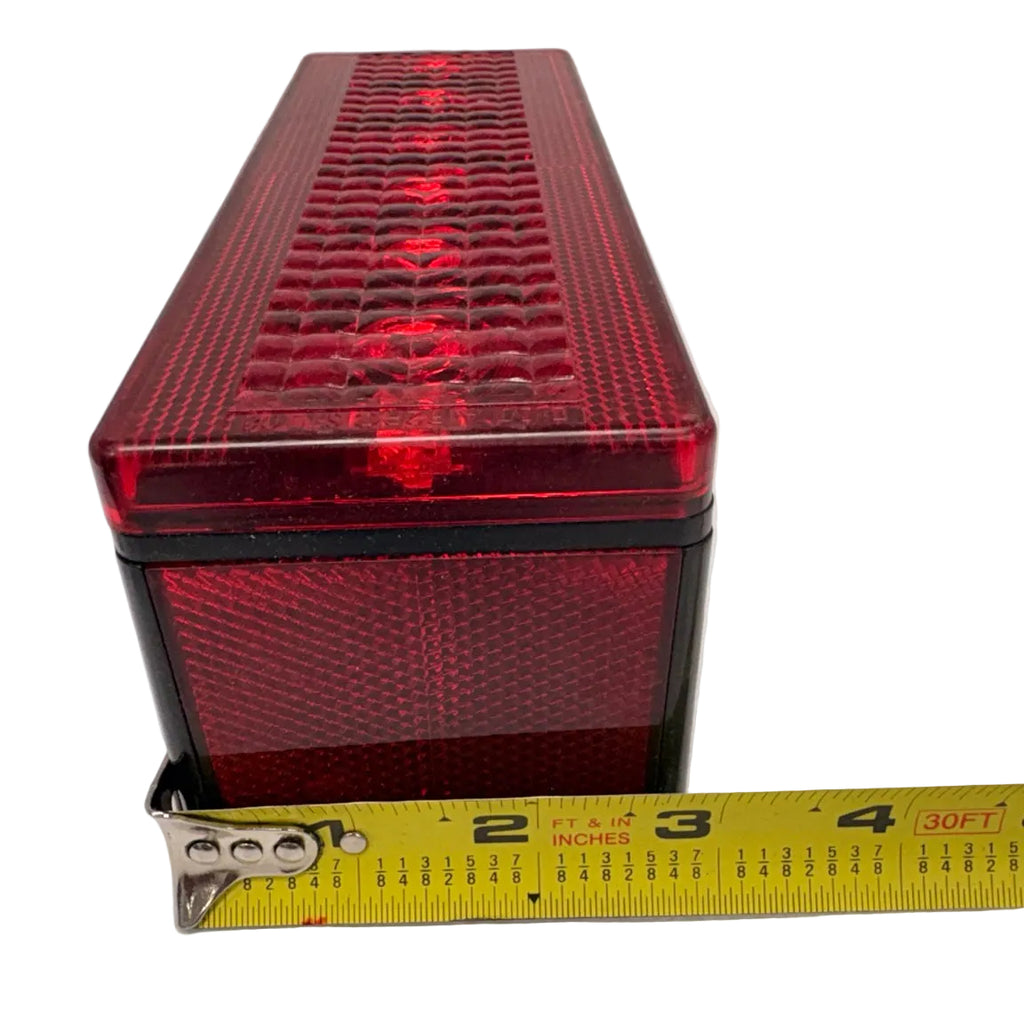

- Photo Measurement: Angled phone photos can visually distort the tape reading; confirm with manufacturer-style dimensions and physical mounting centers.
Features
TecNiq T80 Series Design
Low-profile 8" rectangular LED trailer tail light built for multi-function rear trailer lighting applications.
Driver-Side Configuration
Left-hand 8-function unit with integrated white license plate light for compatible trailer setups.
Sealed LED Construction
Designed with TecSeal urethane potting and sealed electronics for harsh trailer environments.
Standard Mounting Reference

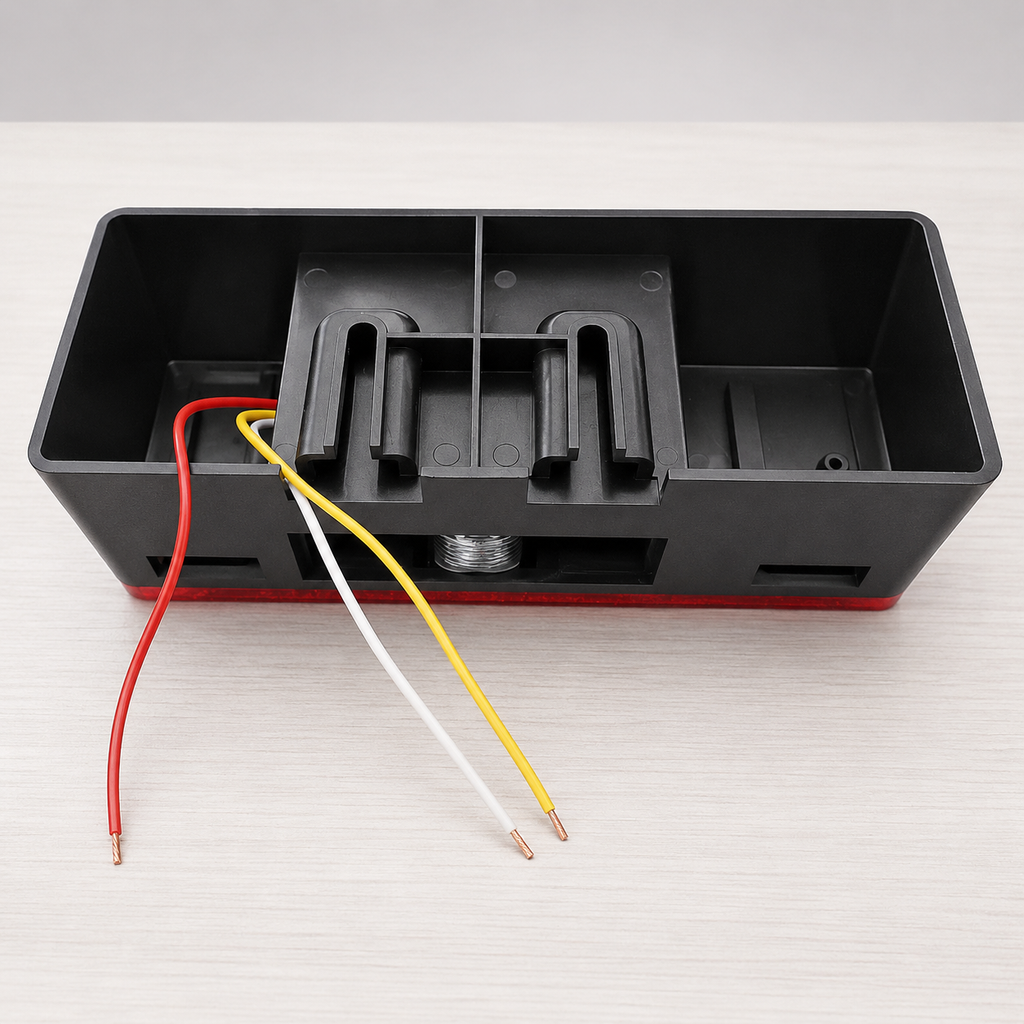

Uses two 1/4"-20 carriage bolts with 2" center-to-center mounting spacing. Mounting hardware is not included unless separately shown or stated.
Specifications
| Specification | Detail |
|---|---|
| Manufacturer | TecNiq |
| Series | T80 Series |
| Part Number | T80-RRLP-1 |
| Side | Driver Side / Left Hand |
| Function Count | 8 function |
| Dimensions | 8" L x 2.88" H x 2.88" D |
| Approx. Fractional Size | 8" x 2-7/8" x 2-7/8" |
| Voltage | 9-14V DC |
| Connector / Lead | 9" pigtail |
| LED Count | 7 red LEDs + 1 white license plate LED |
Fitment / Application
| Category | Details |
|---|---|
| Product Type | LED trailer tail light |
| Primary Application | Rear trailer lighting |
| Functions | Stop, turn, tail, clearance, side marker, side reflector, rear reflector, license plate light |
| Mounting Style | Rear mount using two 1/4"-20 carriage bolts |
| Mounting Centers | 2" center-to-center |
| Wire Colors | White = ground; Brown = low intensity / tail / license; Yellow = left stop / turn |
| Important Note | Confirm your existing light part number, dimensions, wire colors, mounting spacing, and trailer side before ordering. |
Electrical Reference
| Function / Wire | Detail |
|---|---|
| White Wire | Ground |
| Brown Wire | Low intensity / tail light / license plate light feed |
| Yellow Wire | Left stop / turn |
| Green Wire | Right stop / turn reference only; not the stop / turn wire for this left-side T80-RRLP-1 unit |
| Voltage Range | 9-14V DC |
R&P Measurement Note

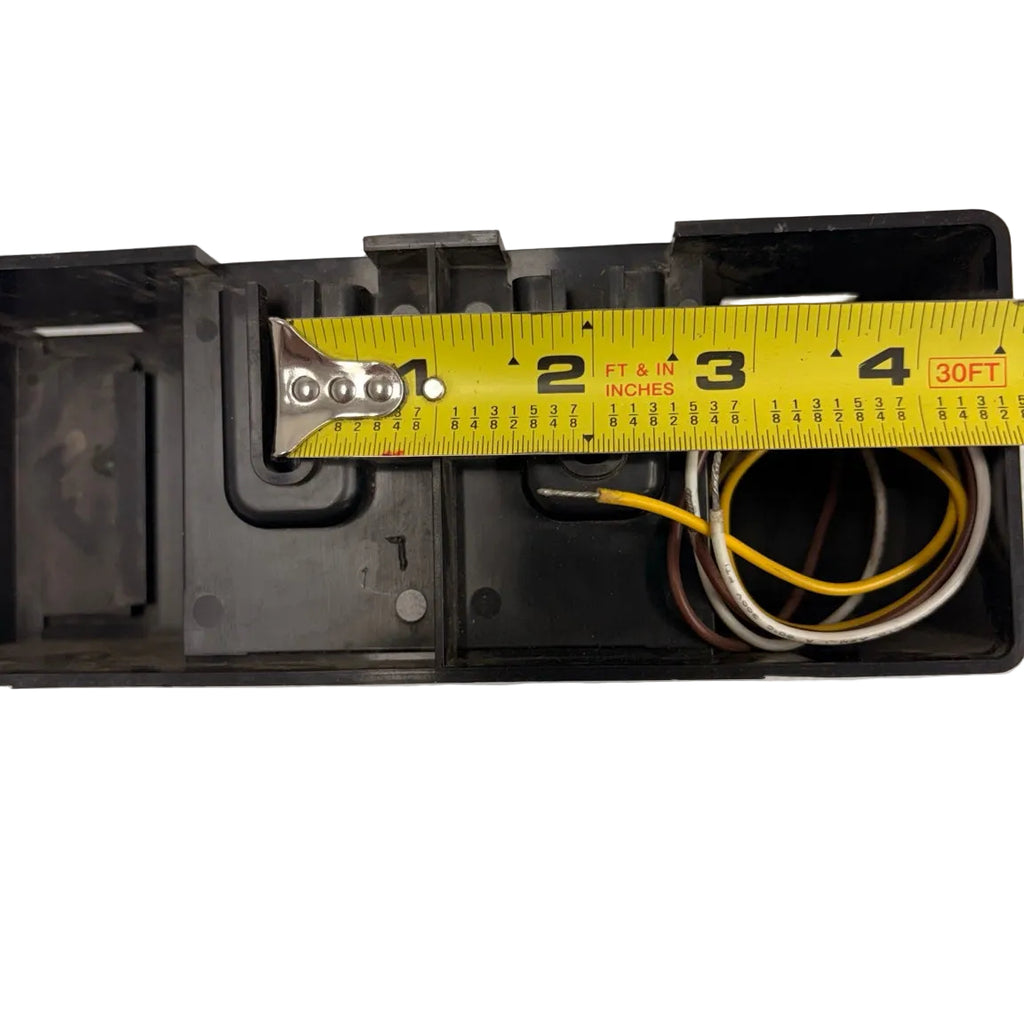

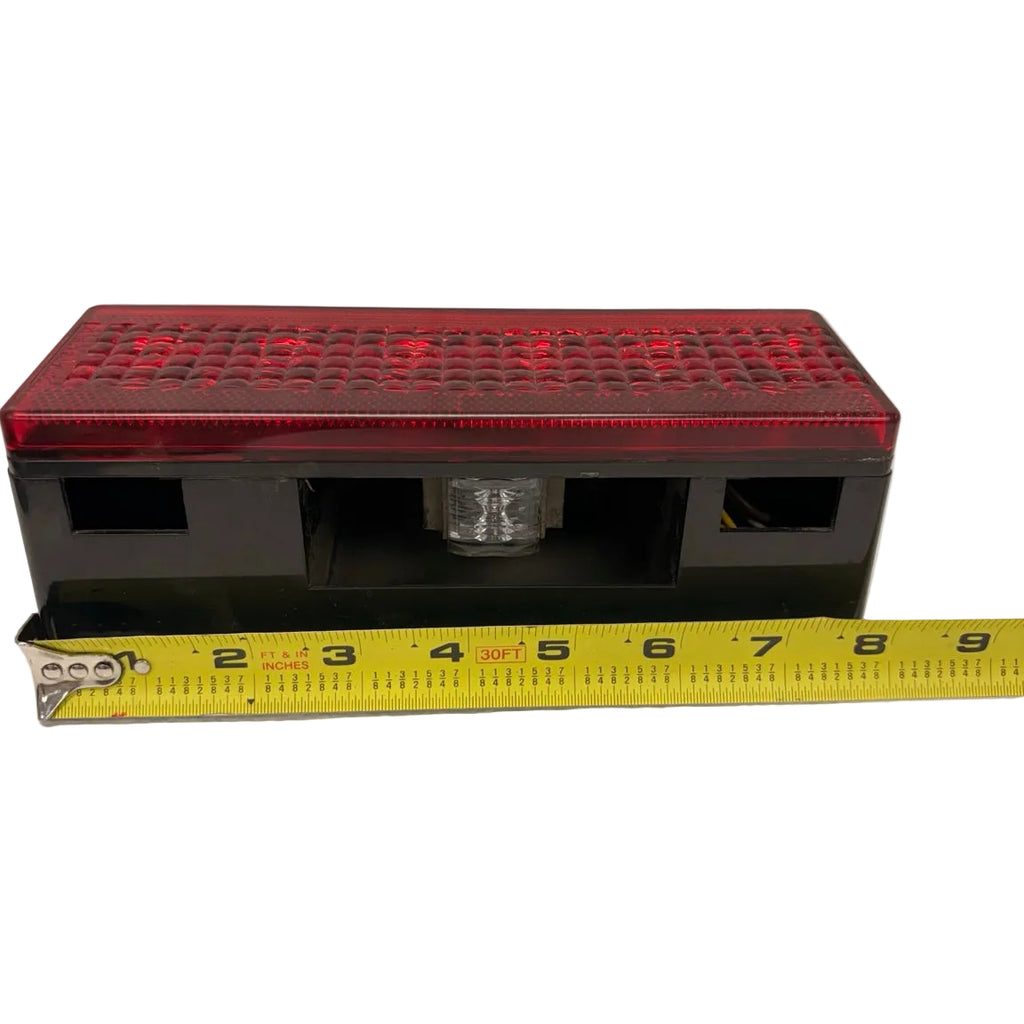

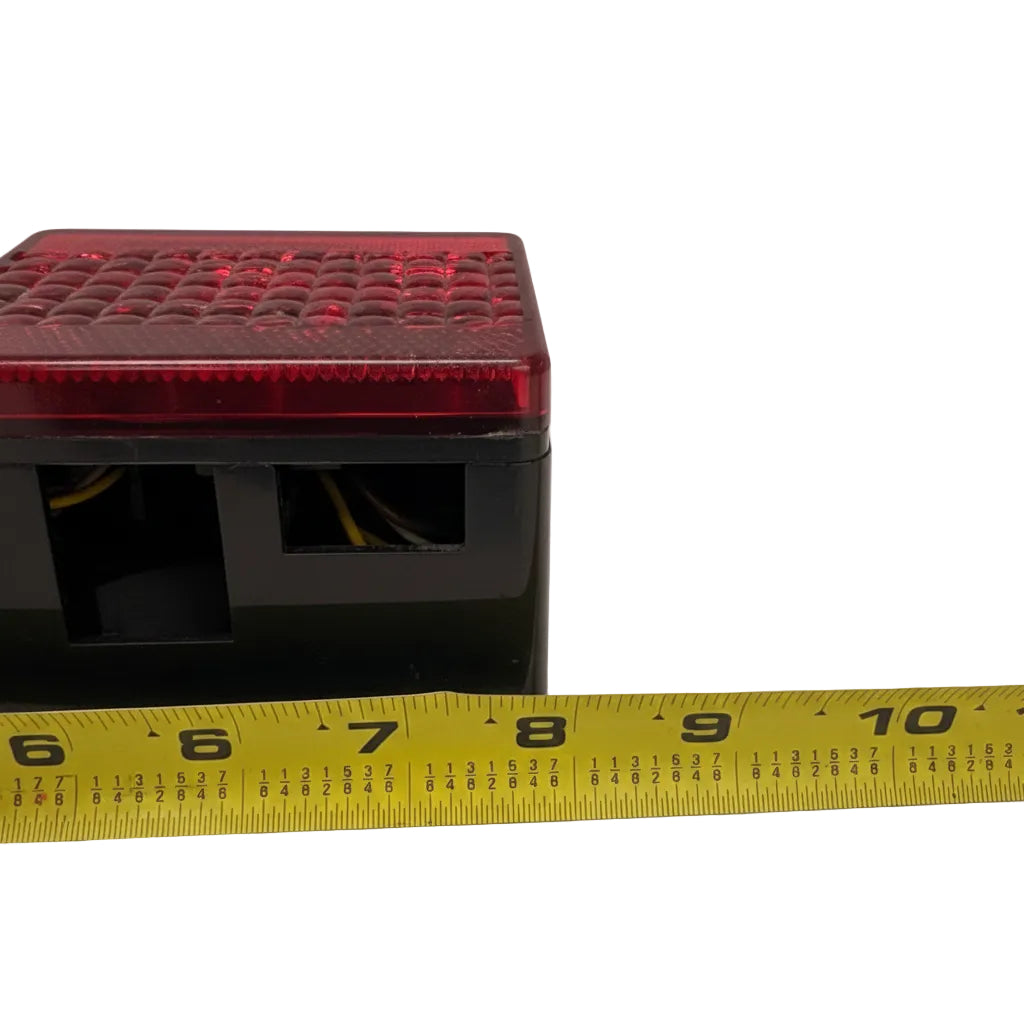

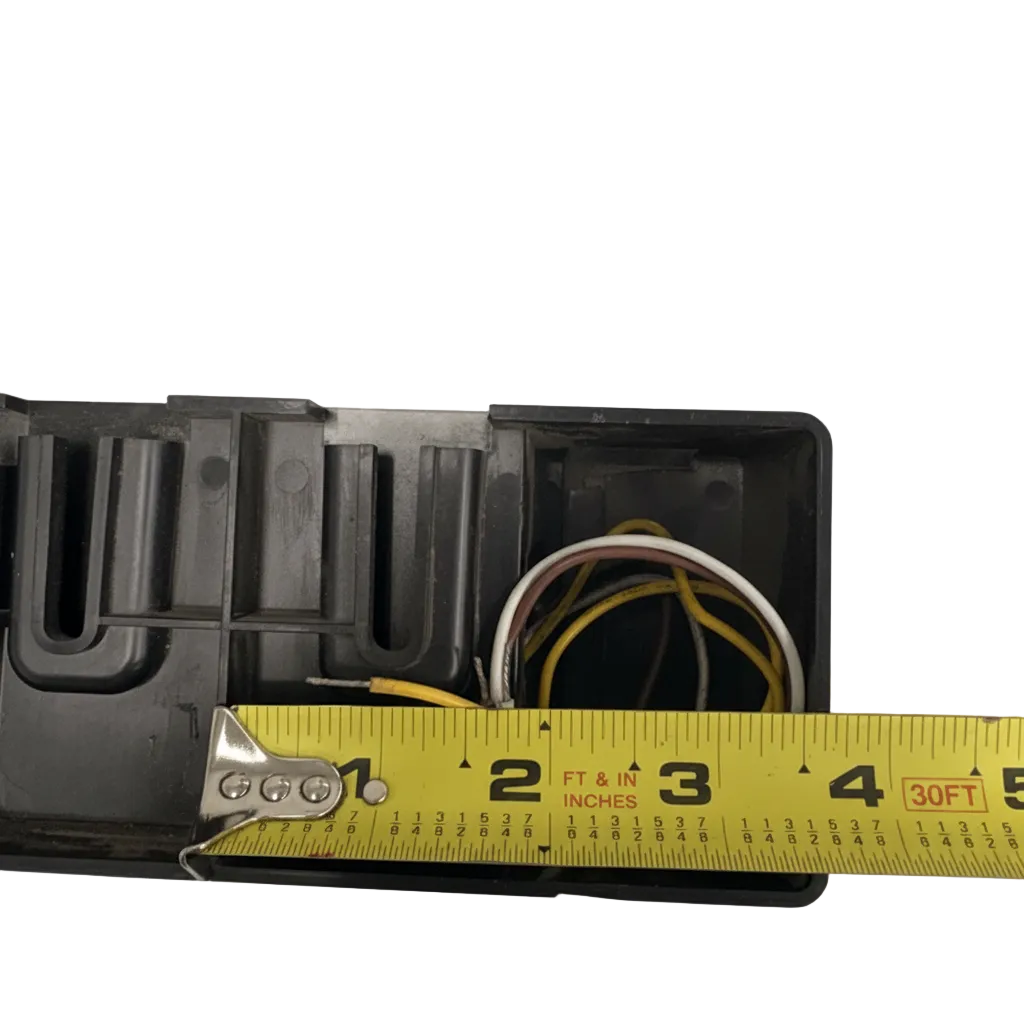

Phone photos taken at an angle can make a tape measurement read short or visually distorted. Use the manufacturer-confirmed dimensions as the fitment reference: 8" overall length, 2.88" height/depth, and 2" mounting center spacing.
Included Components
| Quantity | Item |
|---|---|
| 1 | TecNiq T80-RRLP-1 driver-side / left-hand LED trailer tail light with 9" pigtail |
Hardware Note
This light mounts using two 1/4"-20 carriage bolts. Mounting hardware is not included unless it is specifically shown in the product photos or stated separately in this listing.
