Trimax Ultra-Max Adjustable Wheel Lock for 10" to 18" Wheels with Steel Lug Nut Protector (TWL100)
Heavy-duty adjustable wheel lock for trailers, side-by-sides, and other equipment. The TWL100 clamps tightly to the wheel and uses a steel lug nut protector to help prevent tire removal and theft.
R&P Knowledge Hub
Compatibility: Opens to 14" and fits nearly all 10" to 18" wheels across a broad range of trailer, vehicle, and equipment applications.
Vehicle / System Fit: Designed for trailers, cars, UTVs, trucks, construction equipment, boats, and 4x4s using compatible wheel size and clearance.
Installation Notes: Position the lock over the wheel, adjust for a tight fit, and verify the steel protector is covering the lug nut area correctly before locking. Tools and instructions are included.
Performance Insight: This design does more than block wheel rotation. The steel lug nut protector adds another layer of security by making it harder to access lug hardware and remove the wheel itself.
R&P Service Insight
Wheel locks are usually replaced because of corrosion, seized lock cylinders, bent clamping arms, or lost keys rather than normal towing wear alone.
- Exposure: Outdoor storage, rain, and road grime can affect moving parts and the lock core over time
- Handling Damage: Forced removal or improper fitment can bend the arm or protector plate
- Security Wear: Frequent locking cycles can gradually wear keys and cylinders, especially in harsh environments
Features
- Steel lug nut protector helps prevent tire removal and theft
- Fits nearly all 10" to 18" wheels and opens to 14"
- Clamps tightly to the wheel for added anti-theft security
- Weatherproof epoxy powder coat finish helps resist rust in outdoor use
Maximum Security For
- Trailers
- Cars
- UTVs
- Trucks
- Construction Equipment
- Boats
- 4x4s
Installed Use Case

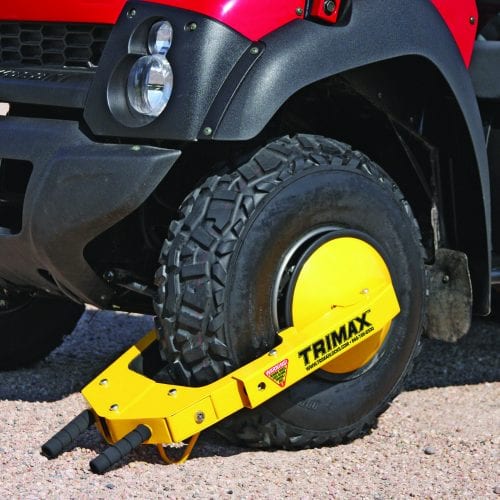

The product image shows the TWL100 installed on the wheel of a side-by-side, which is a strong real-world example of how this lock fits small recreational and utility equipment when wheel size and clearance are compatible.
Specifications
| Specification | Detail |
| Type | Adjustable keyed wheel lock |
| Application | Anti-theft wheel security for trailers, vehicles, and equipment |
| Fitment | Fits nearly all 10" to 18" wheels |
| Material / Finish | Steel construction with rugged weatherproof epoxy powder coat finish |
| Key Measurement | Opens to 14" |
| Security Design | Adjustable locking arm with steel lug nut protector |
| Installation | Easy installation with tools and complete instructions included |
| Part Number | TWL100 |
Common Compatible Wheel / Tire Sizes
Trimax lists the following examples to show the range this lock can cover. Always verify actual wheel clearance and fit before installation.
Fitment / Application
| Category | Details |
| Vehicle / System | Trailer wheels, side-by-side and UTV wheels, camper wheels, car wheels, truck wheels, boat trailer wheels, and similar equipment wheels |
| Axle / Capacity | Not axle-capacity specific; fit depends on wheel size, tire profile, and clearance |
| Notes | Best results come from a snug fit with the lock seated firmly on the wheel and the steel protector covering the lug area properly. |
Included Components
| Quantity | Item |
| 1 | Ultra-Max adjustable wheel lock assembly |
| 1 set | Included tools and complete instructions |
Installation Instructions
Use the official Trimax instructions PDF for reference before installation and lock adjustment.
Verify wheel size, tire profile, lug-area clearance, and overall compatibility before installation.
