Kodiak AL-KO 10K-12K Disc Brake Hub Rotor Kit | 8 on 6.5 | Oil or Grease
Heavy-duty Kodiak replacement solution for AL-KO 10,000 lb and 12,000 lb trailer axles. Complete hub-and-brake refresh with E-coated components.
Overview
This complete Kodiak hub-and-disc-brake kit is engineered specifically for AL-KO 10,000 lb and 12,000 lb trailer axles. It serves as a comprehensive replacement for discontinued AL-KO factory components, featuring pre-mounted 11.35" rotors on high-capacity hubs. The system utilizes E-coated calipers and ceramic pads for heavy-haul braking service.
R&P Service Insight
Brake systems on high-capacity axles are typically replaced due to wear and exposure rather than sudden failure.
- Wear: Pads and hub surfaces lose critical tolerances through normal towing cycles.
- Exposure: Moisture and road debris accelerate deterioration of rotors and caliper seals.
- Load Stress: Frequent heavy weight transfers fatigue braking components over time.
R&P Knowledge Hub
Compatibility: Designed for AL-KO axles featuring a #120 spindle, 5-bolt brake flange, and 8 on 6.5" wheel bolt pattern.
Vehicle / System Fit: Heavy-duty trailers using AL-KO 10K-12K systems where matching original hub and brake components are worn or unavailable.
Installation Notes: Kit does not include bearings, lug nuts, oil/grease seals, or flange mounting hardware. Requires 16" or larger wheels.
Performance Insight: E-coated calipers and nickel-chrome plated pistons help reduce corrosion exposure in demanding road environments.
Brand & Fitment Note
Selling Brand: Kodiak Brake Components
Application Reference: AL-KO references describe the compatible axle platform, spindle style, brake flange, and wheel bolt pattern this kit is designed to fit.
What This Means: This listing is for a Kodiak hub and disc brake kit for compatible AL-KO-style 10K-12K axle applications, not a guaranteed OEM AL-KO-branded kit unless specifically stated and verified.
Before Ordering: Verify spindle style, axle capacity, brake flange, wheel bolt pattern, wheel diameter, bearing requirements, seal requirements, and included components before installation.
R&P Repair Insight
Since Dexter's acquisition of AL-KO, many original hub parts have become difficult to source. This Kodiak kit provides a replacement solution when the listed spindle, flange, and wheel pattern requirements match.
- Spindle Check: Verify you have the #120 spindle before ordering.
- Flange Check: Ensure your axle is equipped with a 5-bolt brake flange.
- Wheel Check: Minimum 16" wheel diameter is required to clear the caliper assembly.
Features
Pre-Mounted Convenience

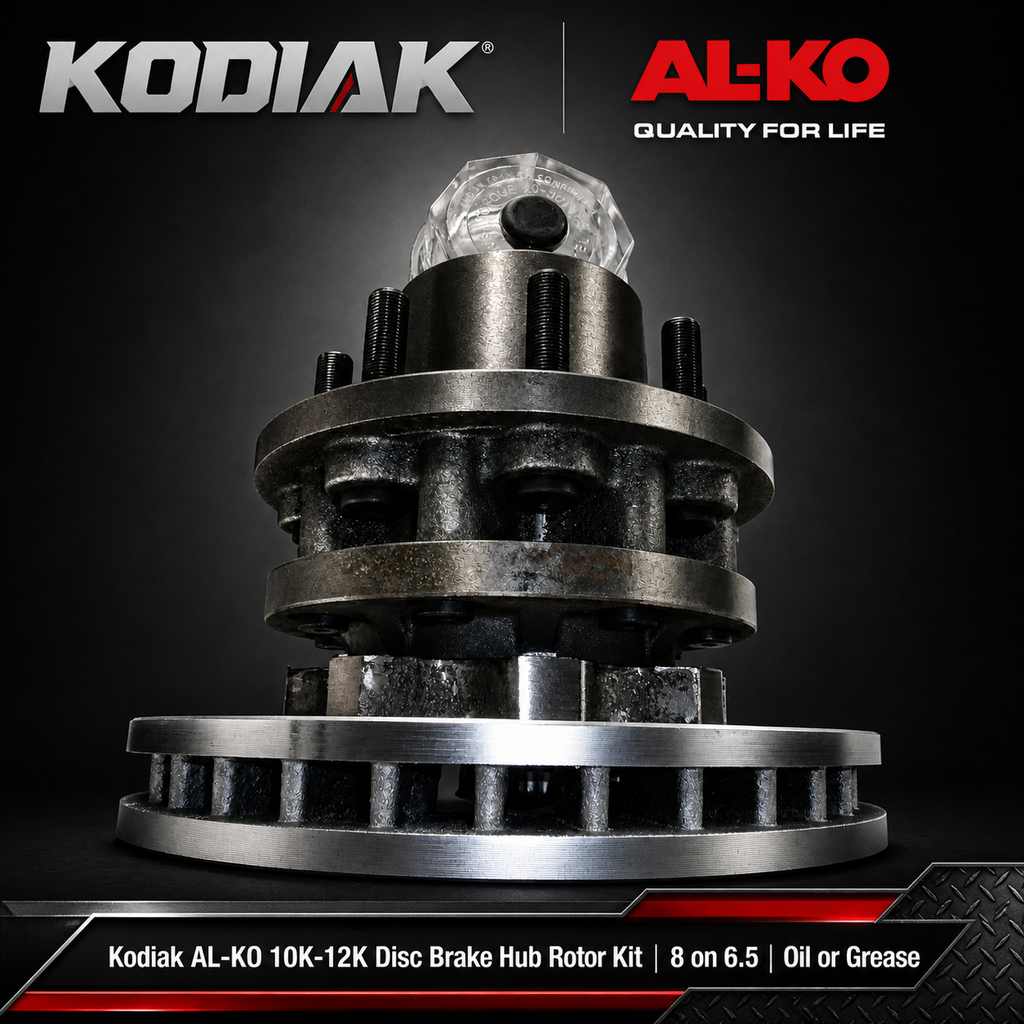

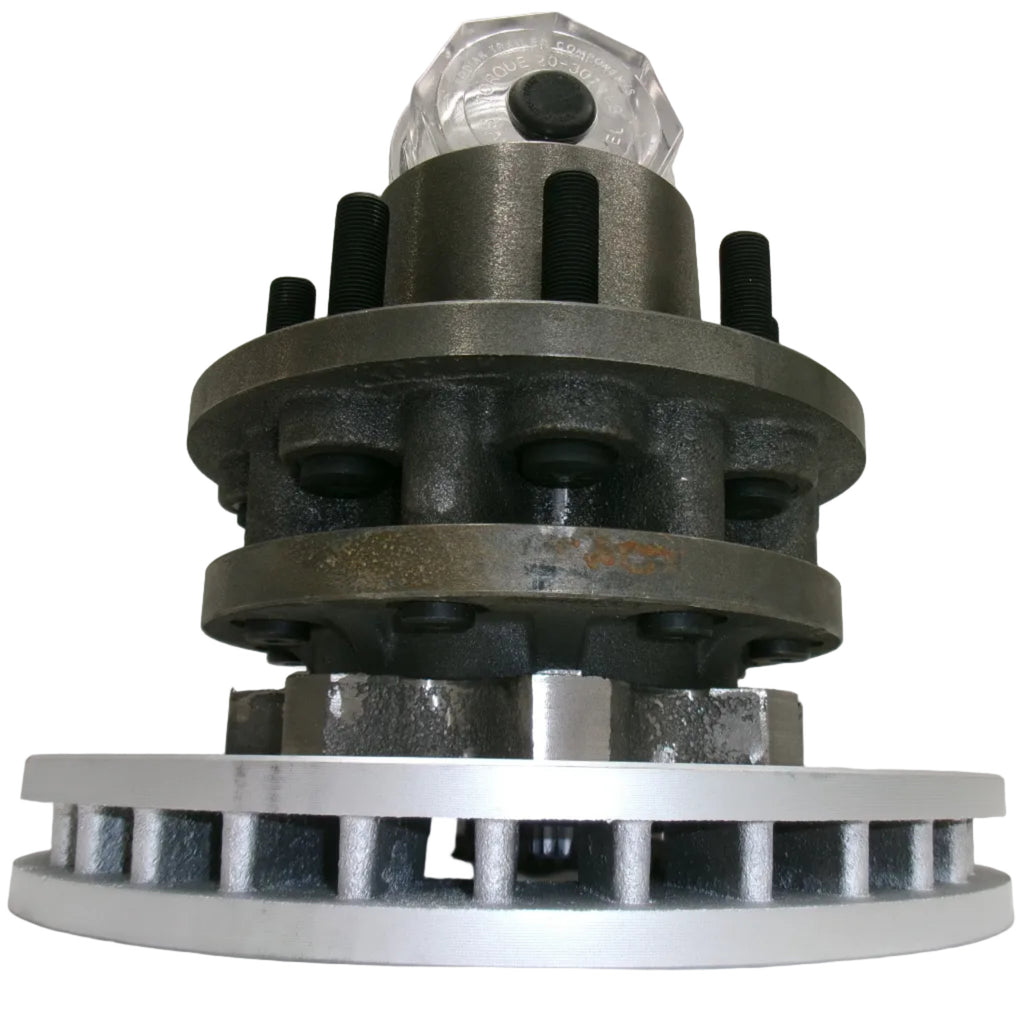

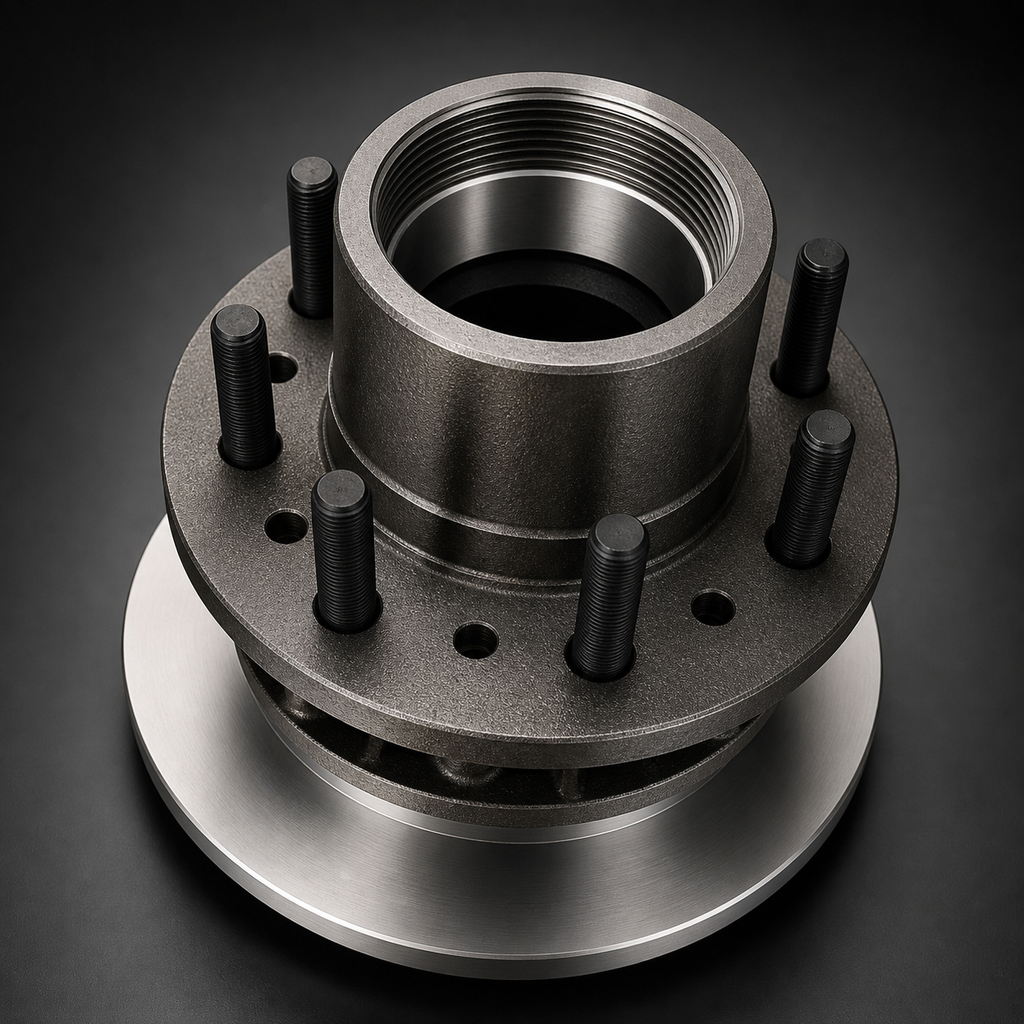

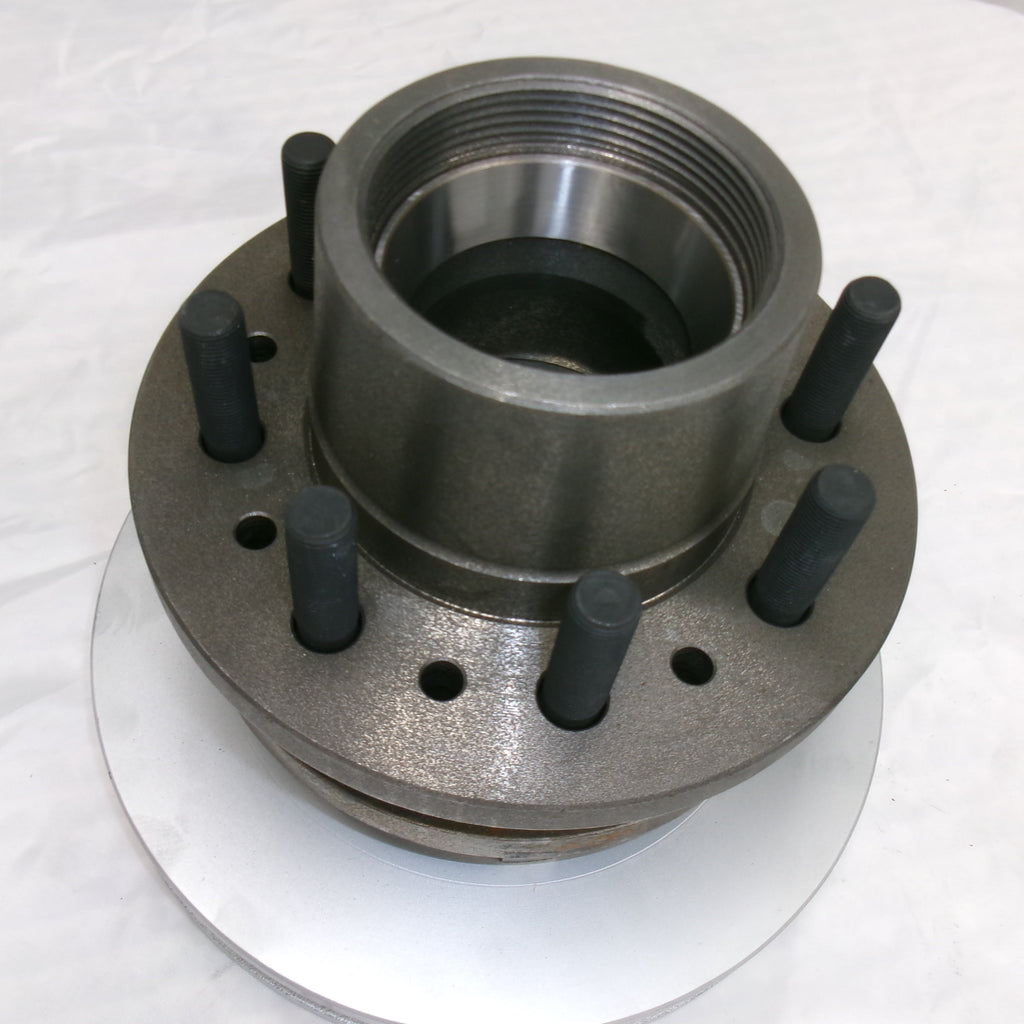

11.35" rotors come pre-mounted to the hubs with 5/8" studs, reducing hub-and-rotor assembly work during installation.
Corrosion Resistance

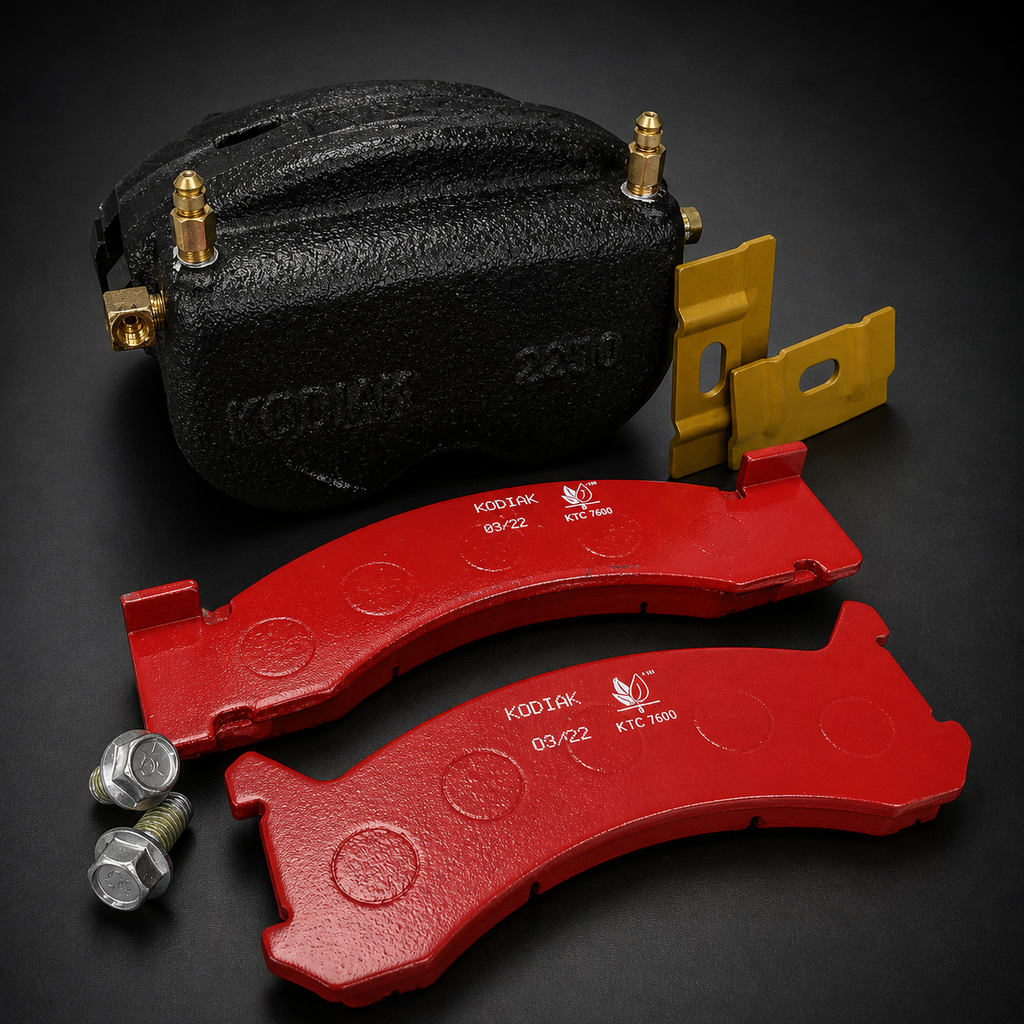

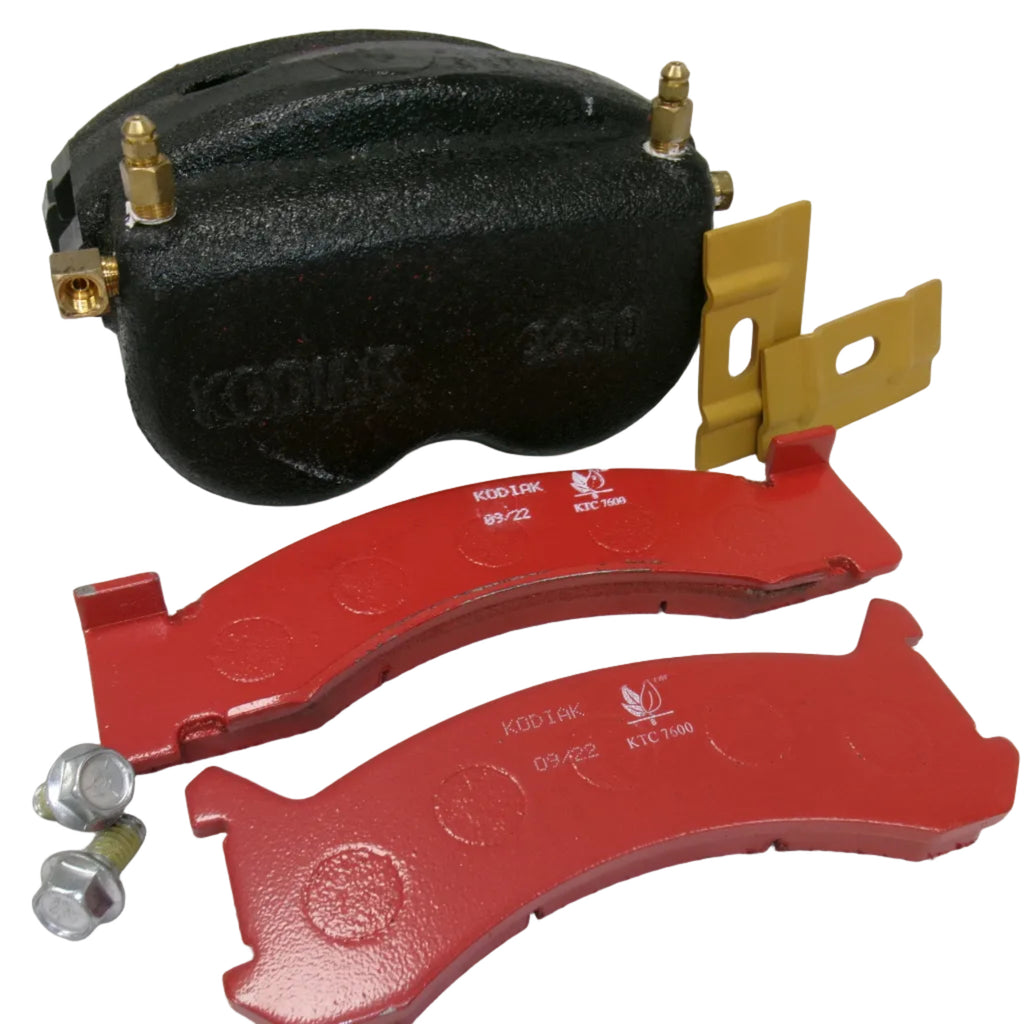

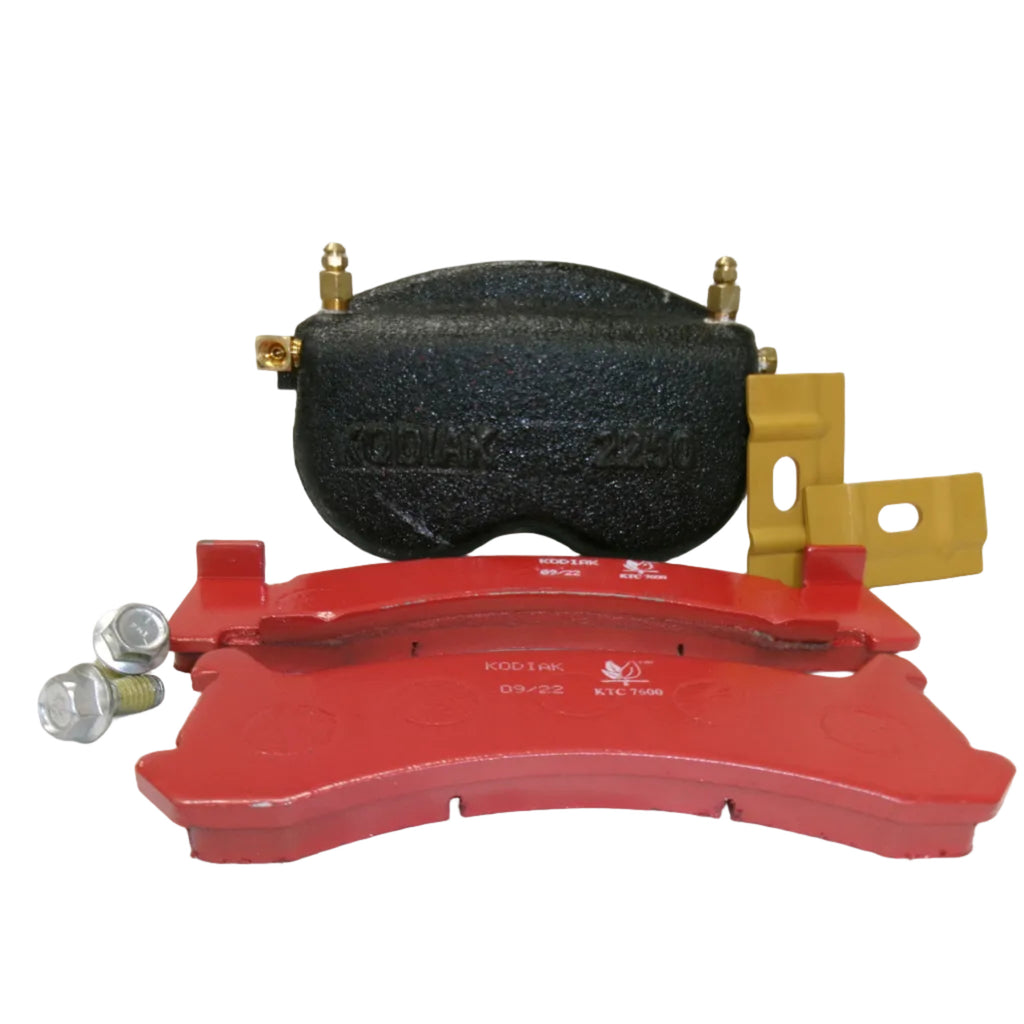

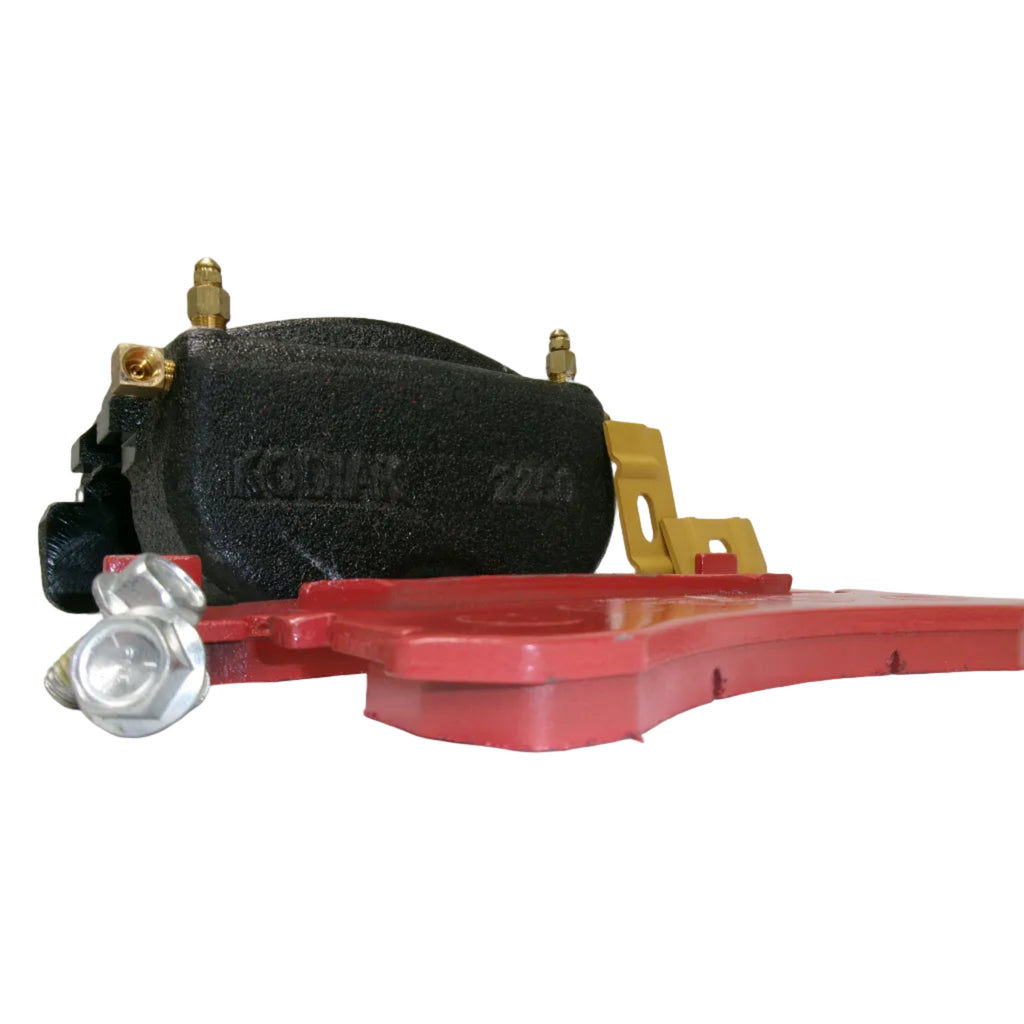

Equipped with DBC-2250-E E-coated calipers and nickel-chrome plated pistons for added durability in road service.
Oil or Grease Setup

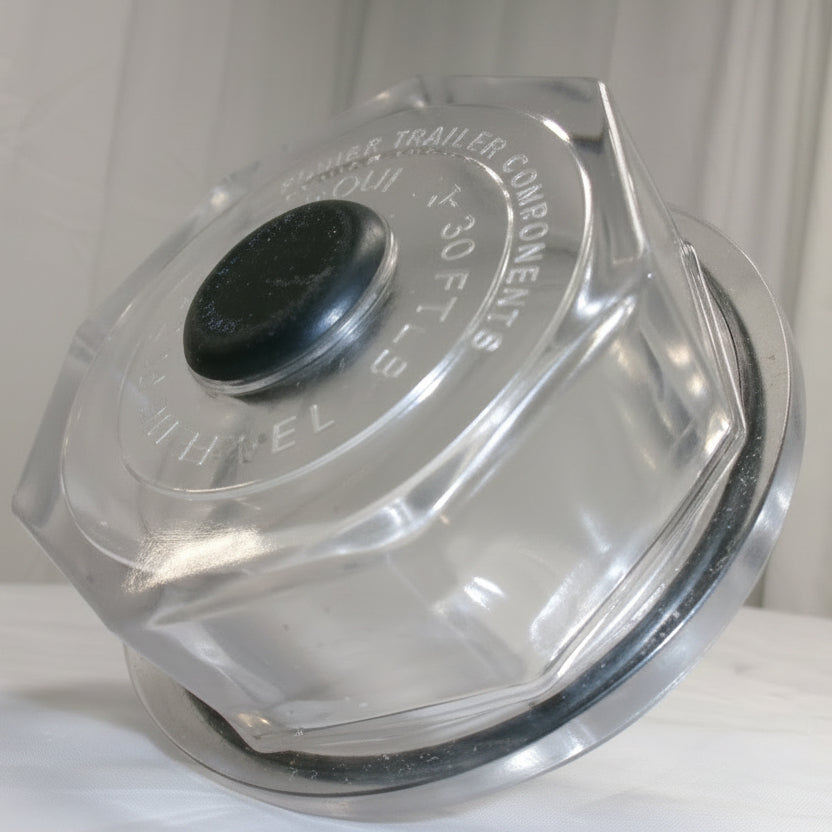

Compatible with oil bath or grease lubrication systems; includes plastic screw-in oil caps with O-rings.
Ceramic Brake Pads

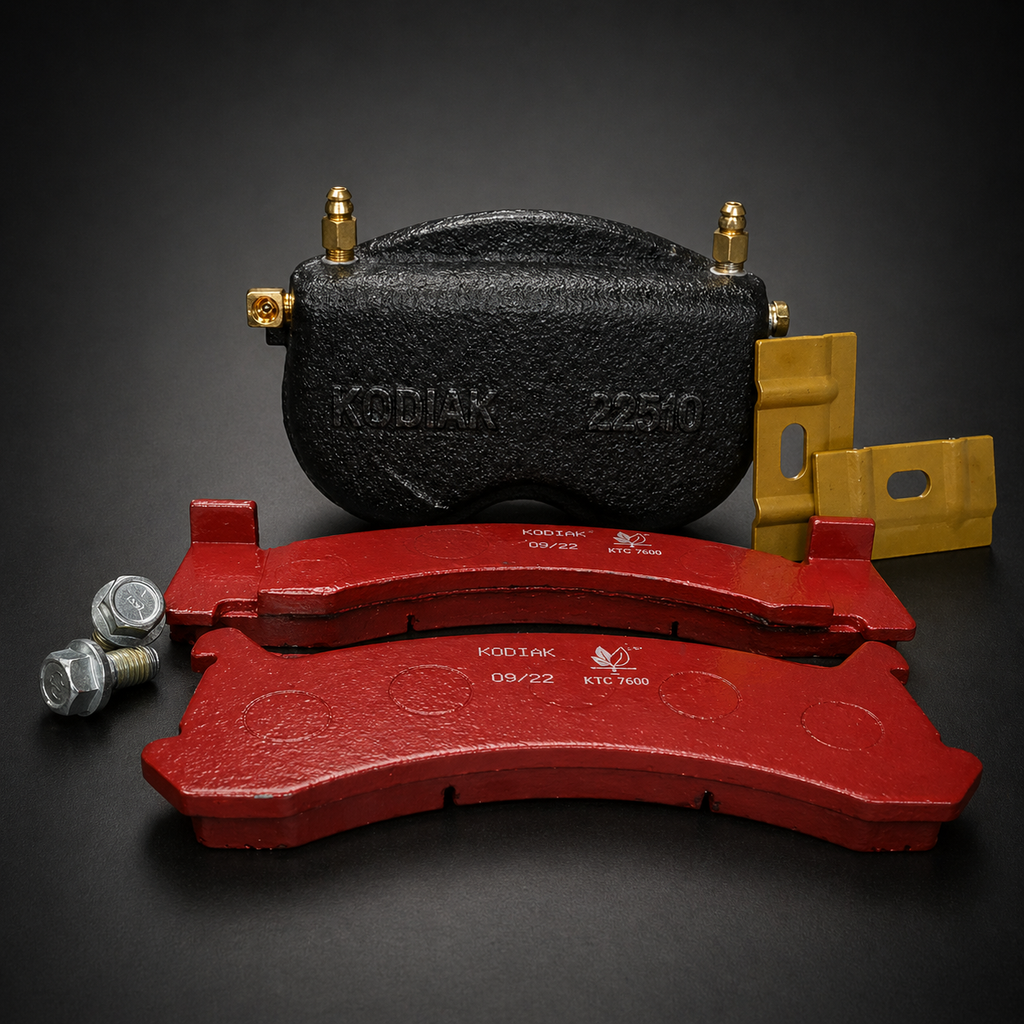

Includes ceramic brake pads with stainless steel clips for the included disc brake caliper assemblies.

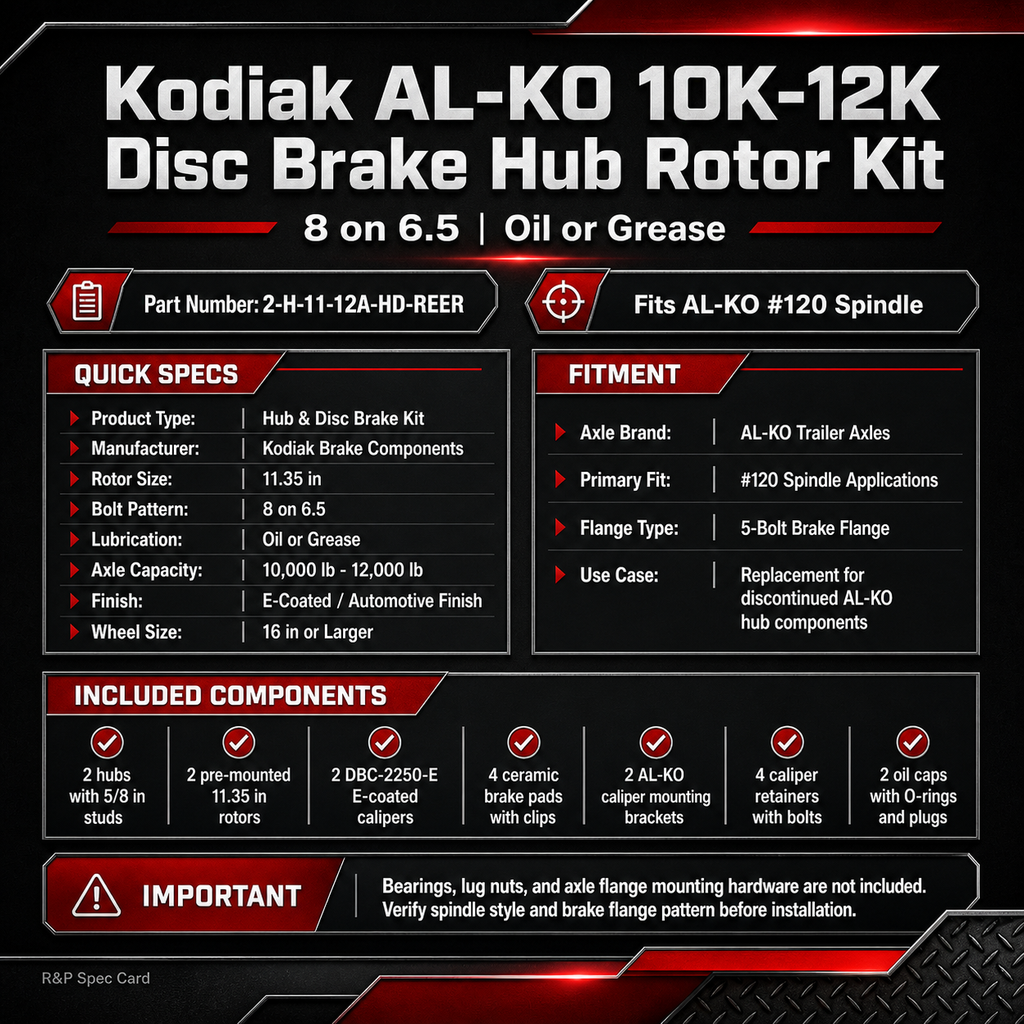

Specifications
| Specification | Detail |
|---|---|
| Part Number | 2-H-11-12A-HD-REER |
| Product Type | Hub & disc brake kit |
| Manufacturer | Kodiak Brake Components |
| Material / Finish | E-coated / automotive finish |
| Rotor Size | 11.35" |
| Wheel Bolt Pattern | 8 on 6.5" |
| Lubrication | Oil or grease |
| Axle Capacity Application | 10,000 lb - 12,000 lb AL-KO applications |
Fitment / Application
| Category | Details |
|---|---|
| Axle Brand Reference | AL-KO trailer axles |
| Primary Fit | #120 spindle applications |
| Flange Type | 5-bolt brake flange |
| Wheel Size | 16" or larger required |
| Notes | Replacement solution for matching discontinued AL-KO hub component applications. |

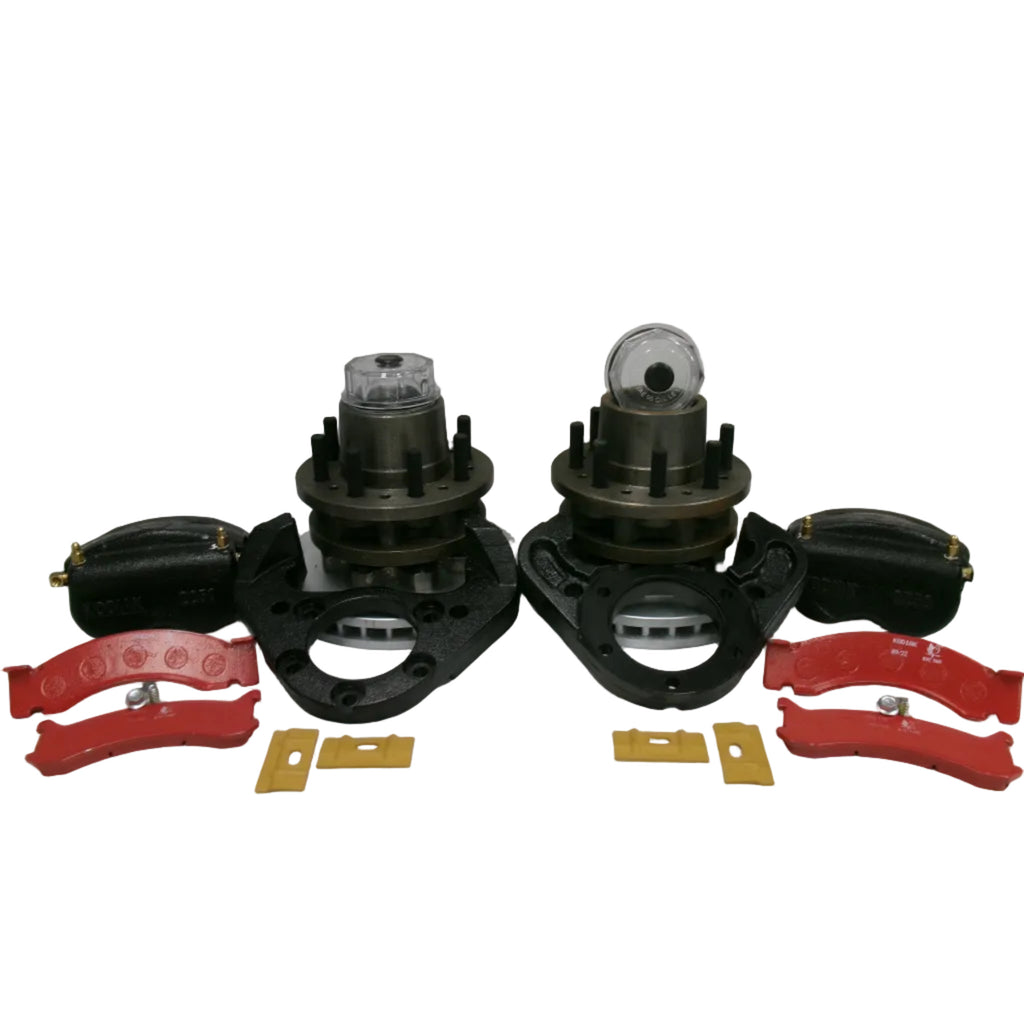

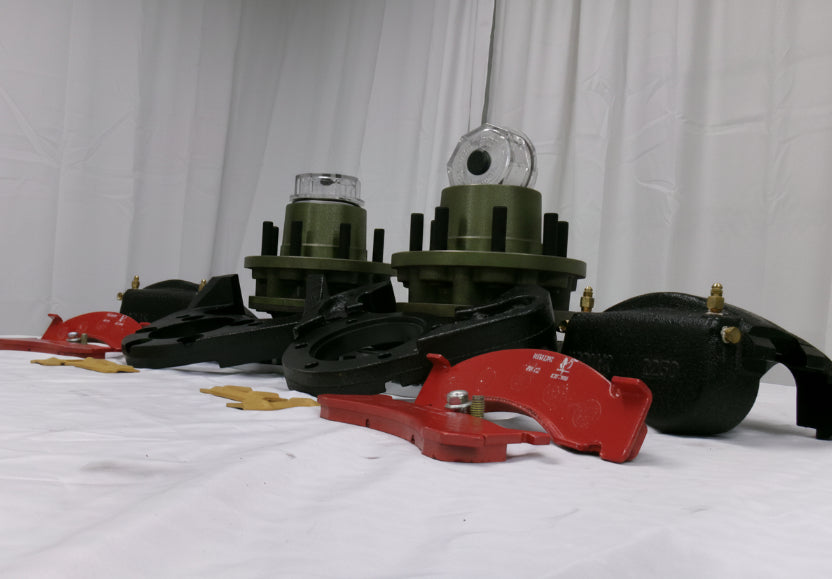

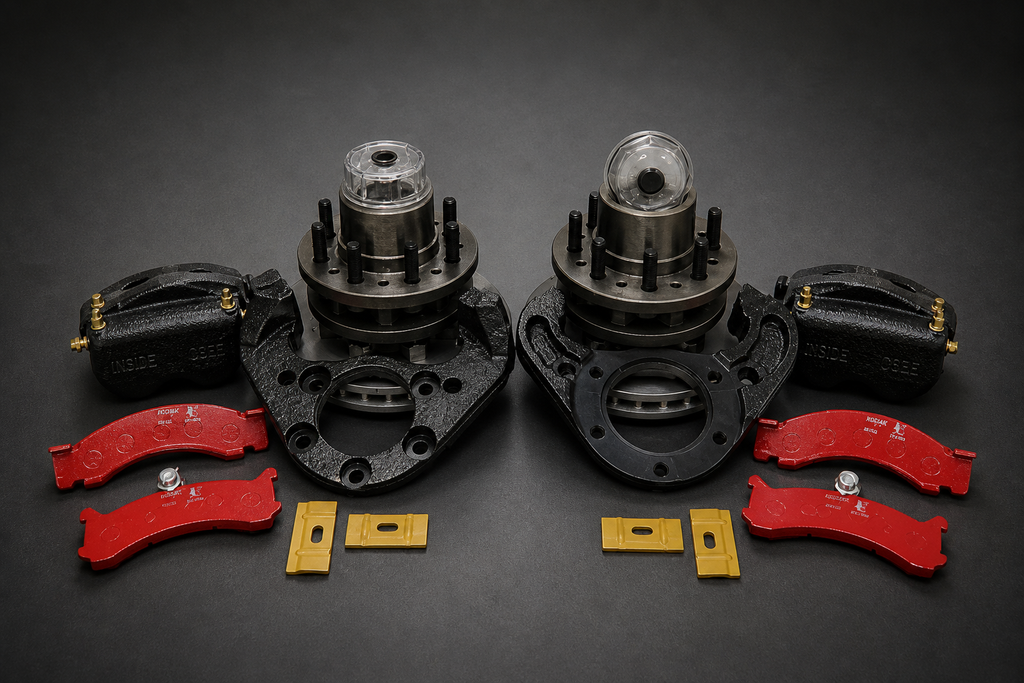

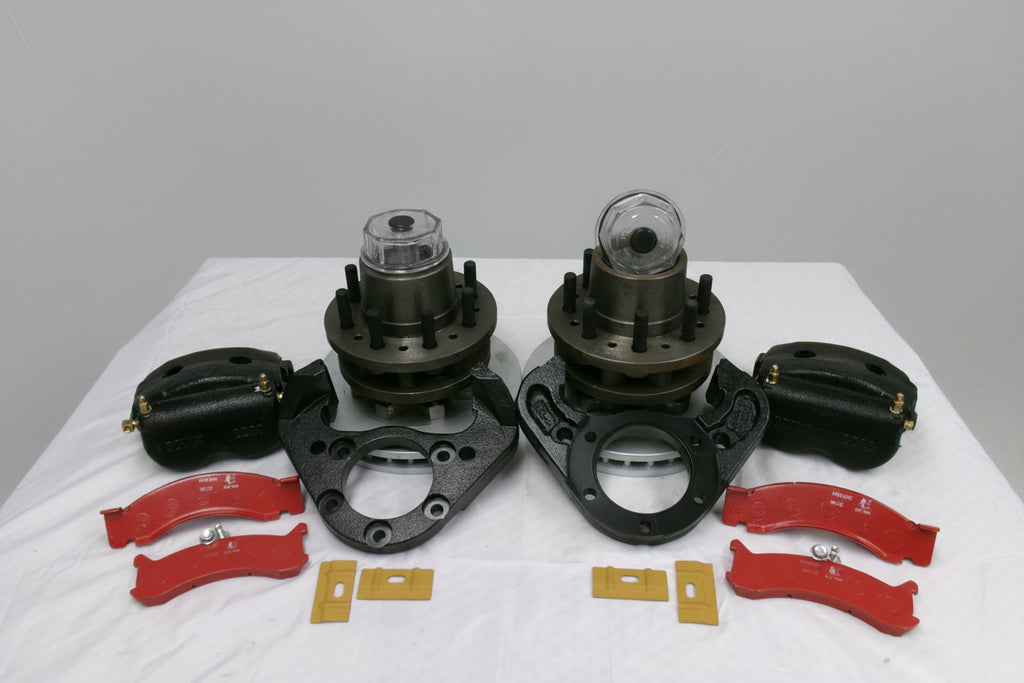

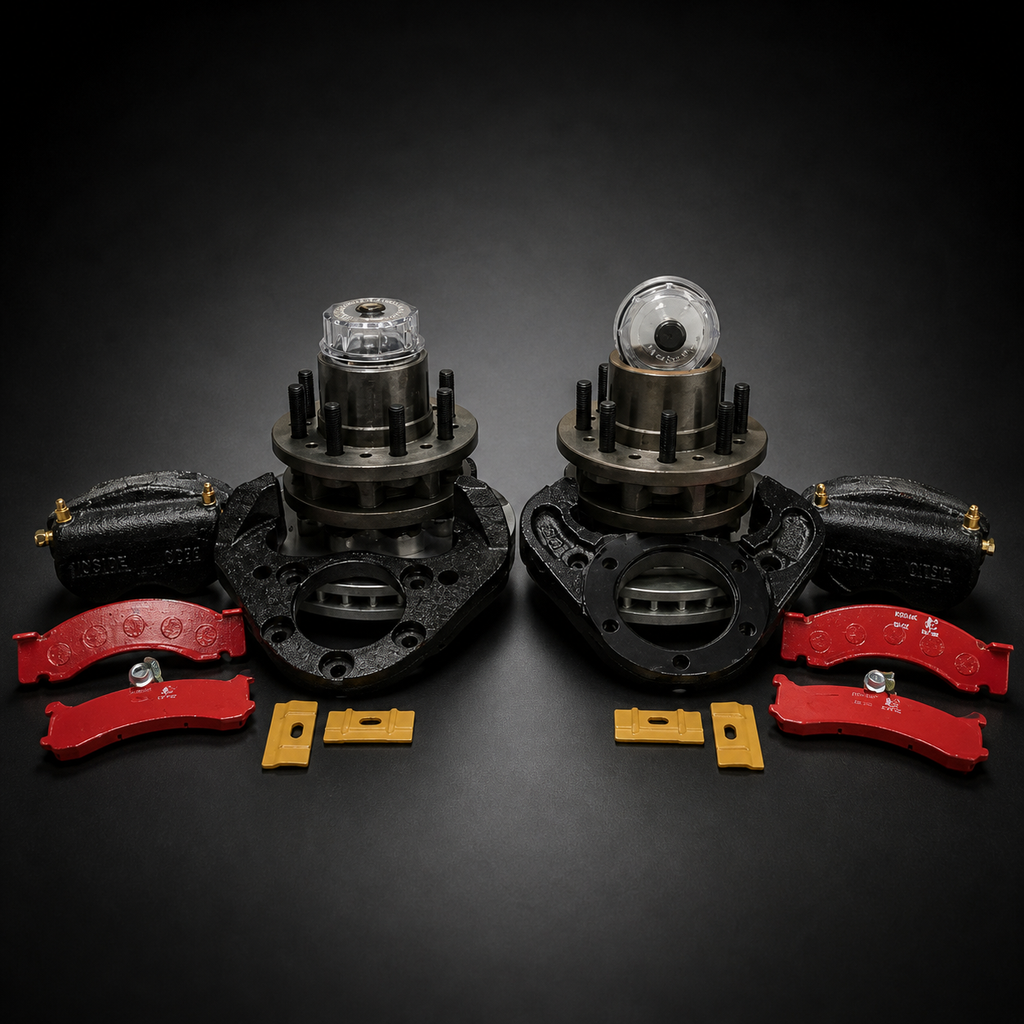

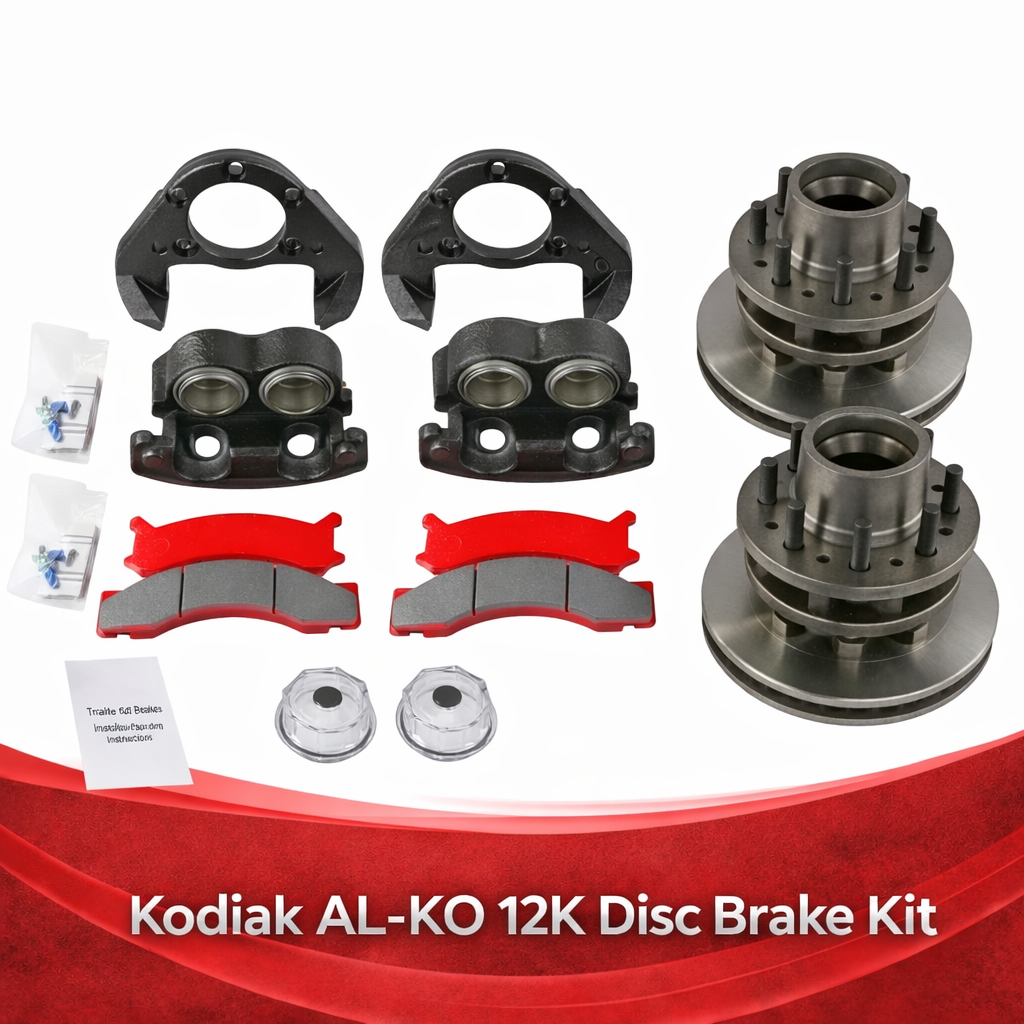

Included Components
| Quantity | Item |
|---|---|
| 2 | 10K/12K hubs with 5/8" studs |
| 2 | 11.35" rotors, pre-mounted to hubs |
| 2 | DBC-2250-E E-coated calipers |
| 4 | Ceramic brake pads with clips |

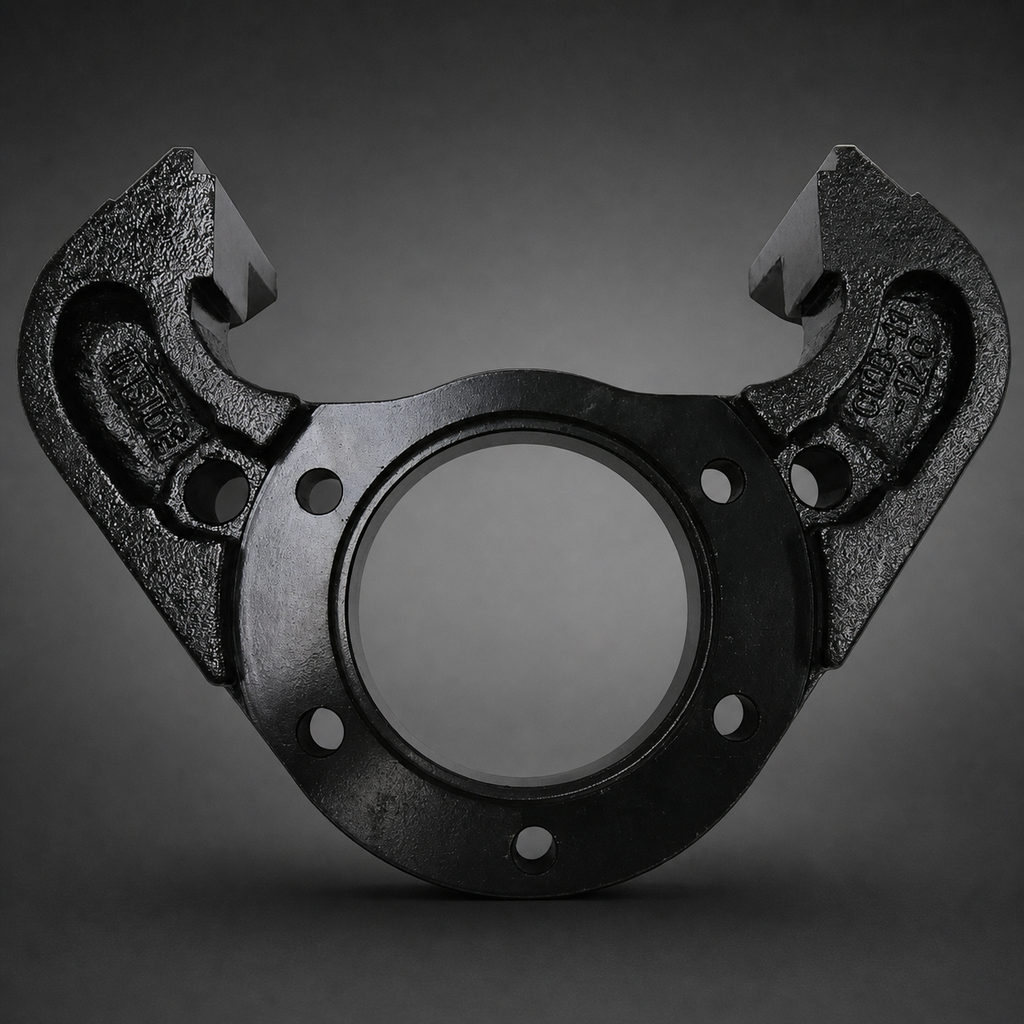

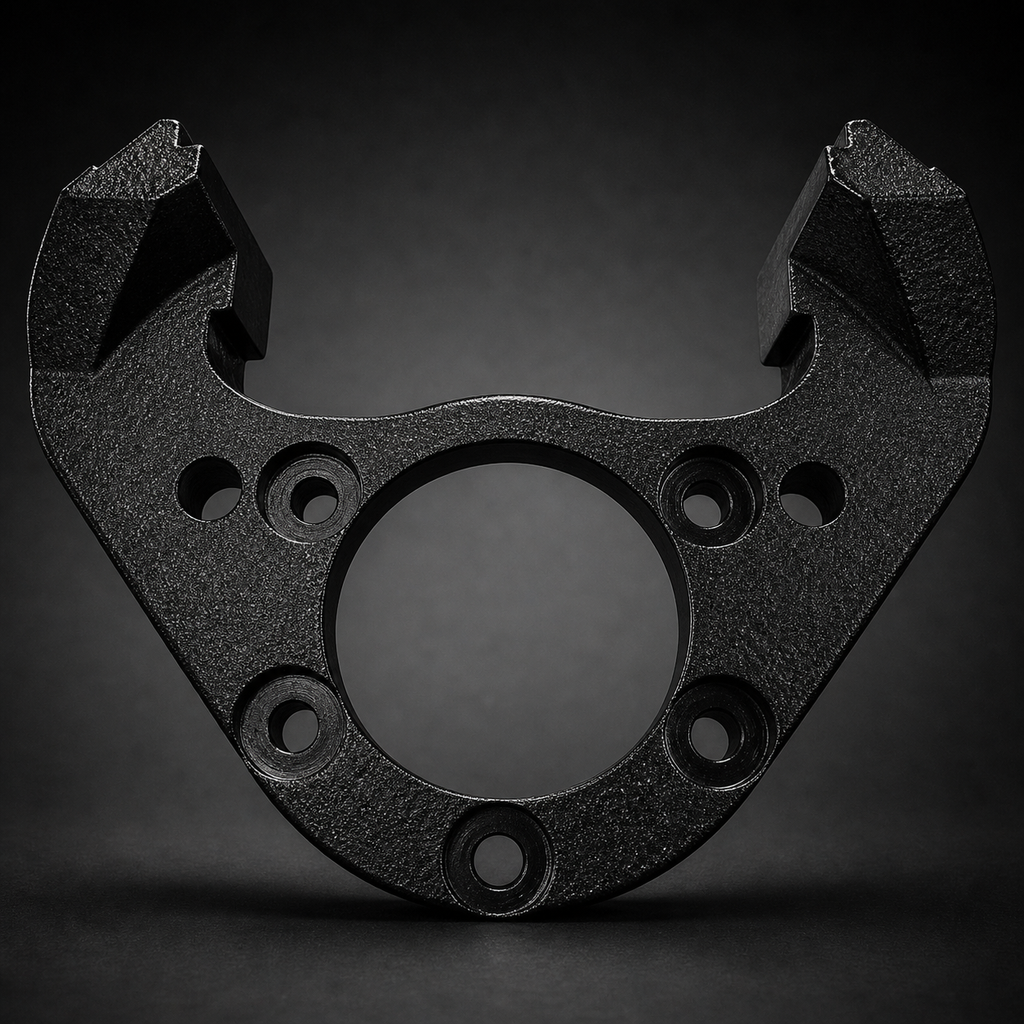

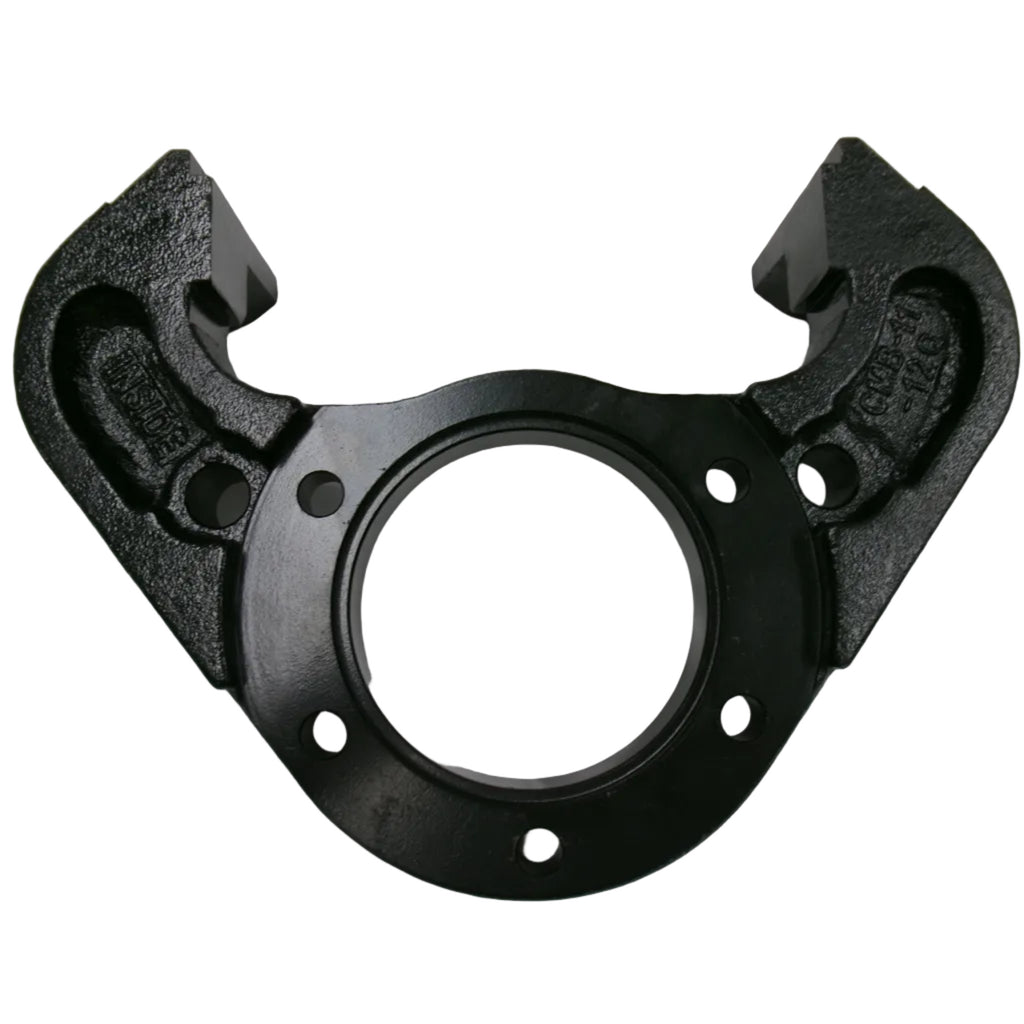

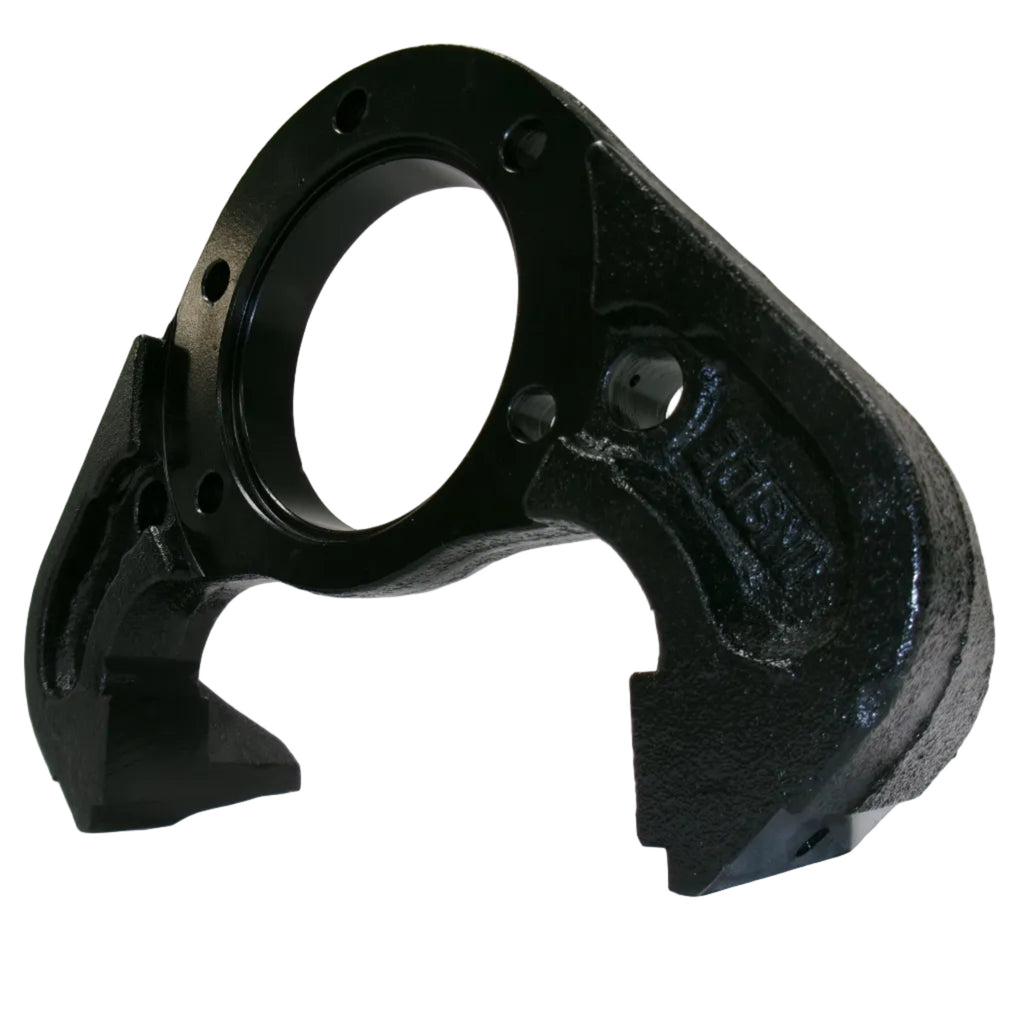

| 2 | AL-KO caliper mounting brackets |
| 4 | Caliper retainers with bolts |
| 2 | Oil caps with O-rings and plugs |
