Tandem Trailer Axle Suspension Rebuild Kit with Standard Bolts and 3.125" Shackle Straps
Part Number: SRK-TA-SB-458-3125
And remember, we actually INSTALL what we sell, so if you have questions, just ask!
Part Number: SRK-TA-SB-458-3125
This is a kit to change all the "wear parts" on a tandem axle trailer (4,000 # GVW up to 14,000# GVW) .
These equalizers are for double-eye leaf springs with 9/16" spring eyes and the center bolt hole diameter is 3/4" and the left and right bolt hole diameter is 9/16"
These equalizers are for double-eye leaf springs with 9/16" spring eyes and the center bolt hole diameter is 3/4" and the left and right bolt hole diameter is 9/16"
And remember, we actually INSTALL what we sell, so if you have questions, just ask!

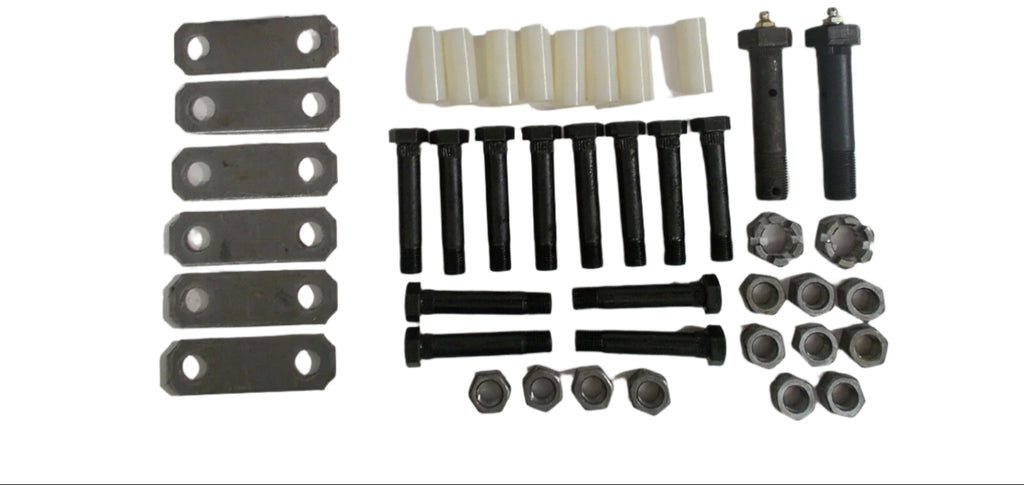

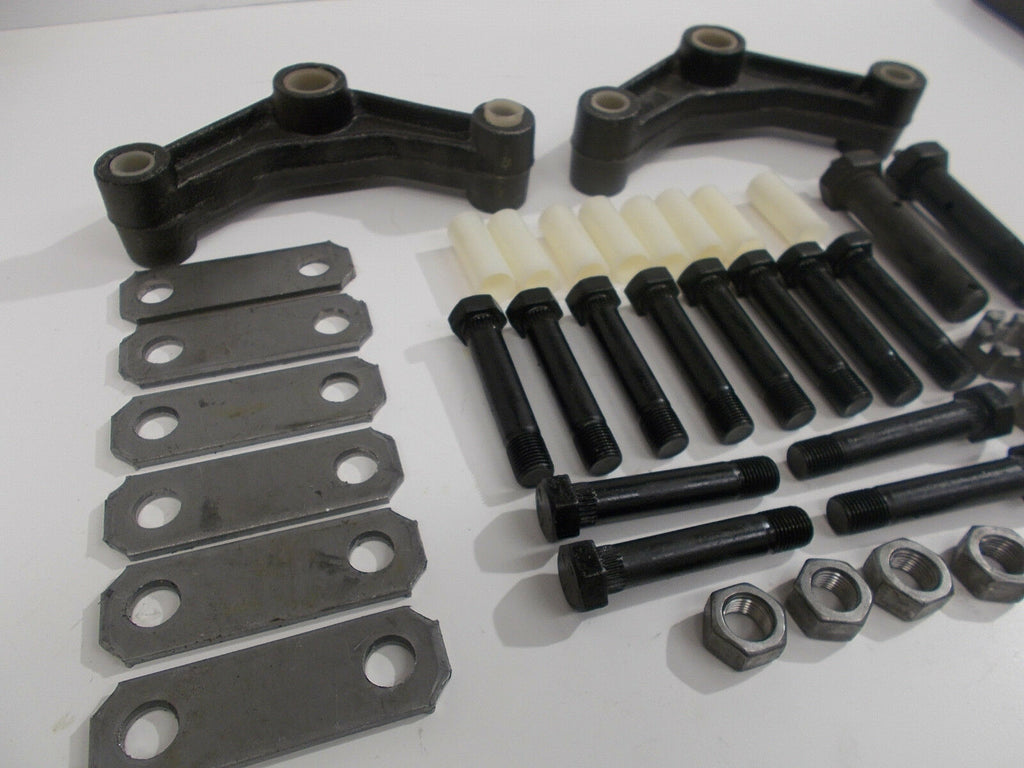

Kit consist of:

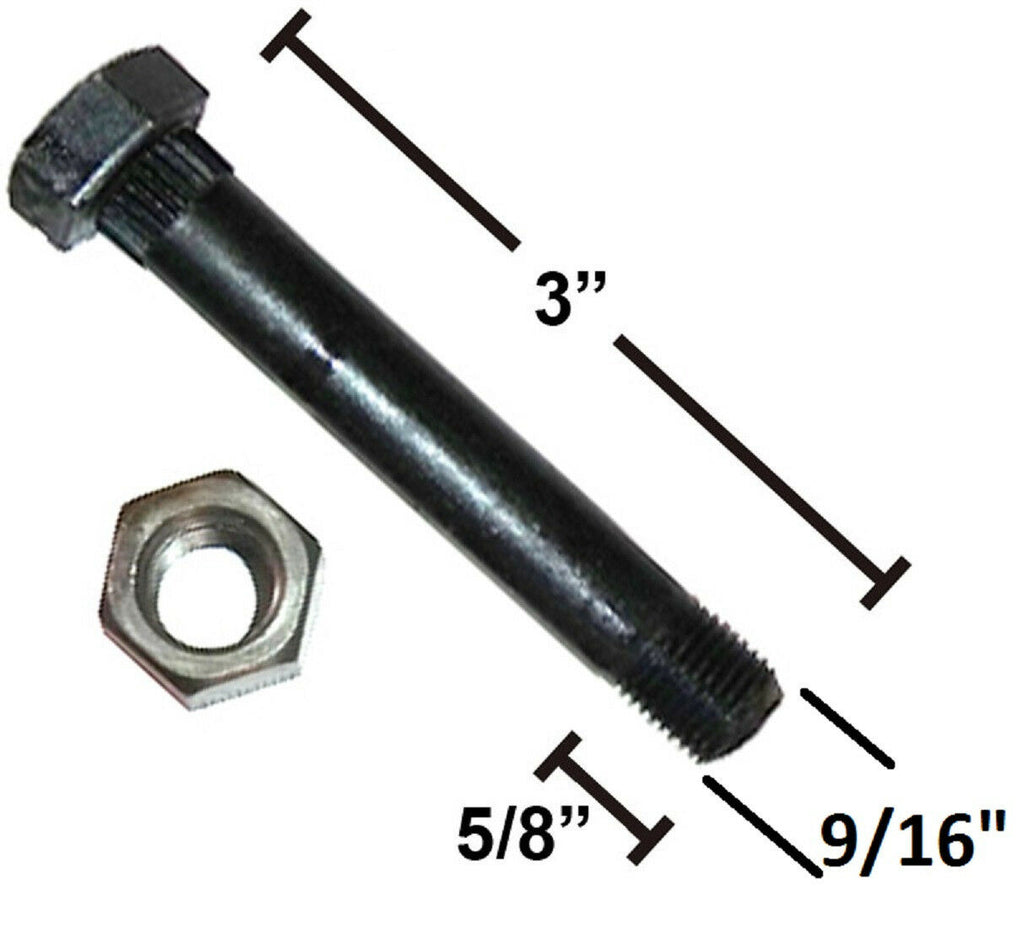

14 - 9/16" x 3" Hardened Standard Bolts
14- 9/16" locking 9/16" nuts

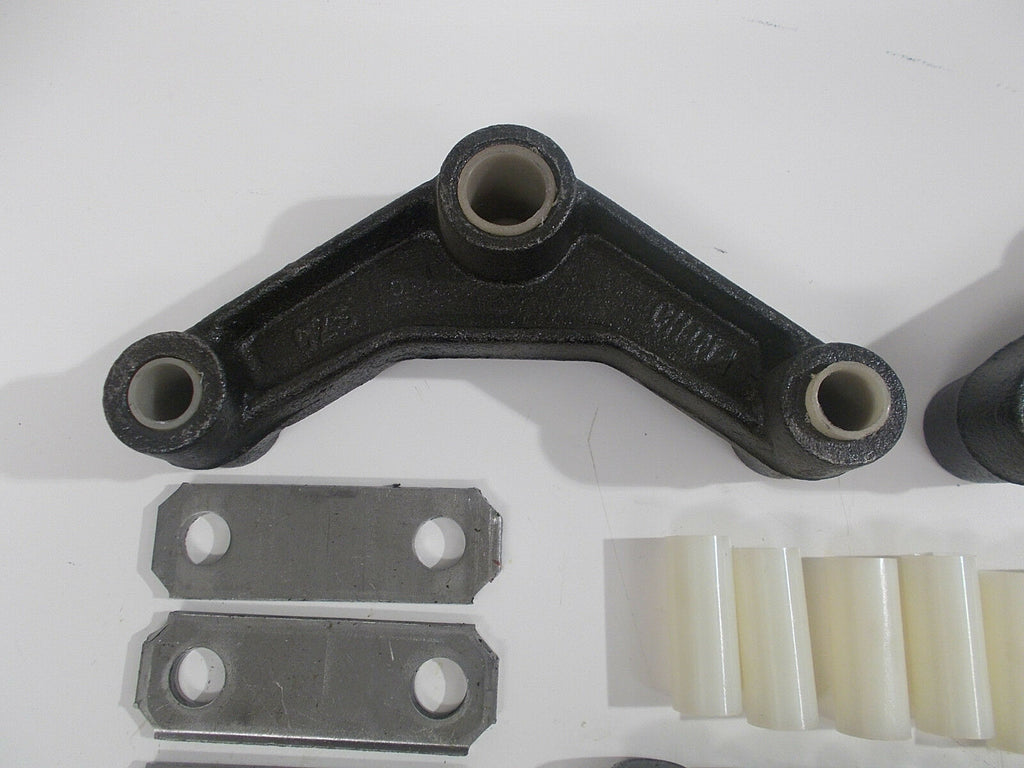

2 - Center spring pivot equalizers, 6-1/2" X 2" Equalizer, 3/4" Top Hole
14 (6 are already installed in the equalizers)- New Nylon Spring Bushings

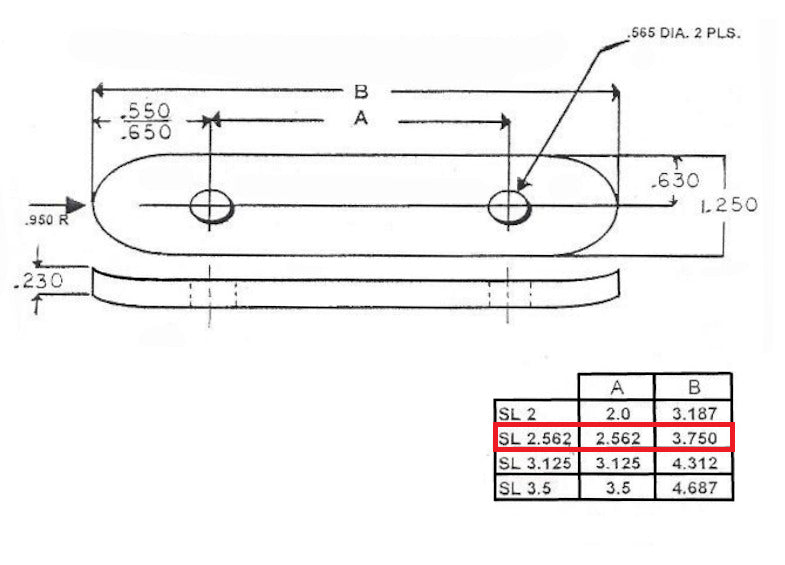

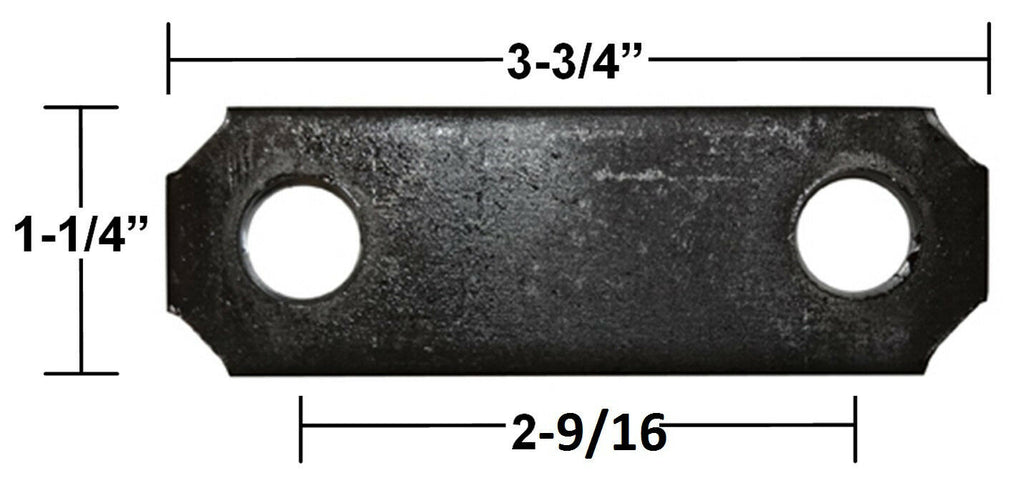

8 - New Spring Shackle Straps 3.125"
Hole Center to Hole Center from Top Hole to either side hole is 4"
Hole Center to Hole Center from Side Holes is 6.25"
14 - 9/16" x 3" Hardened Standard Bolts
14- 9/16" locking 9/16" nuts
2 - Center spring pivot equalizers, 6-1/2" X 2" Equalizer, 3/4" Top Hole
14 (6 are already installed in the equalizers)- New Nylon Spring Bushings
8 - New Spring Shackle Straps 3.125"
Hole Center to Hole Center from Top Hole to either side hole is 4"
Hole Center to Hole Center from Side Holes is 6.25"
