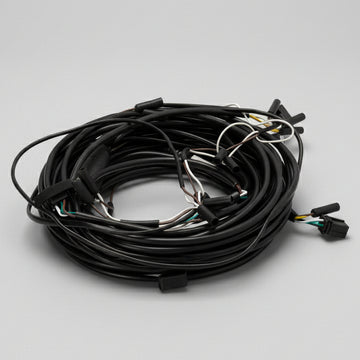

Novalite Premium 4-Way Flat Trailer Wiring Harness – 25' Jacketed – 01-8801-B
The Novalite 01-8801-B is a premium-grade 4-way flat trailer wiring harness designed for long-term durability and clean, professional installation. Featuring a heavy-duty black multi-sheath jacket, this harness protects internal wiring from abrasion, UV exposure, and road debris.
With its factory Y-split configuration and pre-terminated bullet connectors, this harness provides balanced left/right circuit distribution and quick connection to compatible LED lighting systems.
Features
- 25-foot fully jacketed 4-way flat harness
- Molded 4-way flat vehicle connector
- Heavy-duty black rubberized multi-sheath cable
- Factory Y-split for even circuit distribution
- Male bullet connectors pre-installed
- Pre-crimped ring terminal ground (white wire)
- Includes mounting clips and tie-downs
Specifications
| Specification | Detail |
|---|---|
| Connector Type | 4-Way Flat – Molded |
| Length | 25 Feet |
| Wire Gauge | 16-Gauge Copper Conductors |
| Jacket Type | Black Multi-Sheath – UV & Abrasion Resistant |
| Color Code |
White – Ground Brown – Tail / Running Yellow – Left Turn / Brake Green – Right Turn / Brake |
| Termination | Male Bullet Connectors & Ring Terminal Ground |
| Application | Single or Tandem Axle Trailer Lighting |
Compatibility
Designed for use with trailer lighting systems utilizing female bullet-style connectors. Compatible with standard 4-way flat tow vehicle plugs commonly found on trucks, SUVs, and utility trailers.
Ideal For
- Utility trailers
- Landscape trailers
- Boat trailers
- Equipment haulers
- New trailer builds and rewires
Verify connector style and required length before installation.
