Jammy - Black - Self-Grounding Mounting Bracket for J-573 Series Trailer Marker & Clearance Lights
Black self-grounding mounting bracket designed for Jammy J-573 series submersible clearance and marker lamps used on trailers, RVs, and boat trailers. Important Measurements : 3-7/8" by 1-1/2"
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number / SKU | J-573-BRKG-B1 |
| Brand | Jammy |
| Product Type | Self-grounding marker light mounting bracket |
| Color / Finish | Black |
| Connector Compatibility | Standard PL-10 plugs or .156 bullet connectors |
| Quantity Included | 1 mounting bracket |
Fitment / Application
| Category | Details |
|---|---|
| Lighting Series | Jammy J-573 series clearance and marker lamps |
| Common Applications | Trailers, RVs, boat trailers, and submersible marker light setups |
| Mounting Style | Snap-in trailer light mounting for compatible J-573 lamps |
| Fitment Check | Verify lamp series, plug style, mounting surface, and ground path before ordering |
Top Features
| Feature | Buyer Benefit |
|---|---|
| Self-Grounding Design | Simplifies wiring when mounted to a clean metal frame with a proper ground path |
| J-573 Series Fit | Designed for compatible Jammy J-573 clearance and marker lamps |
| PL-10 Compatible | Connects with standard PL-10 plugs used on many trailer lighting setups |
| Submersible Light Use | Popular for trailer, RV, and boat trailer marker light applications |
Overview

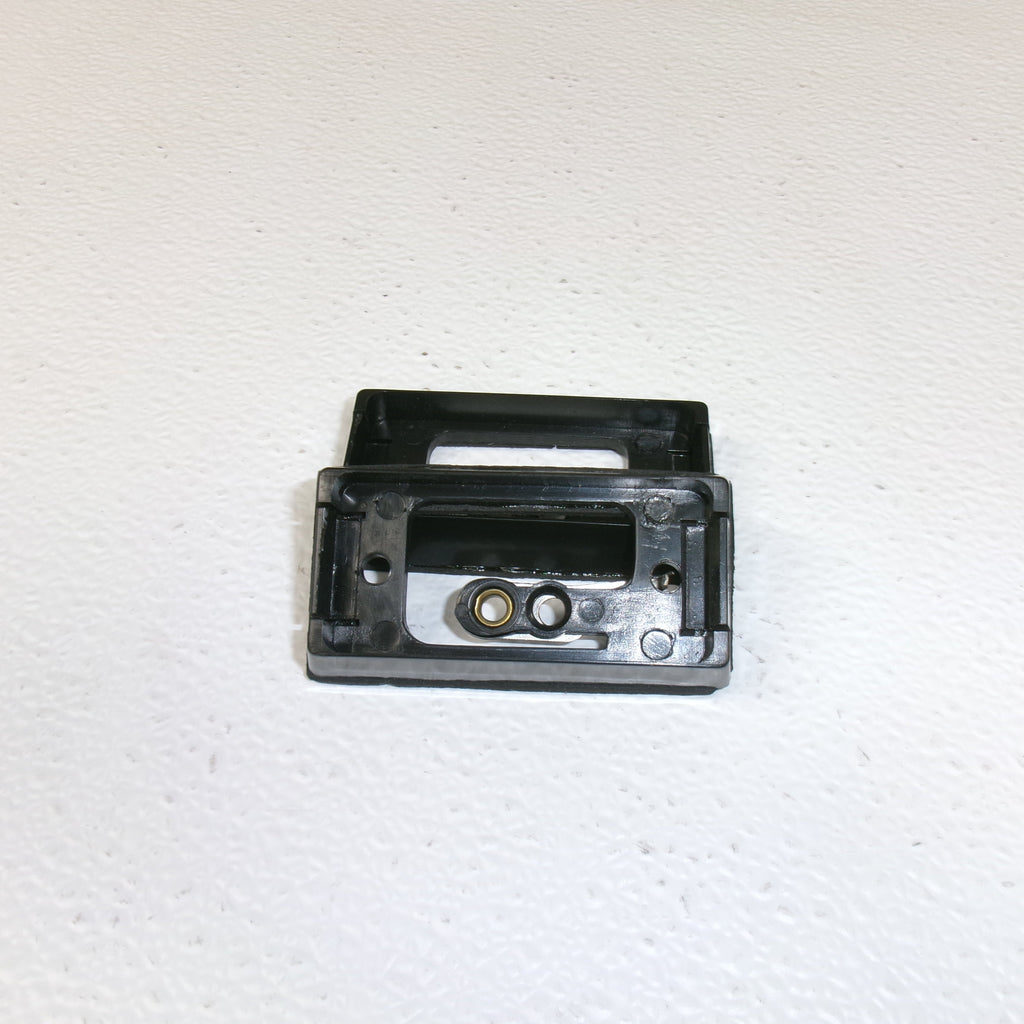

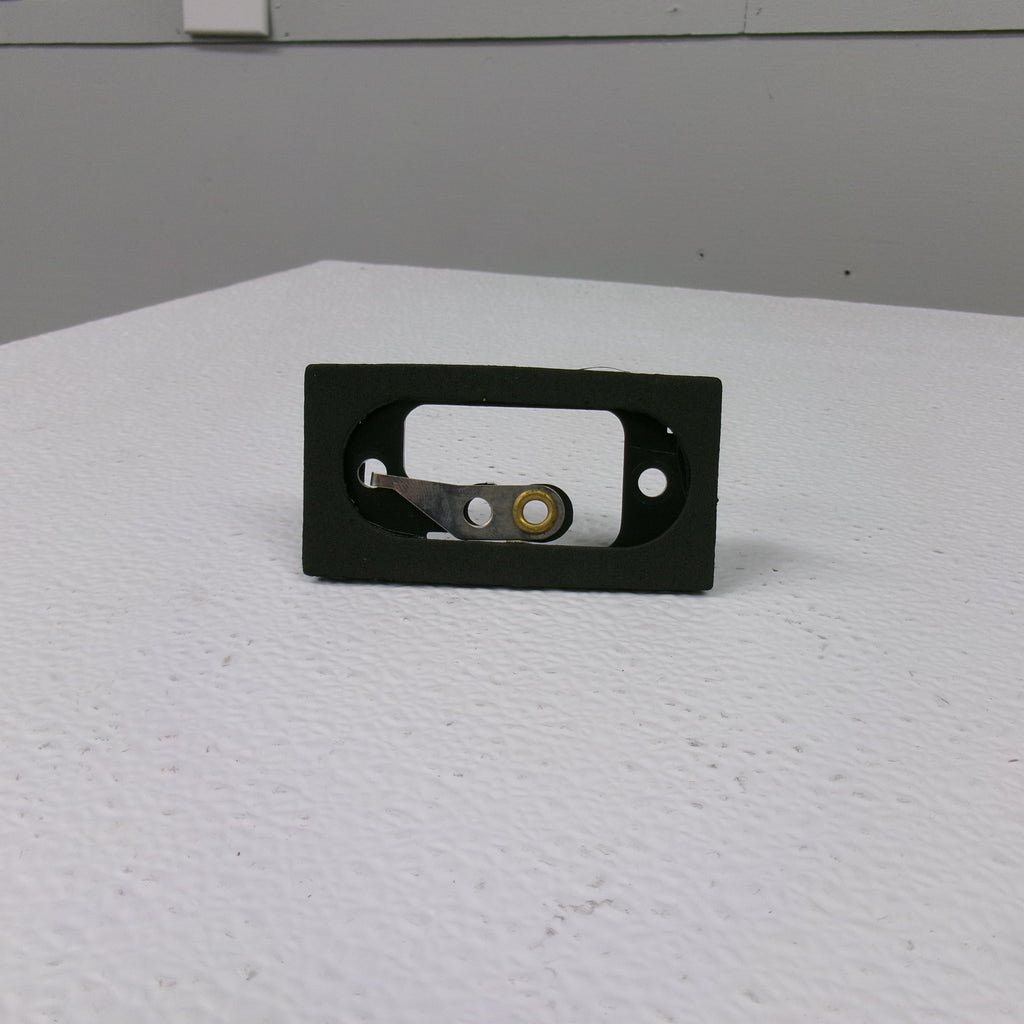

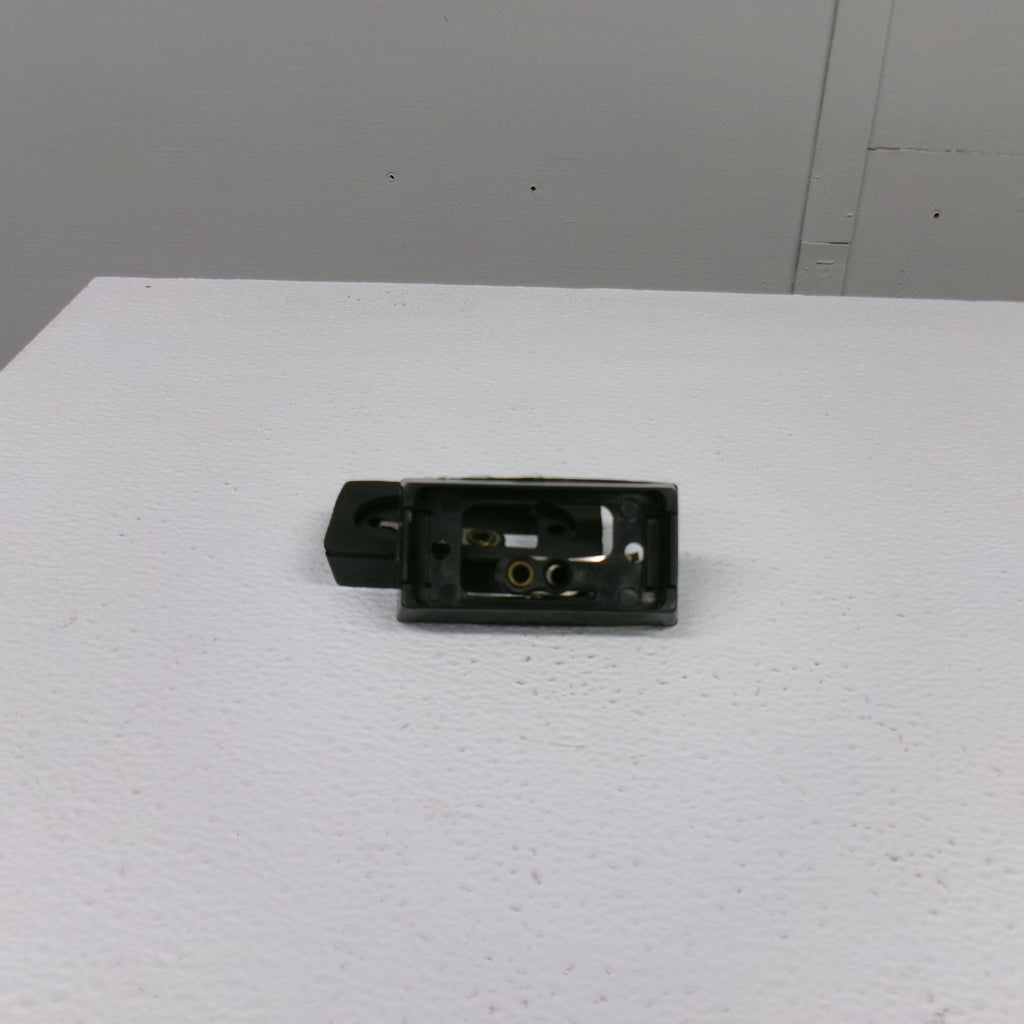

The Jammy J-573-BRKG-B1 is a black self-grounding mounting bracket for Jammy J-573 series submersible clearance and marker lights. It provides an easy snap-in mounting base for compatible lamps and is commonly used on trailers, RVs, boat trailers, and other utility lighting applications.
R&P Service Insight
Self-grounding brackets can save installation time, but only when the bracket has clean metal-to-metal contact with a grounded trailer frame.
- Ground Path: Paint, corrosion, dirt, or loose hardware can prevent proper grounding.
- Connector Match: Confirm the light and harness use PL-10 plugs or compatible .156 bullet connectors.
- Lamp Series: Match this bracket to Jammy J-573 series lamps before installation.
R&P Knowledge Hub
Compatibility: Designed for Jammy J-573 series clearance and marker lamps.
Vehicle / System Fit: Trailer, RV, boat trailer, and submersible marker light applications using compatible J-573 lamp housings.
Installation Notes: Mount to a clean metal surface when using the self-grounding function. Confirm the ground before final assembly.
Performance Insight: A self-grounding bracket can eliminate the need for a separate ground wire when the trailer frame provides a reliable ground path.
Brand & Fitment Note
Selling Brand: Jammy
Application Reference: J-573 series references are used for compatibility with matching Jammy clearance and marker lamps.
What This Means: This listing is for one Jammy black self-grounding mounting bracket, not a complete light assembly.
Before Ordering: Verify your lamp series, connector style, mounting location, and grounding requirements before installation.
R&P Repair Insight
If a marker light does not work after installation, the issue may be the power lead, plug connection, lamp condition, or ground contact. On self-grounding brackets, the bracket and mounting surface are part of the circuit.
- Clean Contact Area: Remove rust, heavy paint, or debris from the mounting point if grounding through the frame.
- Confirm Plug Style: Make sure the wiring connector matches the bracket and lamp setup.
- Test Before Final Mounting: Check light operation before sealing or finishing the installation.
Features
Self-Grounding Bracket
Designed to ground through the trailer frame when mounted to a clean, properly grounded metal surface.
For J-573 Series Lamps
Made for compatible Jammy J-573 series submersible clearance and marker light housings.
Standard Plug Compatibility
Connects with standard PL-10 plugs or .156 bullet connectors depending on the light and wiring setup.
Trailer, RV & Boat Trailer Use
Commonly used for submersible marker light mounting on trailers, RVs, and boat trailers.
Included Components
| Quantity | Item |
|---|---|

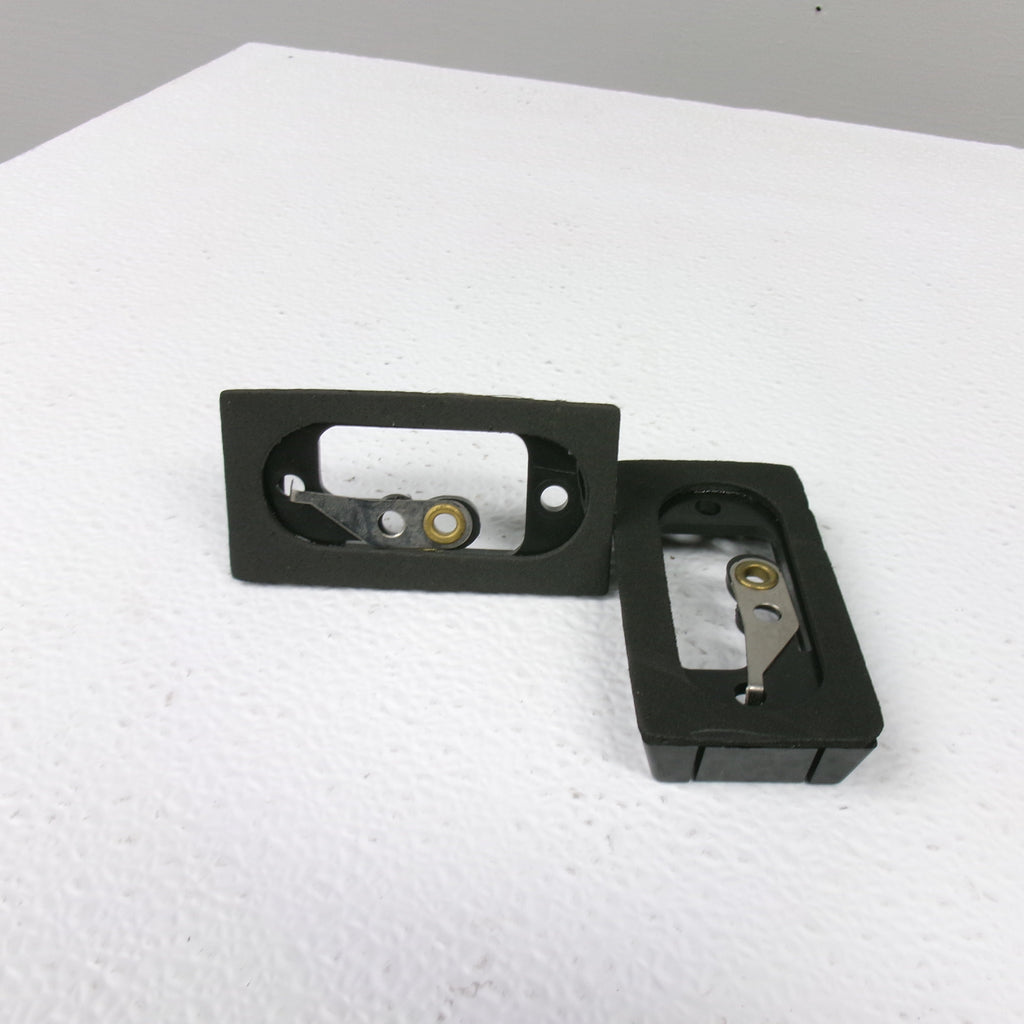

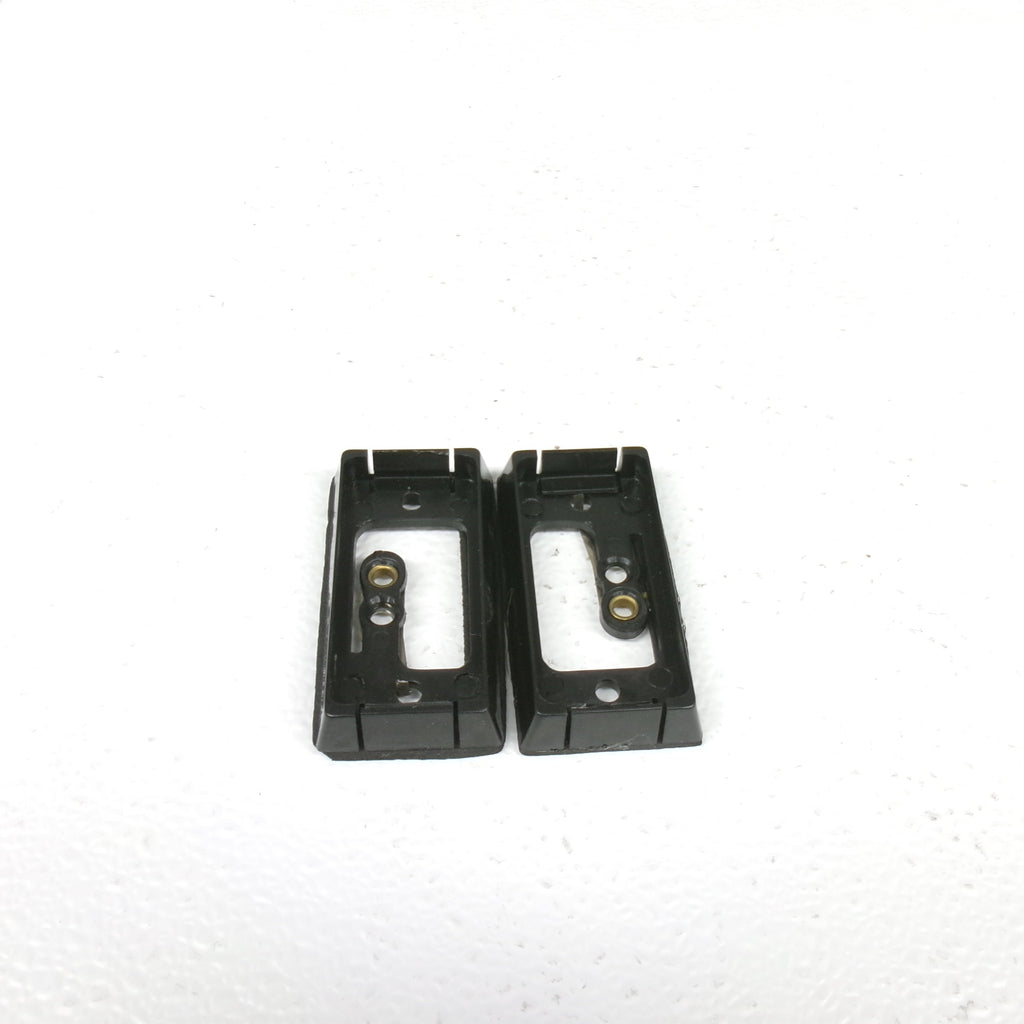

| 1 | Jammy J-573-BRKG-B1 black self-grounding mounting bracket (2 pieces total) |
| Not Included | Marker lamp, PL-10 plug, bullet connectors, mounting screws, and installation hardware unless otherwise shown or stated |
