Trailer Sealing Tape / Vinyl Foam Gasket Tape

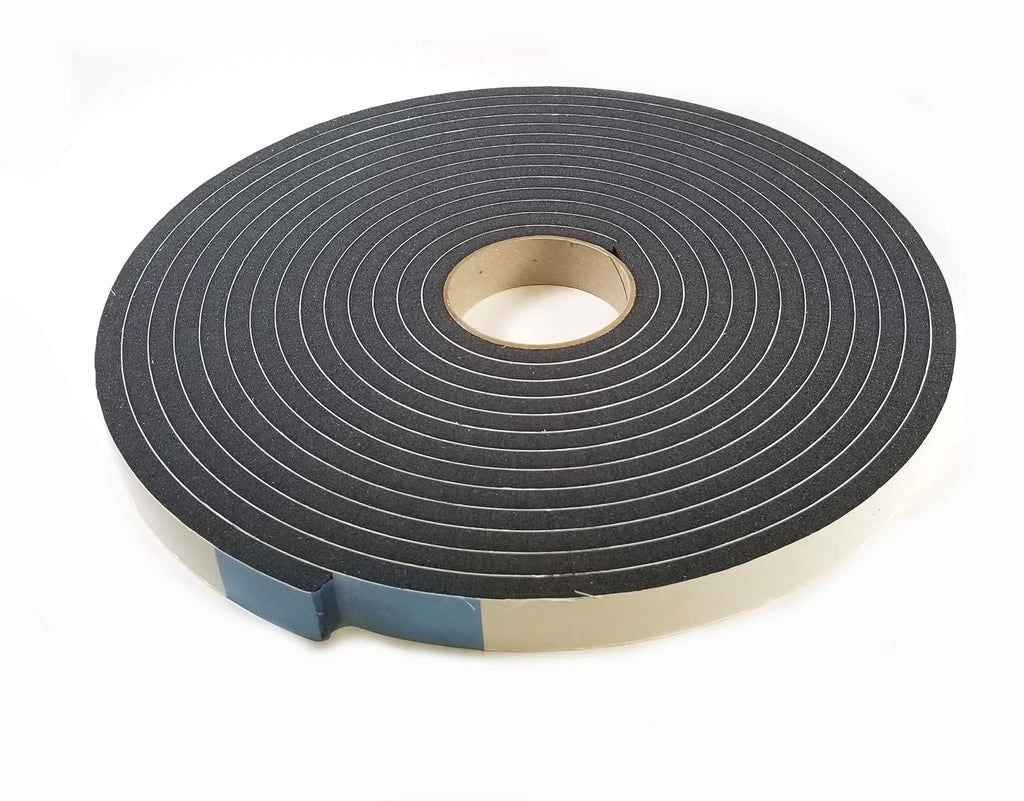

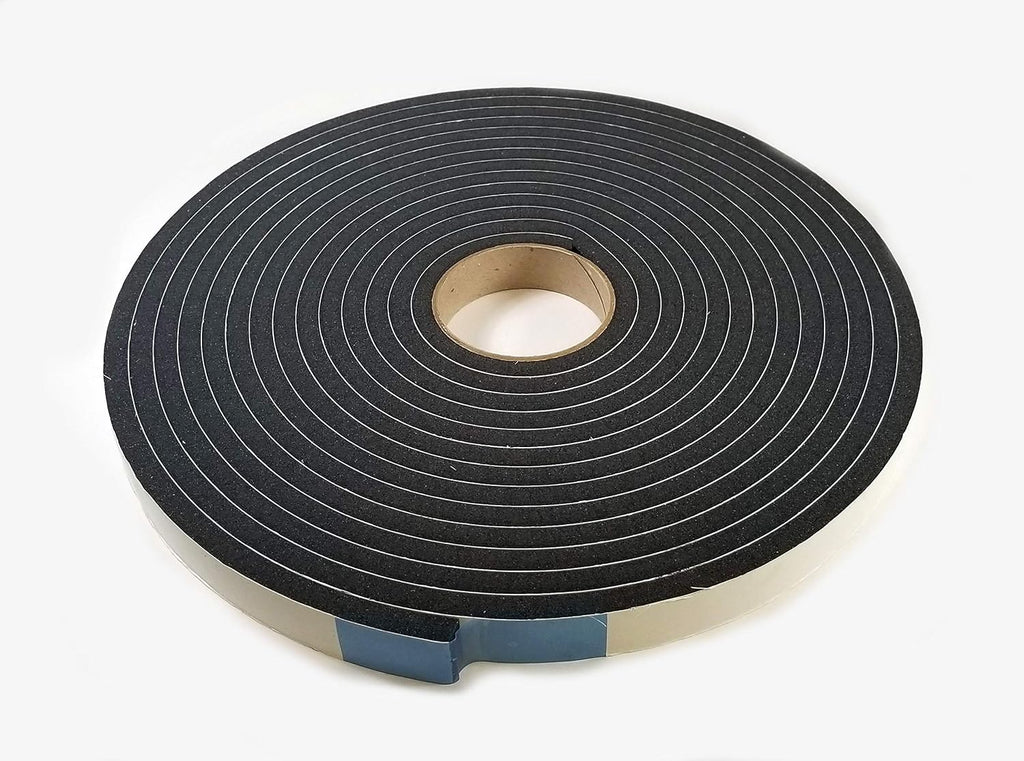

Light Density Vinyl Foam Tape For Trailer RV Heating – 3/8" x 1" x 30'
General purpose light density vinyl foam tape for trailer, truck, RV, heating, sealing, gasketing, and radius-curve applications. Designed to compress easily and help create a positive seal on irregular surfaces.
Part Number: TPV710616 3/8" x 1" x 30' Closed-Cell PVC Foam
Key Measurements & Specs
| Specification |
Detail |
| Part Number / SKU |
TPV710616 |
| Product Type |
Light density vinyl foam sealing tape |
| Size |
0.375" thick x 1" wide x 30' long |
| Material |
Closed-cell Polyvinyl Chloride foam |
| Backing / Carrier |

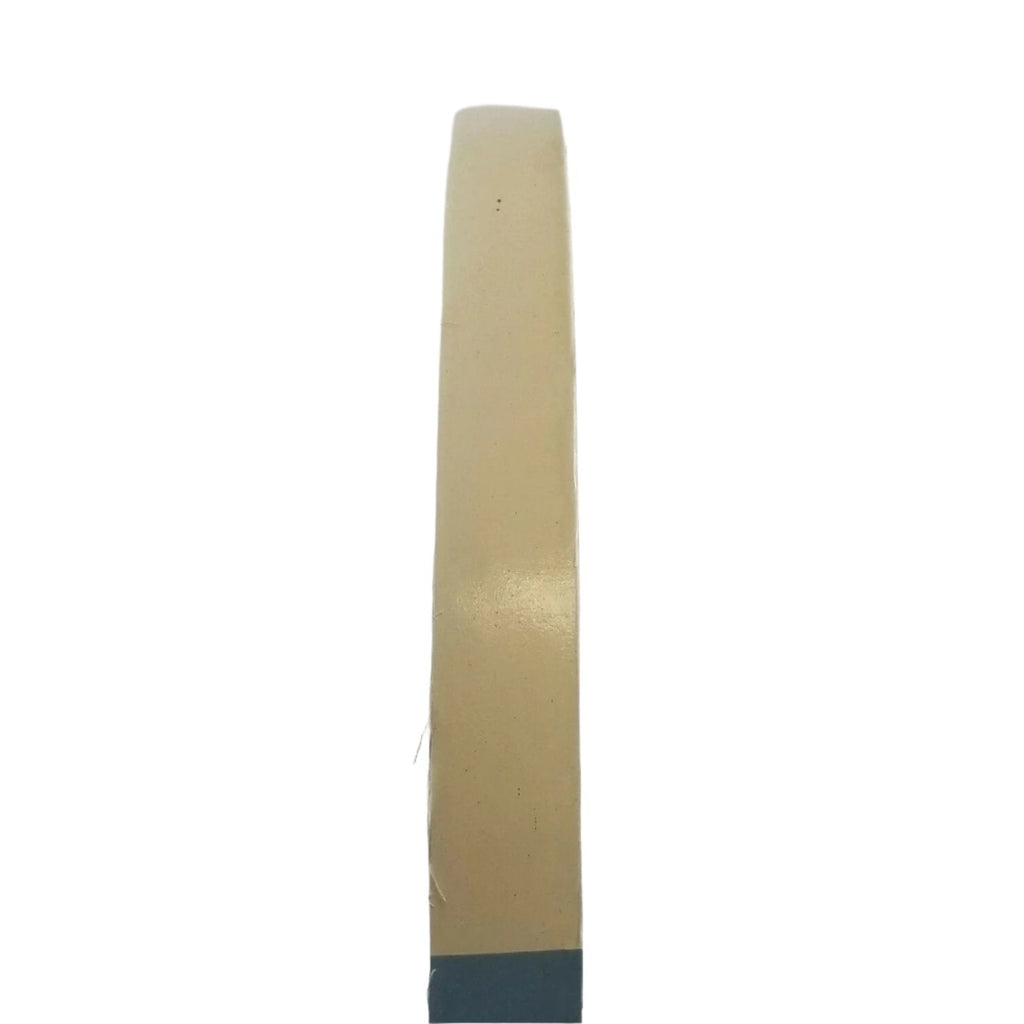

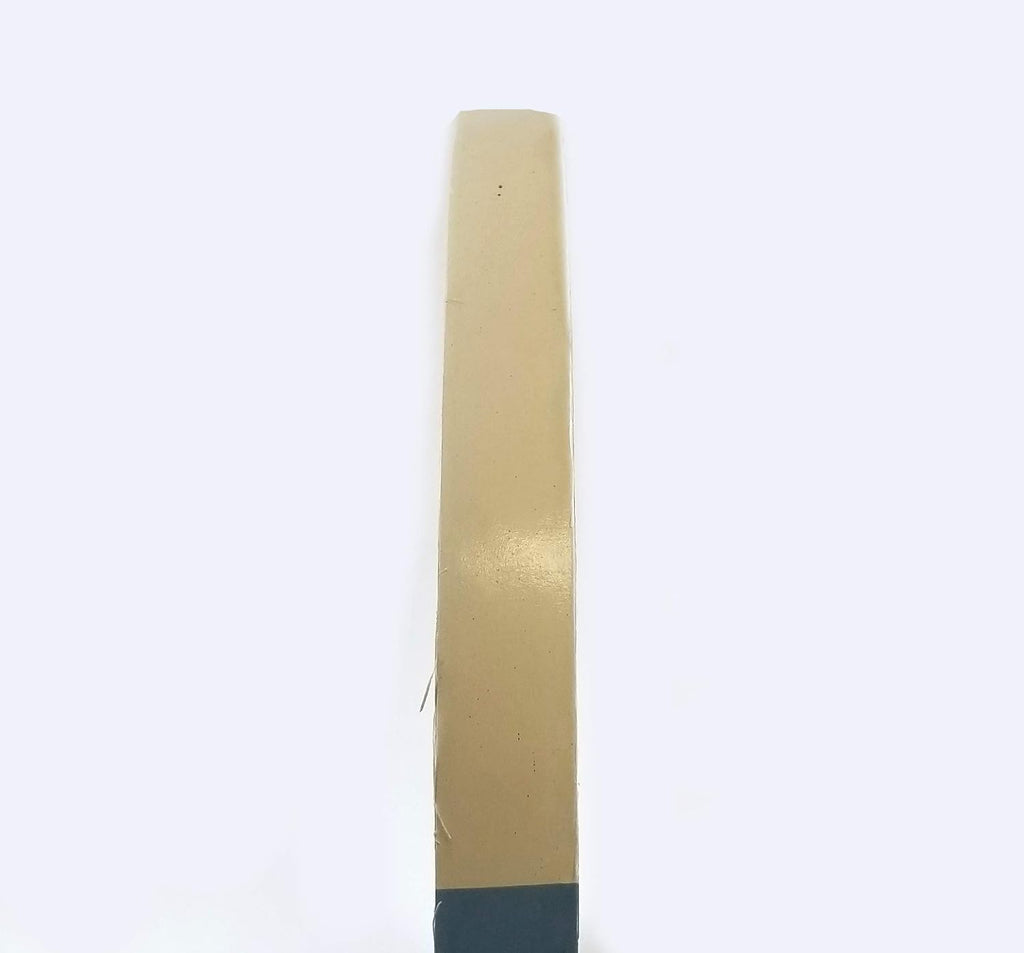

Cast on 7 mil clay coated paper |
| Quantity Included |
1 roll |
Fitment / Application
| Category |
Details |
| Vehicle / System |
Trailer, truck, RV, heating, sealing, and general gasket applications |
| Primary Use |
Positive seal for irregular surfaces and radius-curve applications |
| Fitment Method |
Match tape width, thickness, length, compression need, and service temperature range before ordering |
| Important Note |
Application is measurement-based; verify surface type, temperature range, and compression requirements before installation |
Top Features
| Feature |
Buyer Benefit |
| Light Density Foam |
Compresses easily for sealing uneven or curved surfaces |
| Closed-Cell PVC |
Designed for sealing applications where resilience and conformability matter |
| Weather Resistance |
Offers resistance to oxidation, weather, and fungi |
| 30 Foot Roll |
Useful roll length for trailer, RV, truck, and shop service applications |
Overview

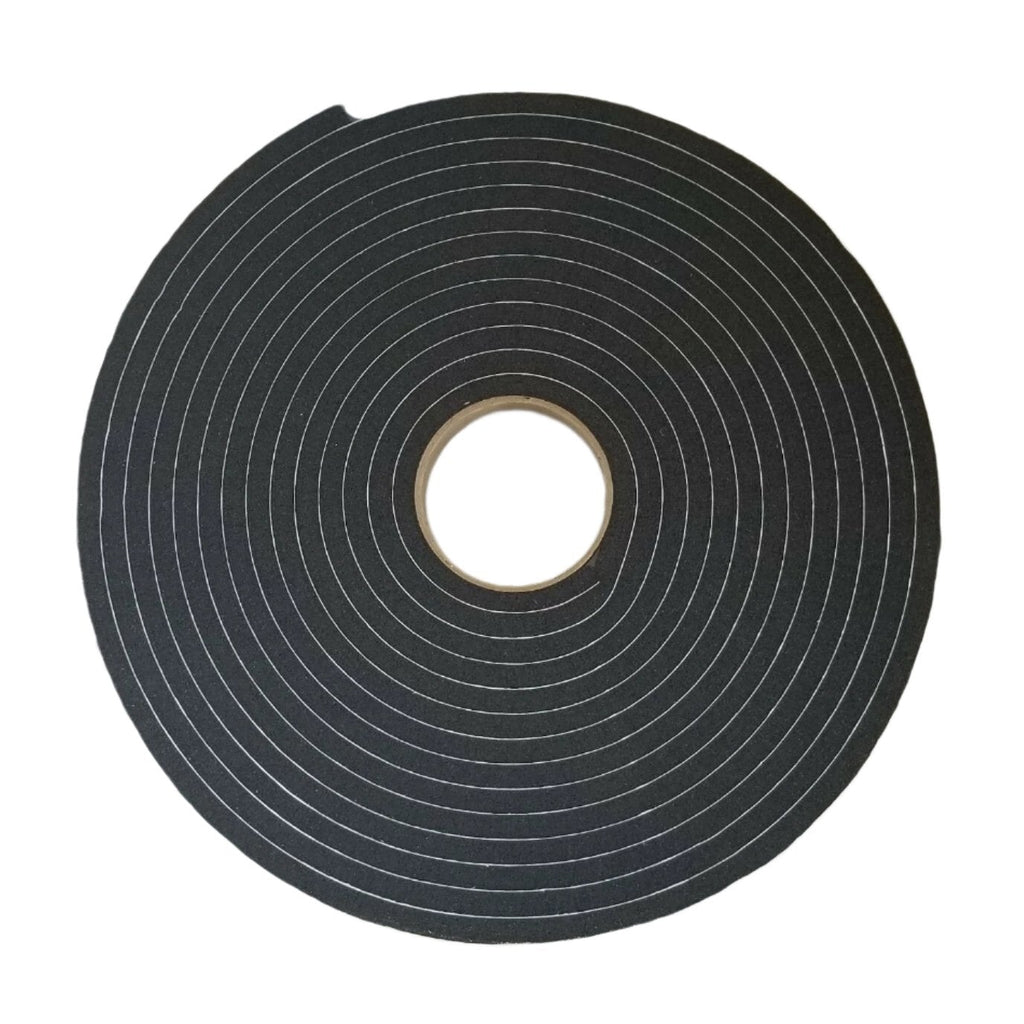

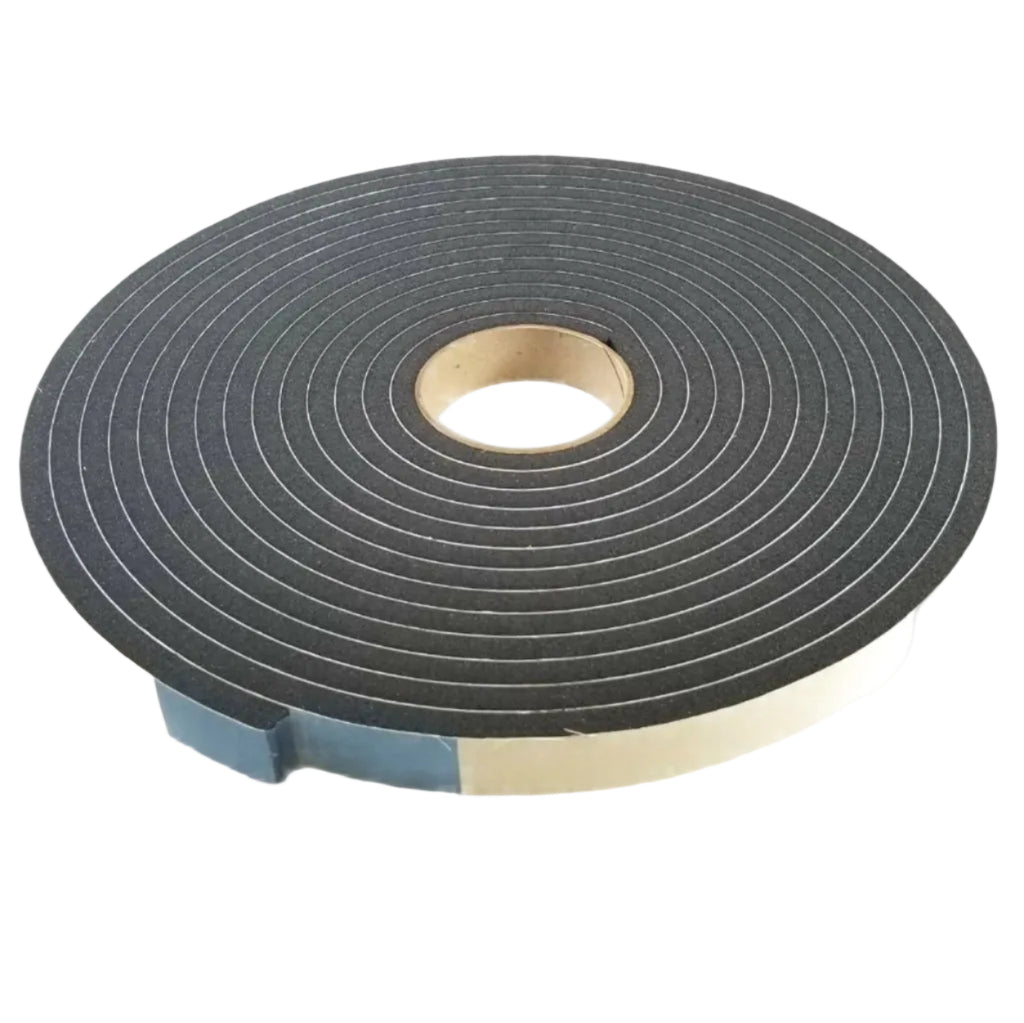

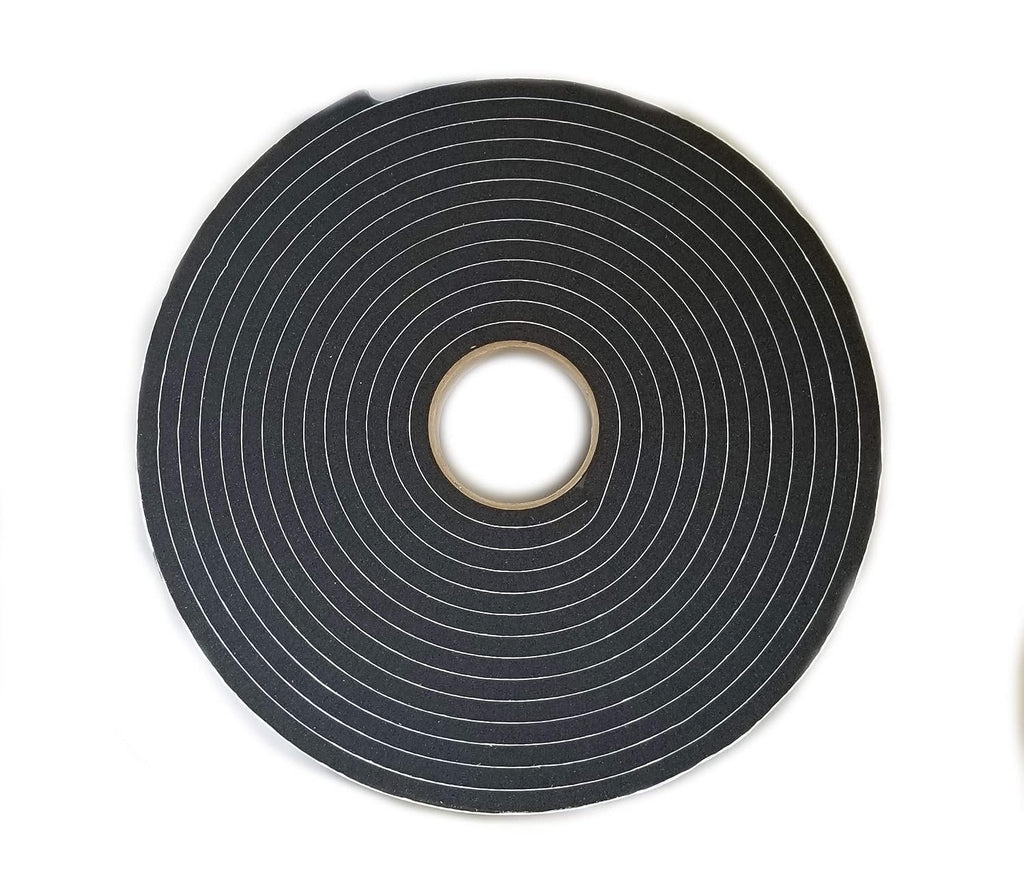

This TPV710616 light density vinyl foam tape measures 0.375" thick by 1" wide by 30' long. It is a closed-cell Polyvinyl Chloride foam tape designed for general purpose sealing, gasketing, and cushioning applications where the tape needs to conform to irregular surfaces or radius curves.
R&P Service Insight
Foam sealing tape should be selected by size, compression behavior, surface conditions, and operating temperature. For trailer and RV service work, the right tape thickness and width can help improve sealing around panels, trim, HVAC areas, and other mating surfaces.
-
Surface Prep: Clean and dry the mounting surface before applying adhesive-backed foam tape.
-
Compression: Light density foam compresses easily, making it useful where conformability is required.
-
Application Check: Verify the tape is suitable for the temperature and surface conditions of the job.
R&P Knowledge Hub
Compatibility: Best matched by tape thickness, width, roll length, compression needs, and service environment.
Vehicle / System Fit: General trailer, truck, RV, heating, sealing, gasketing, and shop-use applications where 3/8" x 1" foam tape is required.
Installation Notes: Apply to a clean, dry surface. Avoid stretching the foam during installation, and press evenly along the full contact area.
Performance Insight: Closed-cell PVC foam provides conformability, strength, resilience, and resistance to oxidation, weather, and fungi.
Brand & Fitment Note
Selling Brand: R&P Carriages
Application Reference: Trailer, truck, RV, heating, and sealing references describe common use cases only.
What This Means: This listing is for one roll of TPV710616 light density closed-cell vinyl foam tape, not a vehicle-specific OEM replacement part.
Before Ordering: Verify tape size, surface type, compression requirement, temperature range, and application environment before installation.
R&P Repair Insight
Foam tape is commonly used when two surfaces need a compressible sealing layer. For best results, confirm the tape will compress enough to close the gap without over-compressing or bunching during installation.
-

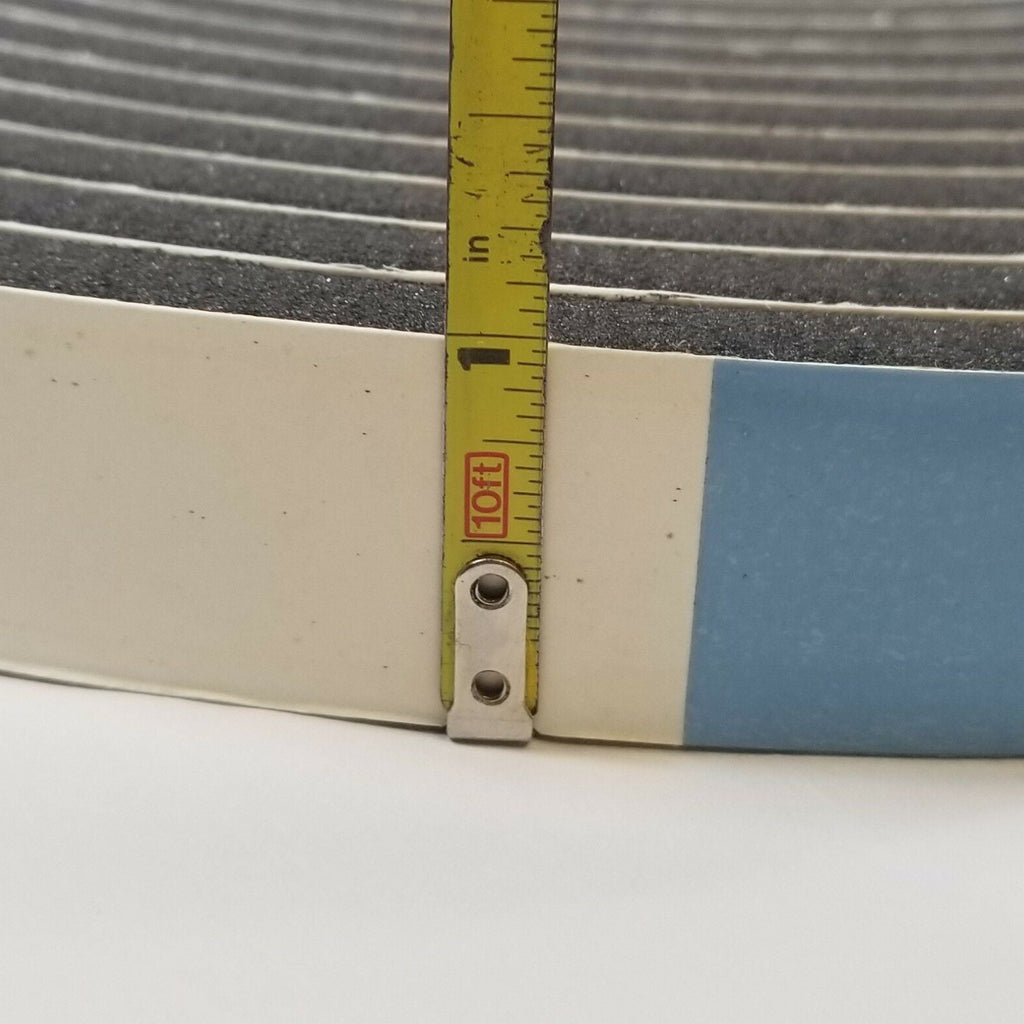

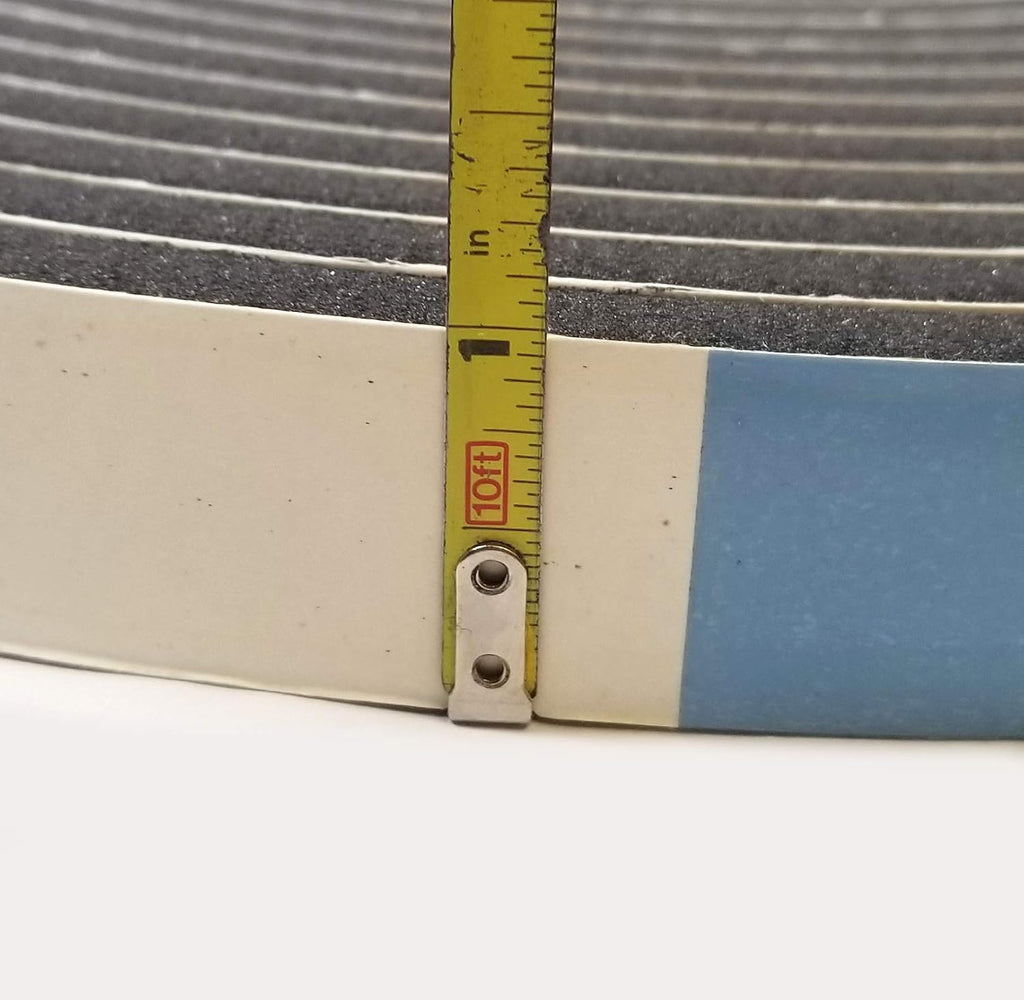

Check the Gap: Confirm the 0.375" thickness is appropriate for the surface gap being sealed.
-

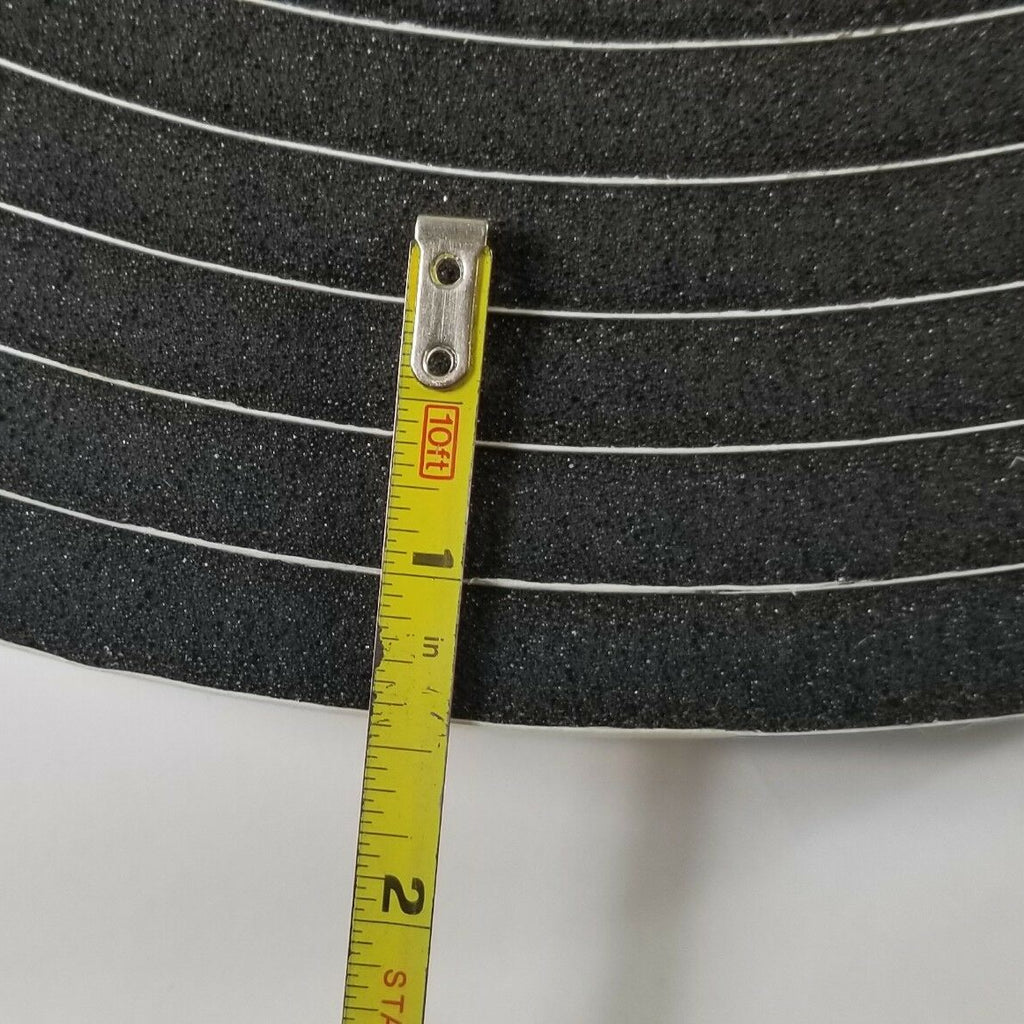

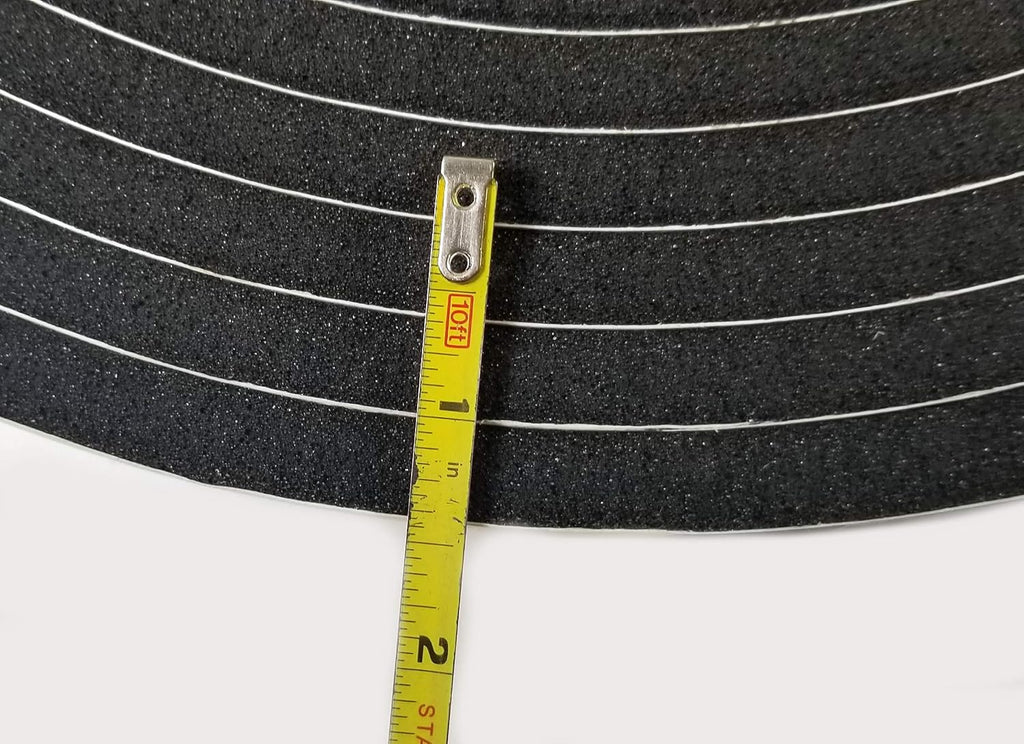

Check the Width: Make sure the 1" tape width provides enough contact area for the sealing surface.
-
Check the Temperature: Service temperature is listed from -40 to 180 degrees, with application temperature listed from 50 to 110 degrees.
Physical Properties
| Property |
Listed Detail |
| Density / Hardness |
7 lbs./cu. ft. / 14 Shore 00 |
| Compression Deflection |
0.8 psi @ 25% |
| Compression Set |
4 @ 25% |
| Tensile Strength |
25 psi |
| Elongation |
150% |
| Thermal Conductivity |
0.27 K factor |
| Service Temperature |
-40 to 180 degrees |
| Application Temperature |
50 to 110 degrees |
Features
Light Density Construction
Designed to compress easily for sealing surfaces that are not perfectly flat or uniform.
Closed-Cell Vinyl Foam
Closed-cell Polyvinyl Chloride foam helps provide conformability, strength, and resilience in general purpose sealing applications.
Radius Curve Friendly
Useful for applications where the tape needs to follow curved surfaces or irregular sealing paths.
Weather-Resistant Design
Listed with resistance to oxidation, weather, and fungi for trailer, truck, RV, and shop environments.
Included Components
| Quantity |
Item |
| 1 |
Light density closed-cell vinyl foam tape roll, 0.375" x 1" x 30' |
| Not Included |
Surface cleaner, primer, tools, or installation hardware |
Important Fitment Note: This is a general purpose foam sealing tape. Verify thickness, width, length, surface compatibility, temperature range, compression requirements, and intended use before installation.
