2-Trailer Axle Spindle Seal Repair Sleeve Kit 2000# Axel 1.98 OD #5 Spindo 44649 (05619U)

UFP

Regular price $35.99

2 - 1.98" Seal Spindo Seal Axle Repair Kit #5

Fits many 2000# Spindles Marine axles from UFP and Reliable

Part Number - 05619U

Spindo Seal is a high quality seal system designed to end grease leakage. Seals will last many years because they ride on a permanently smooth, corrosion-proof surface constantly greased by the action of the pressurized bearing protector.

This Sleeve will repair Damages seal area on SOME 2000# Trailer axles (UFP, and others) using 1-1/16 inch bearings and 1.25" seals. WILL NOT work with 1.5" seals.

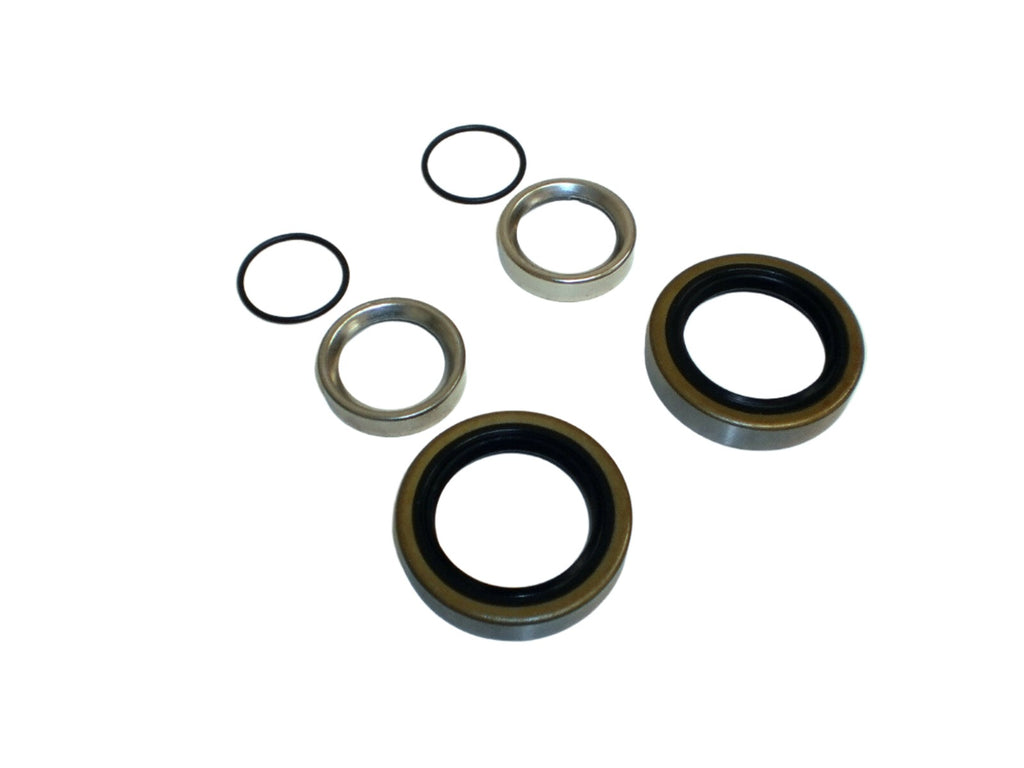

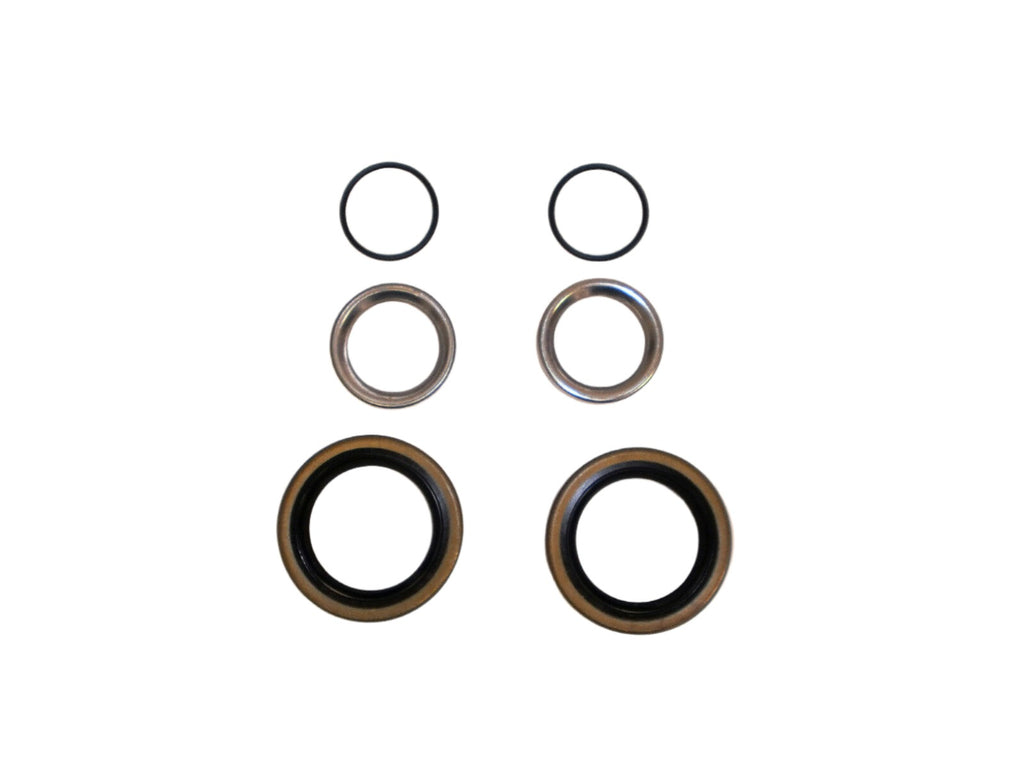

Kit includes:

[2] Corrosion Proof Stainless Steel Rings, 1.0625" shaft size, 1.319" ID (to fit over 1.25" damaged seal area)

[2] Rubber O Rings to seal sleeve to spindle

[2] Neoprene Seals to fit the new wear sleeves 1.375" ID.

That is enough to end Grease Leakage on an entire axle.

This Kit Fits:

Typical Inner Bearing Sizes: L-44649
Seal Outside Diameter: 1.98" OLD SEAL ID 1.25"

READ THIS:
This kit fits SPECIAL 2000/2200 pound axles found on SOME trailers, using 1.0625 inch bearings (L44649)and 1.25' seals.
<<<<<<<BUT>>>>>>>
THIS IS NOT A COMMON SEAL/ BEARING COMBINATION!!
(it is used only by a few companies, usually for boat trailers )

Many 2000/2200# "Standard Trailer" axles use 1-1/16" bearings (#L44649) and 1.50" ID seals. This kit WILL NOT work with that spindle!
(the wear sleeve is 1.319", so it will NOT fit over a 1.50" damaged seal area!. They DO NOT make a kit to repair that spindle, sorry)

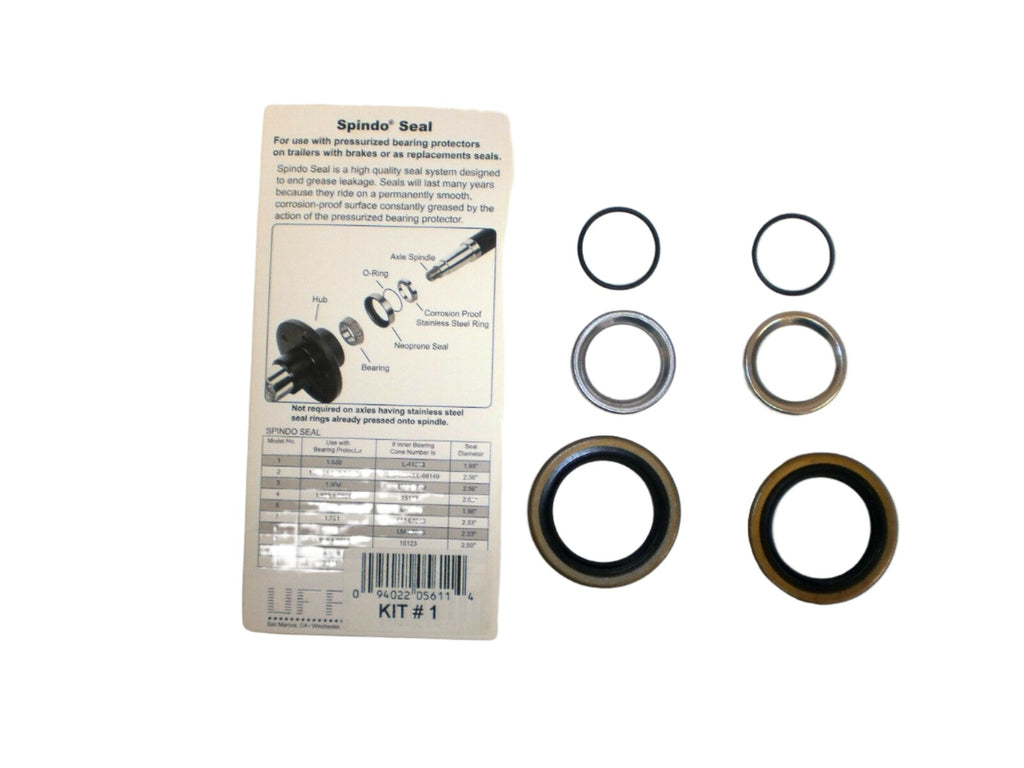

Kit number 1 below:

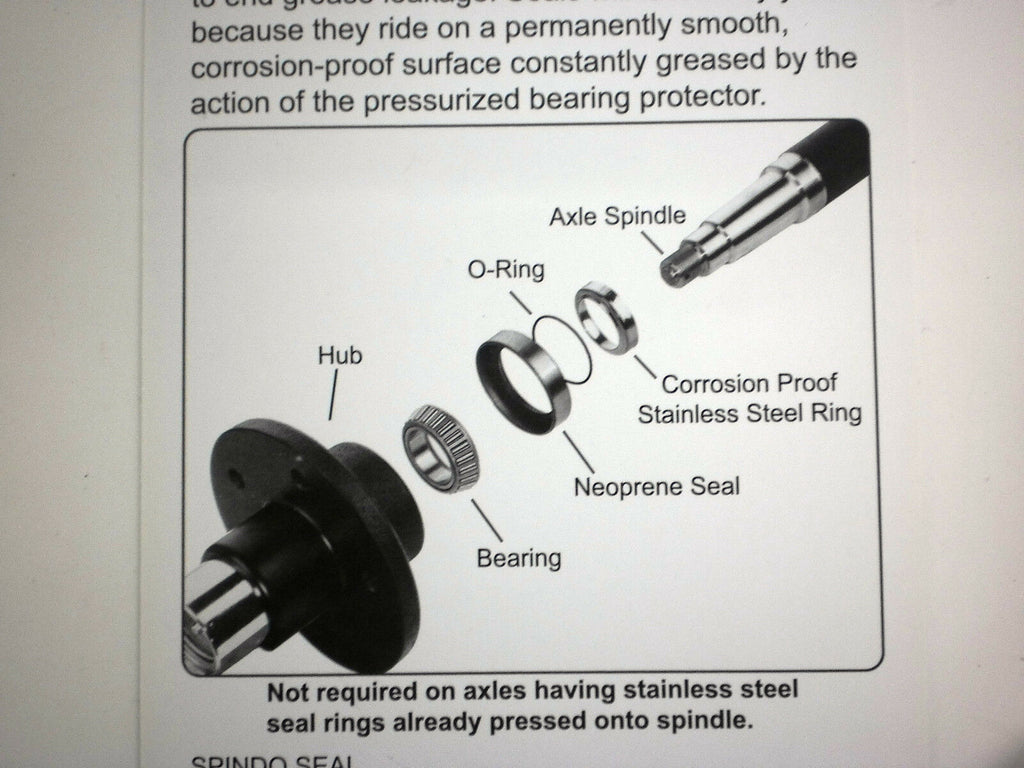

Below is a Diagram of How this Kit works:

2-Trailer Axle Spindle Seal Repair Sleeve Kit 2000# Axel 1.98 OD #5 Spindo 44649 (05619U)

2 - 1.98" Seal Spindo Seal Axle Repair Kit #5

Part Number - 05619U
