UFP DB-35 10" Vented Disc Brake Rotor/Hub 5x4.5 3750# 13-15" Trailer Wheel 17mm (41019U)

UFP By Dexter

Regular price $125.99

 DB-35 10" 5x4.5 Vented Disc Rotor/Hub
PN: 41019U

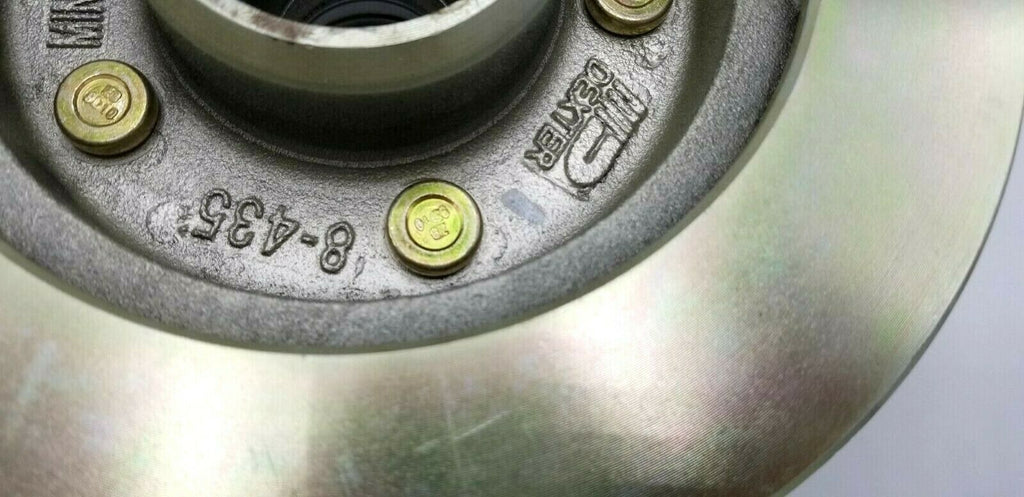

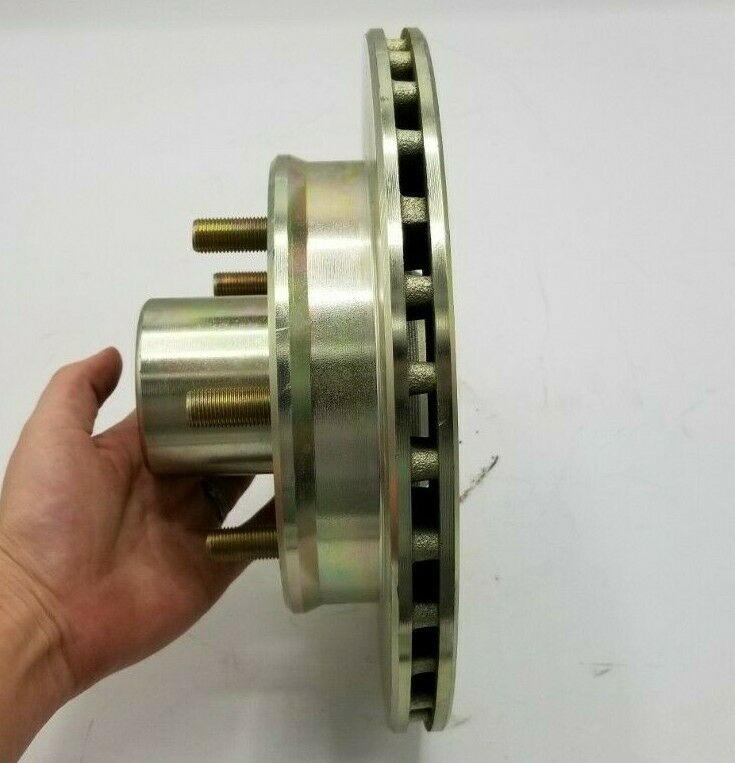

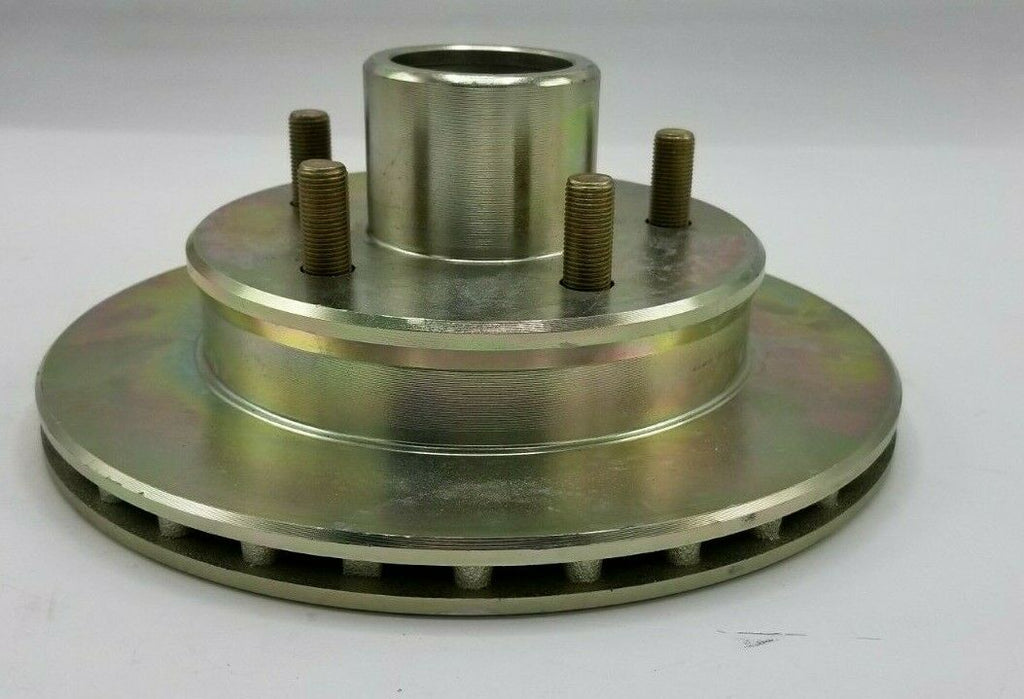

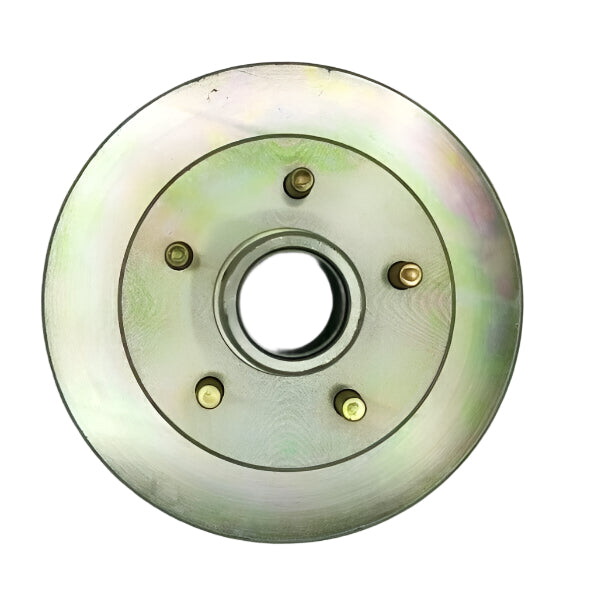

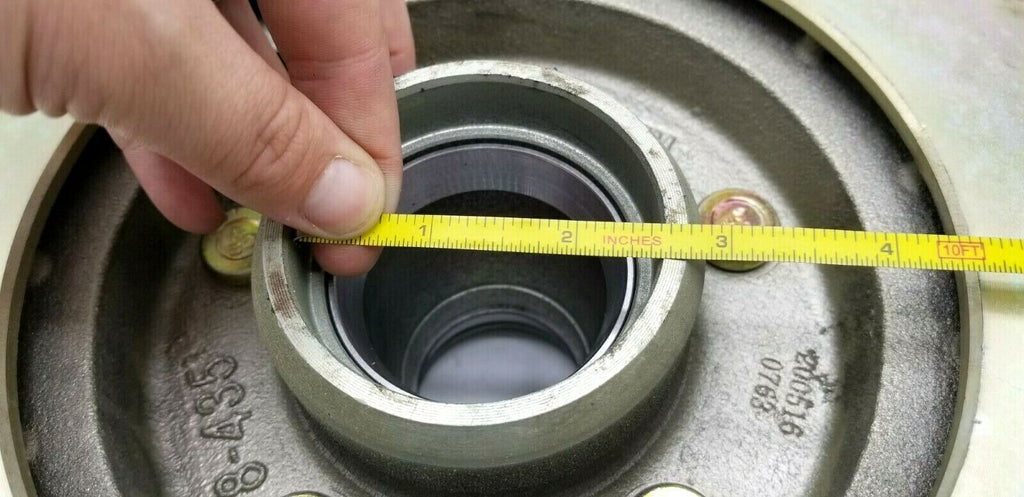

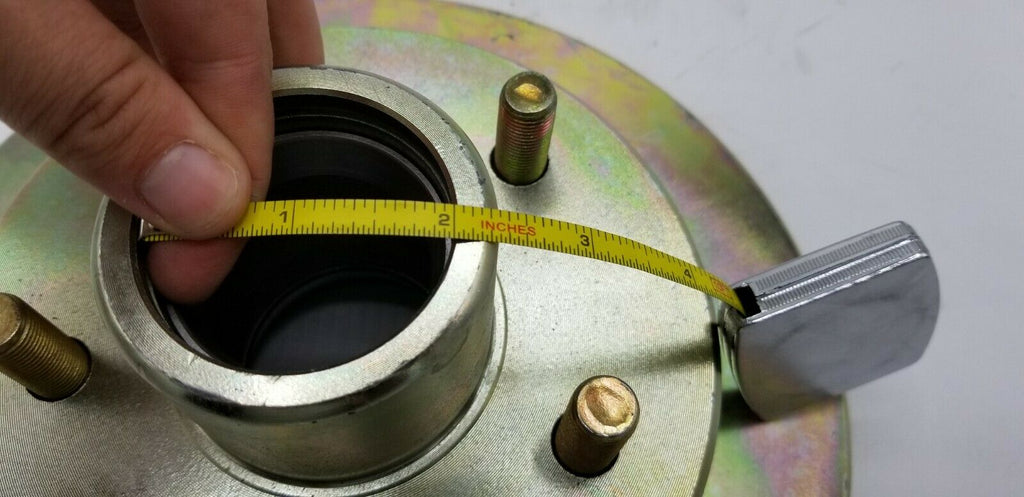

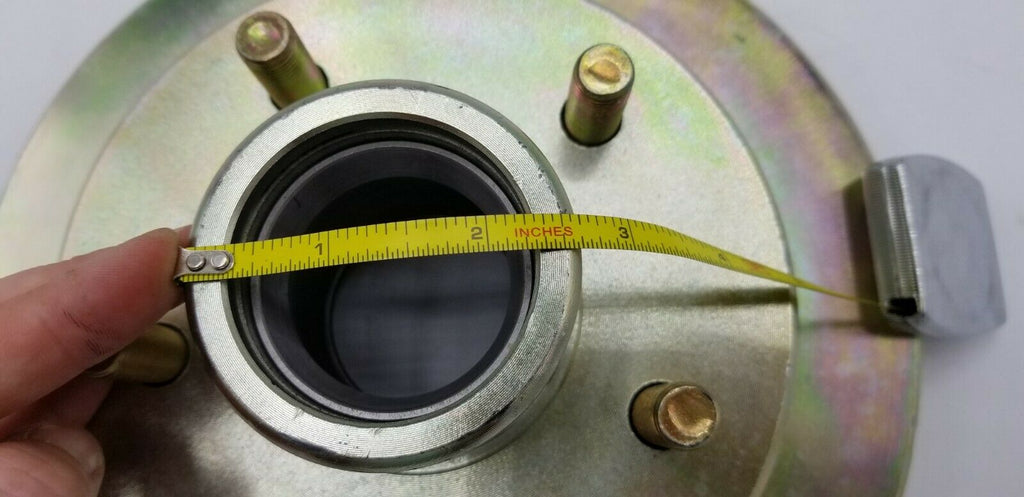

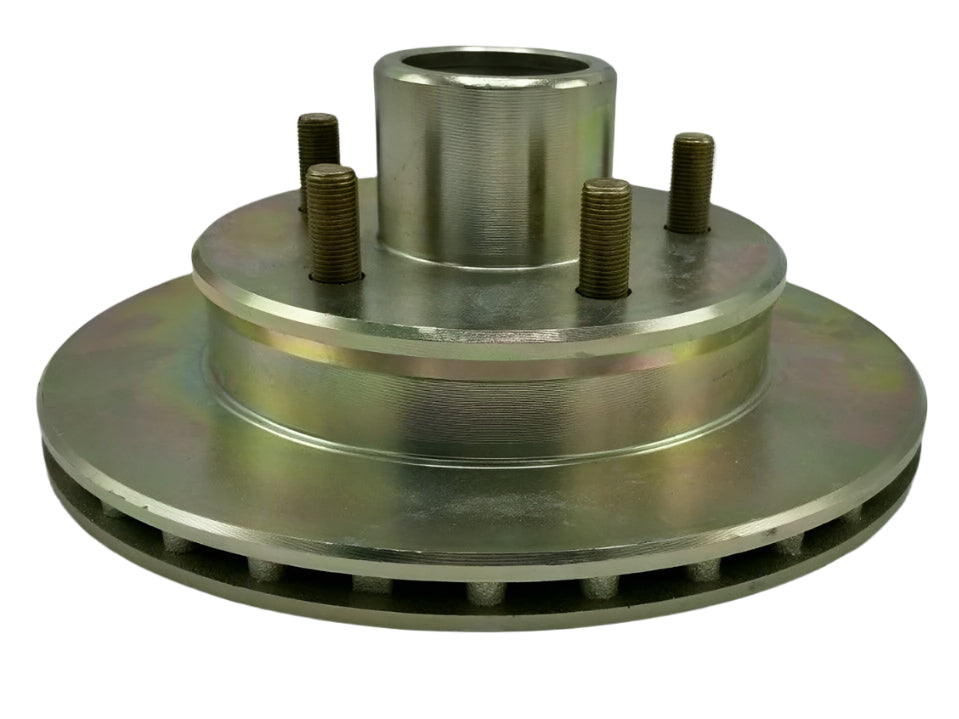

This DB-35 disc brake rotor is zinc-plated and vented to help dissipate heat. This UFP product can be used with trailer axles that have are rated up to 3750 lbs, so it will work with the common 3500 lb axles, and they can be used with 13", 14", and 15" wheels. You get what you see in the pictures!

Spindle Size: 1-3/8" x 1-1/16" tapered

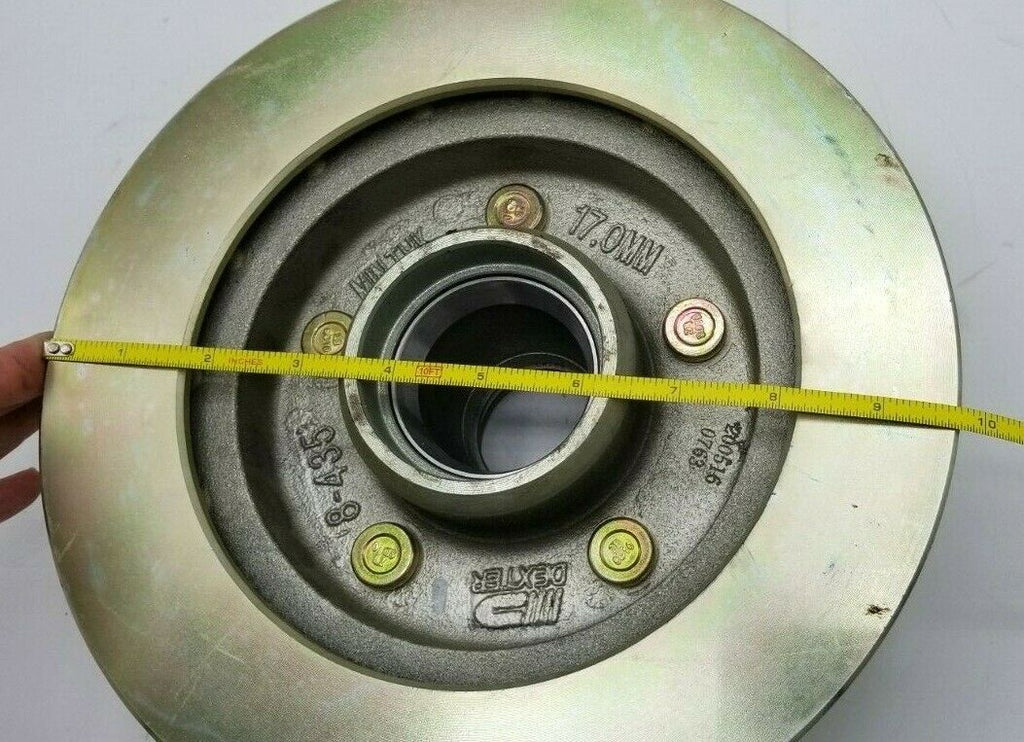

Diameter: 9-3/4"

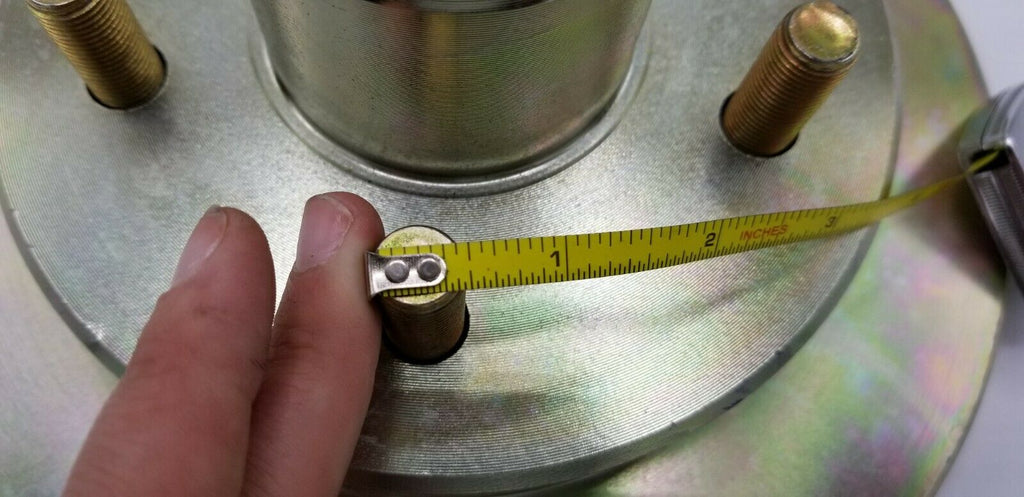

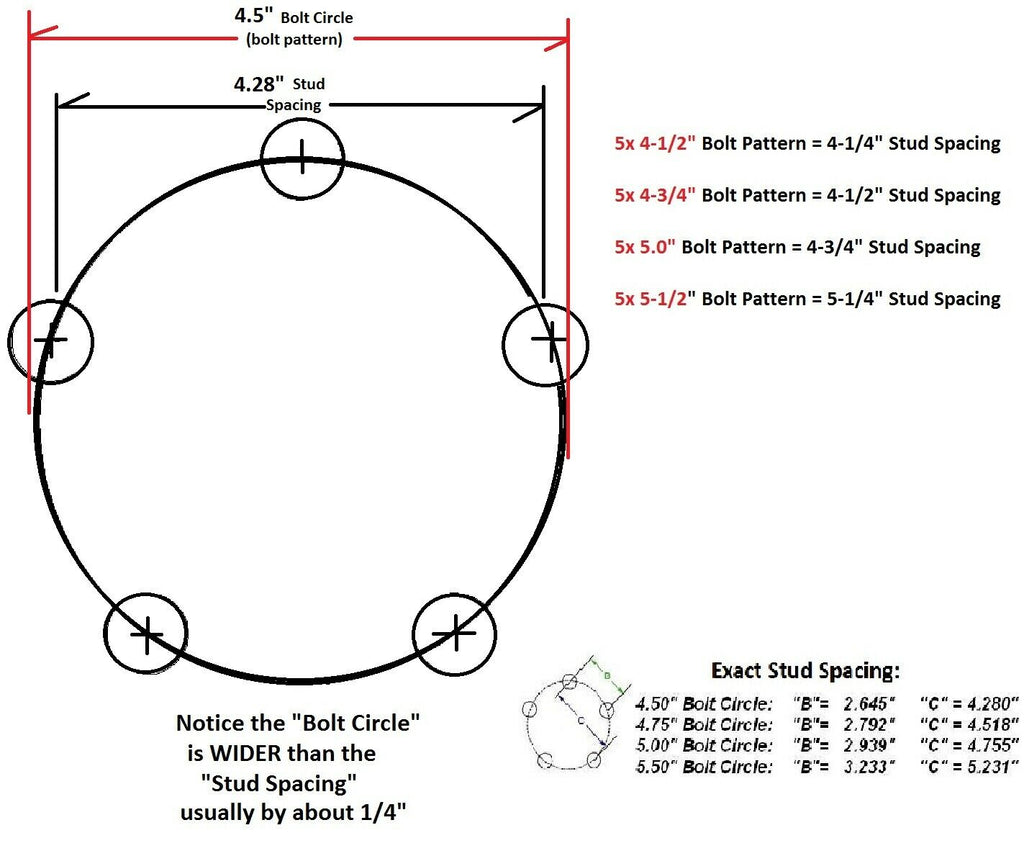

Bolt circle:
5 on 4-1/2"
Inner Bearing: 1-3/8" (L68149) Not included
Inner Race: L68110 (Included)
Outer Bearing: 1-1/16" (L44649) Not included
Outer Race: L44610 (Included)
Seal: 2.56" x 1.68" not included

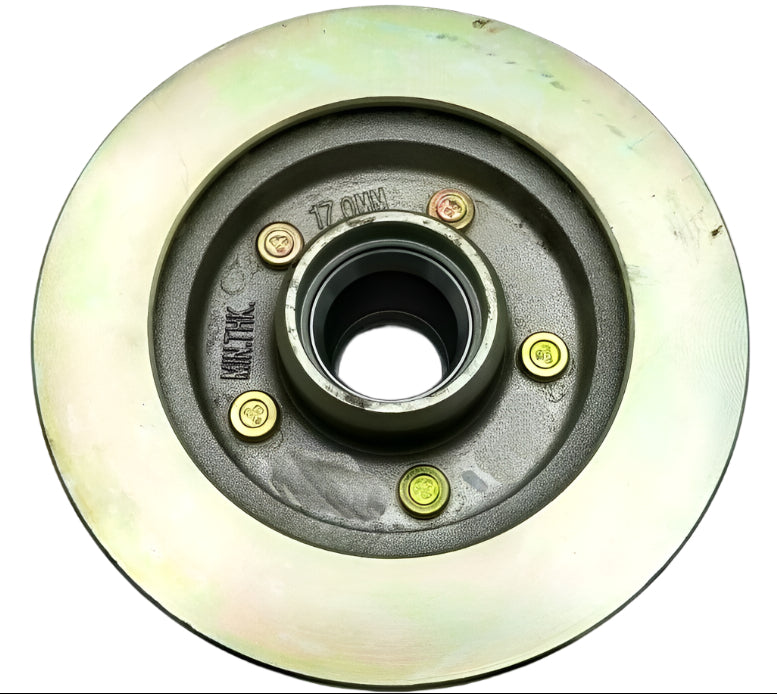

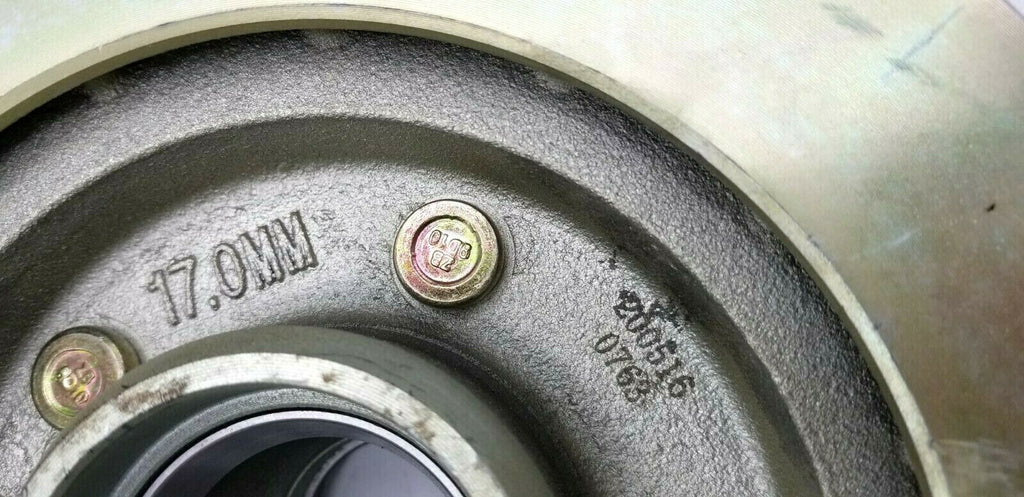

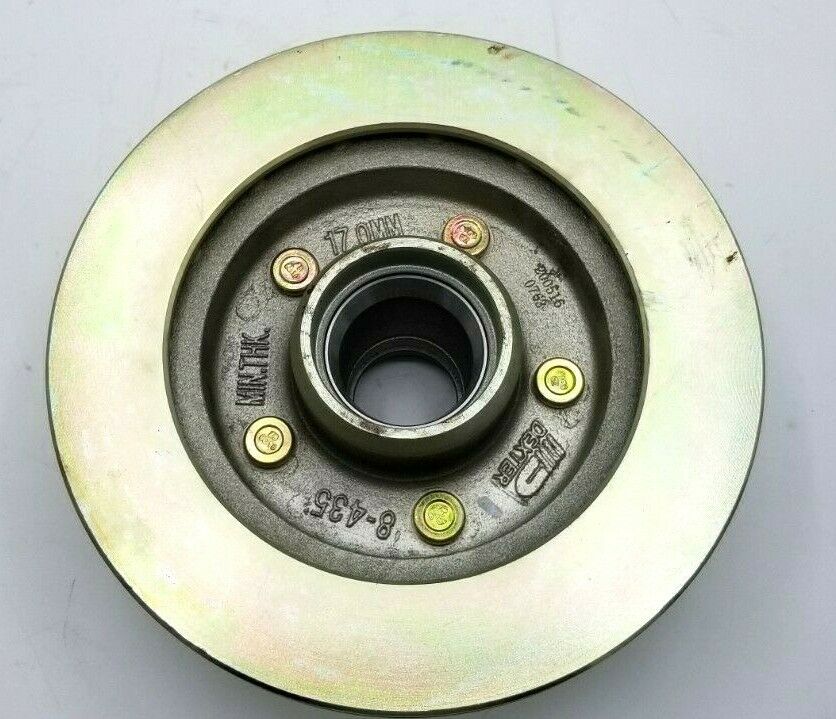

Minimum Thickness: 17mm
