At a Glance
- >Press-in style trailer wheel stud
- >1/2"-20 fine thread (20 threads per inch)
- >2" overall length
- >Zinc finish for corrosion resistance
- Brand: Dexter
- SKU: 7-246-1
Before You Order
Match the part number, measurements and connection points that apply to your trailer.
Fitment Check
| Opening | Measure the existing roof or wall opening. |
|---|---|
| Flange | Confirm overall and flange dimensions. |
| Operation | Confirm powered, manual or fixed operation. |
| Mount / Power | Verify mounting and electrical requirements. |
Product Details

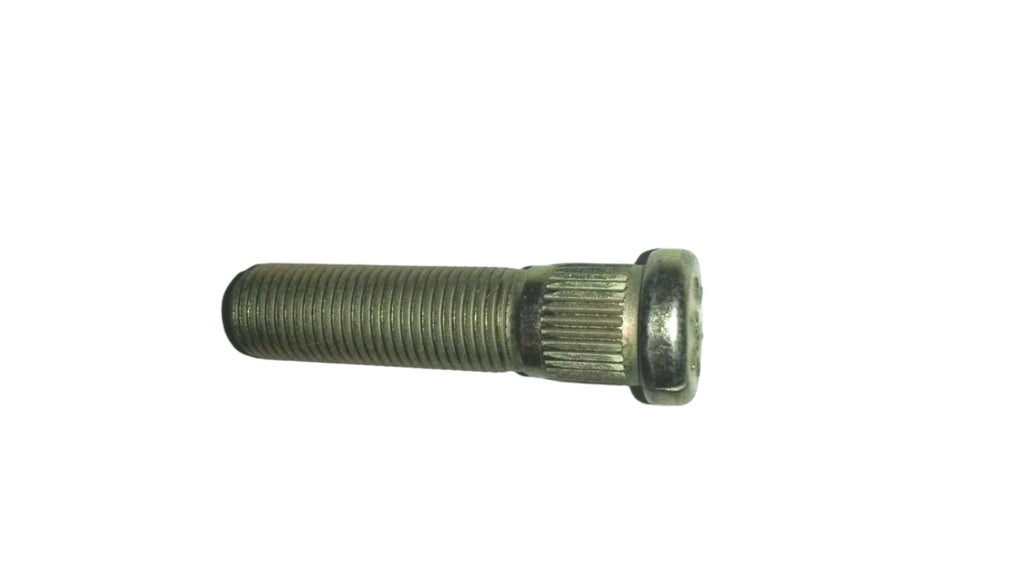

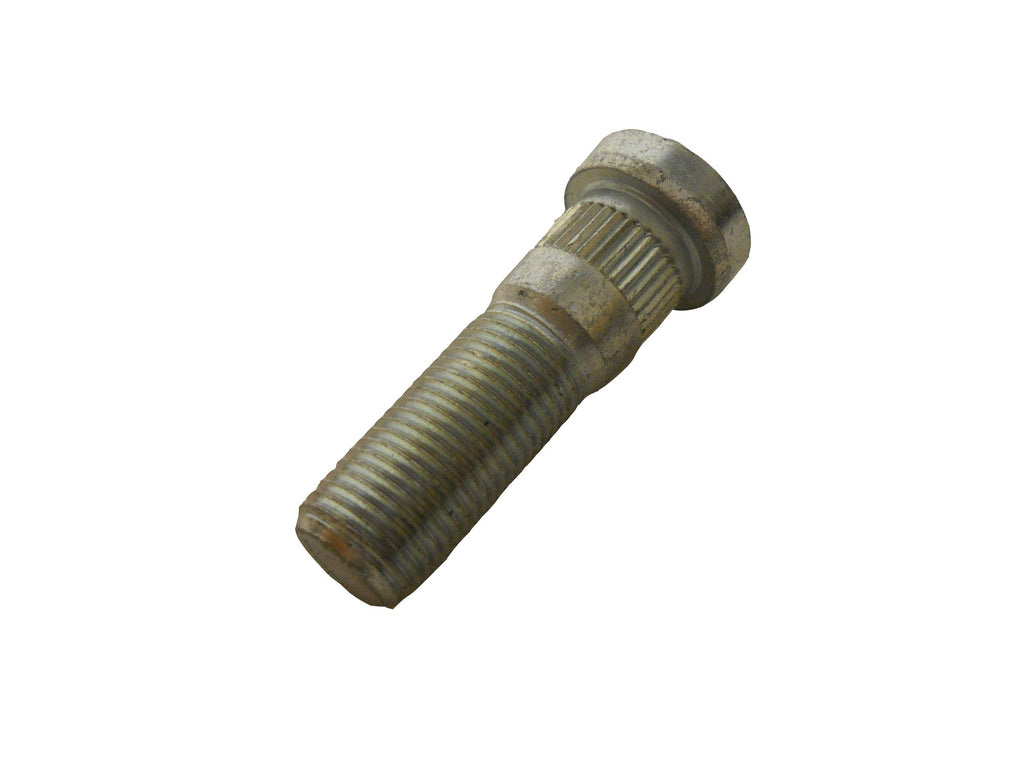

1/2"-20 x 2" Press-In Trailer Wheel Stud
Cross Reference: LB2.0 | 7-246-01
Heavy-duty press-in wheel stud designed for trailer hub and drum applications. Sold individually — purchase the quantity needed for your hub.
Ideal replacement for rusted, stripped, or damaged studs. Confirm thread count, knurl diameter, and length before ordering.
Features
- Press-in style trailer wheel stud
- 1/2"-20 fine thread (20 threads per inch)
- 2" overall length
- Zinc finish for corrosion resistance
Specifications
| Thread Size | 1/2"-20 |

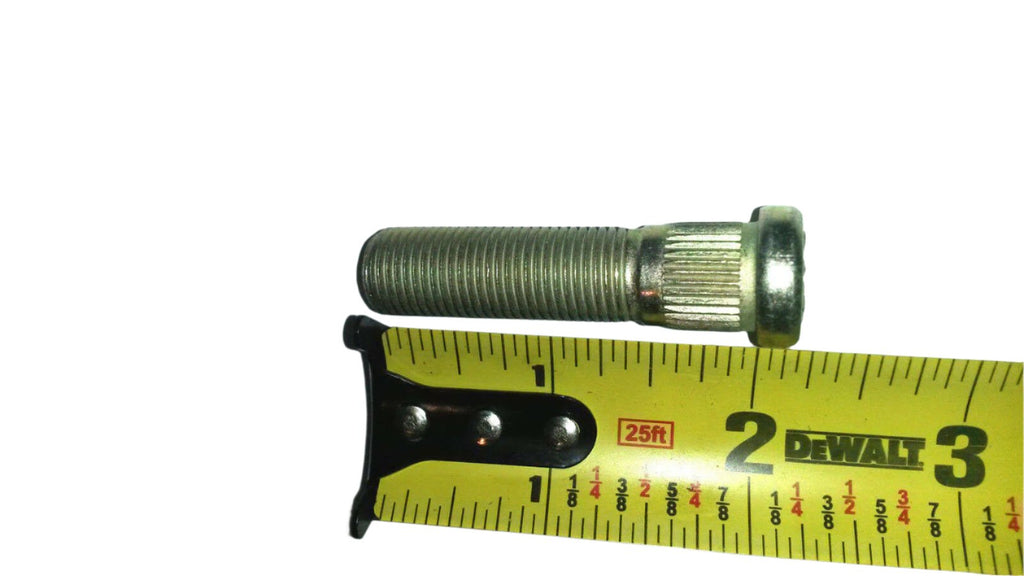

| Overall Length | 2" |
| Thread Length | 1.2" |
| Insert Length | 1/2" |
| Knurl Diameter | 0.545" |
| Finish | Zinc Plated |
| Quantity | Sold Individually |
R&P Knowledge Hub
Press-in wheel studs must match the hub bore (knurl diameter) for proper interference fit. Always measure the old stud’s knurl diameter and overall length before replacing.
Press installation is recommended. Do not draw studs in using lug nuts, as this can damage threads or prevent proper seating.
IMPORTANT: Verify thread size, knurl diameter, and overall length before ordering.
