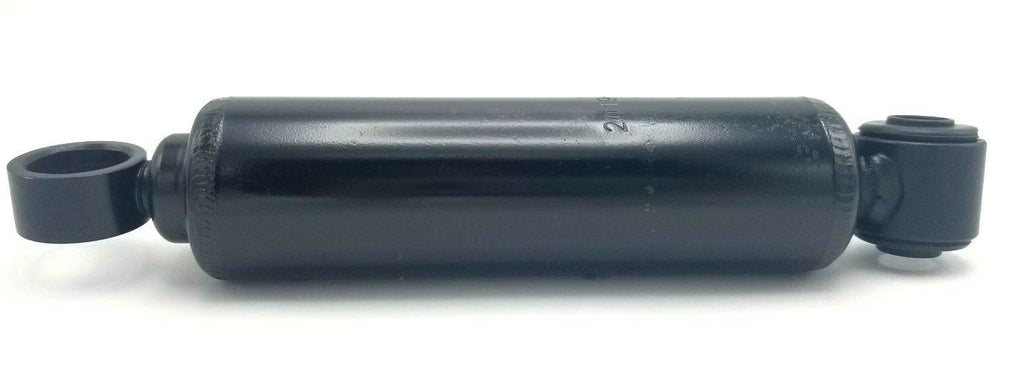

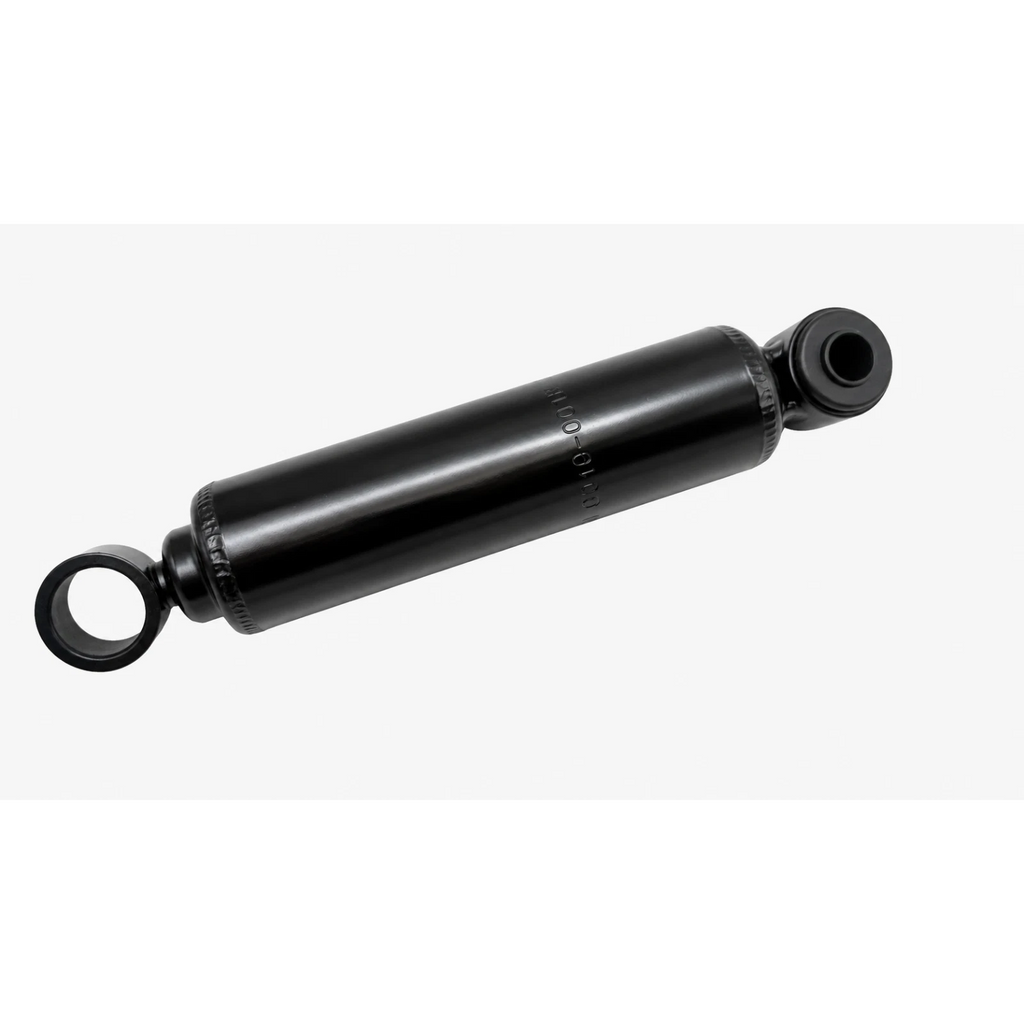

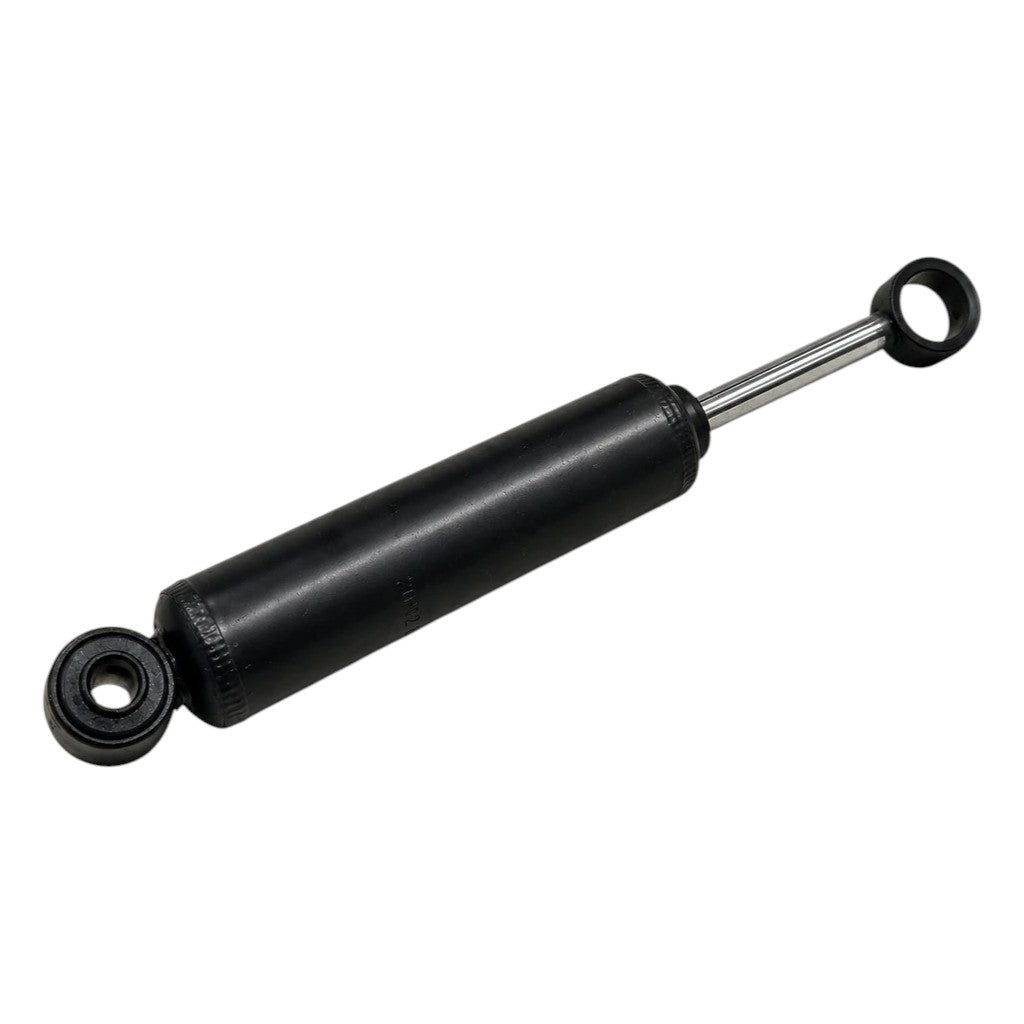

Replacement Shock For Titan Model 20 Brake Trailer Actuator
Replacement shock for Titan Model 20 surge brake actuators. Helps restore controlled actuator travel when the original damper is worn, leaking, damaged, seized, or no longer operating correctly. Important Note: Takes two per actuator.
Overview
This listing is for one replacement shock used with Titan Model 20 brake actuators. The actuator shock helps control the movement of the surge brake actuator as the trailer compresses and releases during braking. If the original shock is leaking, loose, bent, seized, or no longer controlling actuator motion properly, replacing it with the correct part can help restore smoother braking response.
R&P Service Insight
Surge brake actuator parts should be matched carefully. Before ordering, compare the actuator model and the shock measurements against the part currently installed.
- Model Fit: Designed for Titan Model 20 brake actuators.
- Hole Sizes: Small mounting hole is 1/2" I.D.; large mounting hole is 7/8" I.D.

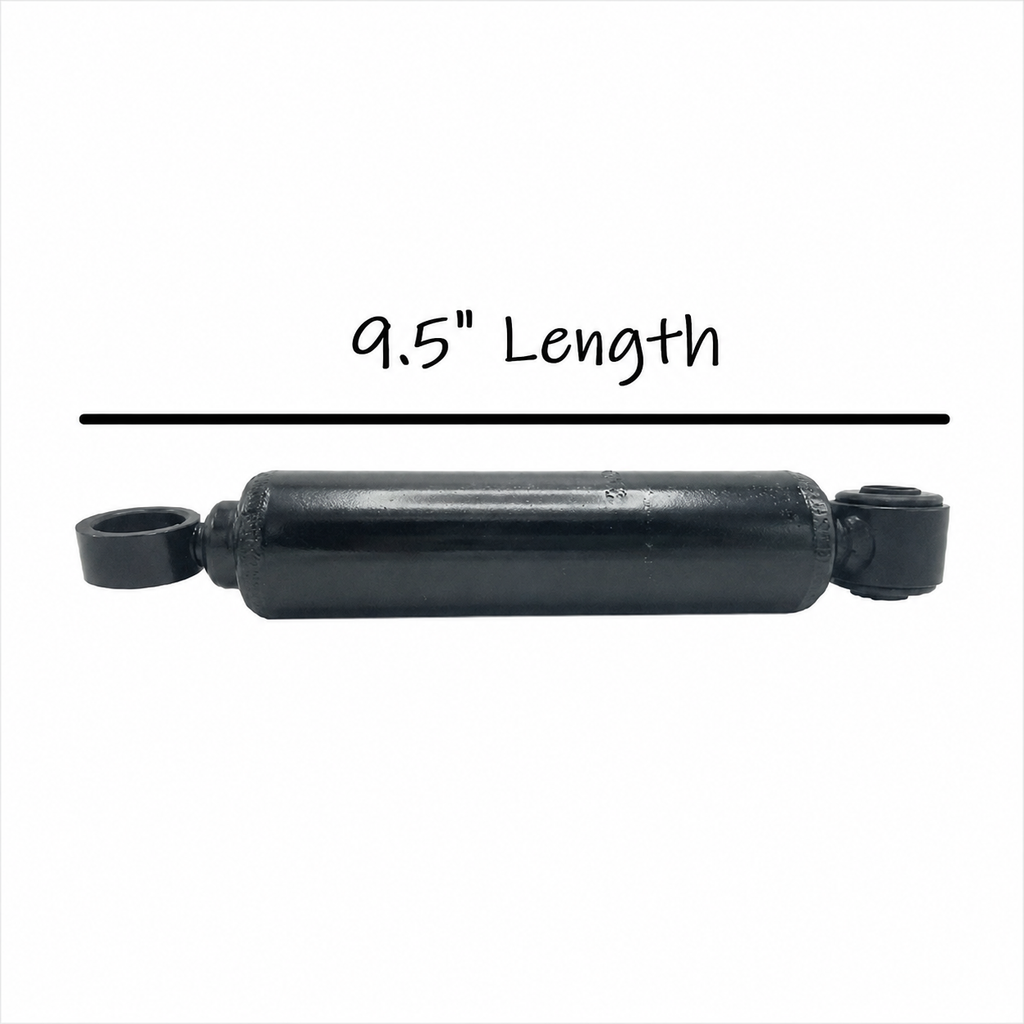

- Overall Length: Listed overall length is 9.5".
R&P Knowledge Hub
Compatibility: Fits Model 20 Titan brake actuators.
Vehicle / System Fit: Used in surge brake actuator assemblies on trailers equipped with compatible Titan Model 20 actuator hardware.
Installation Notes: Verify the actuator model, mounting hole sizes, and overall shock length before installation.
Performance Insight: A worn actuator shock can allow harsh coupler movement, inconsistent actuator travel, or rough braking feel.
Brand & Fitment Note
Brand / Application Reference: Titan Model 20 brake actuator replacement shock.

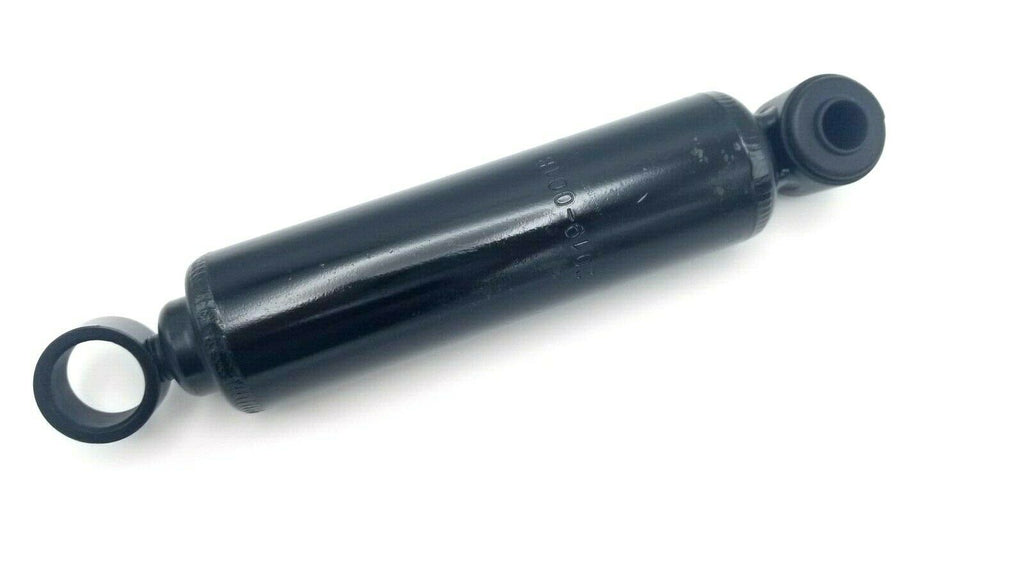

Part Number: T0778400.
What This Listing Includes: One replacement shock only. This listing does not include the complete actuator, pins, bushings, master cylinder, brake lines, or mounting hardware unless otherwise shown separately.
Before Ordering: Compare your existing shock, actuator model, mounting hole dimensions, and overall length to confirm fitment.
R&P Repair Insight
When replacing an actuator shock, inspect the surrounding actuator hardware at the same time. A new shock may not correct the issue if the actuator has worn pins, damaged linkage, excessive play, or other mechanical problems.
- Check Movement: The actuator should move smoothly without binding or excessive slop.
- Check Mounting Points: Inspect mounting holes, pins, and bushings for wear before reinstalling.
- Check Brake System: If braking remains inconsistent, inspect the actuator, master cylinder, brake lines, and brake assemblies.
Features
Model 20 Actuator Fit
Designed for use with Titan Model 20 brake actuators where the actuator model and measurements match.
Correct Mounting Hole Sizes
Includes a 1/2" inner diameter small mounting hole and a 7/8" inner diameter large mounting hole.
Replacement Damper Function
Helps control actuator movement during surge brake operation for smoother compression and release.
Single Shock Included
Listing includes one replacement actuator shock. Important Note: two shocks are required per actuator.
Specifications
| Specification | Detail |
|---|---|
| Part Number | T0778400 |
| Listing SKU | T0778400 |
| Brand / Reference | Titan Model 20 application |
| Product Type | Brake actuator replacement shock |
| Quantity Included | 1 replacement shock |
| Application | Titan Model 20 brake actuator |

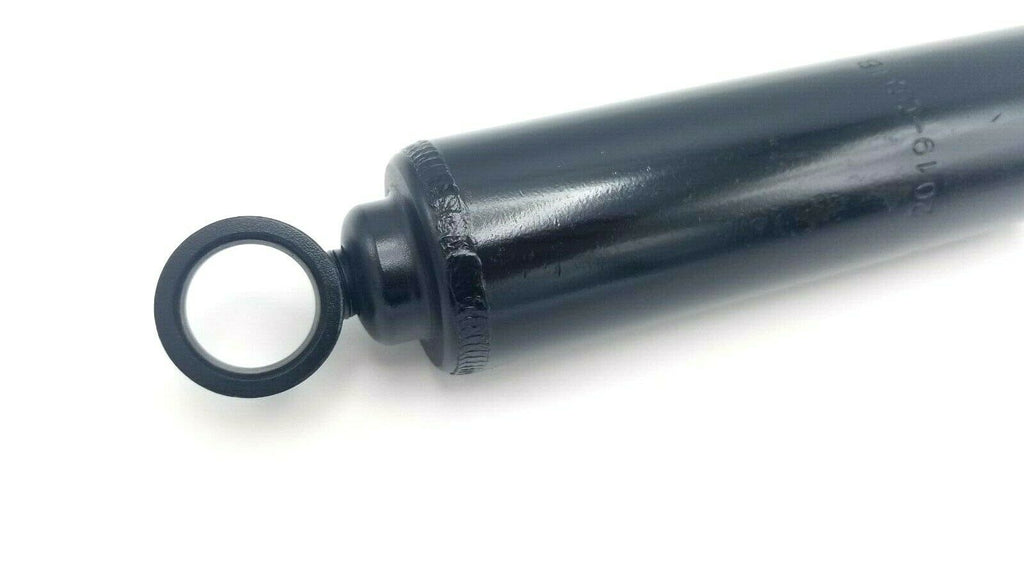

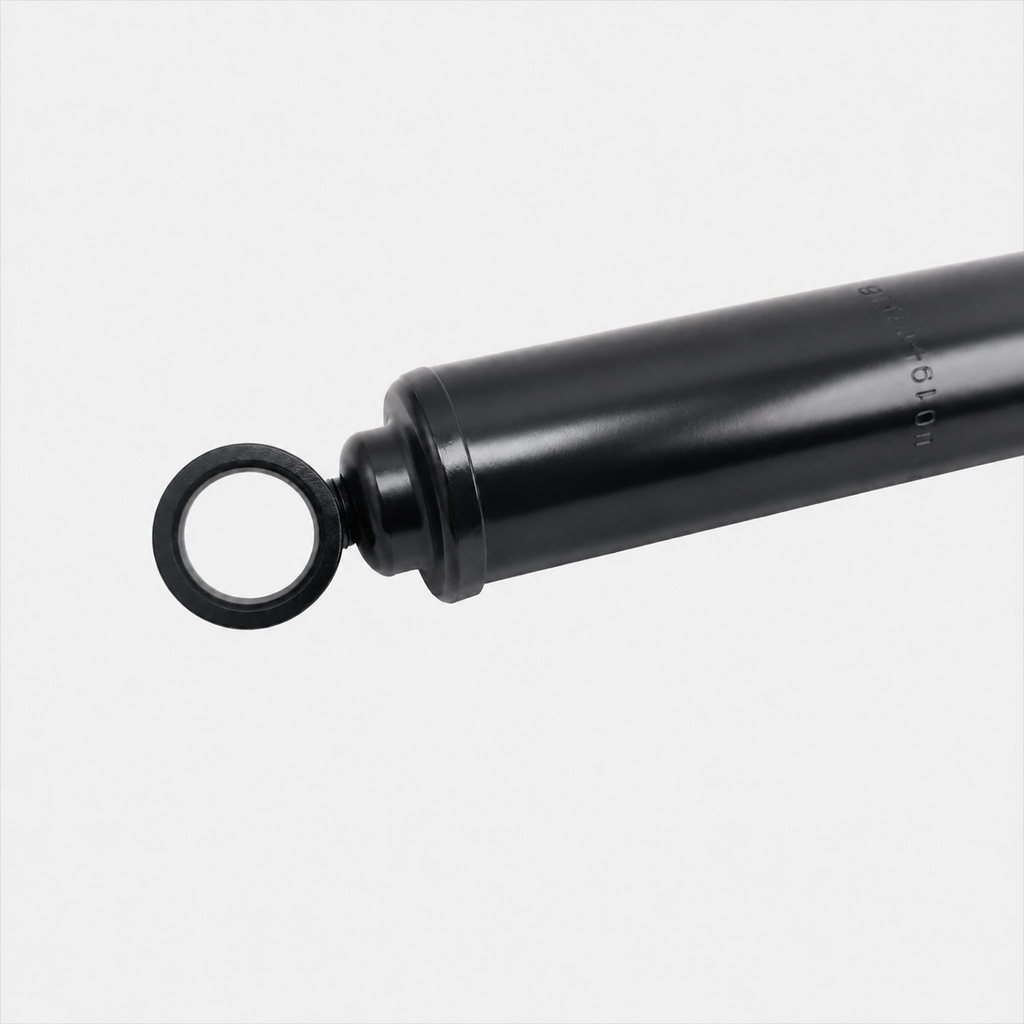

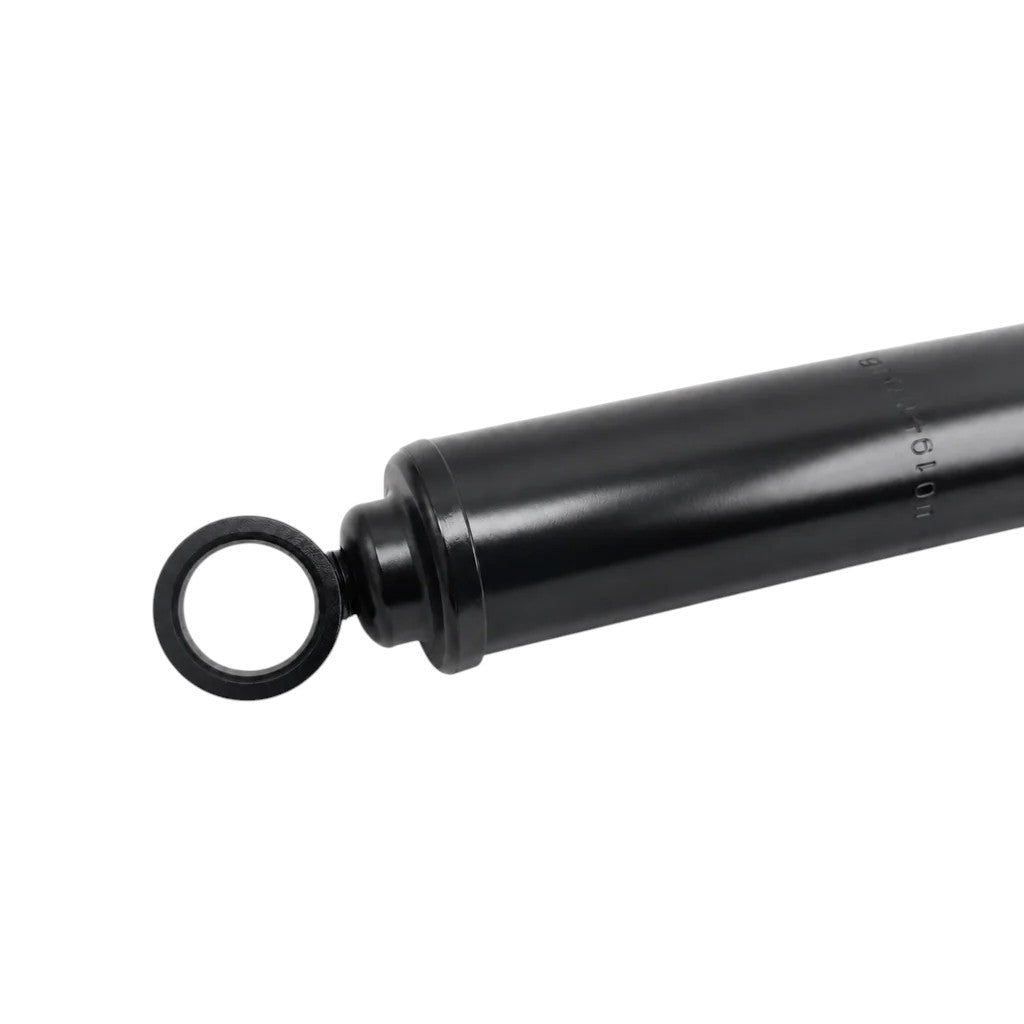

| Finish / Appearance | Black shock body with eyelet-style mounting ends |
| Key Measurement | 9.5" overall length |
| Important Note | Takes two shocks per actuator. |
Fitment / Application
| Category | Details |
|---|---|
| System | Surge brake actuator |
| Primary Fit | Titan Model 20 brake actuator |
| Common Use | Replacement for worn or failed actuator shock / damper |
| Notes | Verify actuator model, mounting hole sizes, and overall shock length before ordering. |
Detailed Measurements
| Key Dimension | Measurement |
|---|---|

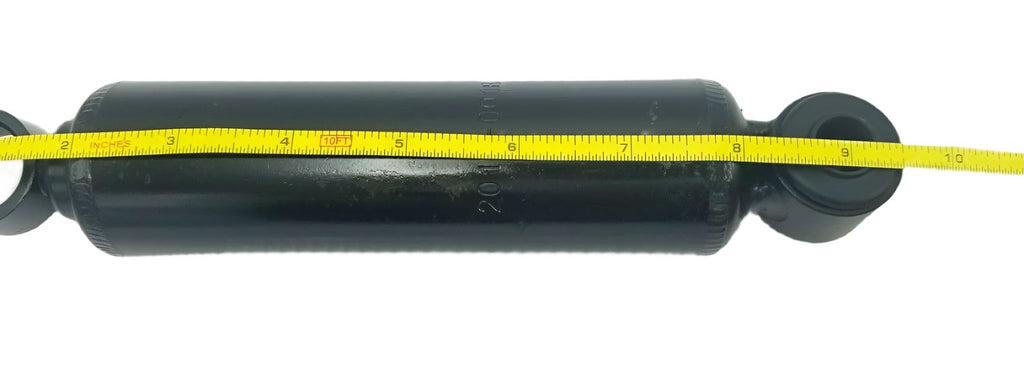

| Overall Length | 9.5" |
| Tube Diameter | 1-3/4" |
| Small Mounting Hole Inner Diameter | 1/2" |
| Large Mounting Hole Inner Diameter | 7/8" |
Included Components
| Quantity | Item |
|---|---|
| 1 | Replacement shock for Titan Model 20 brake actuator |
