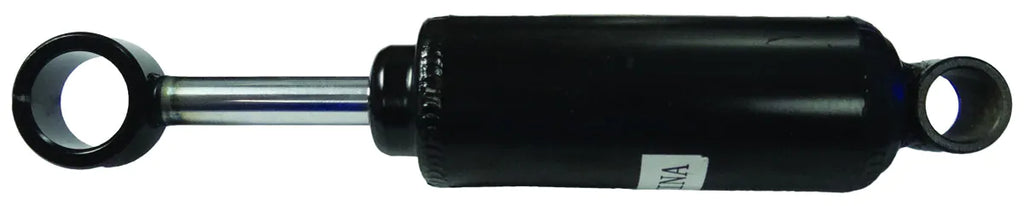

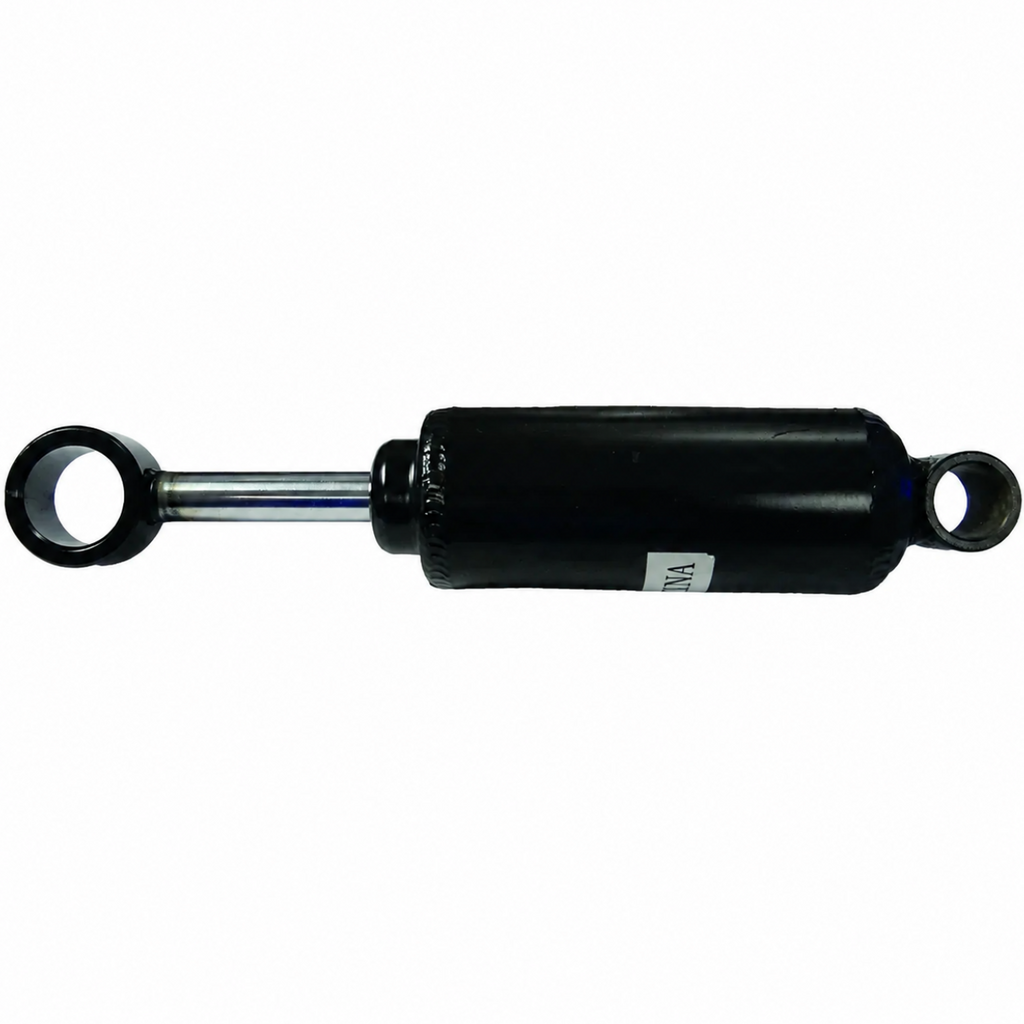

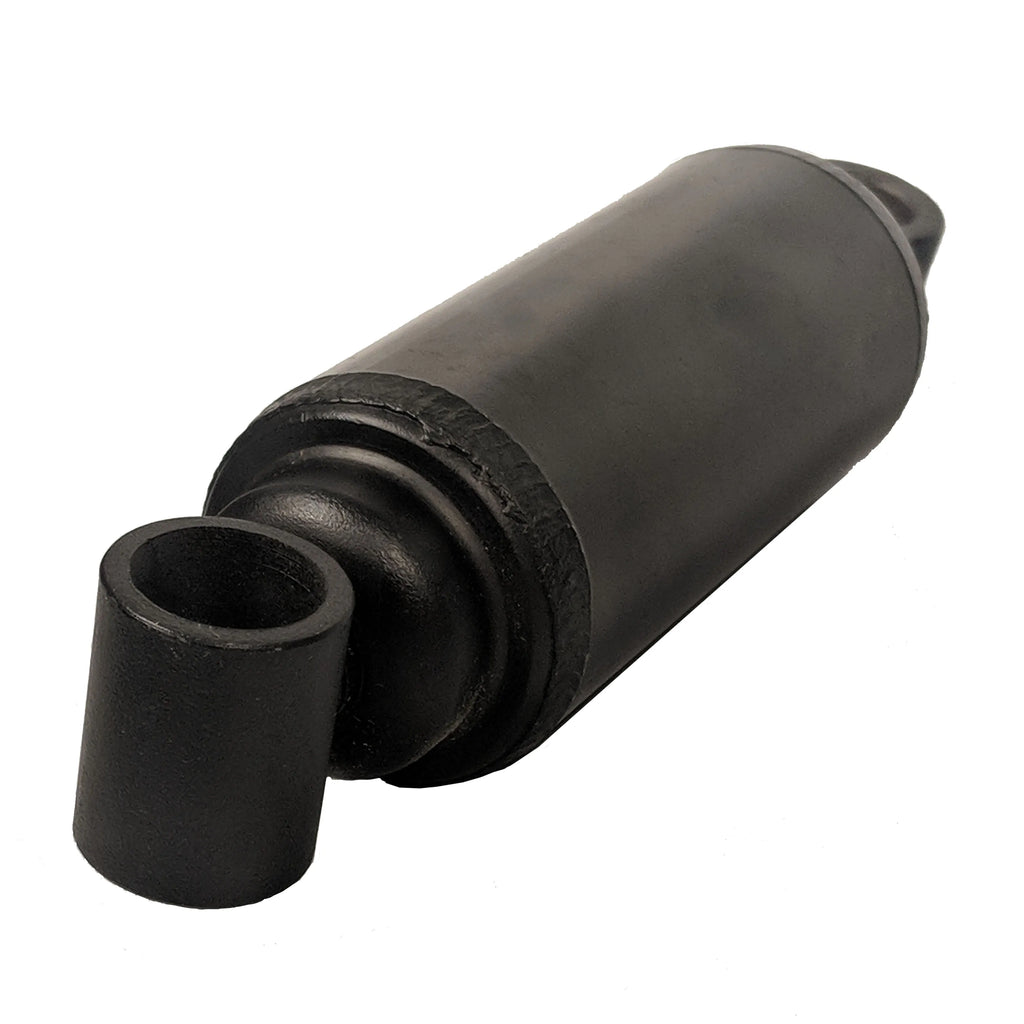

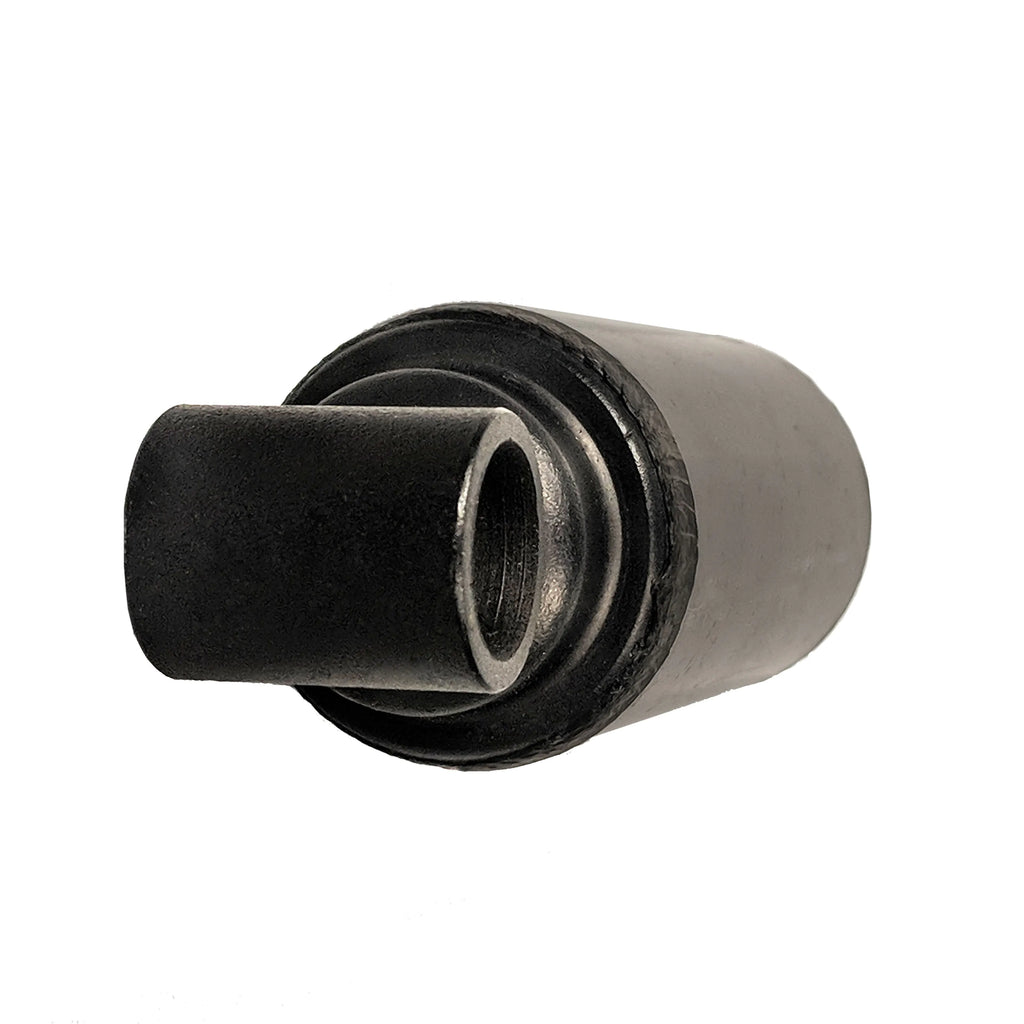

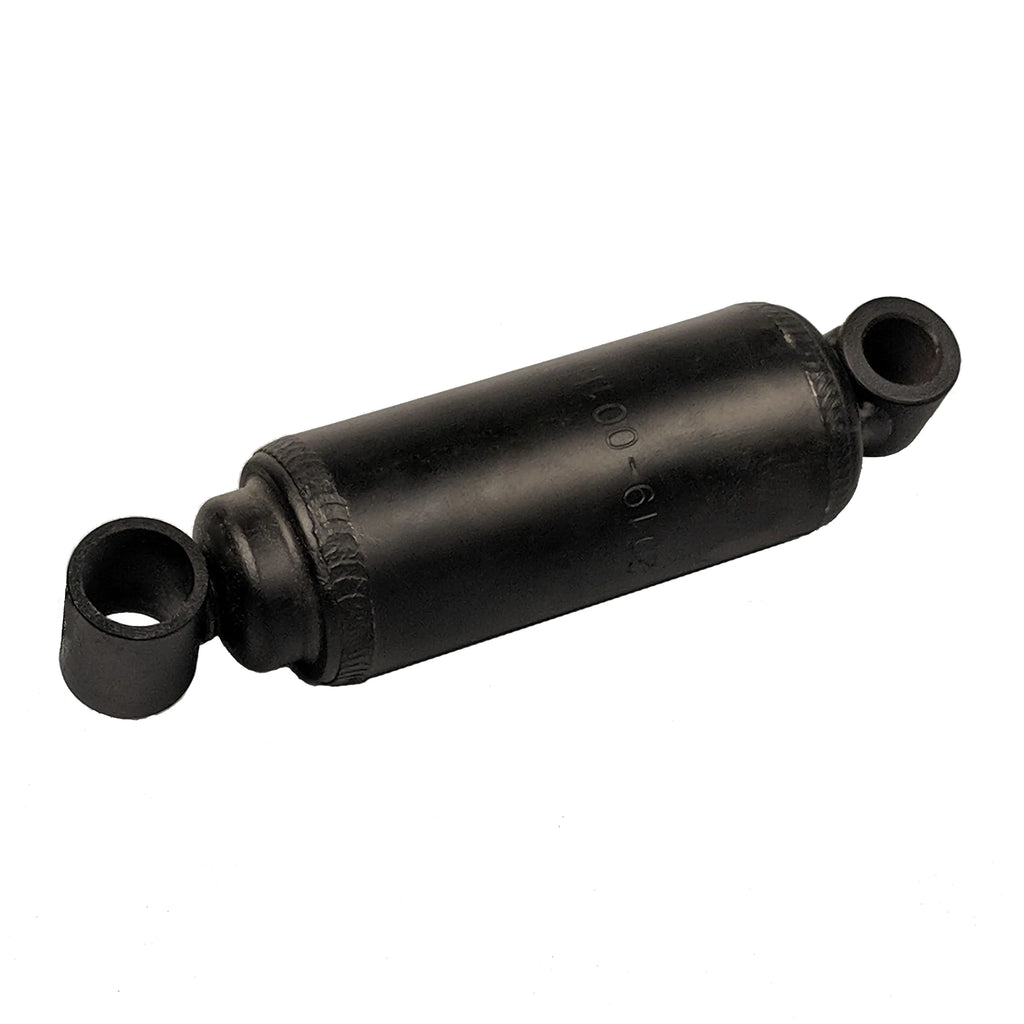

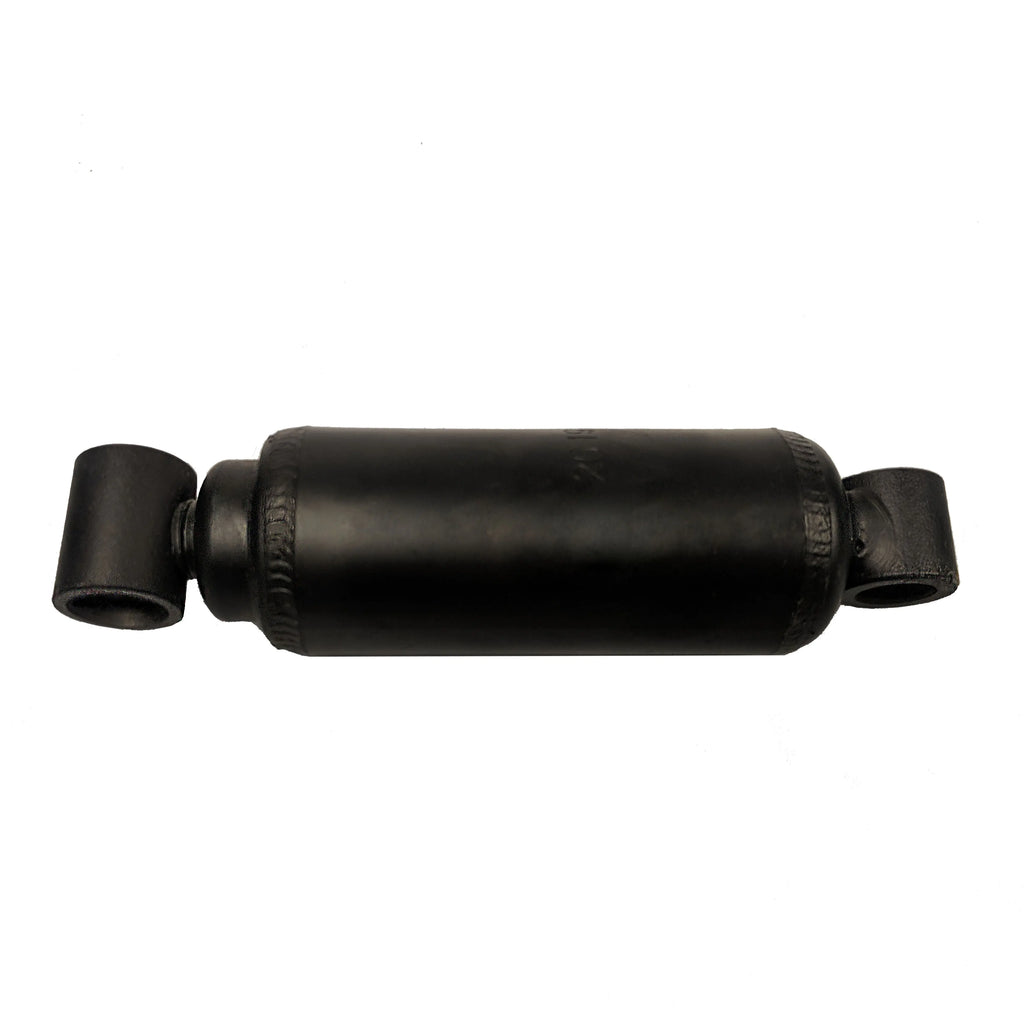

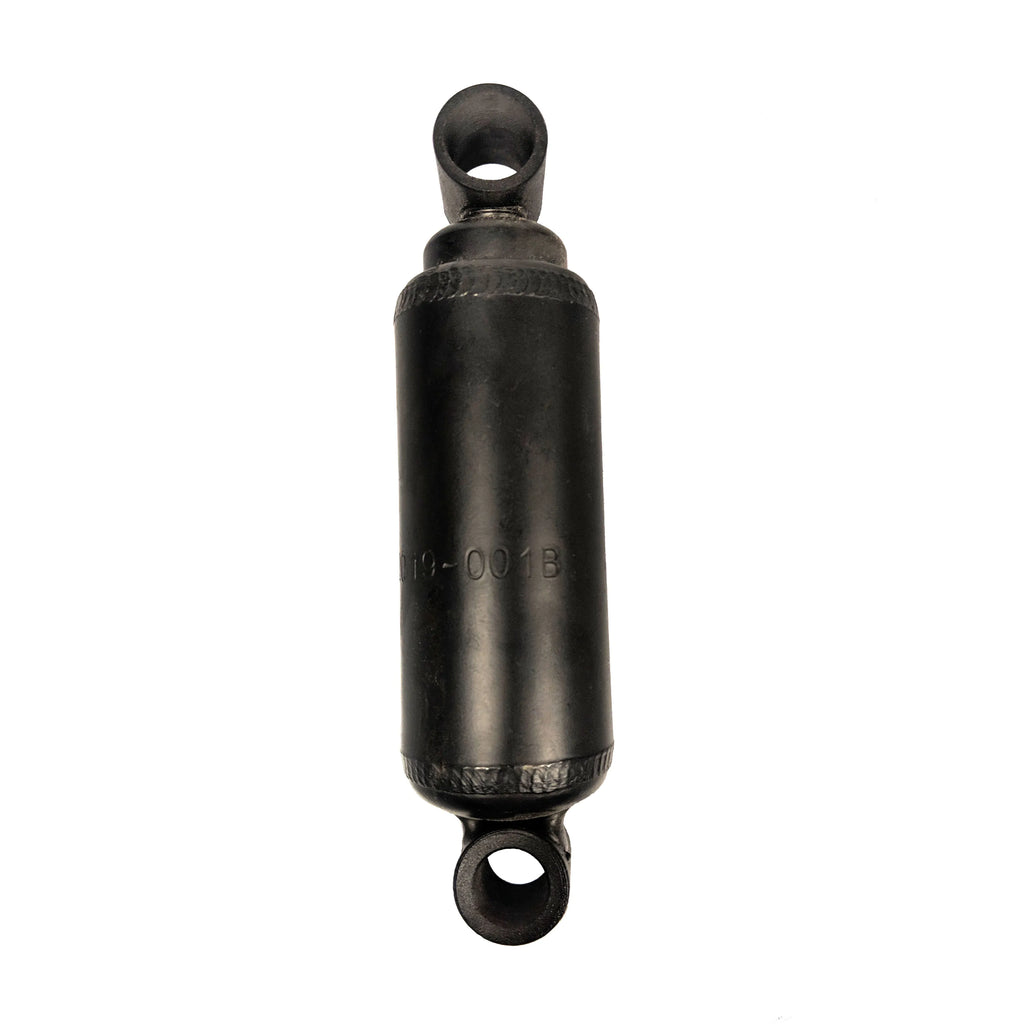

Titan-Dico Damper (Shock Absorber) for Model 60 Actuator
Replacement actuator damper / shock absorber for compatible Titan Model 60 brake actuators. Designed for applications where the original shock absorber dimensions and mounting eyelet sizes match.
Key Measurements & Specs
| Specification | Detail |
|---|---|
| SKU | T2336200 |
| Product Type | Brake actuator shock absorber / damper |
| Extended Length | 6-1/4" center of mounting hole to center of mounting hole |
| Collapsed Length | 4-15/16" center of mounting hole to center of mounting hole |
| Body End Eyelet ID | 7/16" |
| Rod End Eyelet ID | 0.575" |
| Quantity Included | 1 replacement shock absorber |
Fitment / Application
| Category | Details |
|---|---|
| System | Surge brake actuator |
| Primary Application | Replacement shock absorber for Titan Model 60 brake actuators |
| Also Referenced As | Replacement shock absorber for Dexter Model 60 brake actuator applications where dimensions match |
| Fitment Method | Verify extended length, collapsed length, and both mounting eyelet inside diameters before ordering |
| Important Note | Fitment depends on actuator model and matching mounting dimensions. Verify your existing damper before installation. |
Top Features
| Feature | Buyer Benefit |
|---|---|
| Model 60 Application | Built for compatible Titan Model 60 brake actuator replacement use |
| Compact Damper Size | 6-1/4" extended length and 4-15/16" collapsed length |
| Two Eyelet Sizes | Body end eyelet measures 7/16" ID; rod end eyelet measures 0.575" ID |
| Direct Replacement Style | Useful when the original actuator shock absorber is worn, damaged, or missing |
Overview
This listing is for one replacement shock absorber / damper for compatible Titan Model 60 brake actuators. The damper measures 6-1/4" extended and 4-15/16" collapsed, measured center of mounting hole to center of mounting hole. It includes a 7/16" body end eyelet ID and a 0.575" rod end eyelet ID.
R&P Service Insight
Brake actuator dampers help control actuator movement during braking and release. When replacing one, matching the actuator model and mounting measurements is more important than relying on appearance alone.
- Measure First: Confirm center-to-center extended and collapsed lengths.
- Check Eyelets: Confirm both mounting eyelet inside diameters match your original damper.
- Inspect Hardware: Reuse only clean, serviceable mounting hardware or replace worn hardware as needed.
R&P Knowledge Hub
Compatibility: Fits compatible Titan Model 60 brake actuator applications where the listed dimensions and eyelet sizes match.
System Fit: Intended for surge brake actuator damper replacement.
Installation Notes: Compare your original shock absorber before ordering. Verify mounting hole spacing, collapsed length, extended length, and eyelet ID sizes.
Performance Insight: A worn or damaged actuator damper can affect the feel and movement of the actuator. Replacing the damper helps restore proper actuator operation when the rest of the actuator assembly is serviceable.
Brand & Fitment Note
Selling Application: Replacement shock absorber for Titan Model 60 brake actuators.
Application Reference: Titan and Dexter Model 60 references are used for compatibility identification only.
What This Means: This listing is for a replacement actuator shock absorber / damper, not a complete actuator assembly.
Before Ordering: Verify your actuator model, mounting style, extended length, collapsed length, and both eyelet inside diameters.
R&P Repair Insight
Before replacing the damper, inspect the actuator for worn pins, elongated mounting holes, binding movement, damaged latch components, or corrosion that may affect actuator operation.
- Length Check: Extended length should match 6-1/4" center-to-center.
- Retracted Check: Collapsed length should match 4-15/16" center-to-center.
- Mounting Check: Confirm 7/16" body end eyelet ID and 0.575" rod end eyelet ID before installation.
Features
Replacement Actuator Damper
Designed to replace the shock absorber / damper used in compatible Titan Model 60 brake actuators.
Verified Center-to-Center Lengths
Extended length is 6-1/4"; collapsed length is 4-15/16", measured from center of mounting hole to center of mounting hole.
Application-Specific Eyelet Sizes
Body end eyelet ID measures 7/16"; rod end eyelet ID measures 0.575".
Service Replacement Part
Useful for actuator repair when the original damper is worn, damaged, leaking, or missing and the actuator assembly is otherwise serviceable.
Included Components
| Quantity | Item |
|---|---|
| 1 | Replacement shock absorber / damper for Titan Model 60 brake actuator applications |
| Not Included | Mounting hardware, actuator housing, coupler, master cylinder, brake lines, or other actuator components |
