Titan Hydraulic Disc Brake Master Cylinder for Model 10 & 20 Actuators
Restore peak stopping power with this heavy-duty cast iron master cylinder, specifically engineered for Titan Model 10 and 20 hydraulic disc brake systems.
Overview

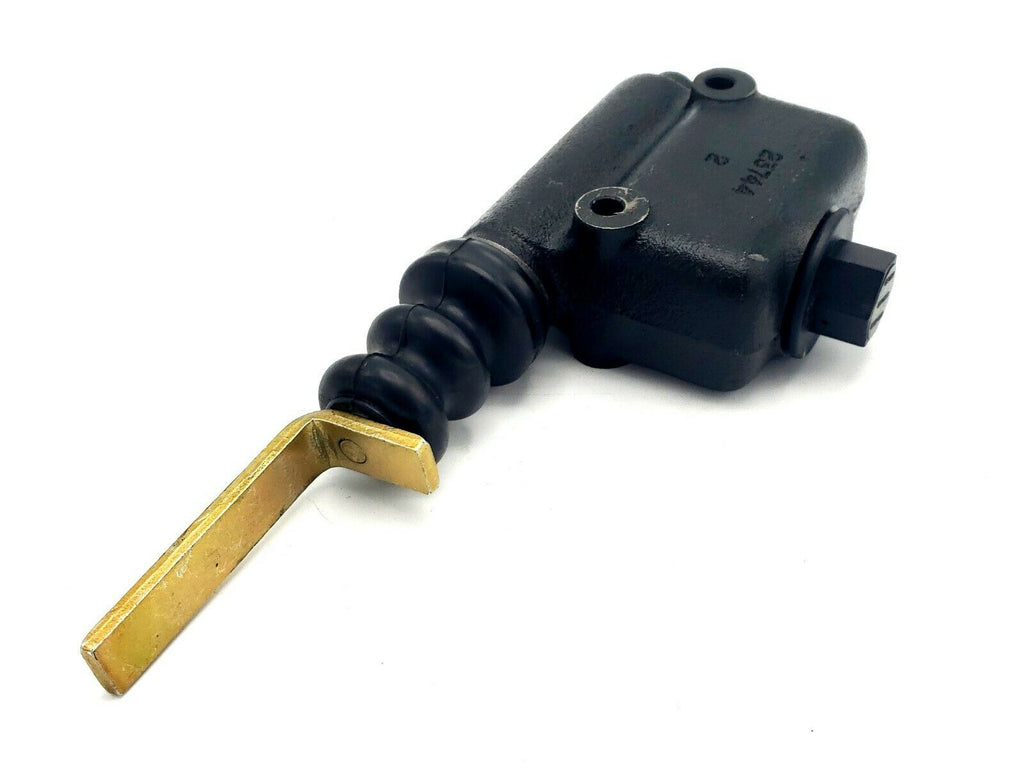

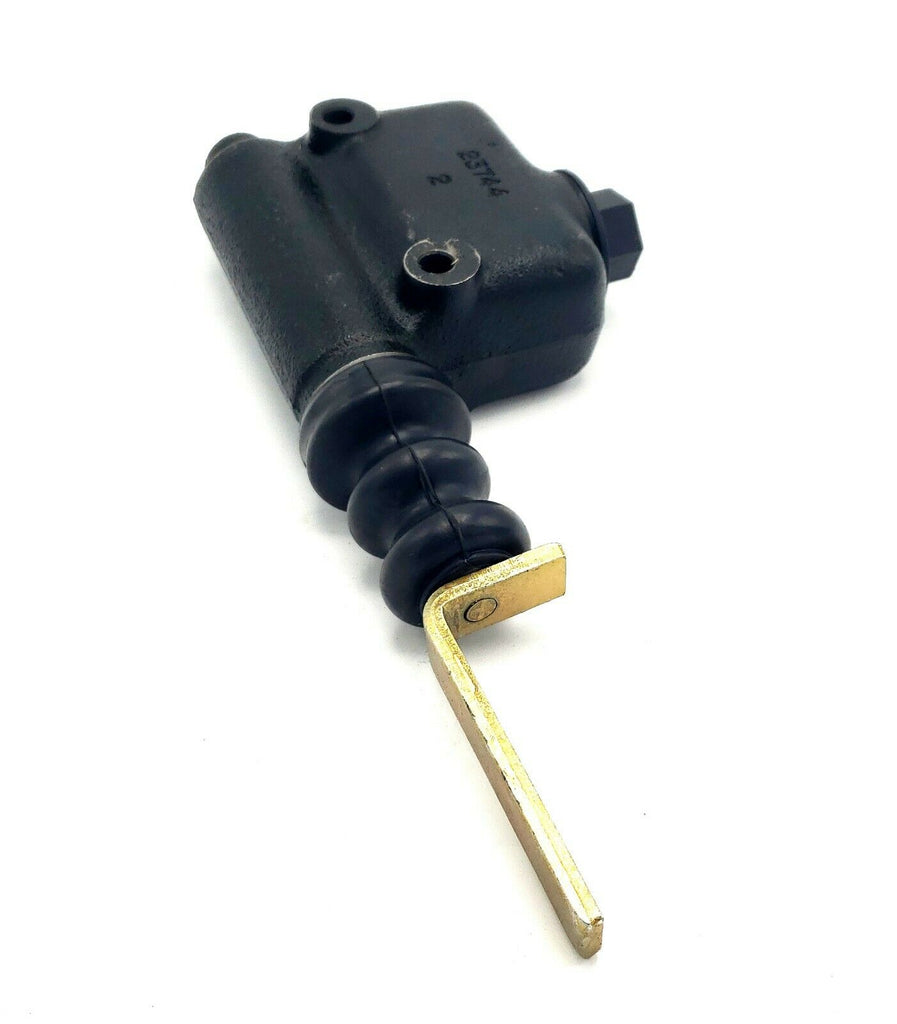

The Titan 47471 is the industry-standard replacement master cylinder for trailers equipped with Model 10 or Model 20 actuators. This high-quality replacement solution is constructed from rugged cast iron to withstand the high-pressure demands of hydraulic disc brakes. It comes ready for installation as a complete assembly, ensuring your hydraulic system remains sealed, efficient, and reliable under heavy loads.
R&P Service Insight
Regular inspection of your master cylinder is vital for trailer safety. A failing cylinder can lead to increased stopping distances or total brake failure.
- Cast Iron Strength: Resists warping and fatigue under high hydraulic pressures.
- Direct Swap: Designed as an exact replacement for #19 (Model 10) and #14 (Model 20) schematics.
- Safety First: Replacing a leaking or corroded unit prevents catastrophic fluid loss.
R&P Knowledge Hub
Compatibility: Specifically designed for Titan/Dexter Model 10 and Model 20 Brake Actuators.
System Fit: Hydraulic Disc Brakes Only (Not compatible with drum brake systems).
Installation Notes: Features a standard 1/8” NPT female thread for the orifice connector to ensure a leak-free line connection.
Performance Insight: The included rubber boot and push rod assembly are critical for protecting internal pistons from road grime and moisture.
R&P Repair Insight
Disc brake master cylinders operate at significantly higher pressures than drum versions. Using the correct "Disc" specific model is essential for proper caliper function.
- Check Threads: Verify your orifice connector matches the 1/8” NPT female port.
- Bleed System: Always perform a full system bleed after installation to remove trapped air.
- Mounting: Consult your specific actuator schematic (#19 or #14) to ensure correct orientation of the push rod.
Features
Heavy-Duty Cast Iron
Provides the structural integrity needed for high-pressure hydraulic disc brake applications.
Complete Assembly

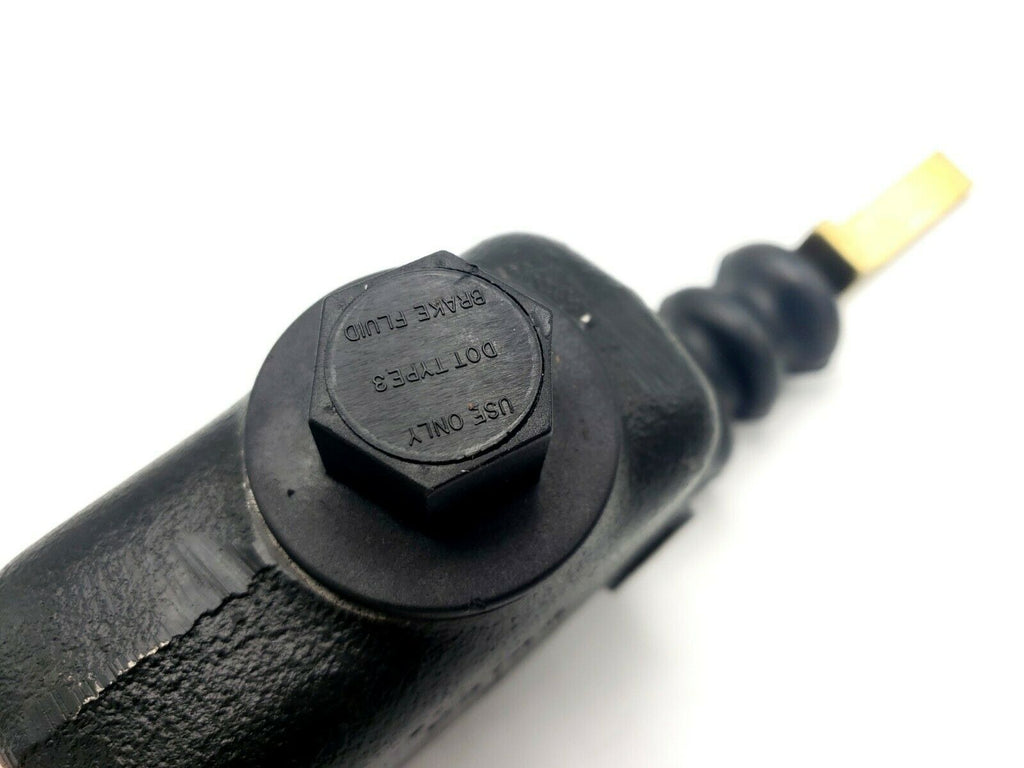

Includes filler cap, push rod, and protective rubber boot for a comprehensive repair.
Universal Titan Fit
Versatile design fits seamlessly into both Model 10 and Model 20 brake actuator couplers.
Standard NPT Port
Equipped with a 1/8” NPT female thread for a secure connection to your trailer brake lines.
Specifications
| Specification | Detail |
|---|---|
| Part Number | 47471D |
| Product Type | Master Cylinder |
| Application | Disc Brakes Only |
| Material | Cast Iron |
| Outlet Thread | 1/8” NPT (Female) |
| Schematic Ref | #19 (Mod 10), #14 (Mod 20) |
Fitment / Application
| Category | Details |
|---|---|
| System Type | Hydraulic Surge Actuators |
| Primary Fit | Titan Model 10 Actuators |
| Secondary Fit | Titan Model 20 Actuators |
| Notes | Verify actuator model and brake type (Disc) before purchasing. |
Included Components
| Quantity | Item |
|---|---|
| 1 | Titan Cast Iron Master Cylinder (47471) |
| 1 | Actuator Filler Cap |
| 1 | Push Rod Assembly |
| 1 | Protective Rubber Boot |
