Match the part number, measurements and connection points that apply to your trailer.
| Hub Face | Measure hub face to hub face. |
|---|---|
| Spring Center | Measure mounting centers and confirm perch configuration. |
| Capacity | Match the required axle rating. |
| Brakes | Confirm brake type and flange configuration. |

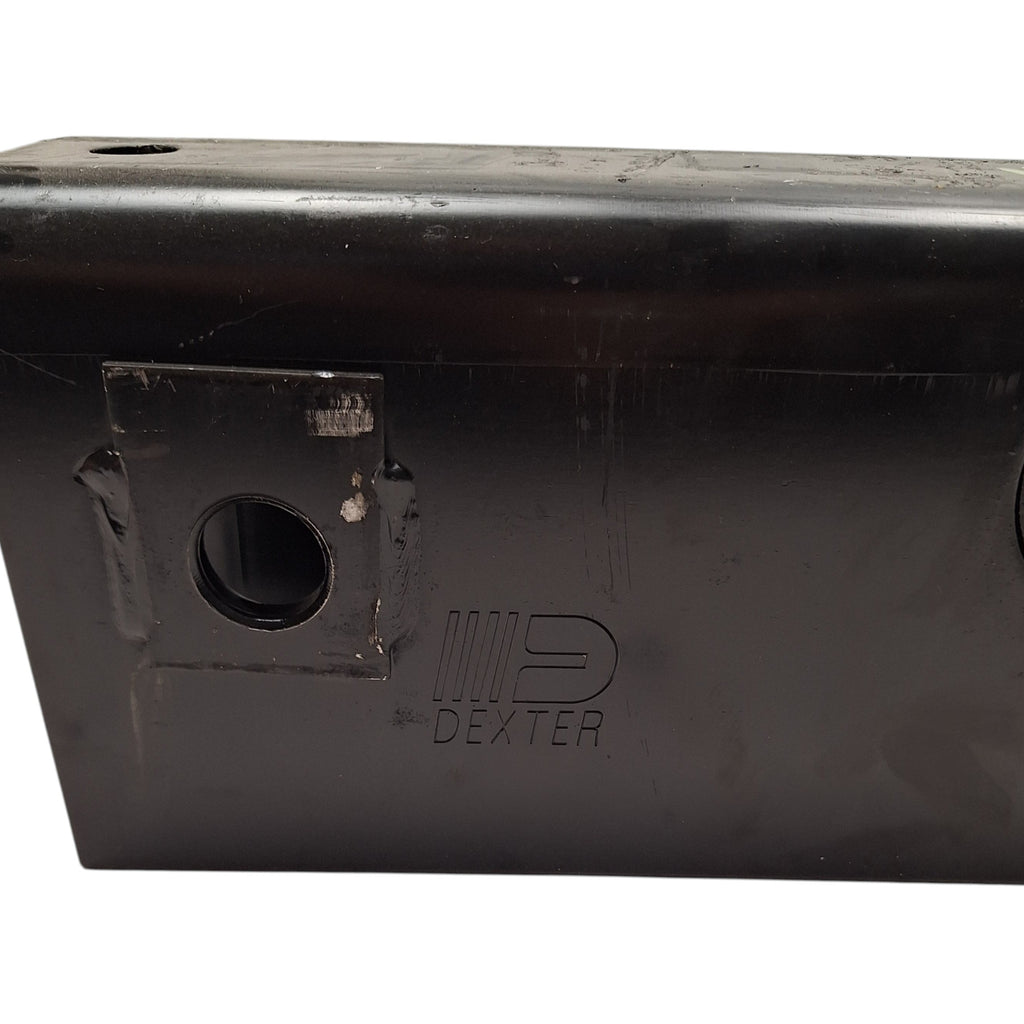

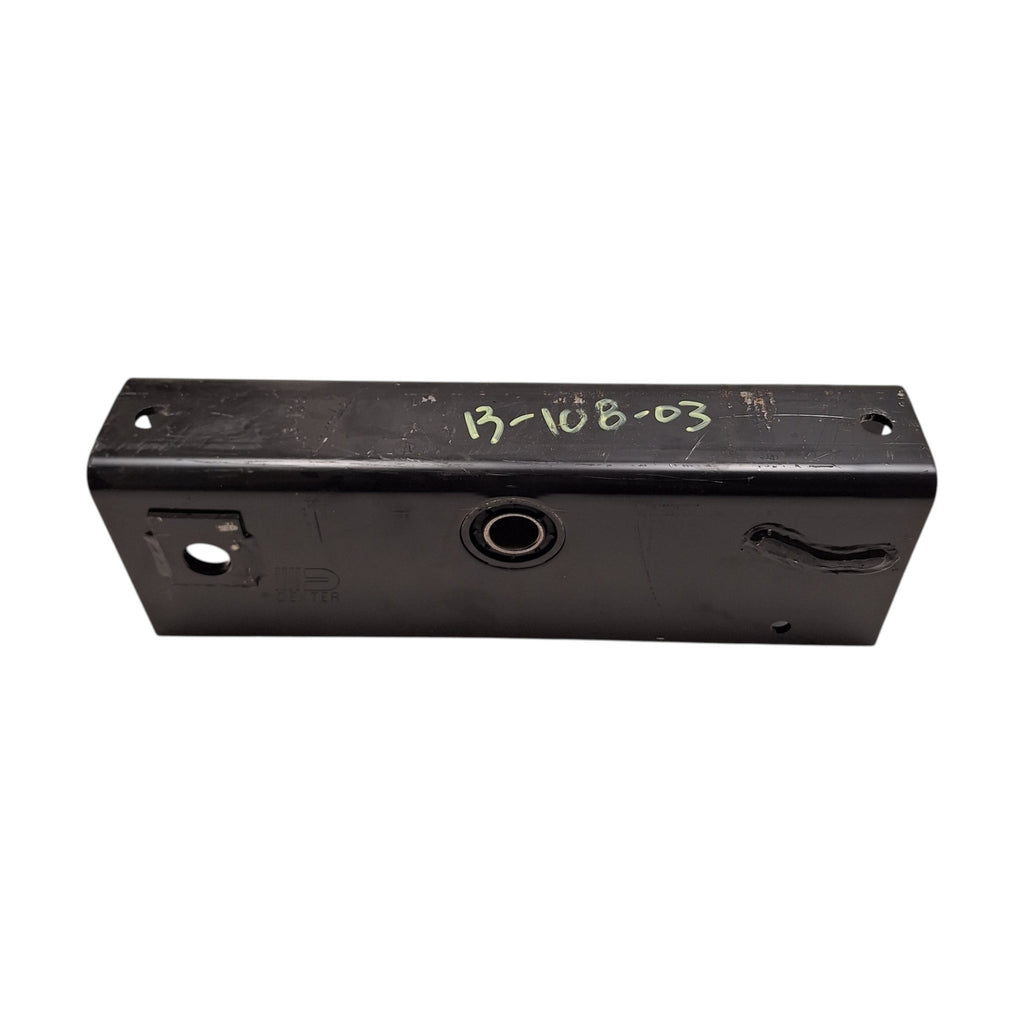

Part Number: 013-108-03
This equalizer is designed for trailer suspension systems using 3" wide slipper springs on tandem or triple axle configurations. It is commonly used on 10,000–15,000 lb axle applications to distribute suspension load and maintain balanced axle movement.
In slipper spring suspension systems, the equalizer pivots at the center bolt to transfer road shock between axles. When one axle encounters uneven terrain, the equalizer rotates to distribute force across the adjacent axle.
Equalizer length directly determines axle spacing and suspension geometry. Always confirm spring width, bolt diameters, and center-to-center measurements before installation.
| Axle Capacity Range | Typically used on 10,000–15,000 lb axles |
|---|---|
| Spring Width | 3" Slipper Springs |
| Overall Length | 18.375" |

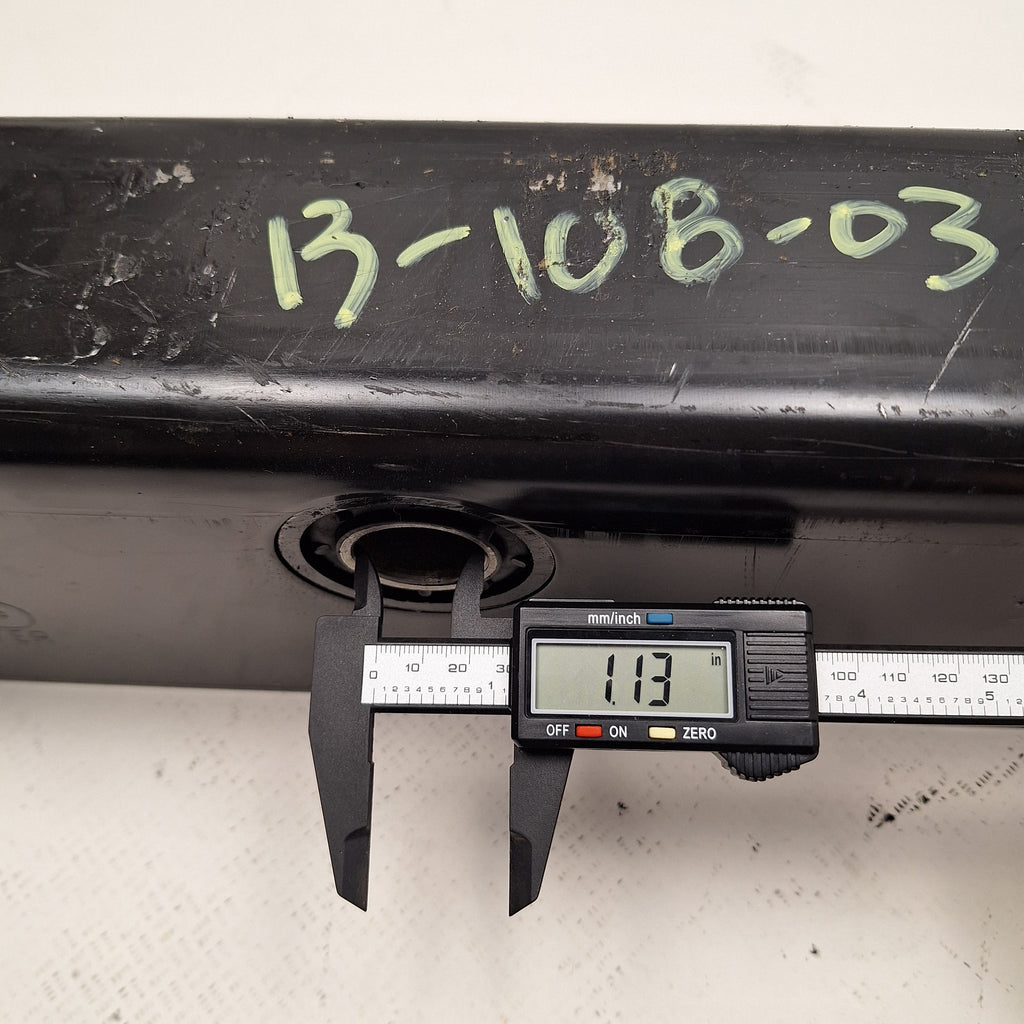

| Center Hole Diameter | 1.125" |
| Spring Eye Diameter | 1" |
| Center-to-Center Hole Spacing | 13.875" |
| Resulting Axle Spacing | Approximately 42.25" |
| Hardware Included | No – Equalizer Only |
Verify spring width, bolt diameters, and axle spacing before installation.
