3500 lb Trailer Hub & Drum Kit • 6 on 5.5" • Includes Bearings, Seal & Dust Cap
Part Number: HD-10IN-6B-KIT
Complete replacement hub and drum kit for 3,500 lb trailer axles. Designed for 10" × 2¼" electric brake systems and a 6 on 5.5" wheel bolt pattern. A solid choice for Dexter, AL-KO, Axis, and many other common 3500 lb axles. All bearing races arrive pre-installed for easy assembly.

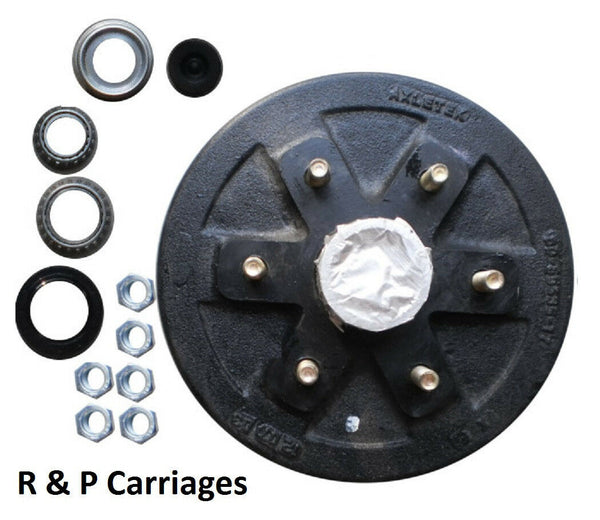

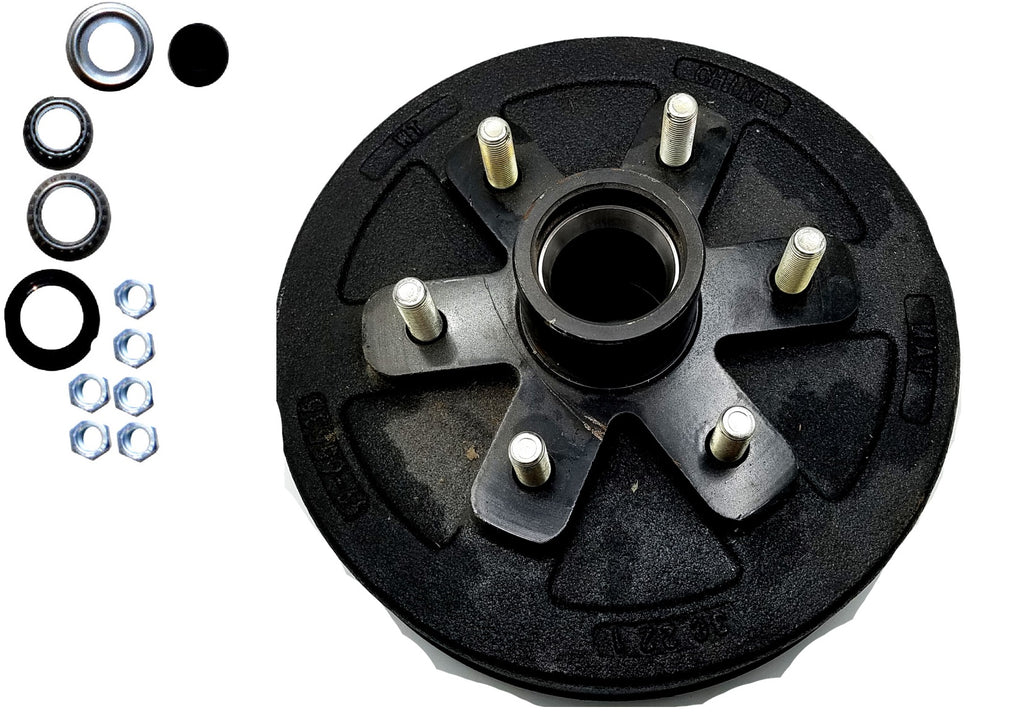

Kit Includes (1 Complete Hub/Drum):

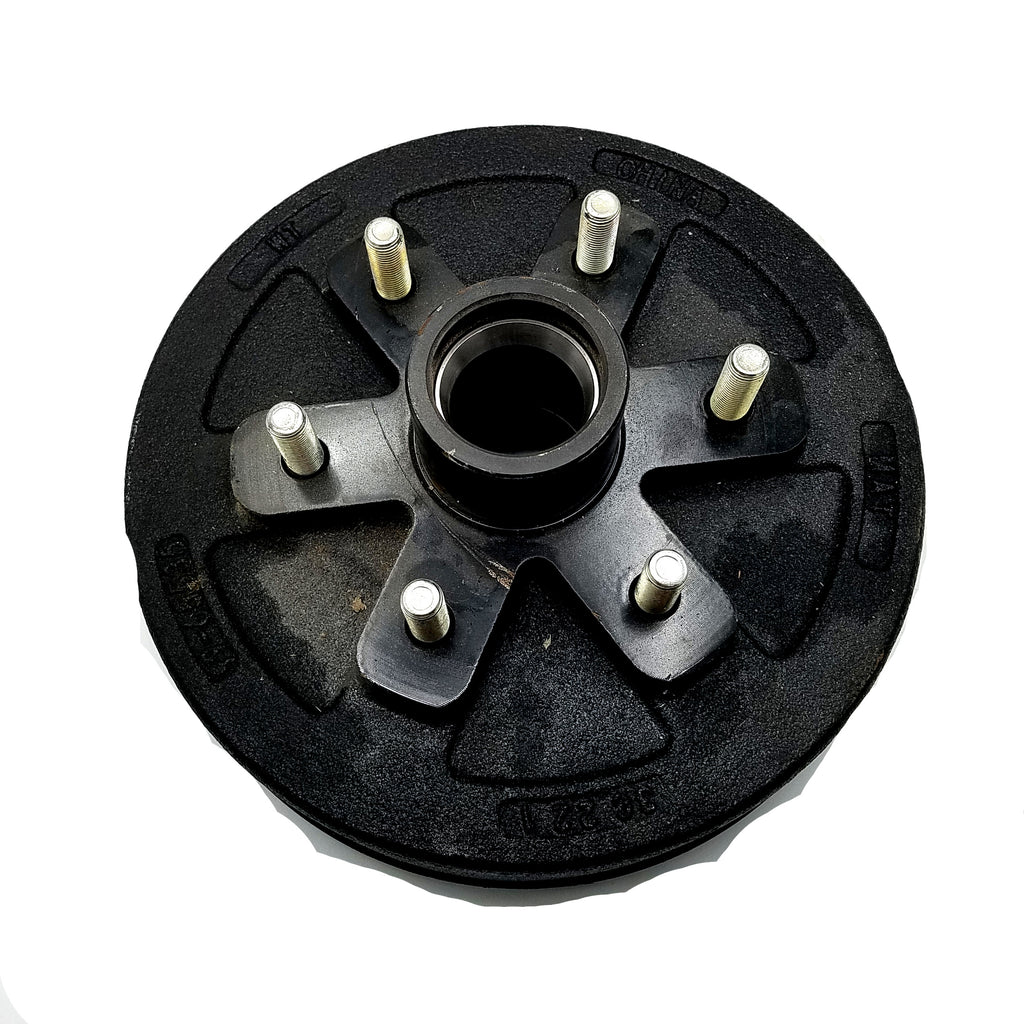

- 10" brake drum – 6 on 5.5" bolt pattern
- Inner bearing: L68149 (1-3/8" I.D.)
- Outer bearing: L44649 (1-1/16" I.D.)
- Grease seal: 10-19
- Dust cap
- Lug nuts
- All bearing cups already pressed in
Specifications
| Specification | Details |
|---|---|
| Axle Rating | 3500 lb |
| Brake Size | 10" × 2¼" |
| Bolt Pattern | 6 on 5.5" |
| Inner Bearing | L68149 (1-3/8") |
| Outer Bearing | L44649 (1-1/16") |
| Grease Seal | 10-19 |
Spindle reference diagram for identifying typical 3500 lb axles.
Fitment Notes
This kit is typically used on trailers equipped with 3500 lb axles and 10" electric brakes. Always confirm your bearing numbers and bolt pattern before purchasing. The included parts do not fit 2,000 lb, 5,200 lb, 6,000 lb, or 7,000 lb axles.
