16x6 – 6 on 6 – White Wagon – Trailer Wheel – 4080 lb Capacity
Product Info

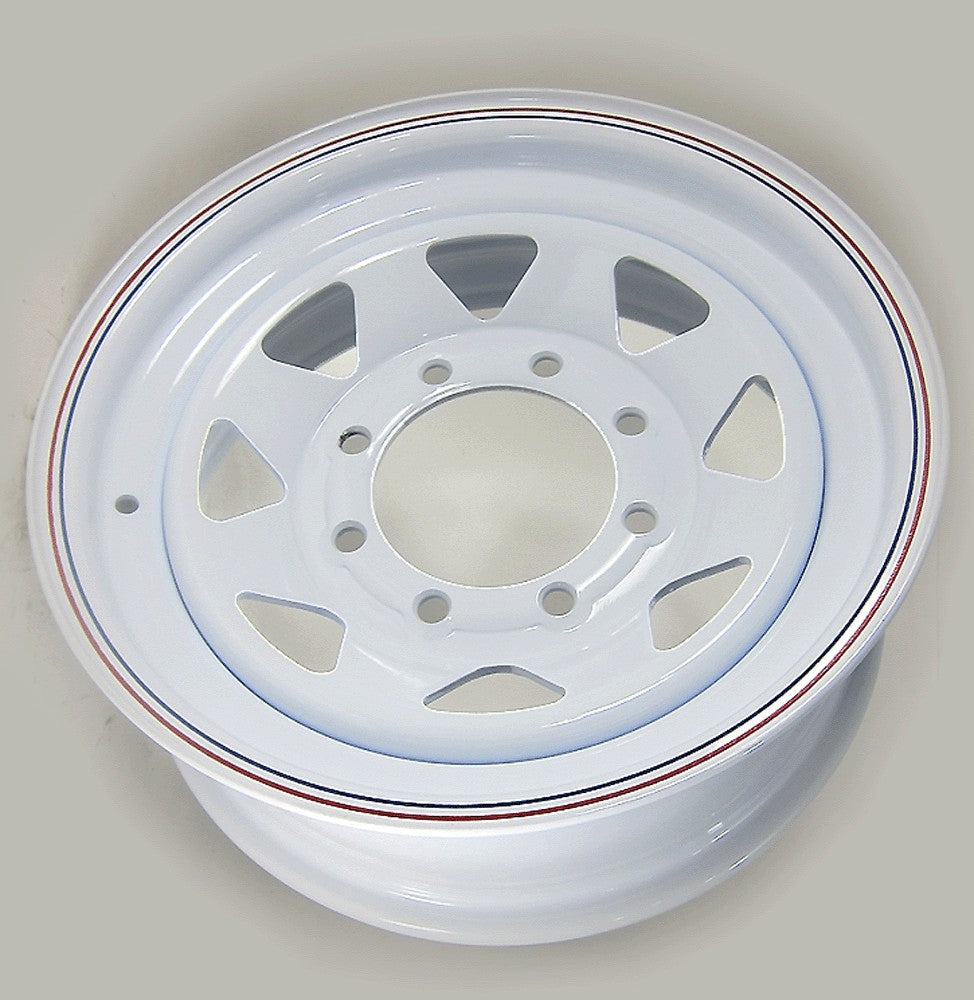

16x6 White Wagon / Spoke Trailer Wheel · 8 on 6.5 · 4,080 lb Capacity
Heavy-duty bare steel trailer wheel from R&P Carriages in Seneca, Illinois. This is measurement- and configuration-specific inventory intended for trailers using a 16x6 wheel with an 8 on 6.5 bolt pattern.
Fitment matters. Match the replacement wheel to your existing wheel and hub by wheel diameter, rim width, bolt pattern, pilot diameter, offset, stud and lug configuration, and rated capacity. Do not purchase by tire size or trailer make/model alone.
| Wheel Size | 16 x 6 |
|---|---|
| Bolt Pattern | 8 on 6.5 |
| Wheel Style | White Wagon / Spoke |
| Construction | Steel |
| Finish | White |
| Rated Capacity | 4,080 lb per wheel |
| Pilot / Center Bore | Approximately 5.15" — verify exact wheel before purchase |
| Offset | 0 / Zero Offset |
| Backspacing | Approximately 3.5" on typical zero-offset 16x6 configuration |
| Configuration | Bare wheel · tire not included |
| Typical Tire Applications | 16" trailer tire applications; tire size and load range must be independently verified |
Understanding 8 on 6.5
This wheel has eight lug holes positioned on a 6.5-inch bolt circle. The bolt pattern must match the trailer hub exactly. An 8-lug wheel is not interchangeable simply because another wheel is also 16 inches in diameter.
Zero-offset configuration
A zero-offset wheel places the hub mounting surface approximately on the wheel centerline. Replacing a wheel with a different offset can change tire-to-frame, suspension and fender clearance, so existing-wheel offset should be confirmed before installation.
Center pilot
Comparable current 16x6 · 8 on 6.5 · 4,080 lb white spoke wheels use an approximately 5.15-inch center opening. Because pilot dimensions can vary among visually similar wheels, confirm the actual center opening on this exact wheel before purchase if hub or center-cap clearance is critical.
4,080 lb wheel rating
The 4,080 lb rating is the maximum rated load of the individual wheel. Two wheels therefore provide 8,160 lb of combined wheel capacity, but this does not establish an 8,160 lb axle or trailer rating.
Actual trailer capacity is always limited by the lowest-rated component in the system, including the axle, hubs, bearings, suspension, tires, wheels and trailer structure.
Tire pressure
Maximum usable tire pressure must remain within the limits of the wheel, installed valve stem and tire. High-pressure trailer tire applications may require an appropriately rated metal or high-pressure valve stem.
Historical R&P inventory reference
R&P has previously stocked and advertised 16x6 8-lug trailer wheels rated at 4,080 lb, including white wagon-style wheels. This SKU follows that same specification family.
Comparable industry specification:
16x6 · 8 on 6.5 · White Spoke · approximately 5.15" pilot · zero offset · 4,080 lb per wheel
Reference product:
JG Wheels WS1668W-4080-JG / WS602
https://recstuff.com/trailer-wheels/16-trailer-rims/16x6-8-lug-on-6-5-white-spoke-trailer-wheel/ws602
Limited exact-item inventory. Wheels may show normal storage, handling or cosmetic marks. Confirm condition, pilot diameter, stud/lug compatibility and all critical measurements before purchase.
