2 -Trailer Axle Spindle Seal Repair Sleeve Kit Upgrade 3500# Axel 1.37 #2 Spindo (05613U)

UFP By Dexter

Regular price $25.99

2 -Trailer Axle Spindle Seal Repair Sleeve Kit Upgrade 3500# Axel 1.37 #2 Spindo

Part Number - 05613U

2 (TWO) - 2.56" Seal Spindle Seal Axle Repair Kit #2
Fits many 3500# Spindles (Dexter ALKO AXIS)

This will cover the worn or damaged seal area on standard 3500# Trailer axles (1.68 & 1.719 seal ID Size)
Basically repairing a damaged Axle seal area.

Includes 2 new seals, and 2 new repair Sleeves


Spindle Seal is a high quality seal system designed to end grease leakage. Seals will last many years because they ride on a permanently smooth, corrosion-proof surface constantly greased.

This Sleeve will repair Damaged seal area on common 3500# Trailer axles (Dexter, ALKO  and others) 1.719" x2.56" Seal size

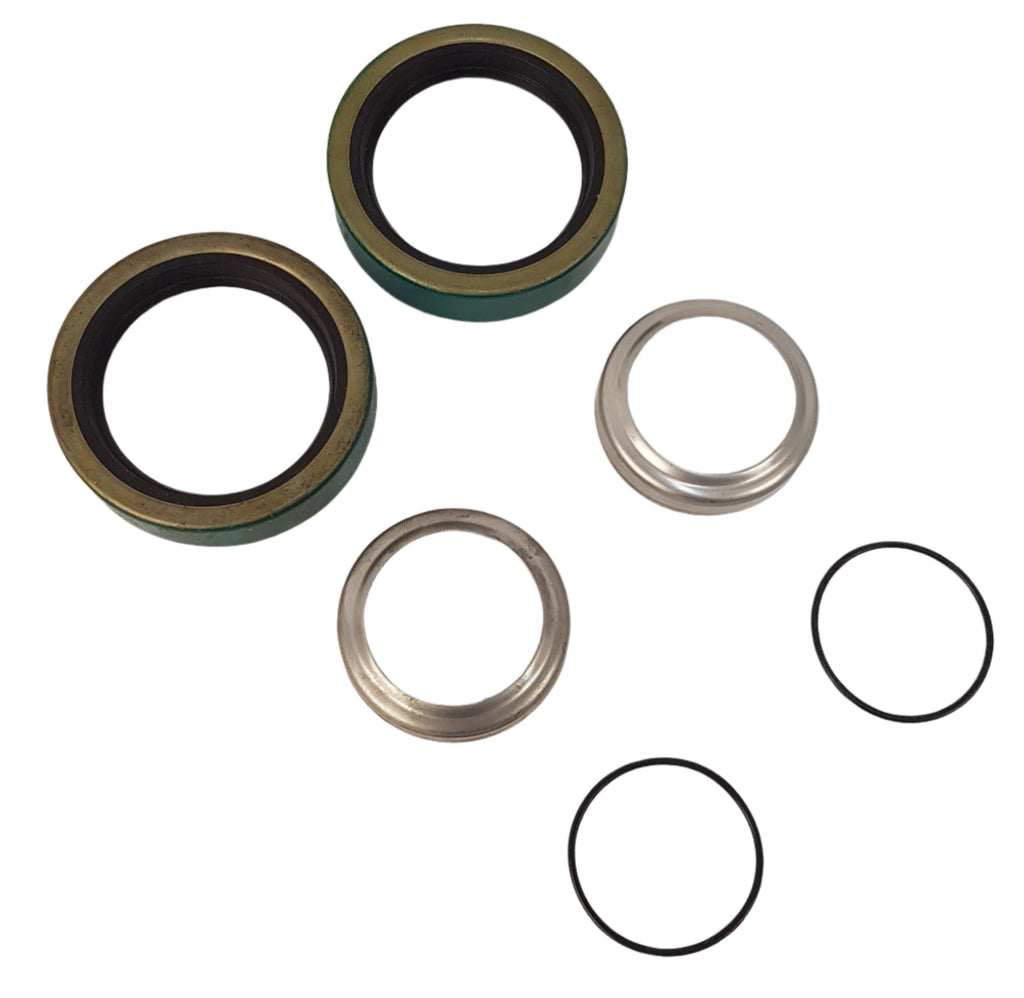

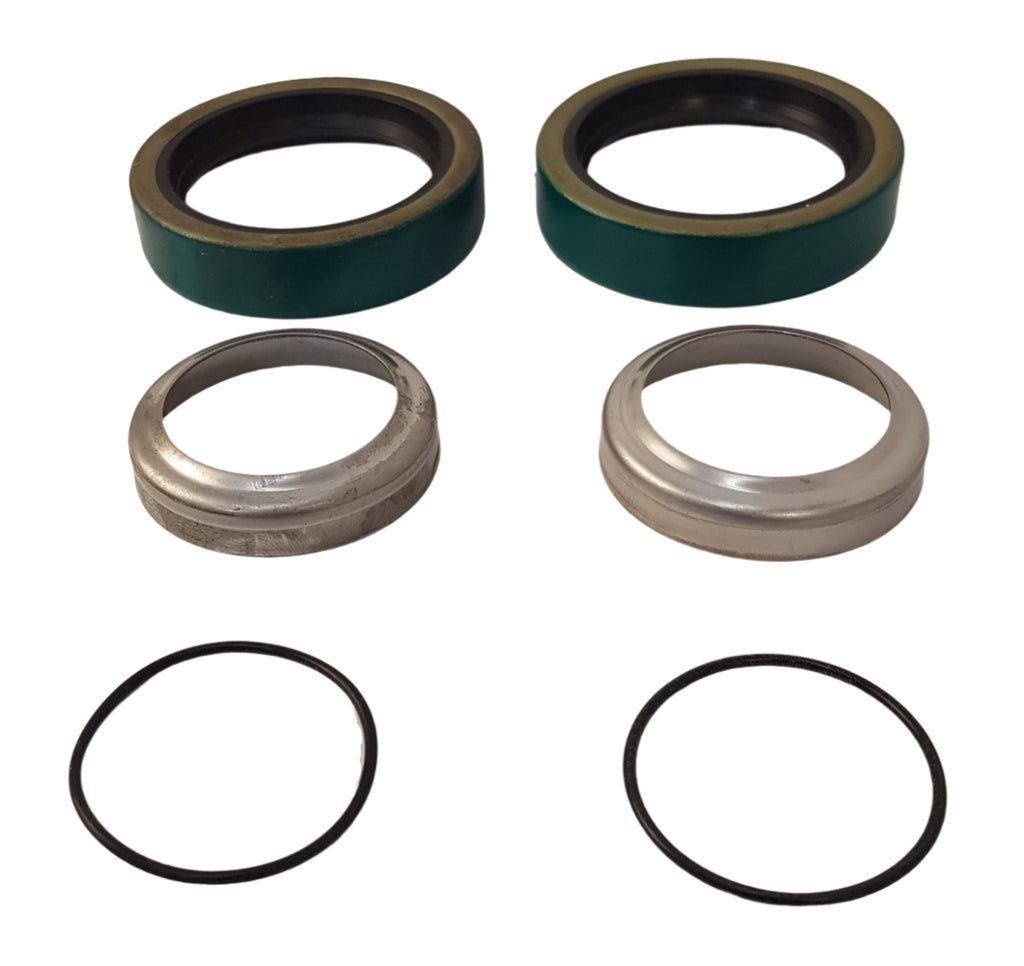

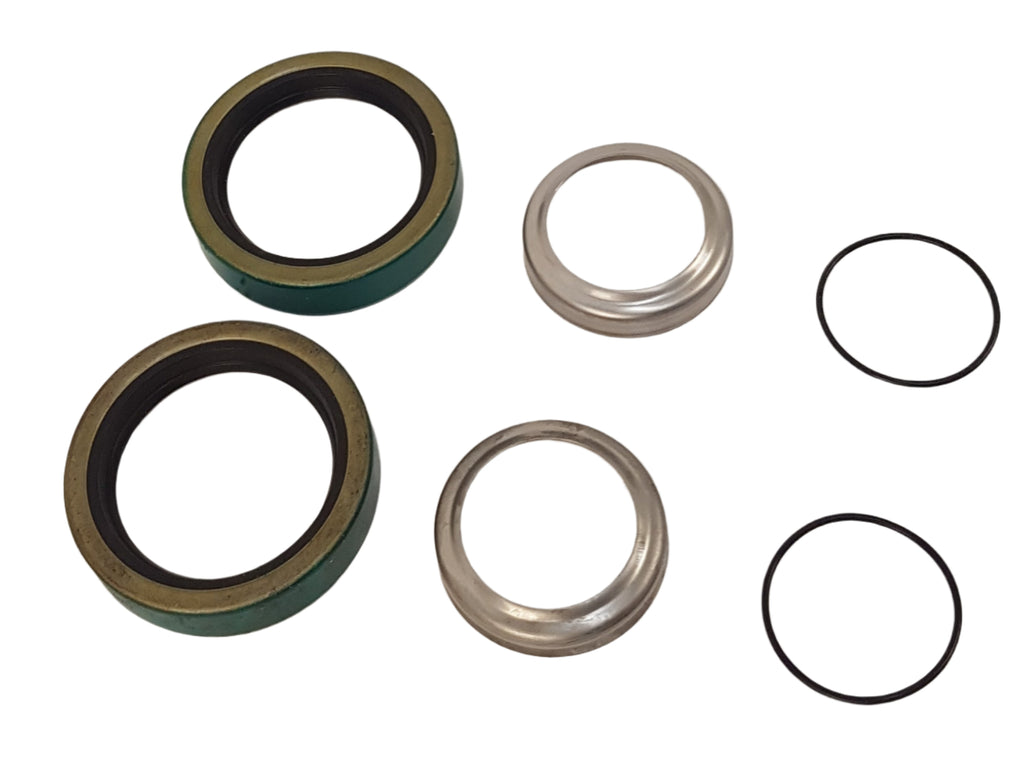

Kit includes:
[2] Corrosion Proof Stainless Steel Rings 1.819" ID (to fit over damaged 1.72" seal area)
[2] Rubber O Rings
[2] Double lip Neoprene Seals to fit new Stainless steel repair sleeves. 1.875 ID


Read THIS:
This kit works with all Common 3500# axles from Dexter, ALKO, and others.
These axles have a 1.375" ID inner bearing, and 1.719" ID grease seal.
The repair sleeve in this kit is 1.819"ID, so it will easily go over the damage seal area.

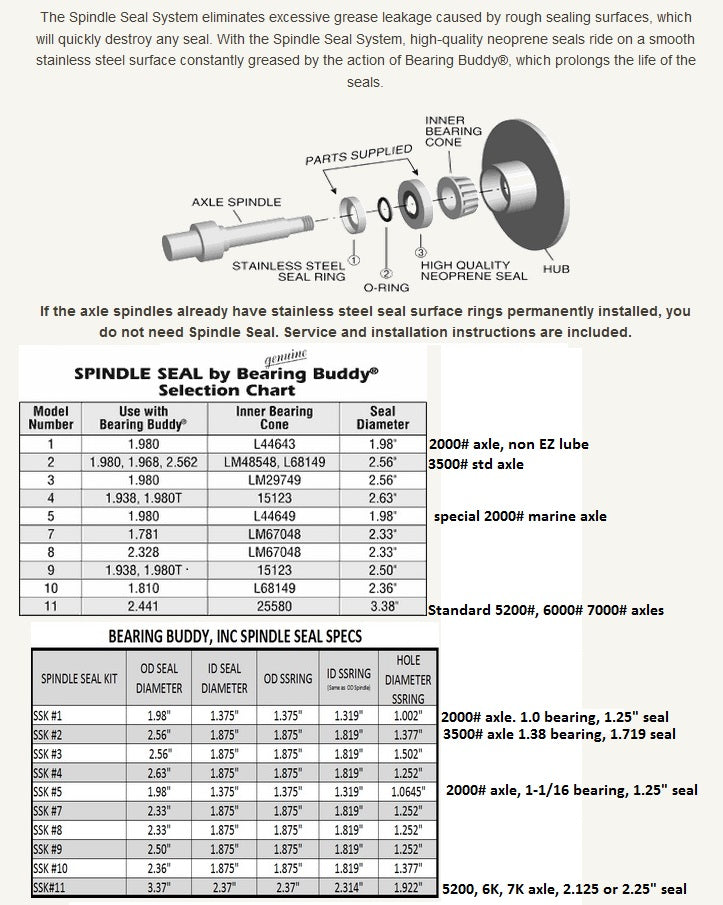

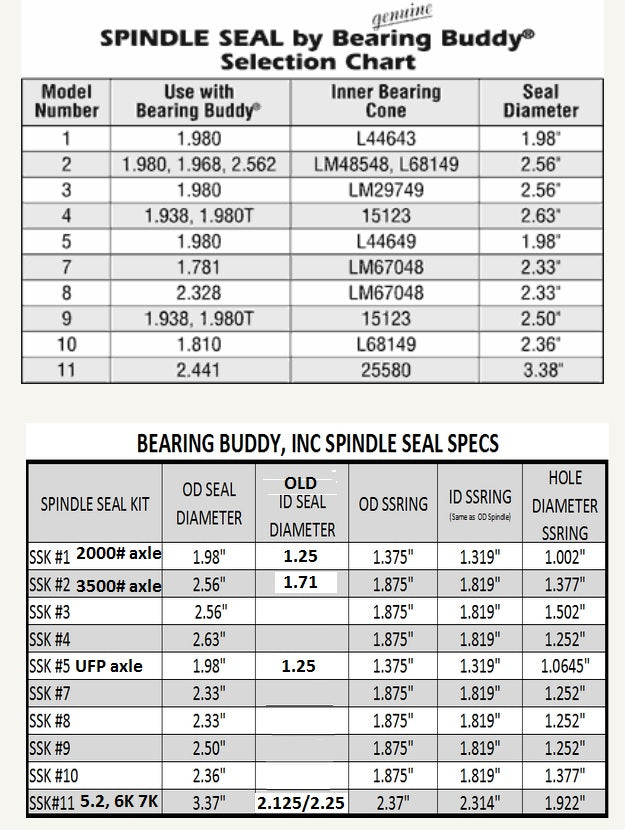

Kit number 2 below:
https://www.needatrailerpart.com/waymire/spindo-seal-01.jpg

That is enough to end Grease Leakage on one entire axle.

This Kit Fits:

Typical Inner Bearing Sizes: LM-48548 and L-68149 (1-3/8" ID Bearing)
Seal Outside Diameter: 2.56"


Will NOT Work on UFP axles (Square tube, usually used on boat trailers) with the 1.68" ID Grease seal
(So, if you have a boat trailer with a square tube axle, this may not work for you)

Below is a Diagram of How this Kit works:

Installation Instructions

1. Lay the trailer hub on a flat surface with the inside bearing side facing upward.

2. Align the neoprene seal with the bearing hole and hammer gently with a piece of wood to push the neoprene seal into the hub.

3. Place the stainless steel ring on the spindle. Place the o-ring on the spindle in front of the stainless steel ring as shown in diagram.

4. With Spindle Seal installed, make sure spindle nut is properly tightened. If nut (and hub) is loose, Spindle Seal wont function properly. If excessive grease leakage continues after properly tightening spindle nut, check components for wear or damage. If the problem still cant be located, contact the factory.

5. Kits 1 and 5 come with a wire ring inside the stainless steel ring that provides extra support to the ring. In some cases, it may be difficult to insert the cotter pin after these kits have been installed. If the hub moves outward on the spindle such that a cotter pin cannot be inserted through the spindles castellated nut, either (1) shorten the length of the nut (2) file a deeper groove on the nut or (3) purchase a thinner cotter pin.
