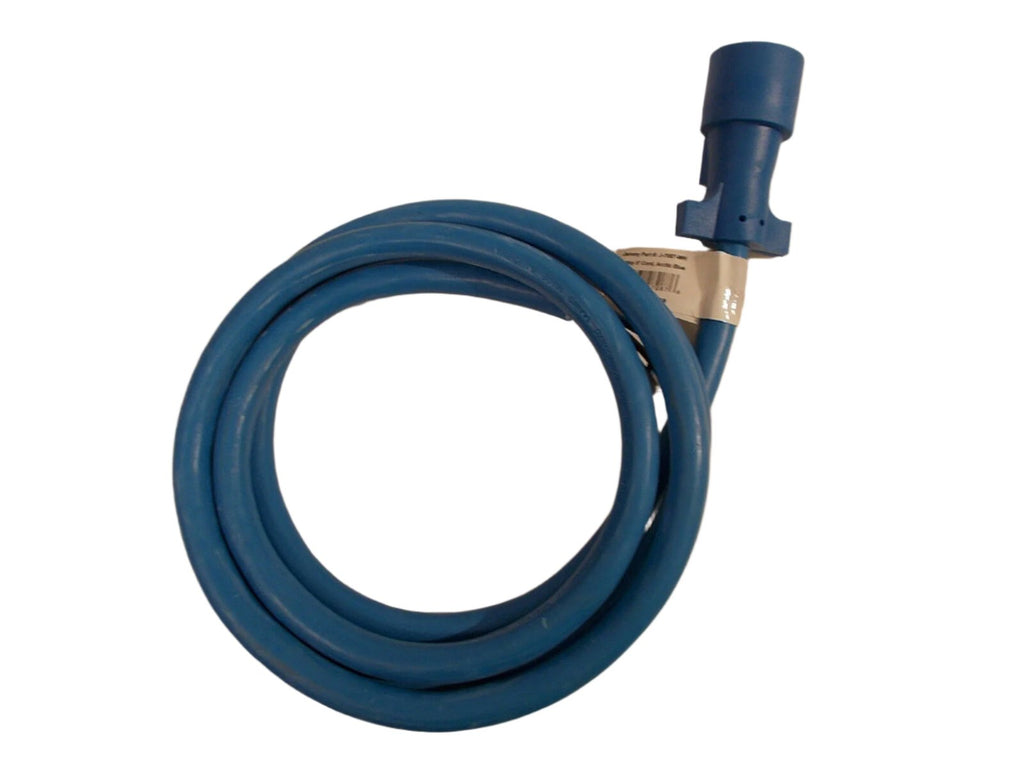

8 Foot Long, 7 Way
DOUBLE BLADE BRASS CONTACTS!
This is an 8' Cord
We also have these cords in various different sizes, click here to see!

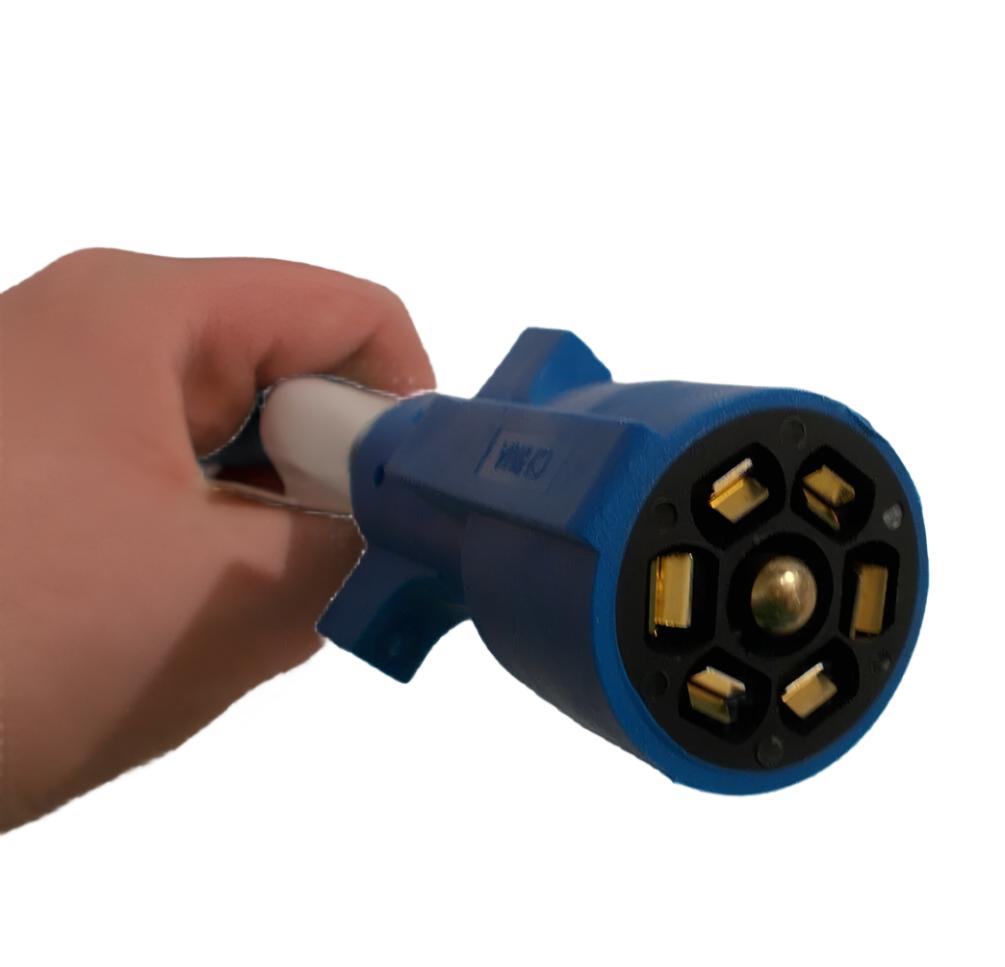

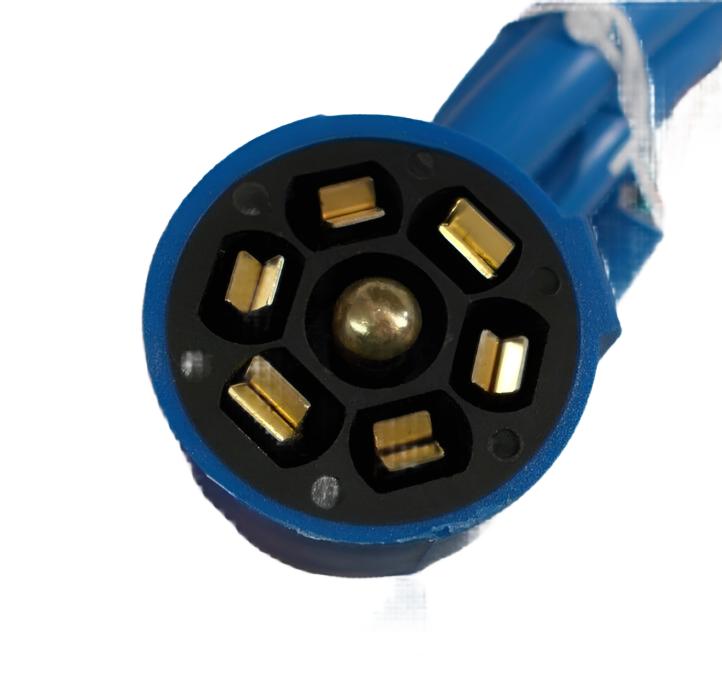

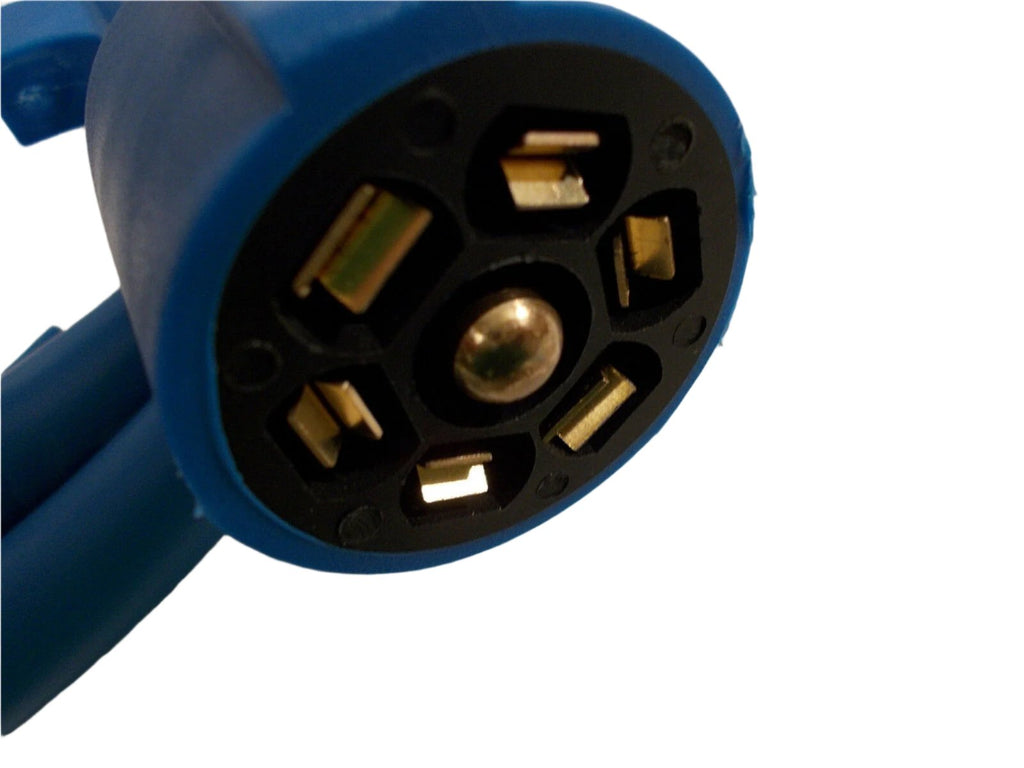

Double Contact Self cleaning 7 way plug
Rated for cold weather application from -40 to 105 Degrees Celsius

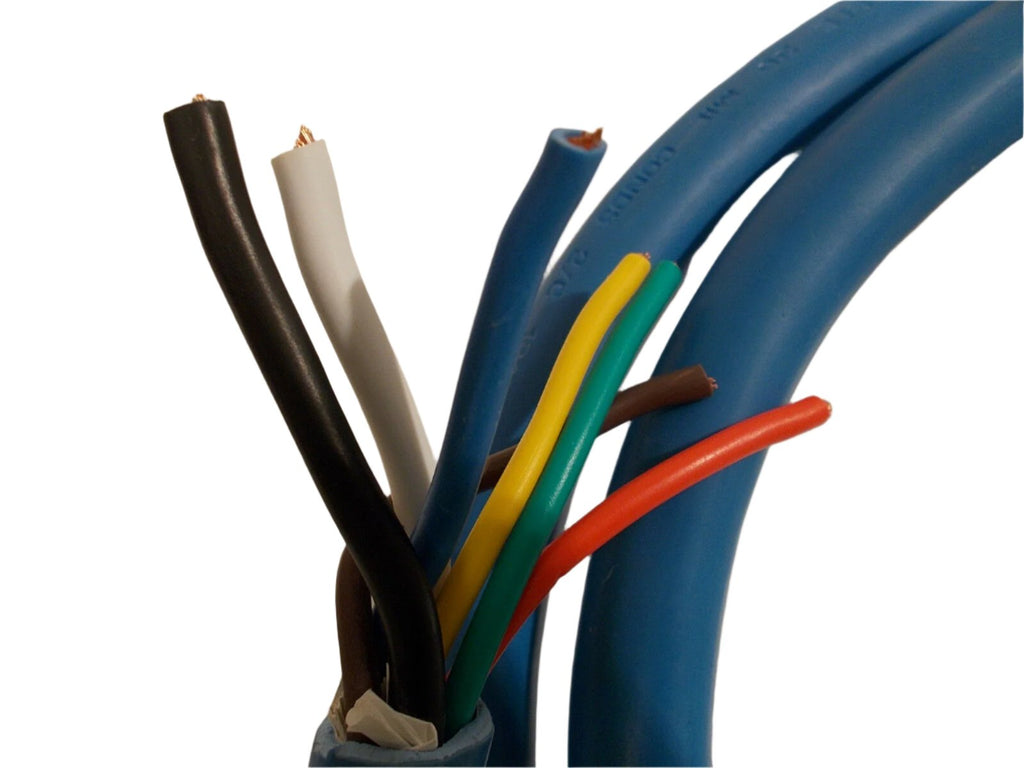

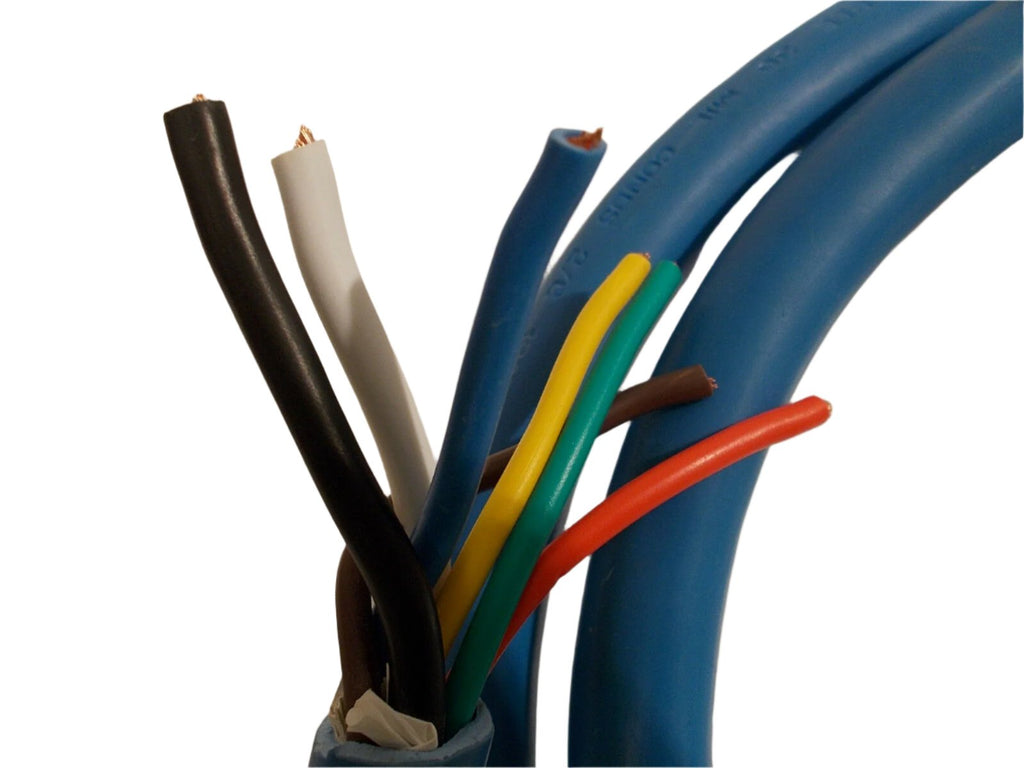

Heavy Duty Gauge Wires:
- 2x 10 AWG (White (ground) and Black( 12V POS),
- 1x 12 AWG (Blue), (Electric Brake)
- 4x 14 AWG -Red (left stop), Green (Marker light), Brown (right Stop), Yellow, (Back up)
Need help sorting out the wire colors? Click here for help!
Please contact us if you have wire questions, we are a full service trailer repair shop, so we re-wire trailers daily! And remember, you can not depend on wire colors alone, you should test your particular trailer wire system. we offer phone assistance, but can not be responsible for improper wiring done by the customer..

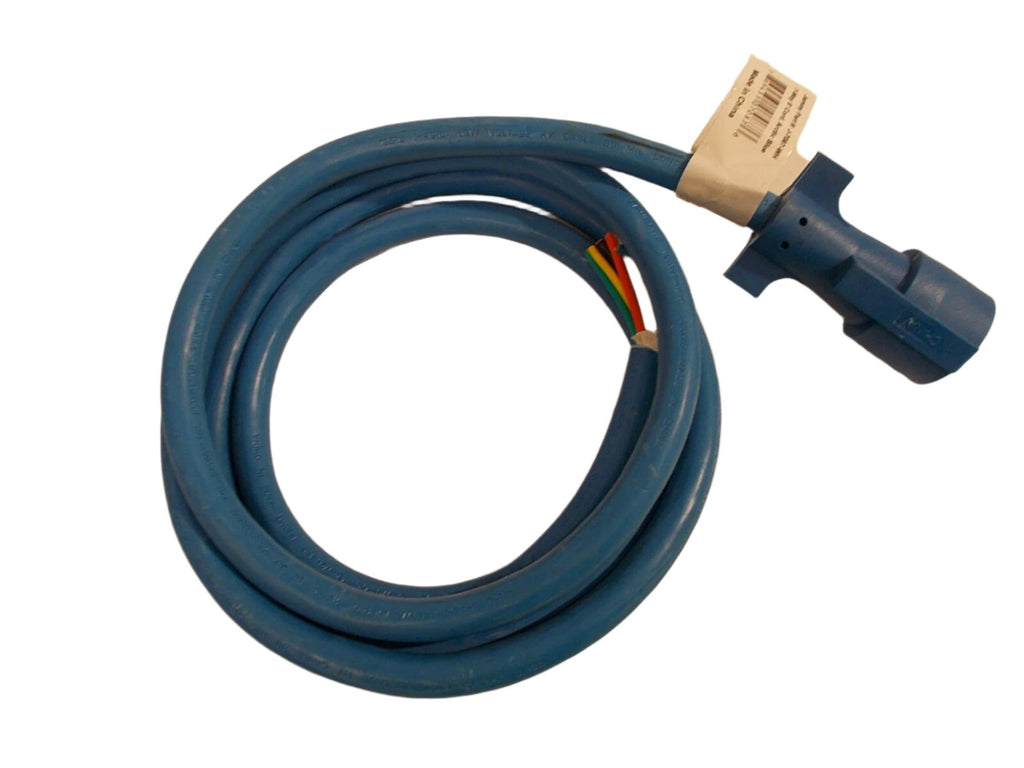

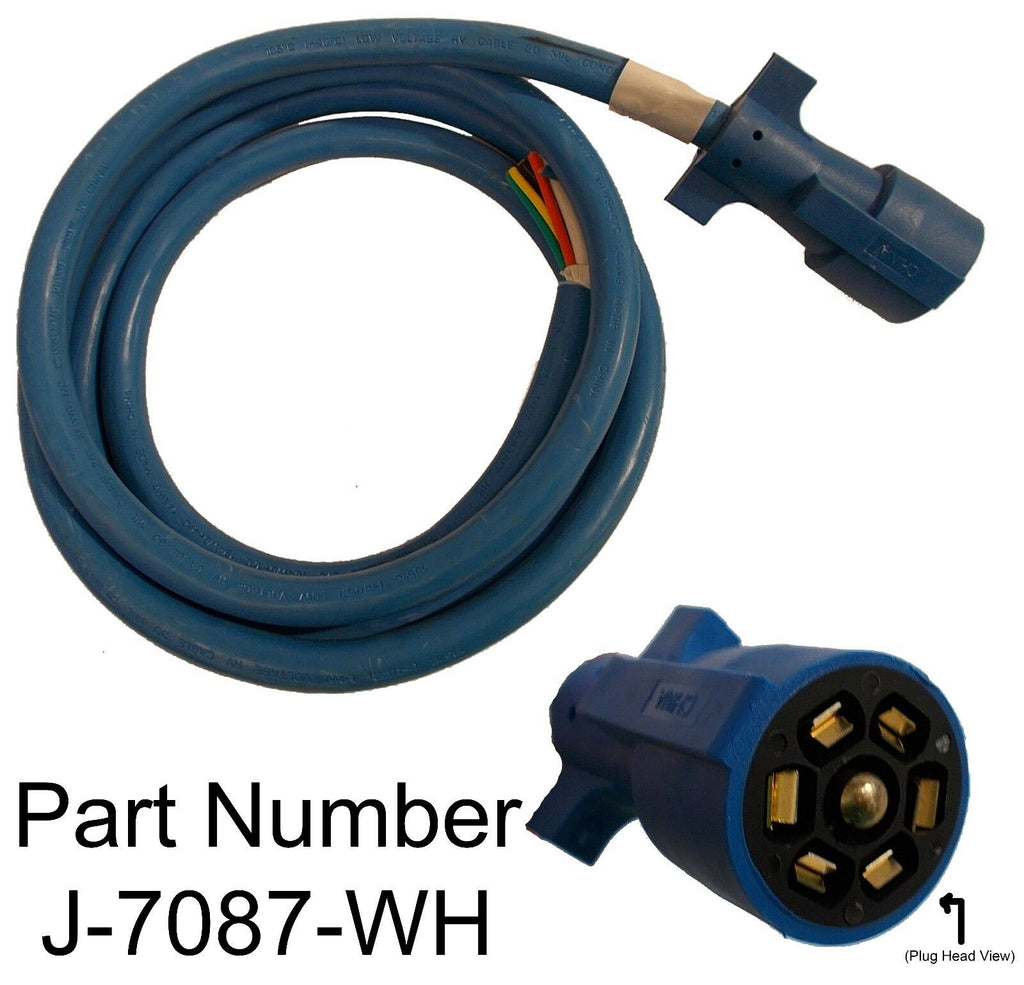

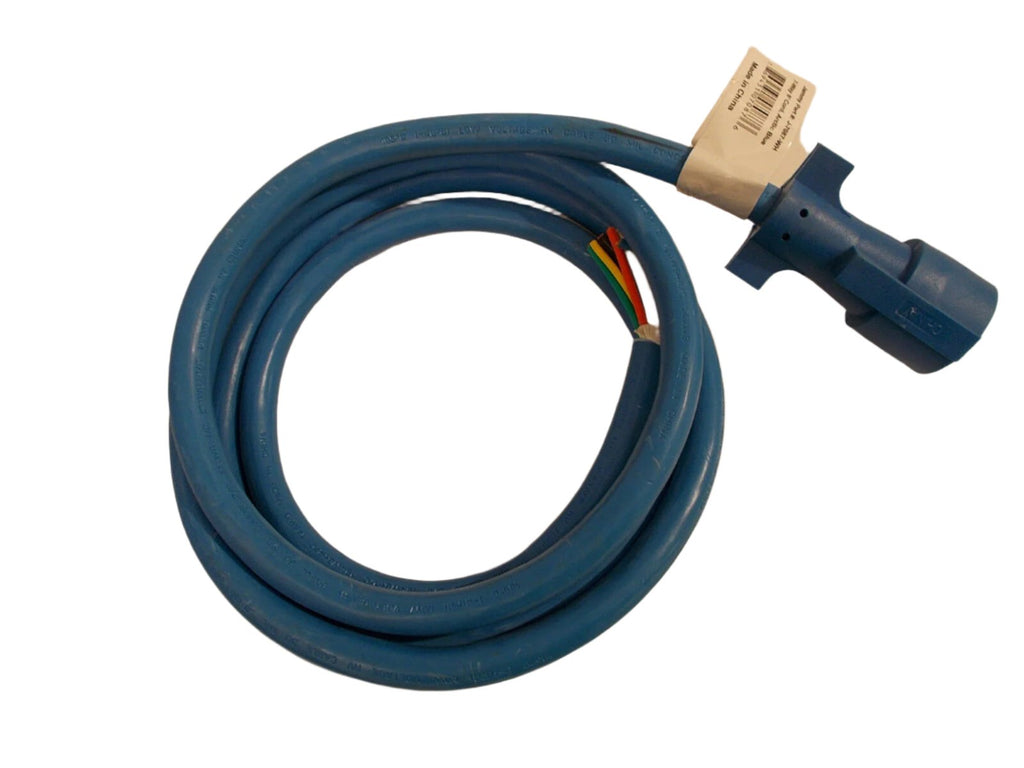

Trailer Connector RV Style 7-Way Blade with molded lead.
- Pre-wired 7-Way Trailer Connector
- length is including connector

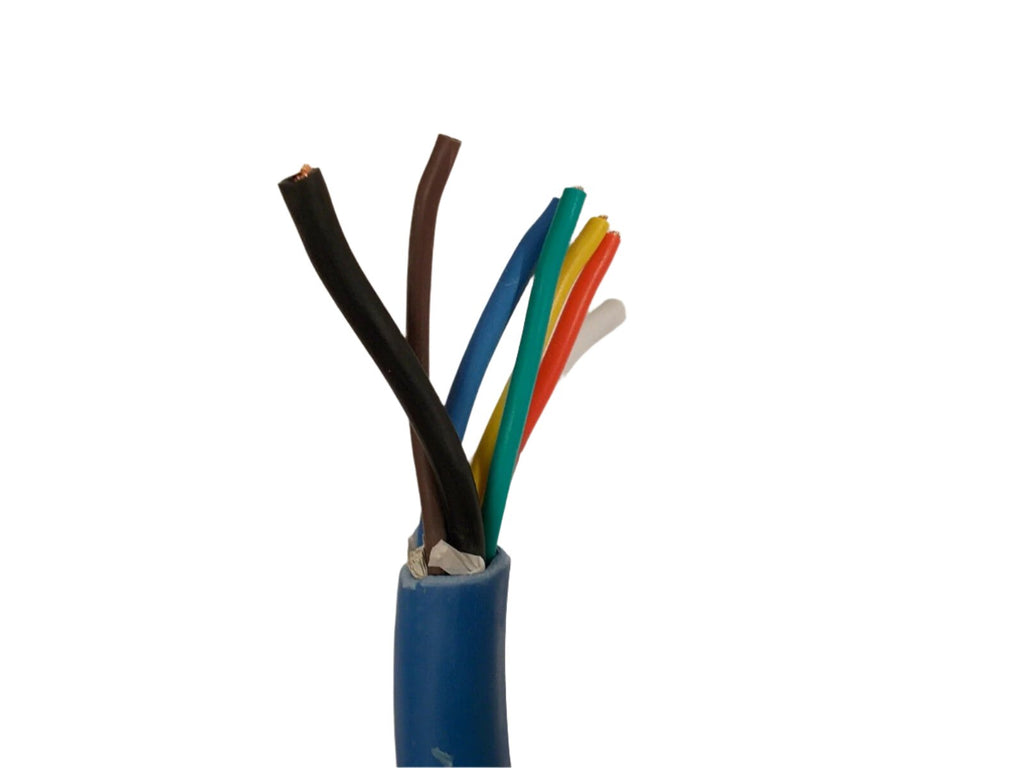

- Wire gauges:
- 14 gauge - red, brown, green, and yellow
- 12 gauge - Blue
- 10 gauge - White and Black

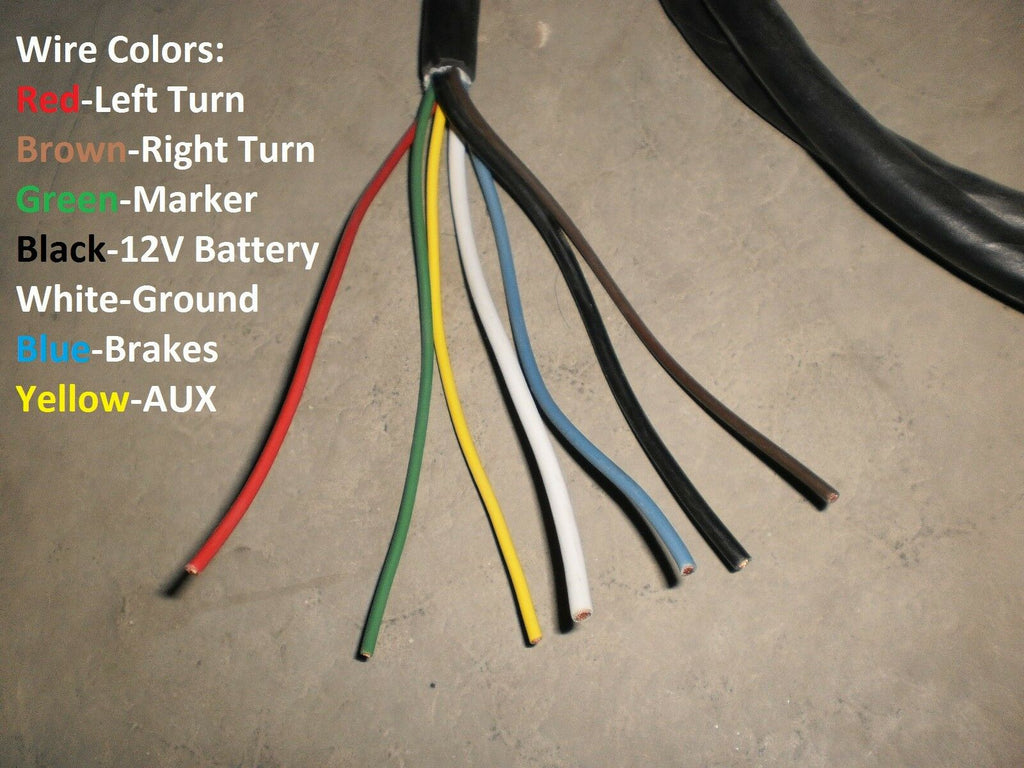

||Usual Trailer Wire|
|White Wire||Ground||White Wire|
|Red Wire||Left Turn and Brake||Yellow Wire|
|Brown Wire||Right Turn and Brake||Green Wire|
|Green Wire||Tail Lights||Brown Wire|
|Blue Wire||Brake Power||Blue Wire|
|Black Wire||12 volt (hot lead)||Black Wire|
