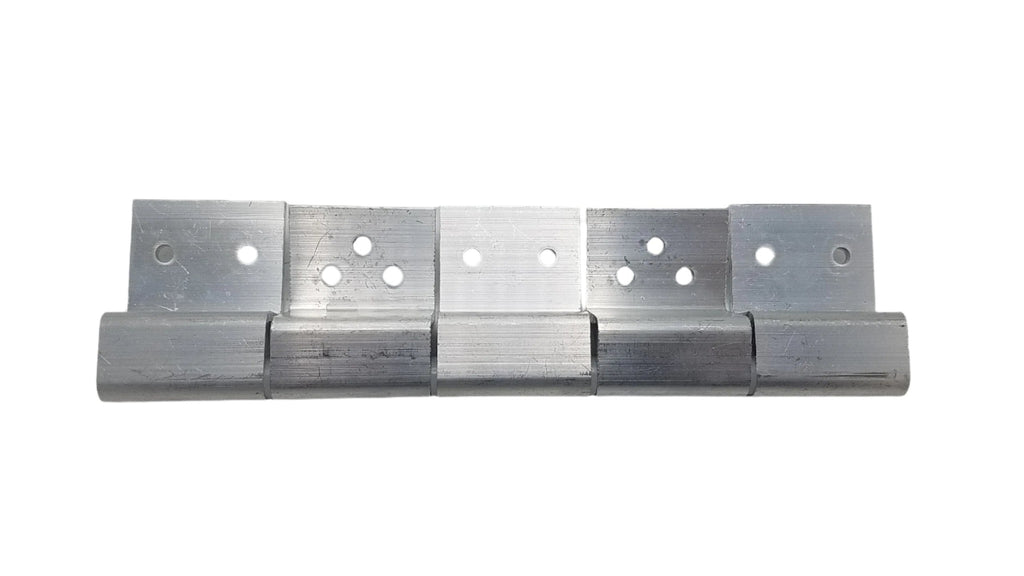

Jammy 5 -Leaf Aluminum RV / Camper Door Hinge – Raw Finish - Stainless Pin w/ Nylon Washers
Replacement-style aluminum exterior door hinge for RV, camper, toy hauler, and similar trailer-style door applications where the hinge length, offset, hole pattern, and door clearance match.
Overview
This R&P Carriages aluminum RV and camper door hinge is designed for exterior entry doors on campers, toy haulers, recreational vehicles, and similar trailer-style door applications. The five-leaf design provides extended support across the hinge body while helping maintain smooth door movement during normal use. This listing is for one aluminum five-leaf door hinge only.
R&P Service Insight
Door hinges should be matched carefully before replacement. Small differences in length, offset, and mounting pattern can affect door alignment, seal contact, and swing clearance.

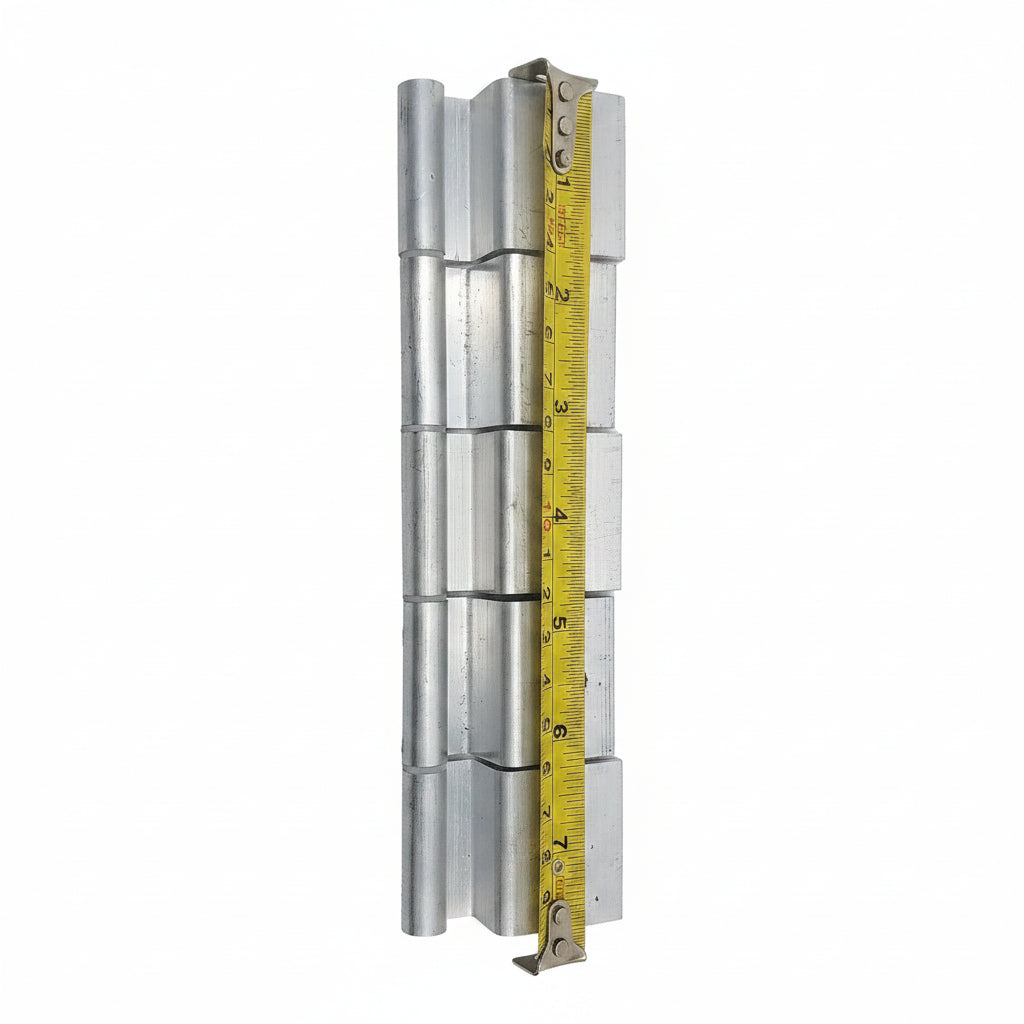

- Measure Length: Verify the 7-3/4" overall hinge length against your existing hinge.
- Check Offset: This hinge has a 4 mm / 0.157" offset between leaf styles.
- Confirm Clearance: Make sure the hinge profile and swing clearance match your door and frame.
R&P Knowledge Hub
Compatibility: Commonly used on RV, camper, toy hauler, and similar exterior door applications where measurements and mounting pattern match.
Vehicle / System Fit: Application reference includes Challenger RV camper doors and similar hinge-style door installations.
Installation Notes: Verify hinge length, hole pattern, leaf offset, and door clearance before installation.
Performance Insight: The aluminum body, stainless steel center pin, and nylon washers are intended to support durable, smooth door operation.
Brand & Fitment Note
Selling Brand: R&P Carriages replacement RV door hardware.
Application Reference: Common on Challenger RV camper doors and similar RV/camper door applications where dimensions, offset, mounting points, and door clearance match.
What This Means: This listing is for one aluminum five-leaf door hinge only. Any vehicle, RV, camper, or platform references describe application fitment only.
Before Ordering: Compare your existing hinge measurements and mounting pattern to the specifications shown here.
R&P Repair Insight
When replacing an RV or camper door hinge, check the door for sagging, binding, worn fastener holes, or frame movement. A new hinge works best when the door and mounting surface are still square and properly supported.
- Door Alignment: Check whether the door closes evenly before and after hinge replacement.
- Fastener Condition: Inspect old screw or bolt holes for wallowing, stripping, or corrosion.
- Seal Contact: Make sure the door seal still compresses properly after the new hinge is installed.
Features

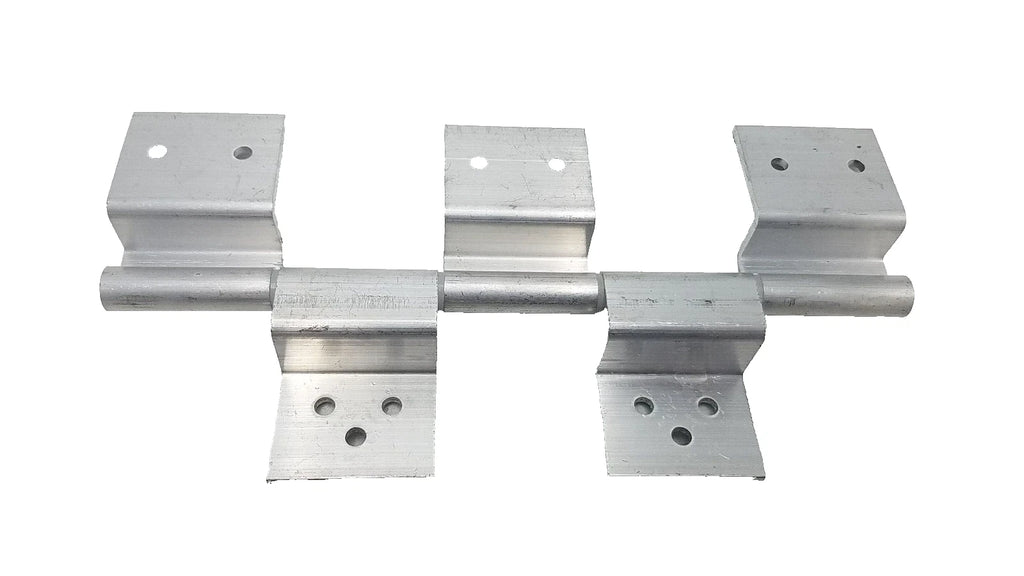

Five-Leaf Construction
Designed with a five-leaf hinge layout for stable support across RV and camper entry door applications.
Aluminum Body
Raw aluminum finish provides a clean replacement appearance for many camper and RV door installations.
Stainless Steel Center Pin
The hinge uses a stainless steel center pin for dependable pivot support during normal door movement.
Nylon Washers
Nylon washers help support smoother movement during normal door opening and closing.
Specifications
| Specification | Detail |
|---|---|
| Part Number | TALH5R |
| Listing SKU | TALH5R |
| Brand | R&P Carriages replacement RV door hardware |
| Product Type | RV / Camper Door Hinge |
| Quantity Included | 1 Hinge |
| Application | RV, camper, toy hauler, and recreational vehicle exterior doors |
| Material / Finish | Aluminum / Raw Aluminum Finish |
| Pin Material | Stainless Steel |
| Washer Material | Nylon |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / System | RV, camper, toy hauler, and trailer-style exterior doors |
| Primary Fit | Exterior entry door hinge replacement where measurements match |
| Secondary Fit / Common Uses | Common on Challenger RV camper doors and similar applications |
| Notes | Verify hinge length, hole pattern, leaf offset, and door clearance before installation. |

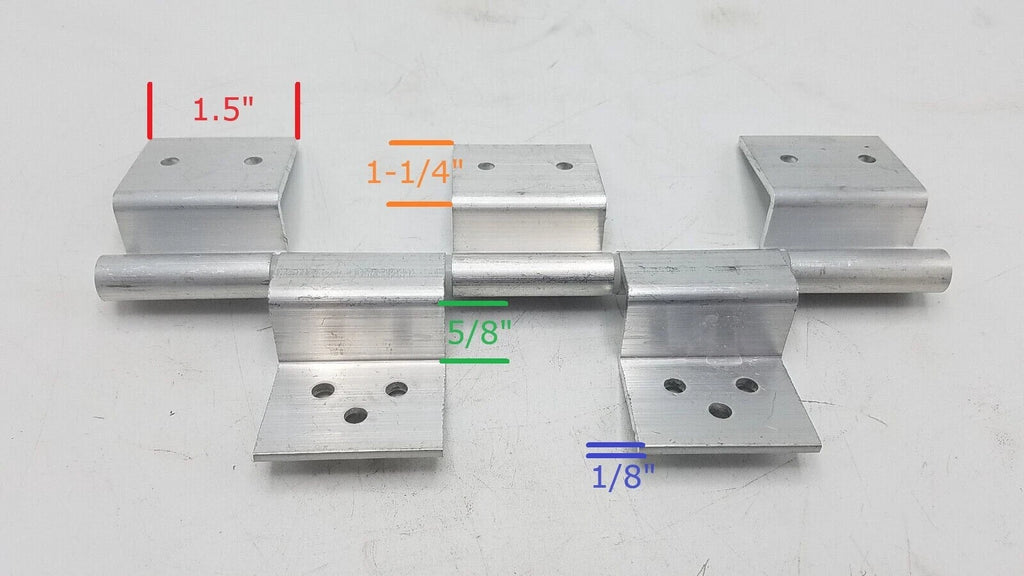

Detailed Measurements
| Key Dimension | Measurement |
|---|---|
| Overall Length | 7-3/4" |
| Hinge Style | Five Leaf |
| Leaf Offset | 4 mm / 0.157" offset between leaf styles |
| Mounting Pattern | Verify against existing hinge before ordering |
Included Components
| Quantity | Item |
|---|---|
| 1 | Aluminum 7-3/4" RV / Camper Door Hinge |
| Not Included | Mounting hardware is not included unless otherwise stated. |
