Match the part number, measurements and connection points that apply to your trailer.
| Hub Face | Measure hub face to hub face. |
|---|---|
| Spring Center | Measure mounting centers and confirm perch configuration. |
| Capacity | Match the required axle rating. |
| Brakes | Confirm brake type and flange configuration. |
Part Number: 072-080-00

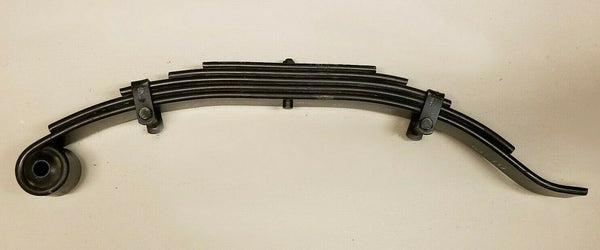

Slipper-style trailer leaf spring designed for heavy-duty trailer suspension systems. This spring features a five-leaf construction and is commonly used on trailers equipped with 10,000 lb axle applications where 2-1/2" wide slipper springs are specified.
| Spring Type | Slipper leaf spring |
| Leaf Count | 5 |
| Spring Width | 2-1/2" |
| Overall Length | 32" |
| Axle Application | 10,000 lb trailer axles |
| Spring Capacity | 5,000 lb per spring |
| Eye Diameter (with Bushing) | 3/4" |
| Bushing Outside Diameter | 2" |
This listing is for one slipper leaf spring. Verify spring dimensions, capacity, and hanger configuration before installation.
